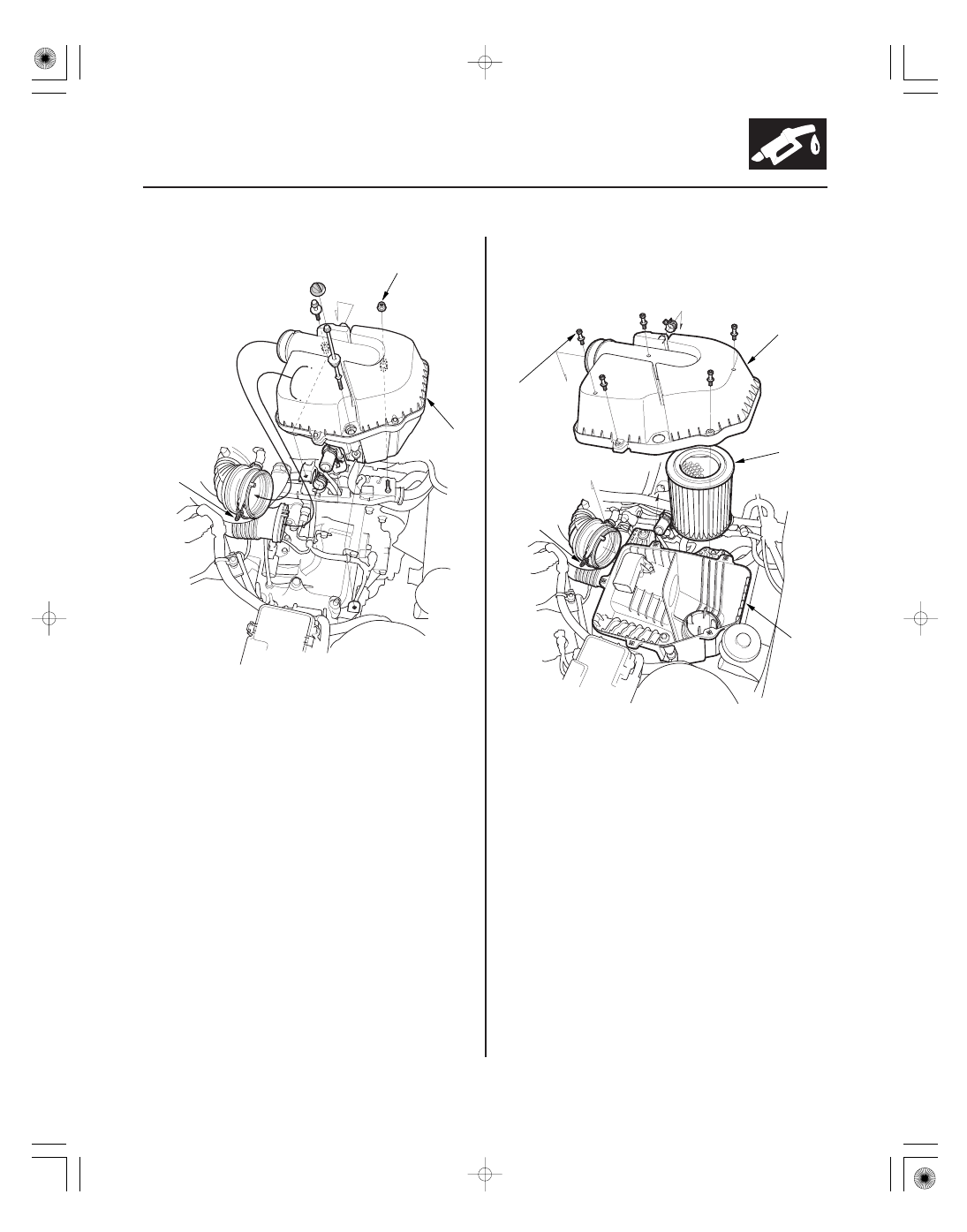

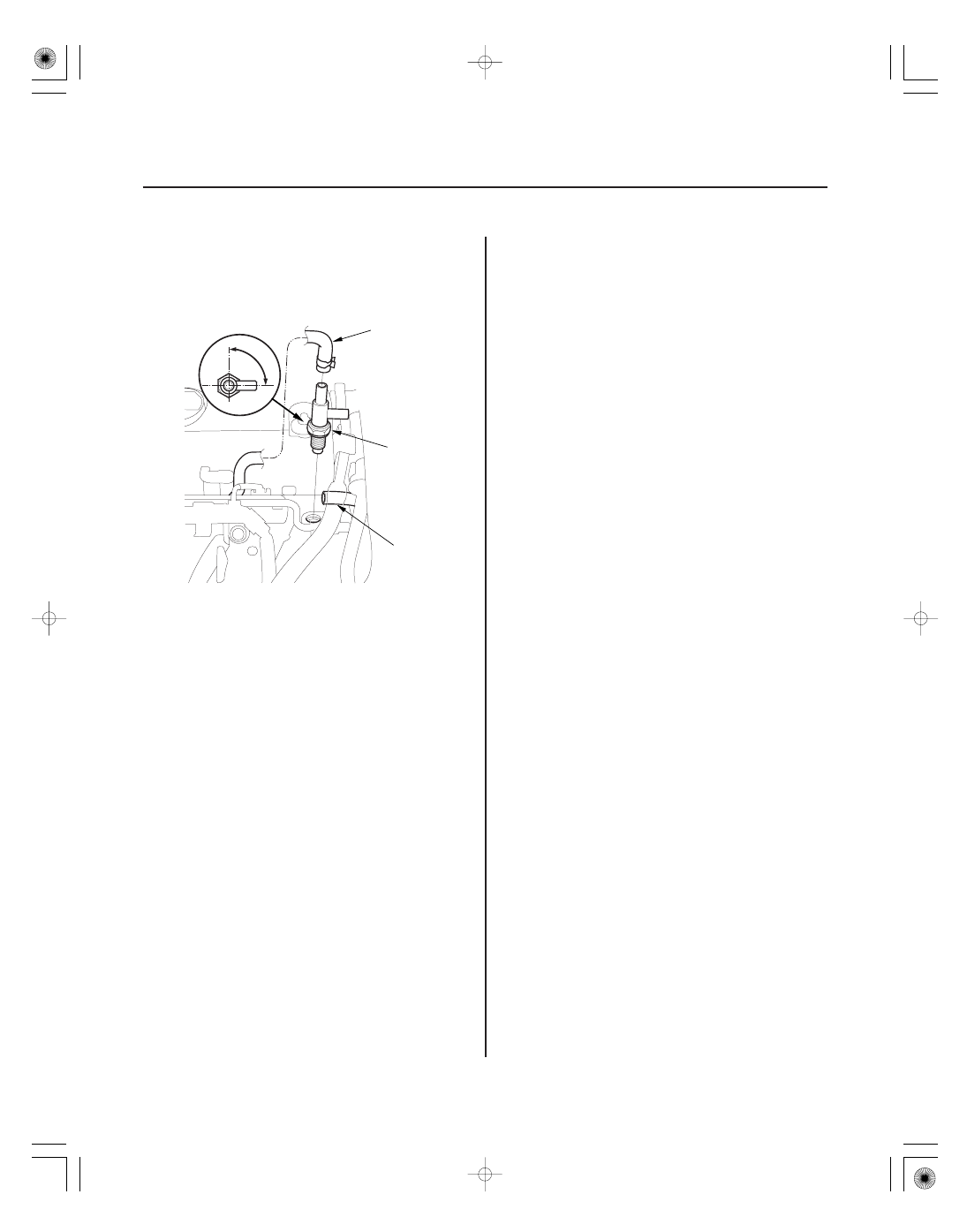

01 S6M6A00A20336334854KBAT00 11-406 Intake Air System Intake Air Bypass Control Thermal Valve Replacement A B A 1. Remove the intake manifold cover, K20A3 engine (see step 1 on page 9-3), K20A2/K20Z1 engines (see 2. Disconnect the hoses (A). 3. Remove the intake air bypass control thermal valve (B). 4. Install the valve in the reverse order of removal. NOTE: Position the valve angle as shown. 05/06/27 17:42:34 61S6M040_110_0406 |
