Acura RSX Honda Integra. Manual - part 153

−

YES

11-318

VTEC/VTC

DTC Troubleshooting (cont’d)

17. Monitor the OBD STATUS for DTC P2648 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, go to step 1

and recheck. If the screen indicates NOT
COMPLETED, go to step 15 and recheck.

18. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

19. Do the VTEC TEST in the INSPECTION MENU with

the HDS.

20. Check for Temporary DTCs or DTCs with the HDS.

If DTC P2648 is indicated, check for poor

connections or loose terminals at the rocker arm oil
control solenoid (VTEC solenoid valve) and the
ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Does the scr een indicate PASSED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:40:19 61S6M040_110_0318

−

＊０１

＊０２

＊０３

Ｓ６Ｍ６ＡＡＬＫ７２１０００９２６４９ＦＡＡＴ００

−

DTC P2649:

YES

11-319

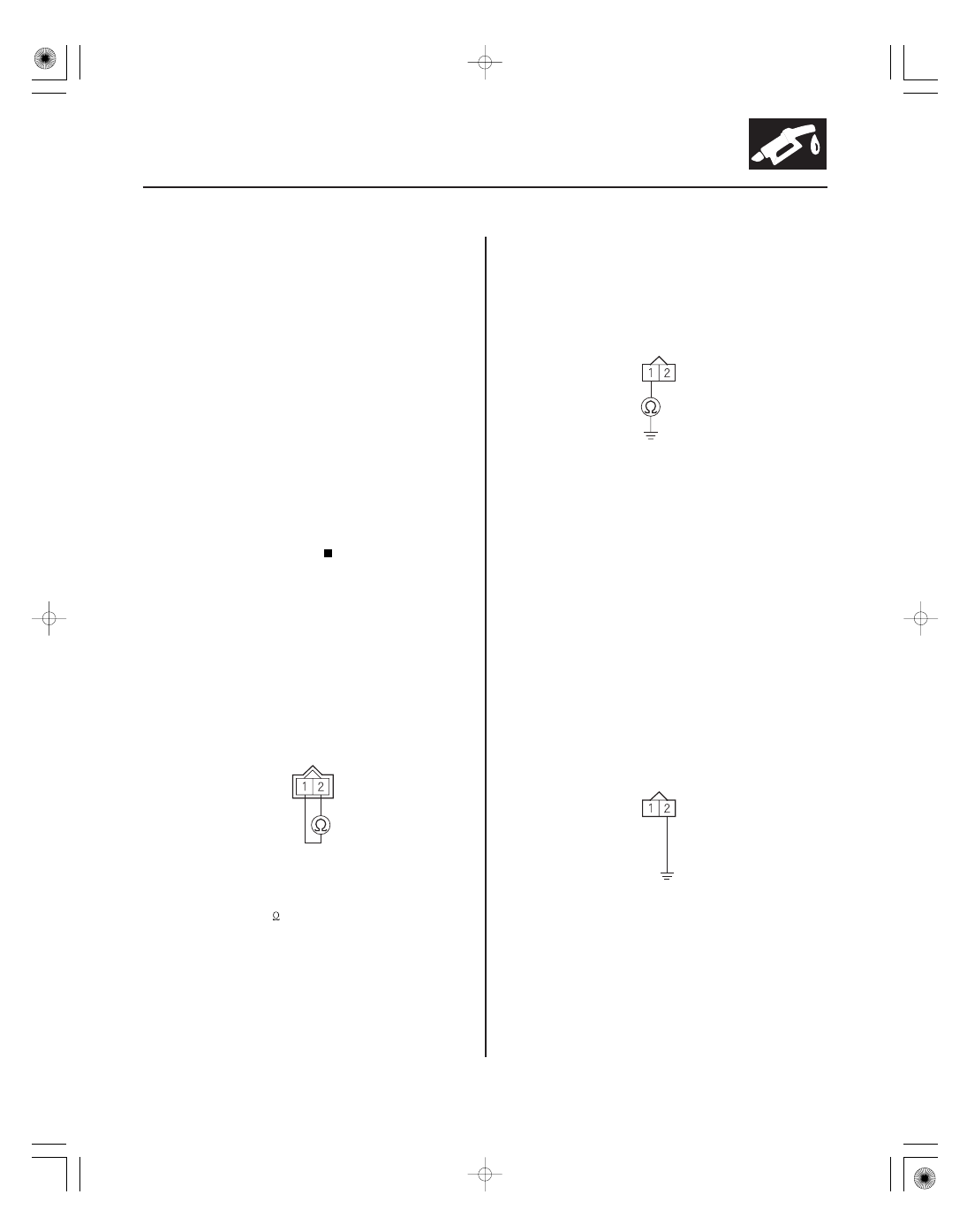

ROCKER ARM OIL CONTROL SOLENOID
(VTEC SOLENOID VALVE) 2P CONNECTOR

GND (BLK)

ROCKER ARM OIL CONTROL SOLENOID
(VTEC SOLENOID VALVE) 2P CONNECTOR

VTS (GRN/YEL)

JUMPER WIRE

ROCKER ARM OIL CONTROL SOLENOID
(VTEC SOLENOID VALVE) 2P CONNECTOR

Rocker Arm Oil Control Solenoid

(VTEC Solenoid Valve) Circuit High Voltage
(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the rocker arm oil control solenoid (VTEC solenoid
valve) and the ECM/PCM.

5. Turn the ignition switch OFF.

6. Disconnect the rocker arm oil control solenoid

(VTEC solenoid valve) 2P connector.

7. Measure resistance between rocker arm oil control

solenoid (VTEC solenoid valve) 2P connector
terminals No. 1 and No. 2.

Go to step 8.

Go to step 13.

8. Check for continuity between rocker arm oil control

solenoid (VTEC solenoid valve) 2P connector
terminal No. 1 and body ground.

Go to step 9.

Repair open in the wire between the rocker

arm oil control solenoid (VTEC solenoid valve) and
G101, then go to step 14.

9. Jump the SCS line with the HDS.

10. Disconnect ECM/PCM connector B (24P).

11. Connect rocker arm oil control solenoid (VTEC

solenoid valve) 2P connector terminal No. 2 to
body ground with a jumper wire.

(cont’d)

Terminal side of male terminals

Wire side of female terminals

Is DT C P2649 indicated?

Is ther e 14

at r oom temper atur e?

Is ther e continuity?

05/06/27 17:40:19 61S6M040_110_0319

０４

−

YES

11-320

VTEC/VTC

DTC Troubleshooting (cont’d)

ECM/PCM CONNECTOR B (24P)

VTS (GRN/YEL)

12. Check for continuity between ECM/PCM connector

terminal B6 and body ground.

Go to step 20

Repair open in the wire between the ECM/

PCM (B6) and the rocker arm oil control solenoid
(VTEC solenoid valve), then go to step 14.

13. Replace the rocker arm oil control solenoid (VTEC

solenoid valve) (see page 11-324).

14. Reconnect all connectors.

15. Turn the ignition switch ON (II).

16. Reset the ECM/PCM with the HDS.

17. Do the ECM/PCM idle learn procedure (see page

11-349).

18. Check for Temporary DTCs or DTCs with the HDS.

If DTC P2649 is indicated, check for poor

Go to step 19.

19. Monitor the OBD STATUS for DTC P2649 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, go to step 1

and recheck. If the screen indicates NOT
COMPLETED, go to step 17 and recheck.

20. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

21. Check for Temporary DTCs or DTCs with the HDS.

If DTC P2647 is indicated, check for poor

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Is ther e continuity?

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:40:19 61S6M040_110_0320

０１

＊０１

＊０２

Ｓ６Ｍ６Ａ００Ａ１４６８０４６３３６５ＦＪＡＴ００

Close

Open

11-321

VTC Oil Control Solenoid Valve Removal/Test/Installation

A
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

Three Filter Screen Valve

One Filter Screen Valve

Three Filter Screen Valve

1. Disconnect the VTC oil control solenoid valve 2P

connector.

2. Remove the bolt (A) and the VTC oil control

solenoid valve (B).

3. Check the VTC oil control solenoid valve strainer

for clogging. If the strainer is clogged, replace the
VTC oil control solenoid valve.

4. Note the amount of valve opening by observing the

position of the piston shoulder (A) through the
valve retard drain port. If you see the shoulder of
the piston, the valve is open and must be replaced.

(cont’d)

05/06/27 17:40:20 61S6M040_110_0321
