Acura RSX Honda Integra. Manual - part 99

０２

０１

−

YES

11-102

PGM-FI System

DTC Troubleshooting (cont’d)

ECM/PCM CONNECTOR A (31P)

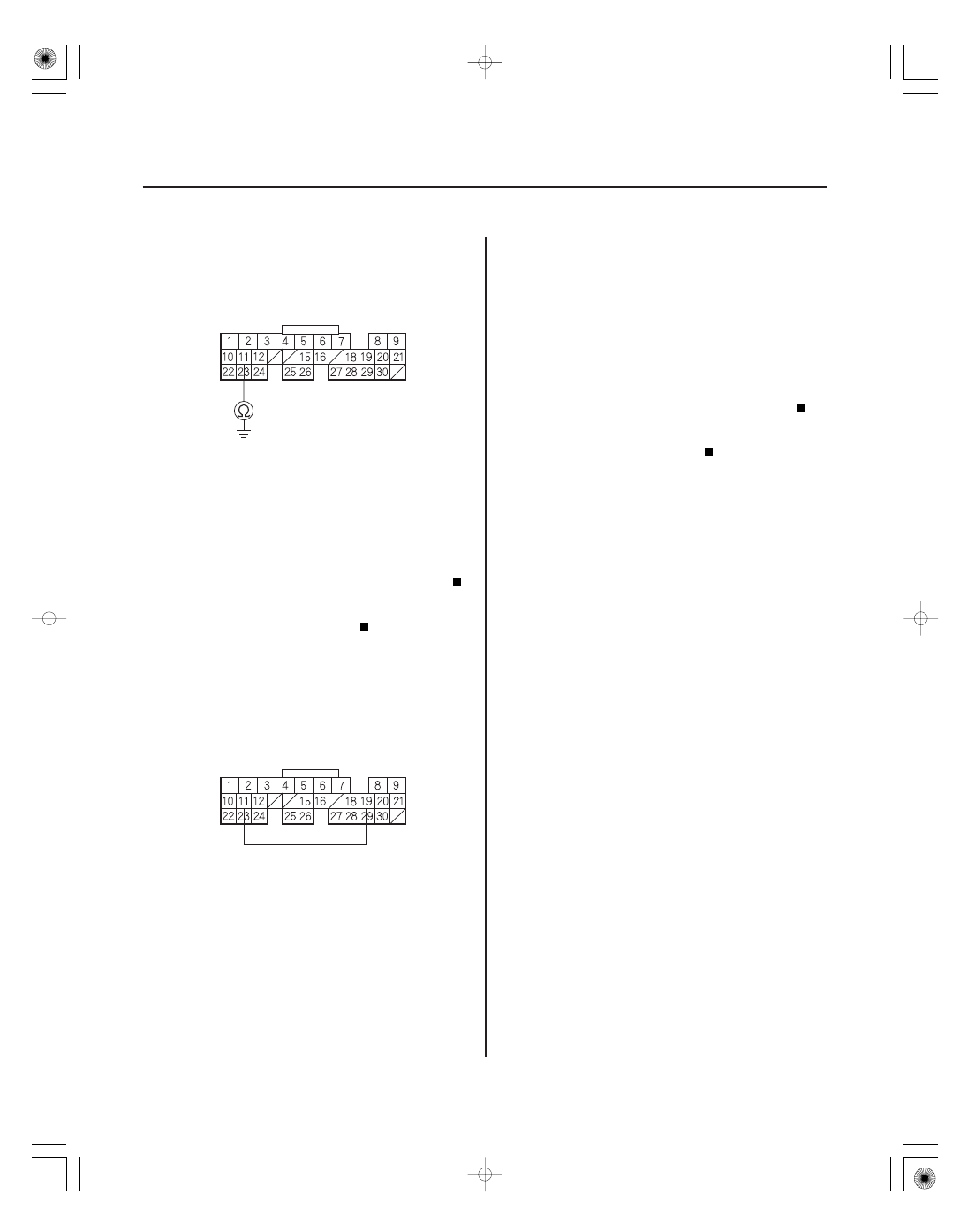

SG1
(GRN/WHT)

ECM/PCM CONNECTOR A (31P)

MAP
(GRN/RED)

SG1
(GRN/WHT)

JUMPER WIRE

13. Check for continuity between ECM/PCM connector

terminal A11 and body ground.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Repair open in the wire between the ECM/

PCM (A11) and the MAP sensor.

14. Turn the ignition switch OFF.

15. Connect ECM/PCM connector terminals A11 and

A19 with a jumper wire.

16. Turn the ignition switch ON (II).

17. Check the MAP with a scan tool or the HDS.

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Repair open in the wire between the ECM/

PCM (A19) and the MAP sensor.

Wire side of female terminals

Is ther e continuity?

Is mor e than 101 kPa ( 30 in.Hg, 7 60 mmHg), or
mor e than 2.9 V indicated?

05/06/27 17:33:37 61S6M040_110_0102

０１

０２

０３

Ｓ６Ｍ６ＡＡＬＫ７２１０００９０１０８ＦＡＡＴ００

−

DTC P0108:

YES

11-103

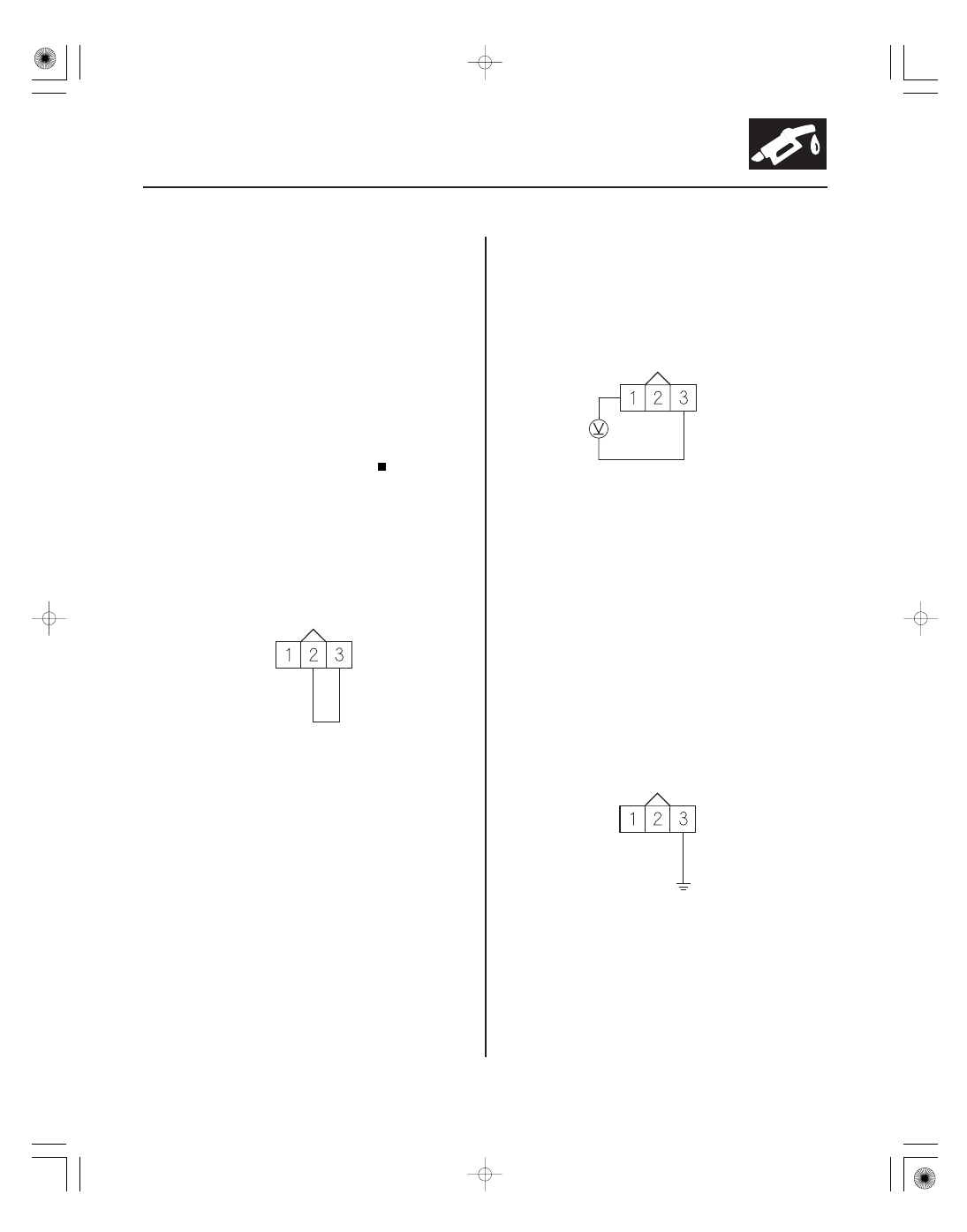

MAP SENSOR 3P CONNECTOR

MAP
(GRN/RED)

SG1
(GRN/WHT)

JUMPER WIRE

MAP SENSOR 3P CONNECTOR

VCC1
(YEL/RED)

SG1
(GRN/WHT)

MAP SENSOR 3P CONNECTOR

SG1
(GRN/WHT)

JUMPER WIRE

MAP Sensor Circuit High Voltage

(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Check the MAP SENSOR in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the MAP sensor and the ECM/PCM.

3. Turn the ignition switch OFF.

4. Disconnect the MAP sensor 3P connector.

5. Connect MAP sensor 3P connector terminals No. 2

and No. 3 with a jumper wire.

6. Turn the ignition switch ON (II).

7. Check the MAP SENSOR in the DATA LIST with the

HDS.

Go to step 8.

Go to step 19.

8. Remove the jumper wire from the MAP sensor 3P

connector.

9. Measure voltage between MAP sensor 3P

connector terminals No. 1 and No. 3.

Go to step 15.

Go to step 10.

10. Turn the ignition switch OFF.

11. Jump the SCS line with the HDS.

12. Disconnect ECM/PCM connector A (31P).

13. Connect MAP sensor 3P connector terminal No. 3

to body ground with a jumper wire.

(cont’d)

Wire side of female terminals

Is 160 kPa ( 47 .1 in.Hg, 1,197 mmHg), 4.49 V or
mor e indicated?

Is ther e about 5 V ?

05/06/27 17:33:37 61S6M040_110_0103

０４

０５

−

YES

11-104

PGM-FI System

DTC Troubleshooting (cont’d)

SG1
(GRN/WHT)

ECM/PCM CONNECTOR A (31P)

SG1
(GRN/WHT)

ECM/PCM CONNECTOR A (31P)

MAP
(GRN/RED)

JUMPER WIRE

14. Check for continuity between ECM/PCM connector

terminal A24 and body ground.

Go to step 26.

Repair open in the wire between the ECM/

PCM (A24) and the MAP sensor, then go to step 21.

15. Turn the ignition switch OFF.

16. Connect ECM/PCM connector terminals A24 and

A30 with a jumper wire.

17. Turn the ignition switch ON (II).

18. Check the MAP SENSOR in the DATA LIST with the

HDS.

Go to step 26.

Repair open in the wire between the ECM/

PCM (A30) and the MAP sensor, then go to step 22.

19. Turn the ignition switch OFF.

20. Replace the MAP sensor (see page 11-412).

21. Reconnect all connectors.

22. Turn the ignition switch ON (II).

23. Reset the ECM/PCM with the HDS.

24. Do the ECM/PCM idle learn procedure (see page

11-349).

25. Check for Temporary DTCs or DTCs with HDS.

If DTC P0108 is indicated, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Troubleshooting is complete.

Wire side of female terminals

Is ther e continuity?

Is 160 kPa ( 47 .1 in.Hg, 1,197 mmHg), 4.49 V or
mor e indicated?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:33:37 61S6M040_110_0104

−

YES

11-105

26. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM
(see page 11-6).

27. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0108 is indicated, check for poor

connections or loose terminals at the MAP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:33:37 61S6M040_110_0105
