Housing-to-Outer Rotor Radial Clearance
Standard (New): 0.15
0.21 mm (0.006
0.008 in.)
Service Limit:
0.23 mm (0.009 in.)
Oil Pump Installation
8-14
Engine Lubrication
Oil Pump Overhaul (cont’d)
B
A
6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
B
A
4. Check the housing-to-outer rotor radial clearance
between the outer rotor (A) and pump housing (B).
If the housing-to-outer rotor radial clearance
exceeds the service limit, replace the oil pump.
5. Inspect both rotors and the pump housing for
scoring or other damage. Replace parts, if
necessary.
6. Install the oil pump cover.
1. Install the oil pump.

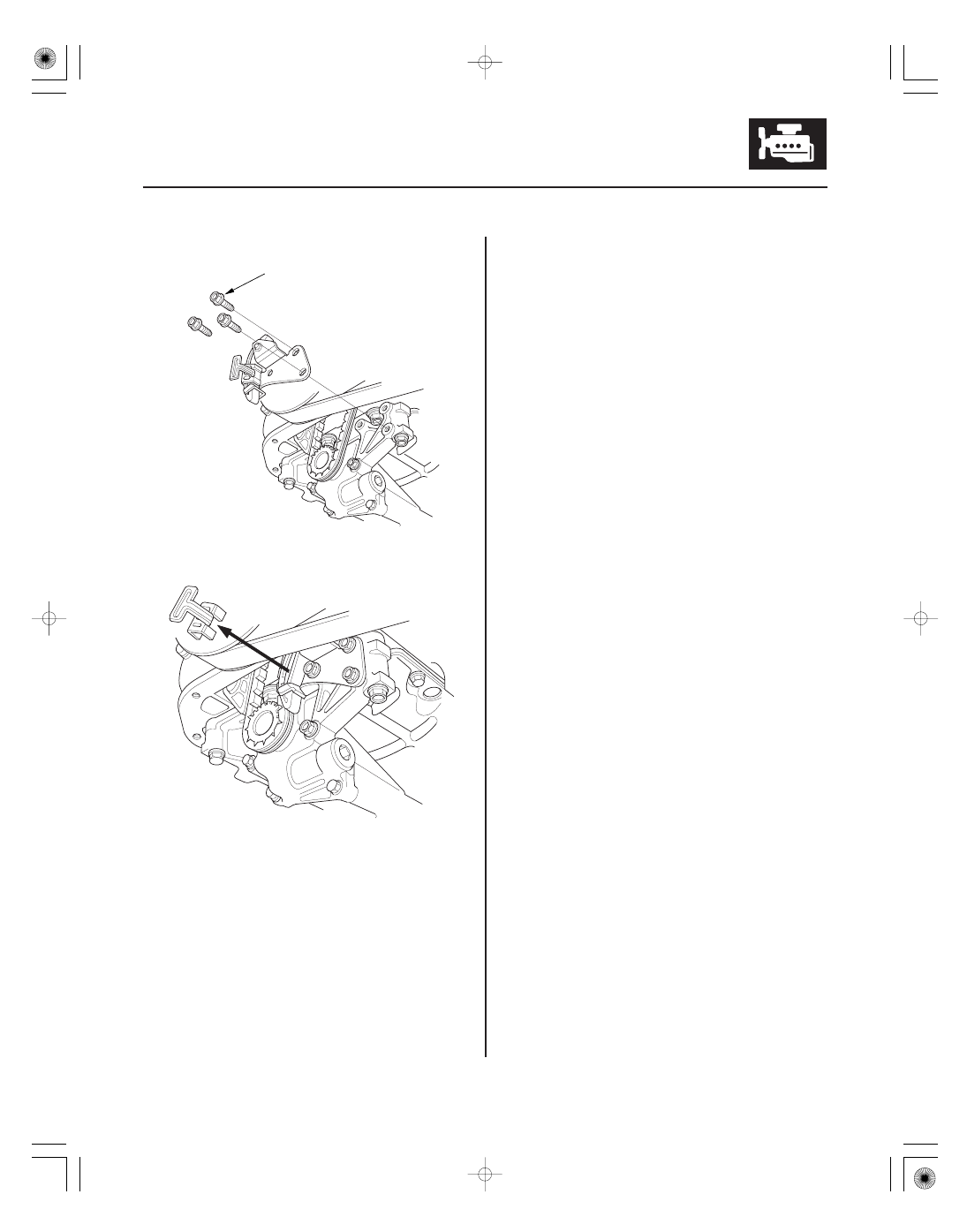

2. Squeeze the new oil pump chain tensioner (A), then
install the set clip (B) on it as shown.
NOTE: The set clip is supplied with the oil pump
chain tensioner.
