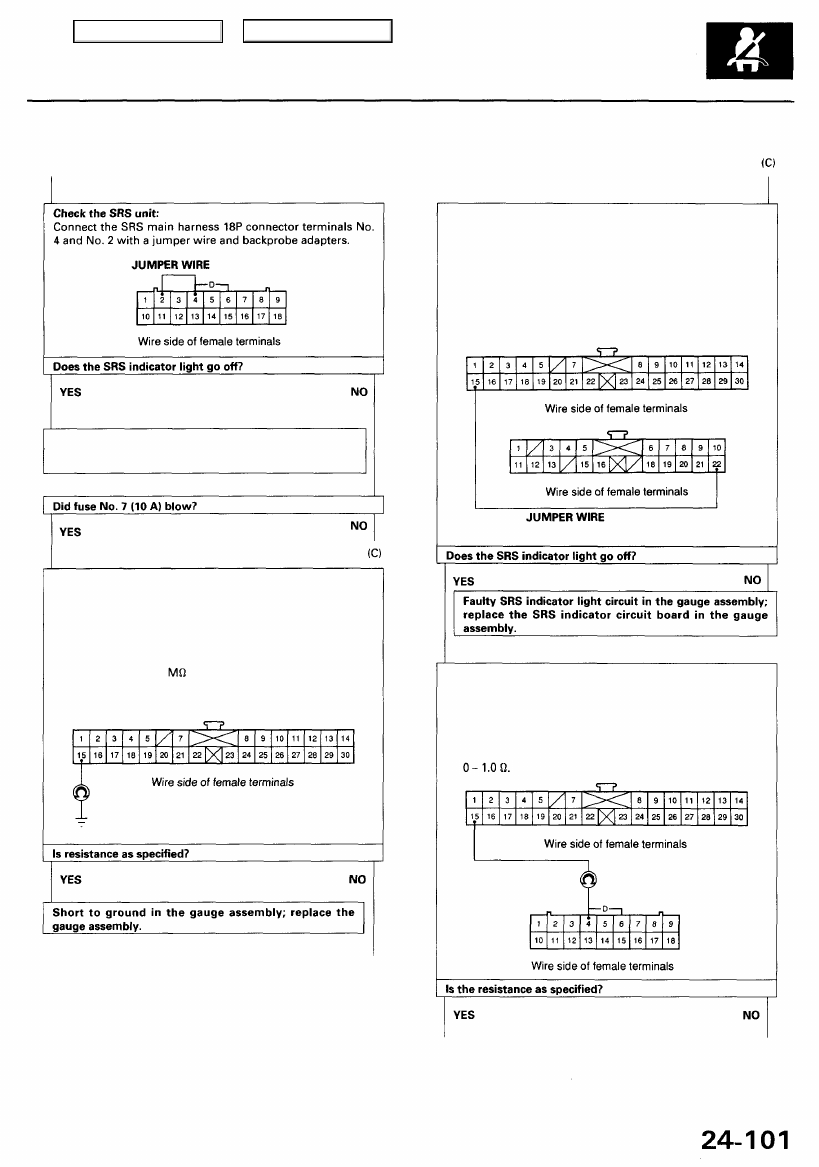

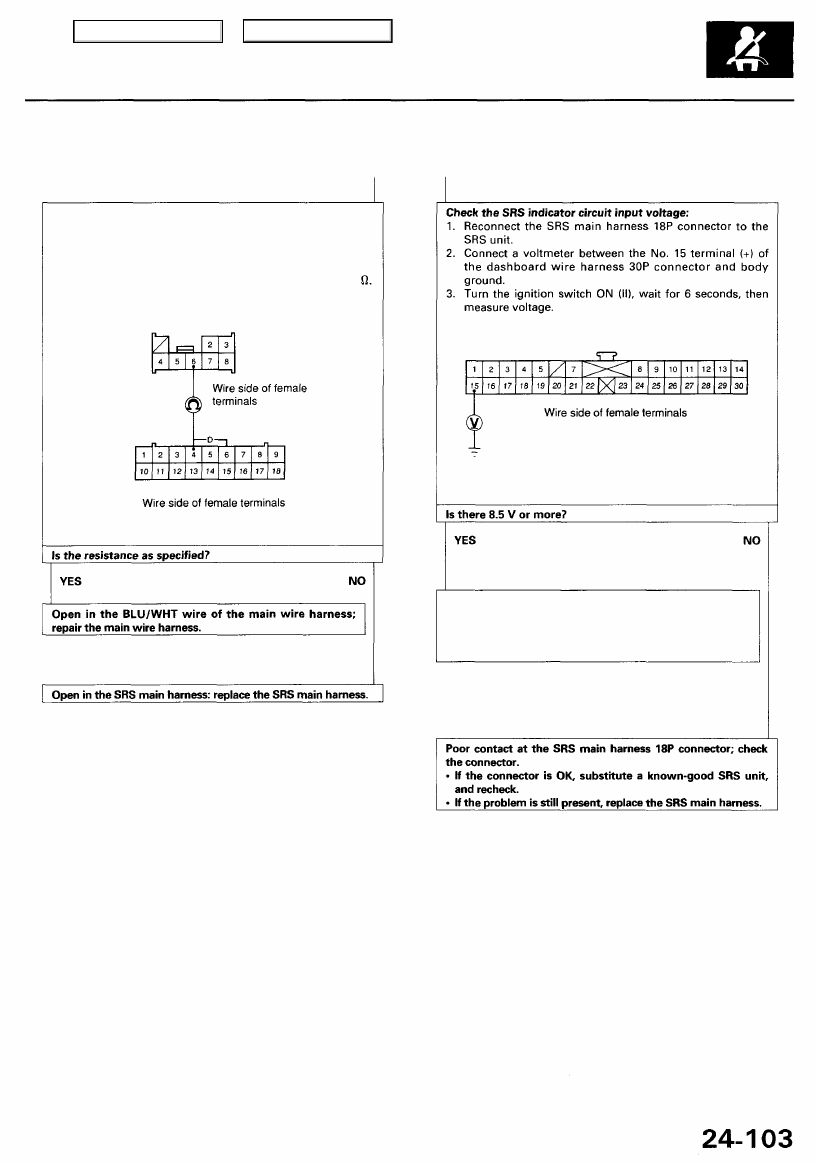

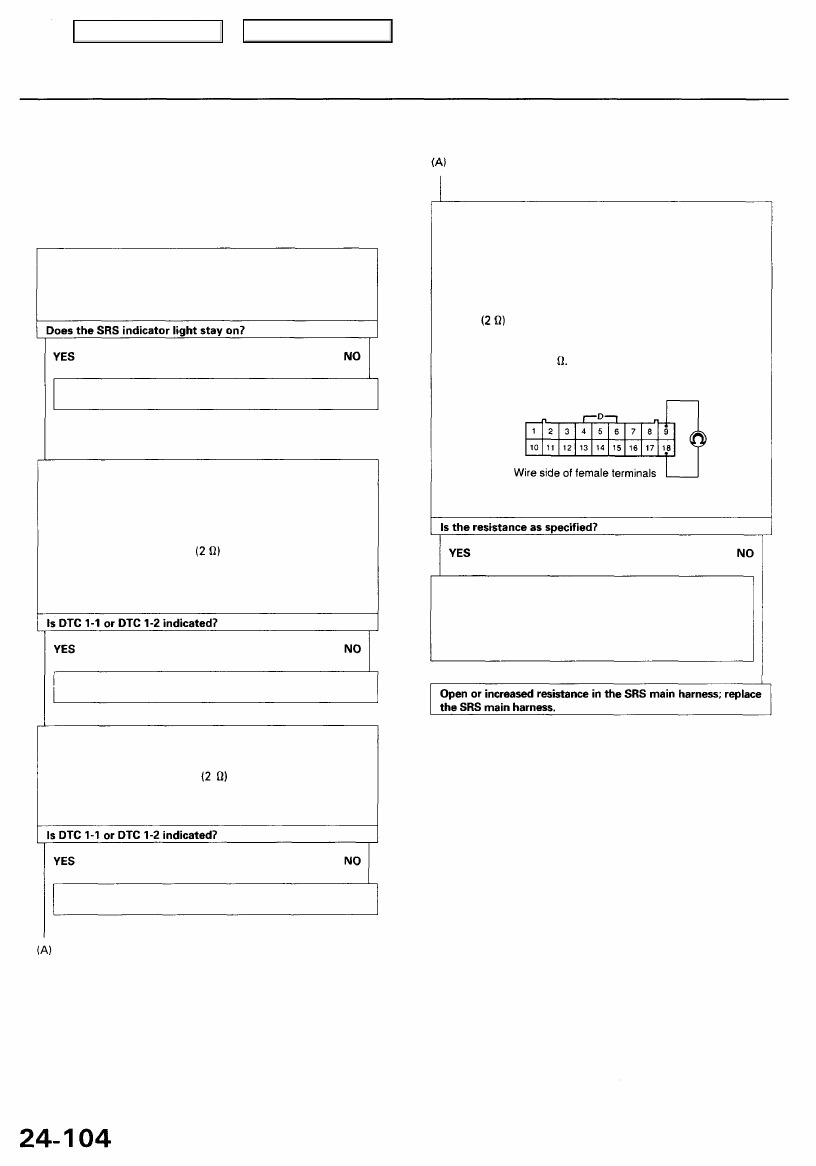

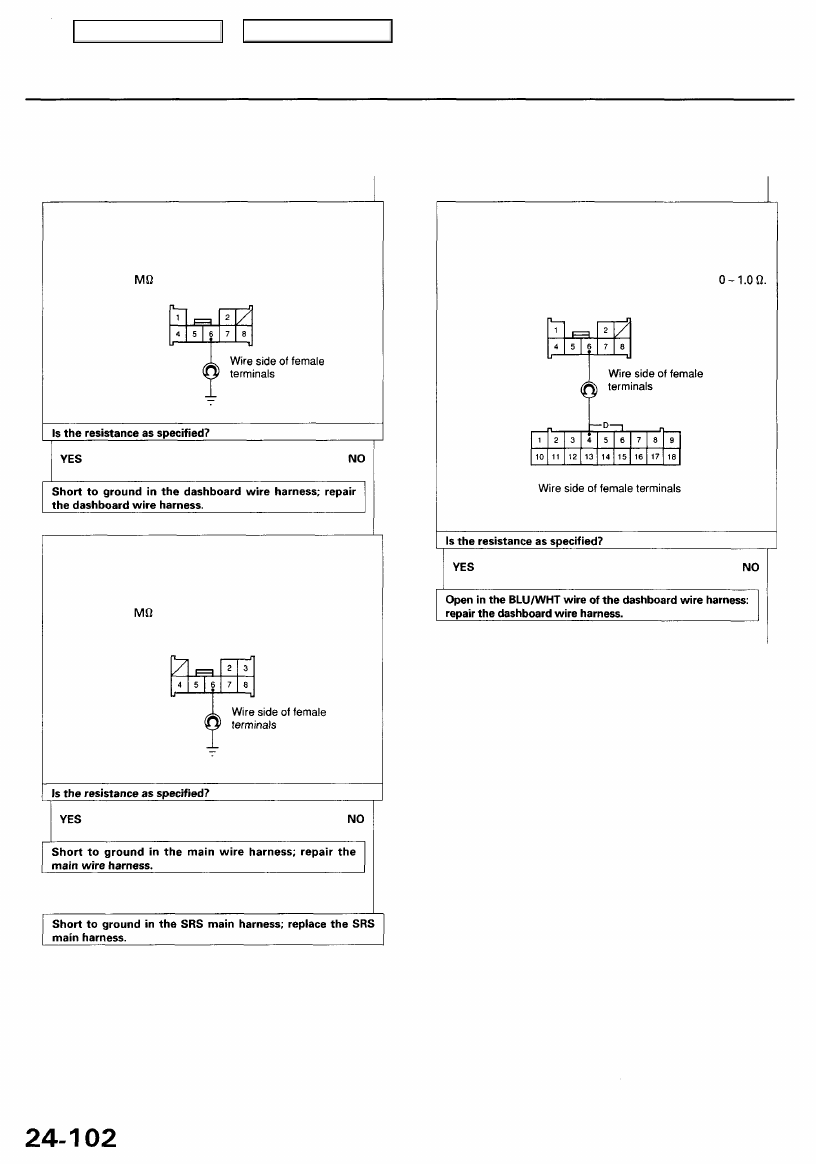

Check the SRS indicator light circuit: 1. Turn the ignition switch OFF. 2. Remove the gauge assembly. Do not disconnect the con- nector from the gauge assembly. 3. Connect the No. 15 terminal of the dashboard wire har- ness 30P connector and No. 22 terminal of the dashboard wire harness 22P connector with a jumper wire (see page ). 4. Turn the ignition switch ON (II). Faulty SRS unit or poor contact at the SRS main harness ). Check for a short to ground in the SRS indicator light cir- 1. Turn the ignition switch OFF. 2. Disconnect the dashboard wire harness 30P connector from the gauge assembly (see page ). 3. Check resistance between the No. 15 terminal of the dashboard wire harness 30P connector and body ground. Check for an open in the SRS indicator light circuit: 1. Turn the ignition switch OFF. 2. Disconnect the dashboard wire harness 30P connector from the gauge assembly (see page ). 3. Check resistance between the No. 4 terminal of the SRS main harness 18P connector and No. 15 terminal of the (D) (F) (cont'd) Main Menu Table of Contents |
