Rear Window

Removal (cont'd)

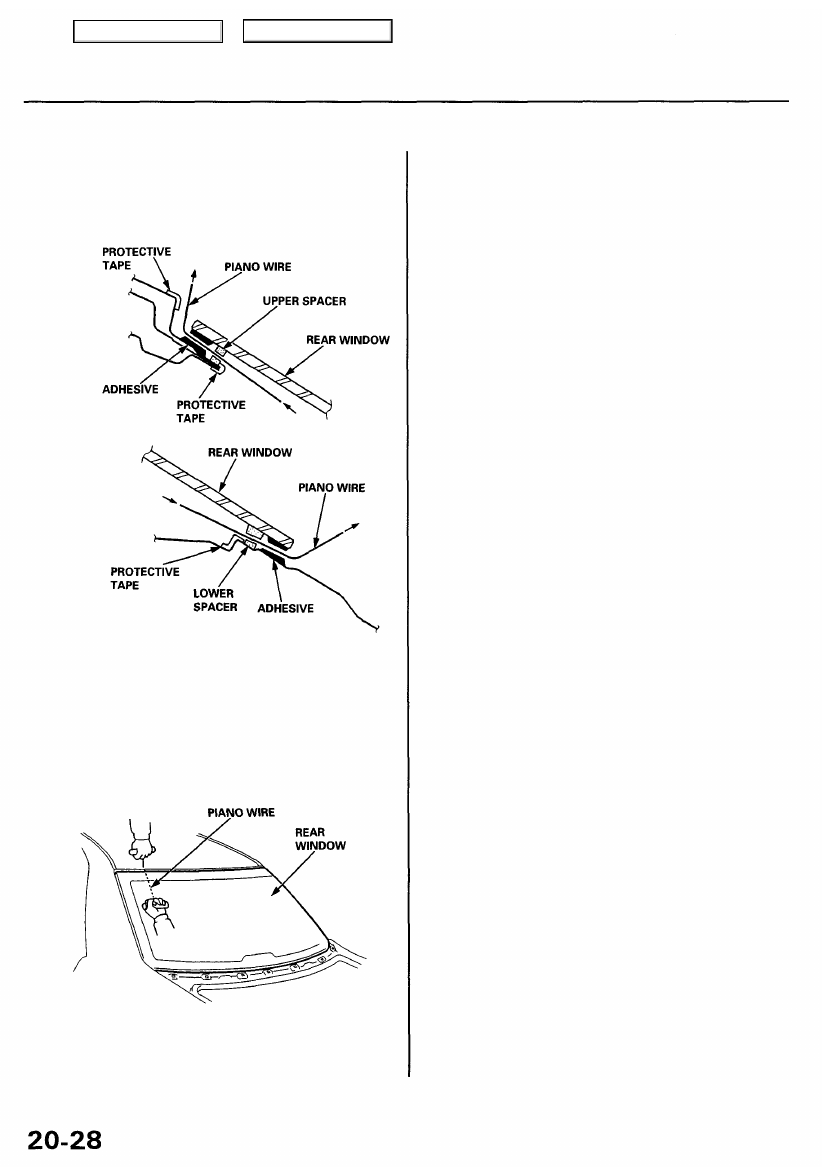

5. Apply protective tape along the edge of the body as

shown. Using an awl, make a hole through the
adhesive from inside the vehicle. Push the piano
wire through the hole, and wrap each end around a
piece of wood.

6. With a helper on the outside, pull the piano wire

back and forth in a sawing motion, and carefully cut

through the adhesive around the entire rear win-

dow.

CAUTION: Hold the piano wire as close to the rear
window as possible to prevent damage to the body.

7. Carefully remove the rear window.

Main Menu

Table of Contents

Installation

1. Using a knife, scrape the old adhesive smooth to a

thickness of about 2 mm (0.08 in.) on the bonding
surface around the entire rear window opening
flange.

NOTE:
• Do not scrape down to the painted surface of the

body; damaged paint will interfere with proper
bonding

• Mask off surrounding surfaces before painting.
• Remove the rubber dam, fasteners and spacers

from the body.

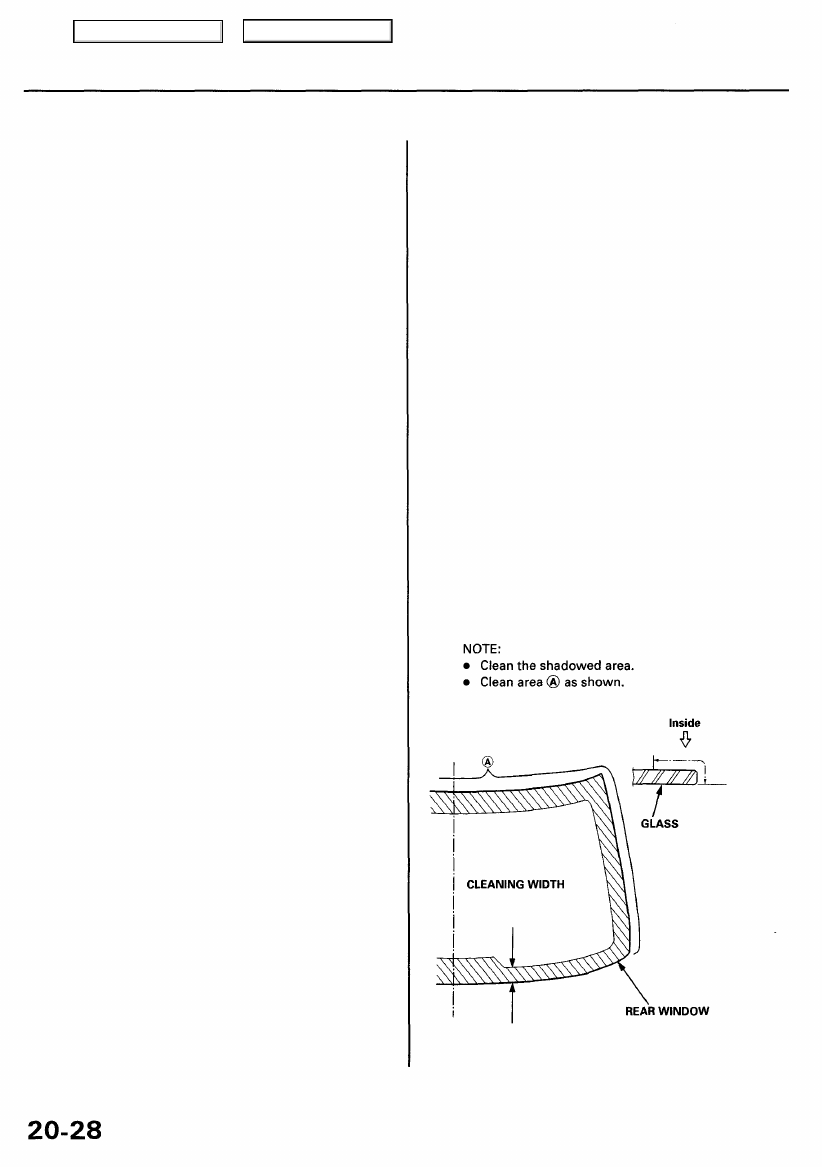

2. Clean the body bonding surface with a sponge

dampened in alcohol.

NOTE: After cleaning, keep oil, grease and water

from getting on the surface.

3. If the old rear window is to be reinstalled, use a putty

knife to scrape off all traces of old adhesive and the
rubber dam, then clean the rear window surface with
alcohol where new adhesive is to be applied.

NOTE: Make sure the bonding surface is kept free

of water, oil and grease.

CAUTION: Avoid setting the rear window on its
edges; small chips may later develop into cracks.

Rear Window

Main Menu

Table of Contents

4. Glue the rubber dam, fasteners, and spacers to the

inside face of the rear window as shown. If neces-

sary, glue the terminal base cover to the rear win-

dow.

NOTE: Be careful not to touch the rear window where

adhesive will be applied.

13 mm

(0.51 in.)

ALIGNMENT MARKS

SIDE
SPACER

ALIGNMENT
MARKS

REAR WINDOW

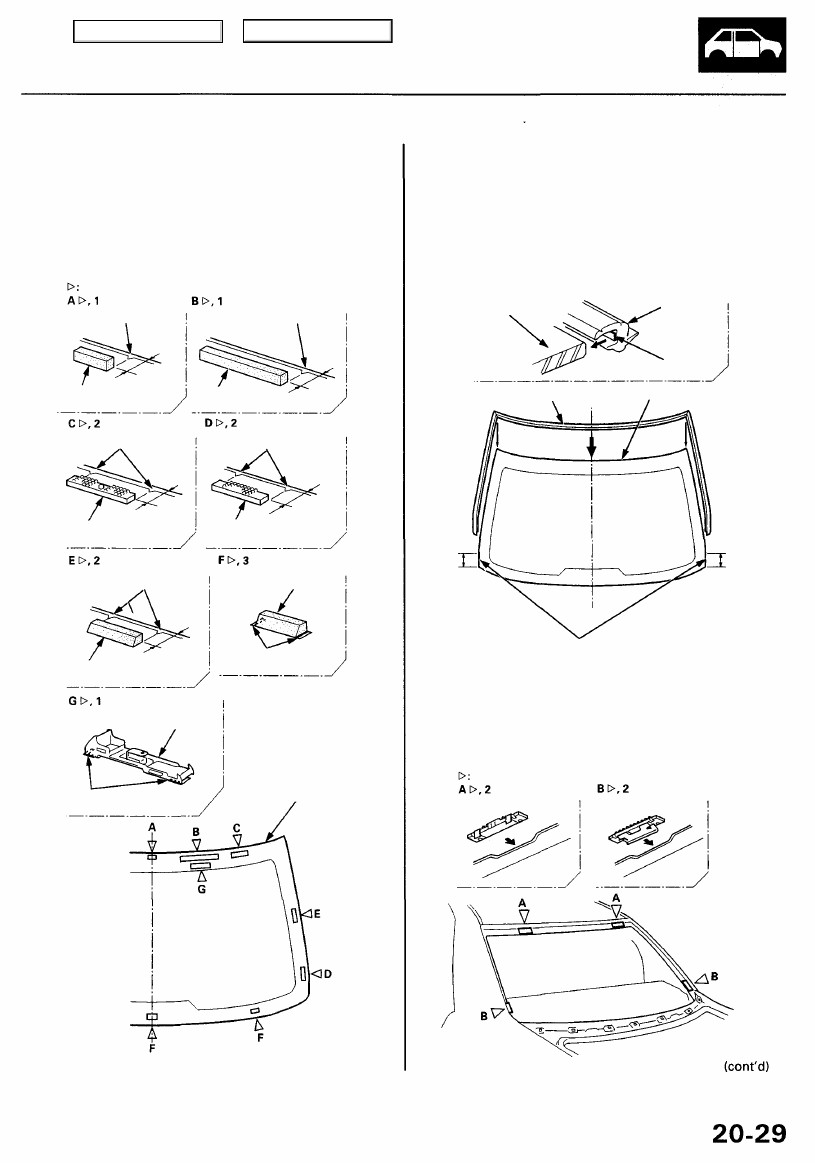

5. Align and glue the molding to the edge of the rear

window.

NOTE: Be careful not to touch the rear window where

adhesive will be applied.

GLASS

MOLDING

ADHESIVE
TAPE

MOLDING REAR WINDOW

50 mm

(2 in.)

Apply primer (3M N-200, or equivalent) to edge
of the windshield.

6. Install the fasteners to the body as shown.

ALIGNMENT

MARKS

TERMINAL
BASE COVER

13 mm
(0.51 in.)

ALIGNMENT MARKS

LOWER SPACER

SIDE
FASTENER

13 mm
(0.51 in.)

13 mm
(0.51 in.)

UPPER
FASTENER

ALIGNMENT MARKS

UPPER
SPACER

13 mm
(0.51 in.)

RUBBER

DAM

ALIGNMENT MARK

ALIGNMENT MARK

Spacer, rubber dam, fastener, terminal base cover locations

50 mm
(2 in.)

Fastener locations

Main Menu

Table of Contents

Rear Window

Installation (cont'd)

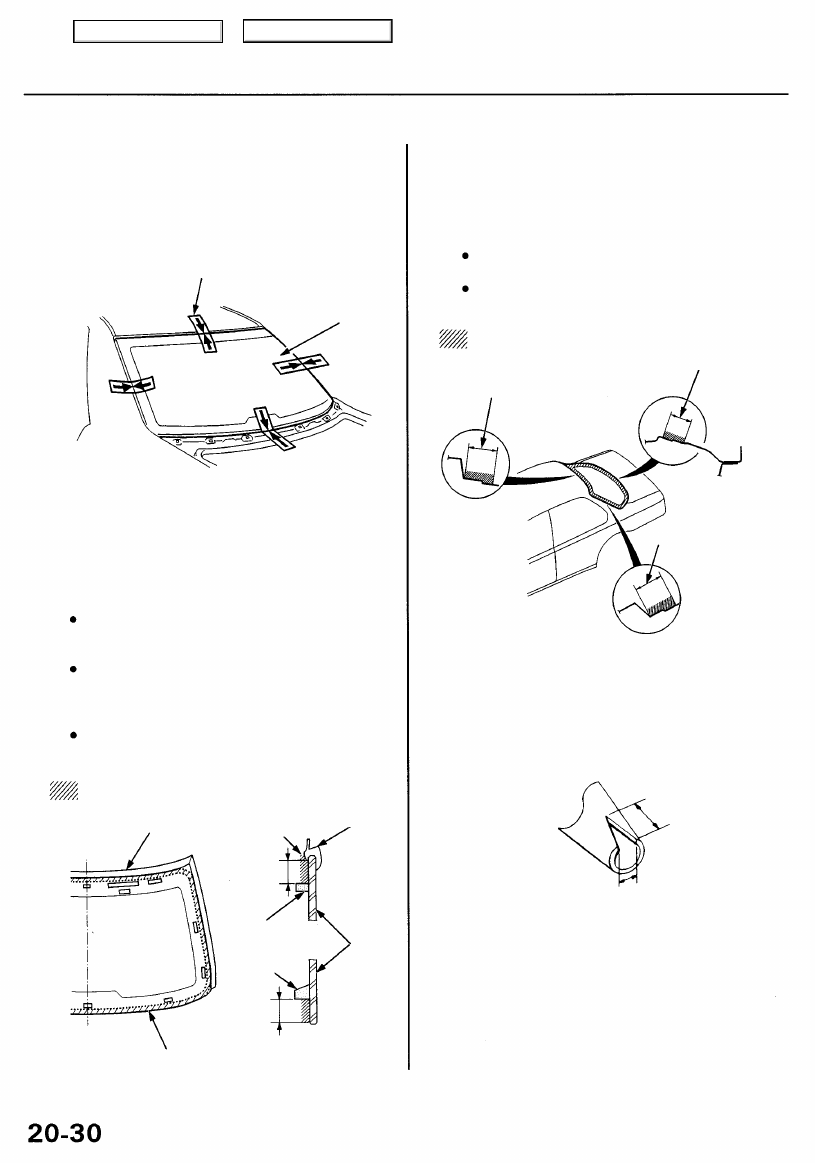

7.

Set the rear window, then center it in the opening.

Make alignment marks across the rear window and
body with a grease pencil at the four points shown.

NOTE: Be careful not to touch the rear window

where adhesive will be applied.

ALIGNMENT MARK

REAR

WINDOW

8. Remove the rear window.

9. With a sponge, apply a light coat of glass primer

around the edge of the rear window as shown, then

lightly wipe it off with gauze or cheesecloth.

NOTE:

Do not apply body primer to the rear window,
and do not get body and glass primer sponges
mixed up.
Never touch the primed surfaces with your hands.
If you do, the adhesive may not bond to the rear

window properly, causing a leak after the rear
window is installed.

Keep water, dust, and abrasive materials away

from the primed surface.

: Apply glass primer here.

REAR WINDOW

10. With a sponge, apply a light coat of body primer to

the original adhesive remaining around the rear
window opening flange. Let the body primer dry for

at least 10 minutes.

NOTE:

Do not apply glass primer to the body, and be care-

ful not to mix up glass and body primer sponges.

Never touch the primed surfaces with your hands.

: Apply body primer here.

20 mm (0.79 in.)

20 mm (0.79 in.)

11. Before filling a cartridge, cut the end of the nozzle

as shown.

Cut nozzle
end as shown.

10 mm (0.39 in.)

7 mm (0.27 in.)

MOLDING

Apply glass primer
to the molding.

MOLDING

10 mm

(0.39 in.)

UPPER
SPACER

GLASS

Inside

LOWER
SPACER

12 mm

(0.47 in.)

20 mm (0.79 in.)
