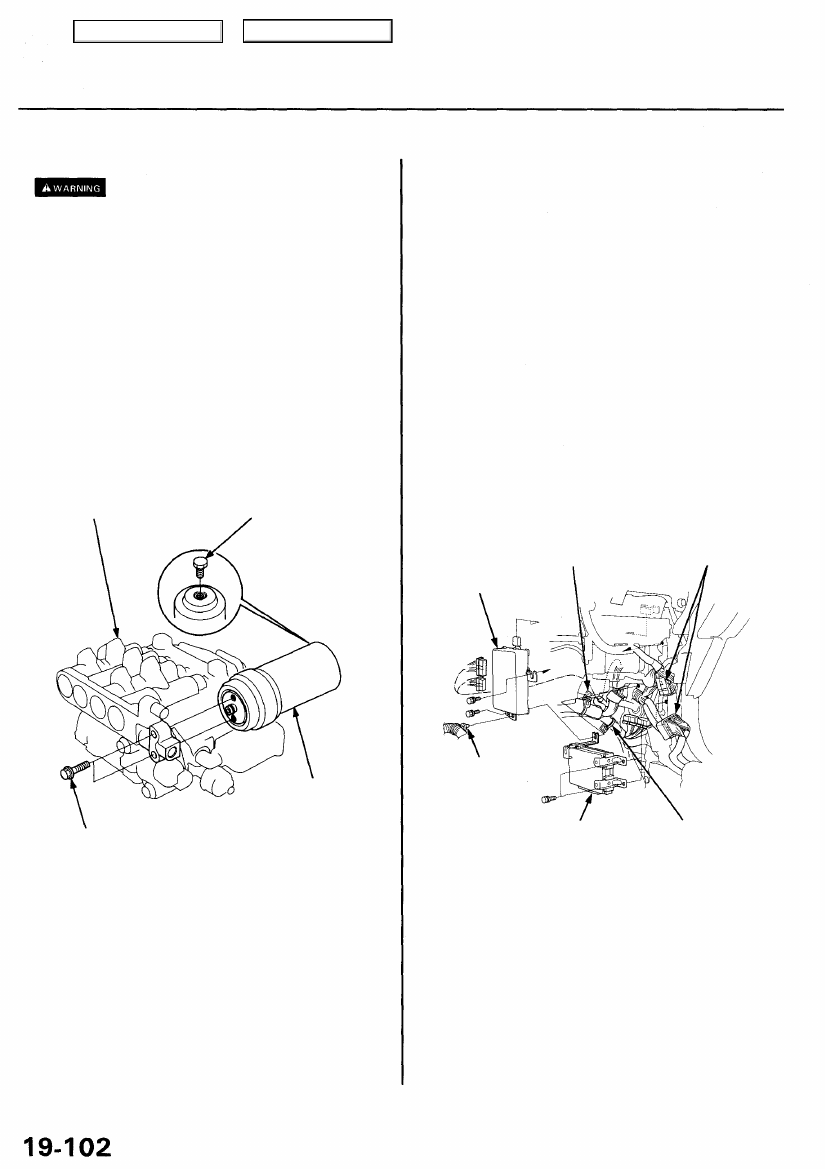

Modulator Unit

ABS Control Unit

Accumulator Replacement and

Disposal

• The modulator unit contains high-pressure brake fluid.

Be sure to relieve system pressure before removing
the accumulator.

• The accumulator contains high-pressure nitrogen

gas. Do not puncture, expose to flame, weld, drop or
apply impact to the accumulator. The modulator unit
may explode and severe personal injury may result.

1. Relieve system pressure (see page

19-97

).

2. Remove the modulator unit (see page

19-99

).

3. Remove the relief plug slowly.

NOTE: When you loosening the relief plug about
one turn, you will hear the gas escaping.

4. Replace the accumulator.

MODULATOR UNIT

RELIEF PLUG

Removal/Installation

1. Remove the glove box.

2. Remove the glove box back cover.
3. Remove the right front door trim.
4. Remove the right kick panel.
5. Turn up the floor mat.
6. Remove the PCM cover.
7. Remove the connectors inside of the right kick panel.
8. Remove the harness clip A from the ABS control

unit, then remove the bolt at lower side of the ABS

control unit.

9. Remove the multiplex control unit (passenger's).

10. Remove the harness clip B and C.
11. Remove the bolt at the rear of the ABS control unit,

then pull out the ABS control unit.

NOTE: Check the ABS control unit after connecting

the connectors at inside of the right kick panel.

CONNECTORS

(Inside the
right kick panel.)

HARNESS
CLIP A

MULTIPLEX CONTROL HARNESS CLIP C

UNIT (PASSENGER'S)

12. Install the ABS control unit in the reverse order of

removal.

13. After installation, perform ABS function test (see

page

19-95

).

5. Perform modulator unit installation (see page

19-100

).

9.8 N-m (1.0 kgf-m, 7 Ibf-ft)

ACCUMULATOR

Replace.

ABS CONTROL UNIT

HARNESS CLIP B

Main Menu

Table of Contents

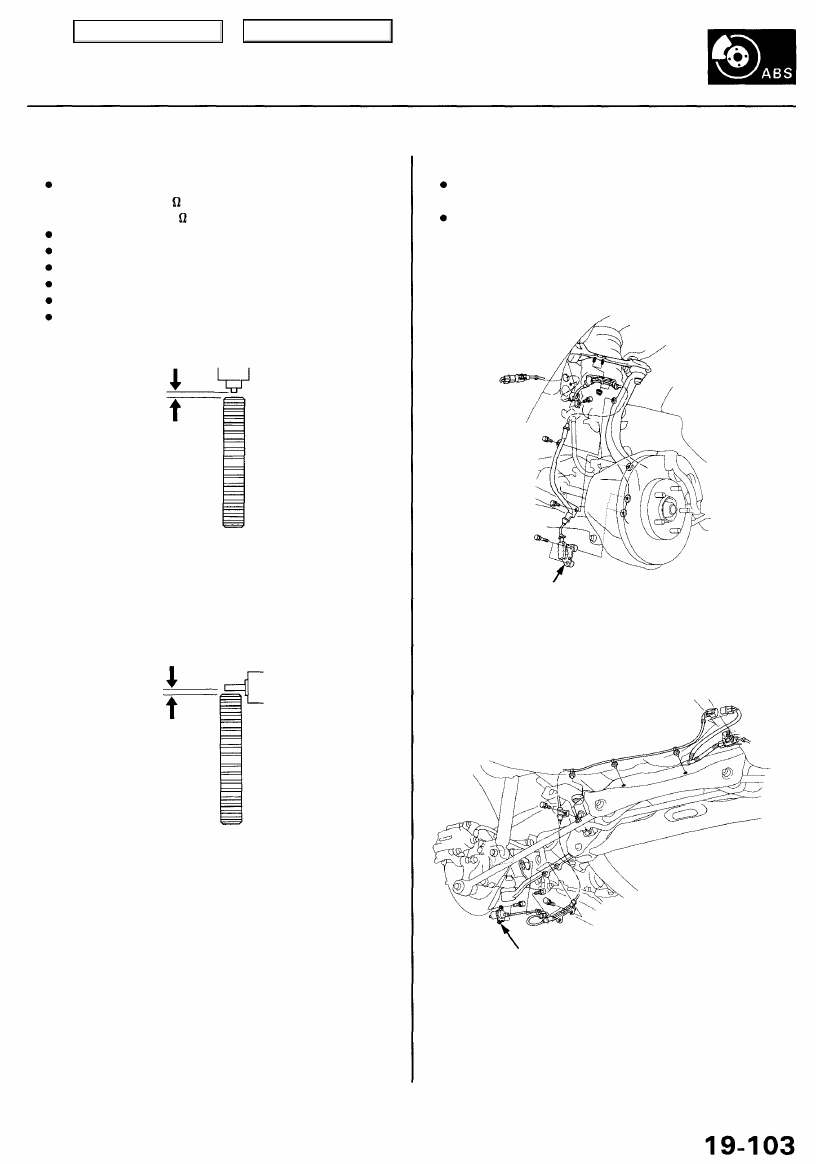

Pulsers/Wheel Sensor

Inspection

Inspection points:

Resistance
Front: 700-1,100
Rear: 1,400-2,000
Open in the wires
Short to body ground in the wires
Short the wire to other one
Installation
Chipped pulser

Air gap: 0.4 - 1.0 mm (0.02 - 0.04 in)

Front

Rear

Remove the rear brake disc to inspect the rear wheel

sensor air grip.

Wheel Sensor Replacement

NOTE:

Be careful when installing the sensors to avoid twist-
ing the wires.

The torque value of the bolts is at 9.8 N-m (1.0 kgf-m,
7 Ibf-ft).

Front

FRONT WHEEL SENSOR

Rear

REAR WHEEL SENSOR

Main Menu

Table of Contents

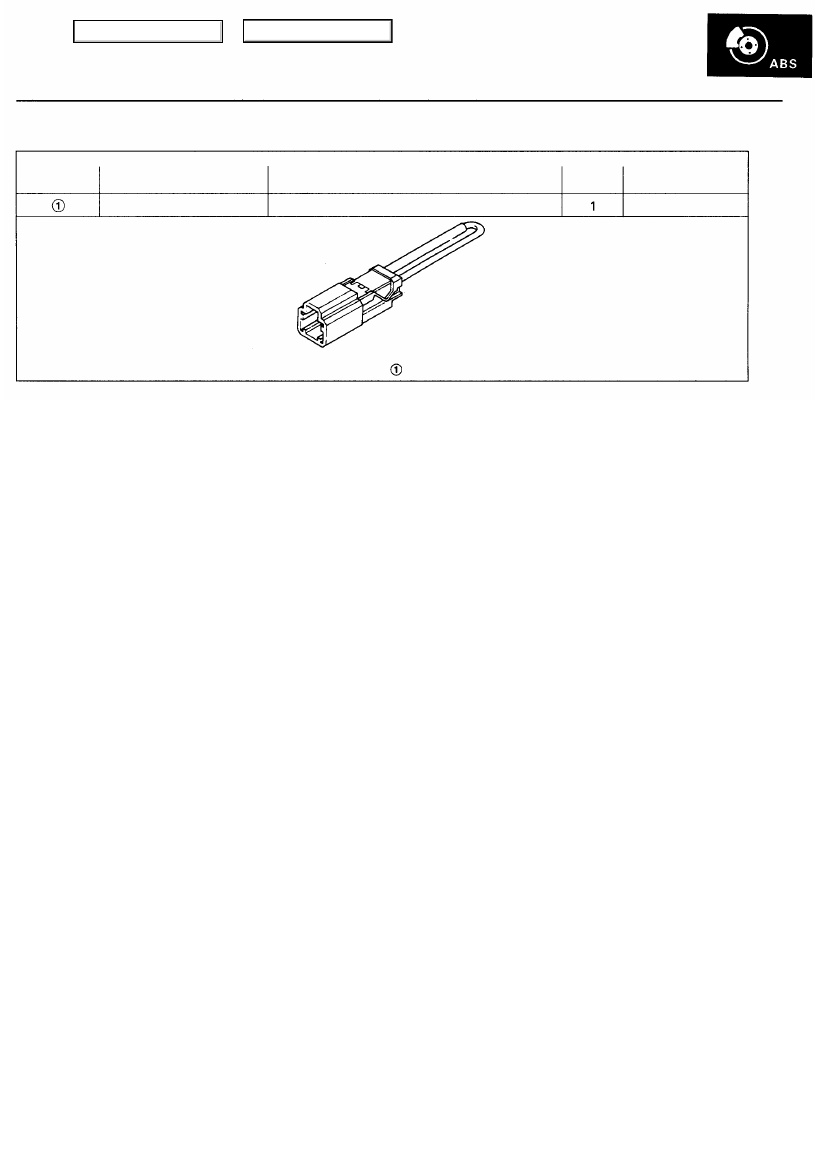

Special Tools

Ref. No.

Tool Number

Description

Qty

Page Reference

07PAZ-0010100 SCS Service Connector

19-119

Main Menu

Table of Contents

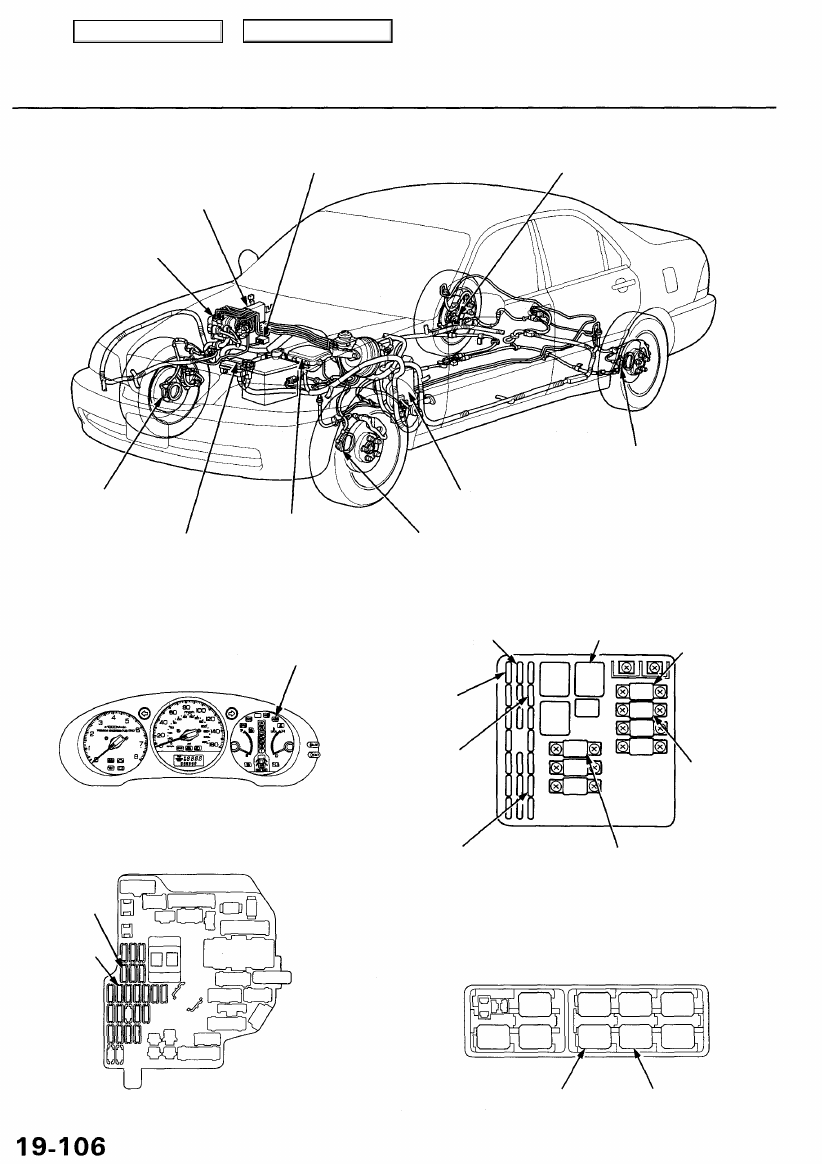

Component Locations

SERVICE CHECK CONNECTOR (2P)

RIGHT-REAR WHEEL SENSOR

ABS CONTROL UNIT

MODULATOR UNIT

LEFT-REAR
WHEEL SENSOR

RIGHT-FRONT
WHEEL SENSOR

UNDER-HOOD RELAY BOX C

UNDER-DASH FUSE/RELAY BOX

LEFT-FRONT WHEEL SENSOR

GAUGE ASSEMBLY

UNDER-HOOD FUSE/RELAY BOX

ABS INDICATOR

UNDER-DASH FUSE/RELAY BOX

R/C MIRROR

(7.5 A) FUSE

METER
(7.5 A) FUSE

STOP/HORN

(15 A) FUSE

ABS UNIT

(7.5 A) FUSE

ABS
(20 A) FUSE

ABS PUMP
MOTOR RELAY

METER
(15 A) FUSE

BATTERY
(120 A) FUSE

ABS MOTOR
(40 A) FUSE

IG SW (50 A) FUSE

UNDER-HOOD RELAY BOX C

GAUGE RELAY

FAIL-SAFE RELAY

UNDER-HOOD FUSE/RELAY BOX
