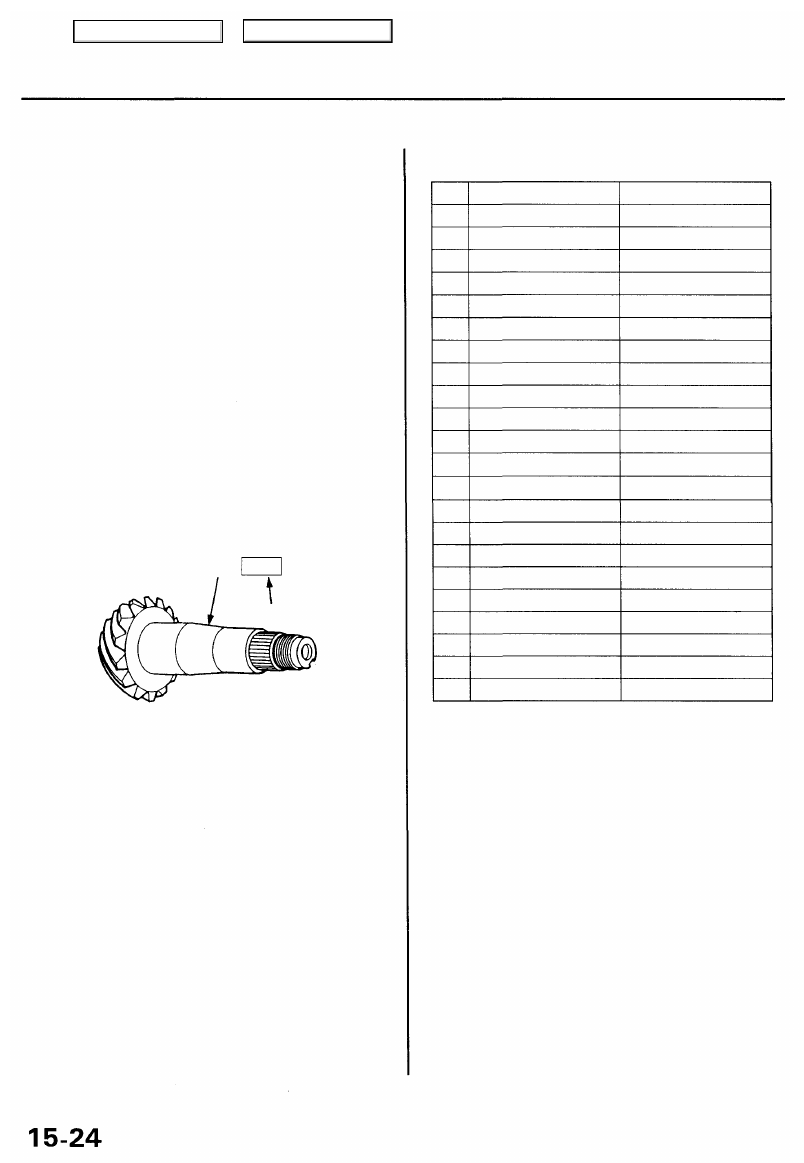

Drive Pinion

Height Adjustment

NOTE: If the drive pinion and ring gear are replaced
(always as a set), the height has to be adjusted.

Select the proper shim as follows:
First, calculate the difference in size between the old
shim and the new pinion.

The last number (see ill.) on each pinion is the plus (+) or

minus (-) tolerance in thousands of a millimeter. So, a
pinion with +20 is 0.02 mm larger and a pinion with - 20
is 0.02 mm smaller.

1. If the number on the old pinion is a plus (+), add it

to the old shim thickness. If it is a minus (-), sub-
tract it from the old shim thickness.

2. If the number on the new pinion is a plus (+), sub-

tract it from the number you got in step 1. If it is a

minus (-), add it to the step 1 number.

3. Select the shim that is closest (but not more than)

the final number you got from steps 1 and 2.

ETCHED MARK

eg: A1-1

Example 1:

Old shim: 2.00 mm thickness
Old pinion: +20 (0.02 mm)

New pinion: -10 (-0.01 mm)

2.00 + 0.02 + 0.01 = 2.03

Select the 2.03 mm (0.0799 in) new shim.

Example 2:

Old shim: 1.70 mm thickness
Old pinion: -10 (-0.01 mm)
New pinion: -20 (-0.02 mm)

1.70-0.01 +0.02 = 1.71

Select the 1.70 mm (0.0669 in) new shim.

43 mm THRUST SHIM

Part Number

41410 -PSD -000

41411-P5D-000

41412-P5D-000

41413-P5D-000

41414-P5D-000

41415-P5D-000

41416-P5D-000

41417-P5D-000

41418-P5D-000

41419-P5D-000

41420-P5D-000

41421-P5D-000

41422-P5D-000

41423-P5D-000

41424-P5D-000

41425-P5D-000

41426-P5D-000

41427-P5D-000

41428-P5D-000

41429-P5D-000

41430-P5D-000

41431-P5D-000

Thickness

1.64 mm (0.0646 in)

1.67 mm (0.0657 in)

1.70 mm (0.0669 in)

1.73 mm (0.0681 in)

1.76 mm (0.0693 in)

1.79 mm (0.0705 in)

1.82 mm (0.0717 in)

1.85 mm (0.0728 in)

1.88 mm (0.0740 in)

1.91 mm (0.0752 in)

1.94 mm (0.0764 in)

1.97 mm (0.0776 in)

2.00 mm (0.0787 in)

2.03 mm (0.0799 in)

2.06 mm (0.0811 in)

2.09 mm (0.0823 in)

2.12 mm (0.0835 in)

2.15 mm (0.0846 in)

2.18 mm (0.0858 in)

2.21 mm (0.0870 in)

2.24 mm (0.0882 in)

2.27 mm (0.0894 in)

tolerance.

+/-20

Main Menu

Table of Contents

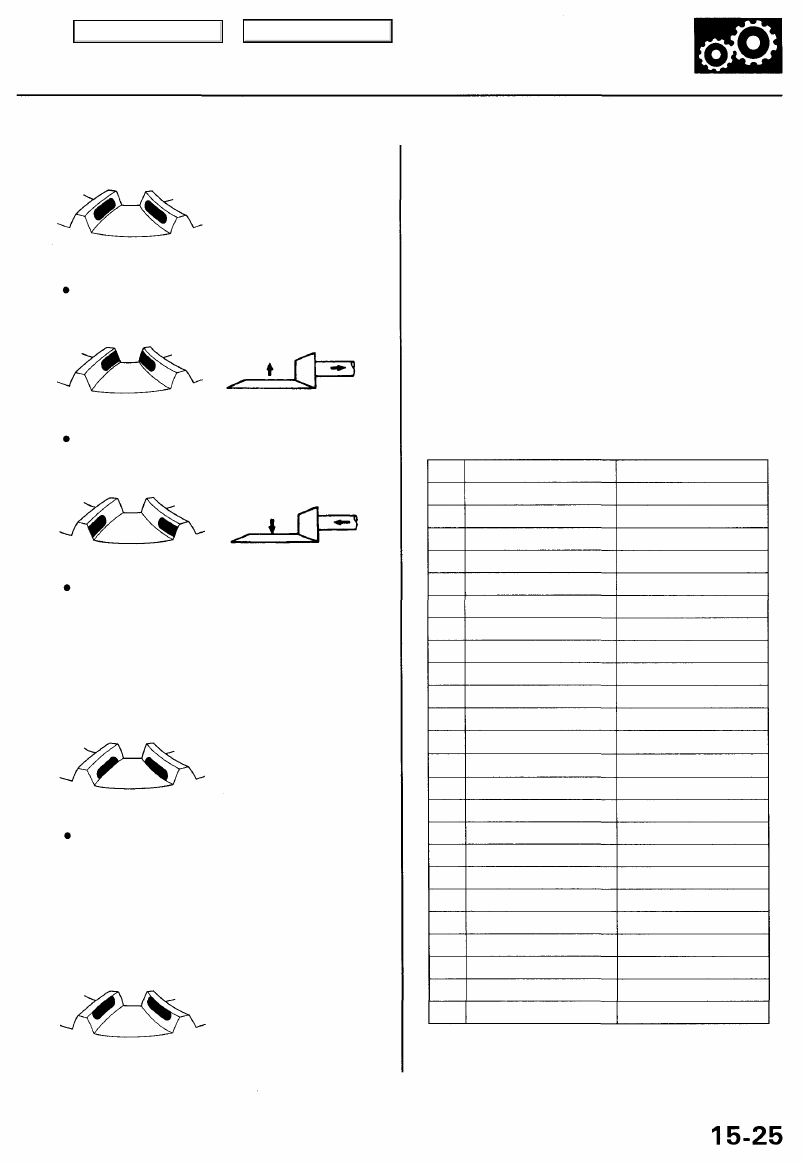

Ring Gear Tooth Contact

Ring Gear Backlash

Adjustment

1) Correct Tooth Contact

2) Toe Contact

Use a thinner drive pinion shim (43 mm thrust

shim) to move the drive pinion away from the ring
gear.

3) Heel Contact

Use a thicker drive pinion shim (43 mm thrust
shim) to move the drive pinion toward the ring
gear.

4) Flank Contact

To move the ring gear away from the drive pin-

ion, use a thicker side bearing shim (79.5 mm

thrust shim) on the drive pinion side and a thinner

one on the ring gear side.

NOTE: Recheck backlash after replacing the side
bearing shims. If out of specification, adjust as
described under Toe Contact.

5) Face Contact

To move the ring gear toward the drive pinion,

use a thinner side bearing shim (79.5 mm thrust
shim) on the drive pinion side and a thicker one
on the ring gear side.

NOTE: Recheck backlash after replacing the side
bearing shims. If out of specification, adjust as
described under Heel Contact.

Adjustment

1. If the backlash exceeds the standard, correct by

decreasing the shim thickness on one side and

increasing the thickness of the other shim the same

amount.

NOTE:
• The total thickness of both shims must still equal

the total thickness of the original shims.

• If there is too much backlash, move the ring gear

toward the drive pinion. If there is not enough

backlash, move the ring gear away from the
drive pinion.

2. After adjustment, recheck backlash (see page,

15-10

Standard: 0.06 - 0.14 mm (0.002 - 0.006 in)

79.5 mm THRUST SHIM

Part Number

41460-P5D-000

41461-P5D-000

41462-P5D-000

41 463 -PSD -000

41464-P5D-000

41 465 -PSD -000

41466-P5D-000

4 1467 -PSD -000

41468-P5D-000

41 469 -PSD -000

41 470 -PSD -000

41471 -PSD -000

41 472 -PSD -000

41 473 -PSD -000

41 474 -PSD -000

41 475 -PSD -000

41 476 -PSD -000

41 477 -PSD -000

41 478 -PSD -000

41479-P5D-000

41 480 -PSD -000

41481-P5D-000

41 482 -PSD -000

41 483 -PSD -000

Thickness

0.66 mm (0.0260 in)

1.17 mm (0.0461 in)

1.20 mm (0.0472 in)

1.23 mm (0.0484 in)

1.26 mm (0.0496 in)

1.29 mm (0.0508 in)

1.32 mm (0.0520 in)

1.35 mm (0.0531 in)

1.38 mm (0.0543 in)

1.41 mm (0.0555 in)

1.44 mm (0.0567 in)

1.47 mm (0.0579 in)

1.50 mm (0.0591 in)

1.53 mm (0.0602 in)

1.56 mm (0.0614 in)

1.59 mm (0.0626 in)

1.62 mm (0.0638 in)

1.65 mm (0.0650 in)

1.68 mm (0.0661 in)

1.71 mm (0.0673 in)

1.74 mm (0.0685 in)

1.77 mm (0.0697 in)

1.80 mm (0.0709 in)

1.83 mm (0.0720 in)

Main Menu

Table of Contents

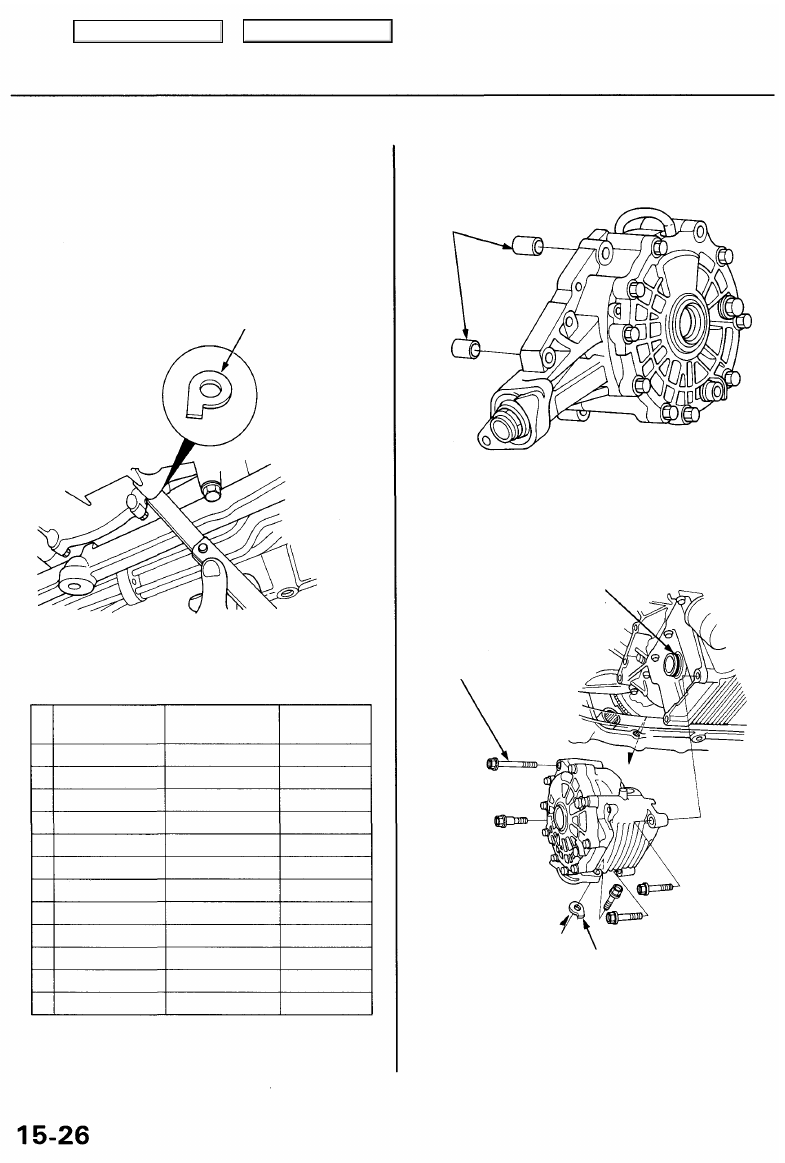

Differential Assembly

Installation

NOTE: If the differential case is replaced, the 26 mm
shim must be adjusted (see step 1). If the differential
case was not replaced, go to step 4.

1. Install the differential assembly.

2. Measure the clearance between the differential case

and the torque converter housing.

26 mm SHIM

3. Select the 26 mm shim from the following table.

26 mm SHIM

Part Number

41432 -PY4- 000

41433-PY4-000

41434-PY4-000

41435-PY4-000

41436-PY4-000

41437-PY4-000

41438-PY4-000

41439-PY4-000

41440-PY4-000

41441-PY4-000

41442-PY4-000

41443-PY4-000

Thickness

1.9 mm (0.07 48 in)

2.0 mm (0.0787 in)

2.1 mm (0.0827 in)

2.2 mm (0.0866 in)

2.3 mm (0.0906 in)

2.4 mm (0.0945 in)

2.5 mm (0.0984 in)

2.6 mm (0.1024 in)

2.7 mm (0.1063 in)

2.8 mm (0.1 102 in)

2.9 mm (0.1 142 in)

3.0 mm (0.1 181 in)

Measurement

Value

1.99- 1.9 mm

2.09 - 2.0 mm

2.19-2.1 mm

2.29 -2.2 mm

2.39-2.3 mm

2.49 -2.4 mm

2.59-2.5 mm

2.69-2.6 mm

2.79 -2.7 mm

2.89 - 2.8 mm

2.99 - 2.9 mm

3.09-3.0 mm

4. Install the two dowel pins on the differential assem-

bly.

DOWEL PINS

5. Attach the differential assembly to the engine, then

tighten the four mounting bolts to the specified
torque.

O-RING.
Replace.

12 x 1.25 mm

64 N-m (6.5 kgf-m,
47 Ibf-ft)

26 mm SHIM

6. Install the 26 mm shim, then tighten the mounting

bolts to the specified torque.

Main Menu

Table of Contents

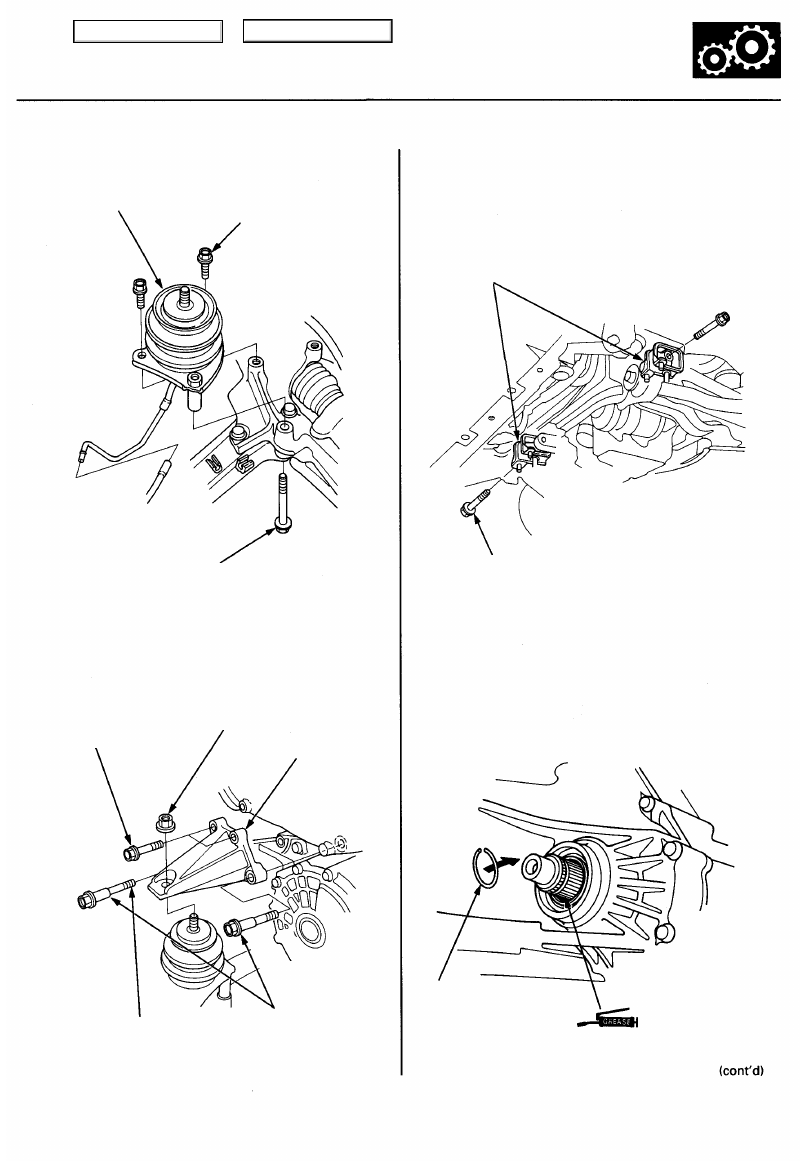

7. Install the right engine mount.

RIGHT ENGINE
MOUNT

10 x 1.25 mm

38 N-m (3.9 kgf-m,
28 Ibf-ft)

10 x 1.25 mm

38 N-m (3.9 kgf-m,
28 Ibf-ft)

8. Install the right engine mount bracket, then right

and left engine mount bracket nuts.

10 x 1.25 mm

38 N-m (3.9 kgf-m,
28 Ibf-ft)

12 x 1.25 mm

64 N-m (6.5 kgf-m,
47 Ibf-ft)

RIGHT ENGINE
MOUNT BRACKET

Apply liquid gasket
(P/N 08718 -0001)

12 x 1.25 mm

64 N-m (6.5 kgf-m,
47 Ibf-ft)

9. Remove the chain hoist.

10. Install the engine stop mount bracket bolts.

ENGINE STOP
MOUNTS

12 x 1.25 mm

74 N-m (7.5 kgf-m,
54 Ibf-ft)

11. Apply Super High Temp Urea Grease (P/N 08798 -

9002) to the splines of the extension shaft, then
install the new set ring.

SET RING
Replace.

15-27
