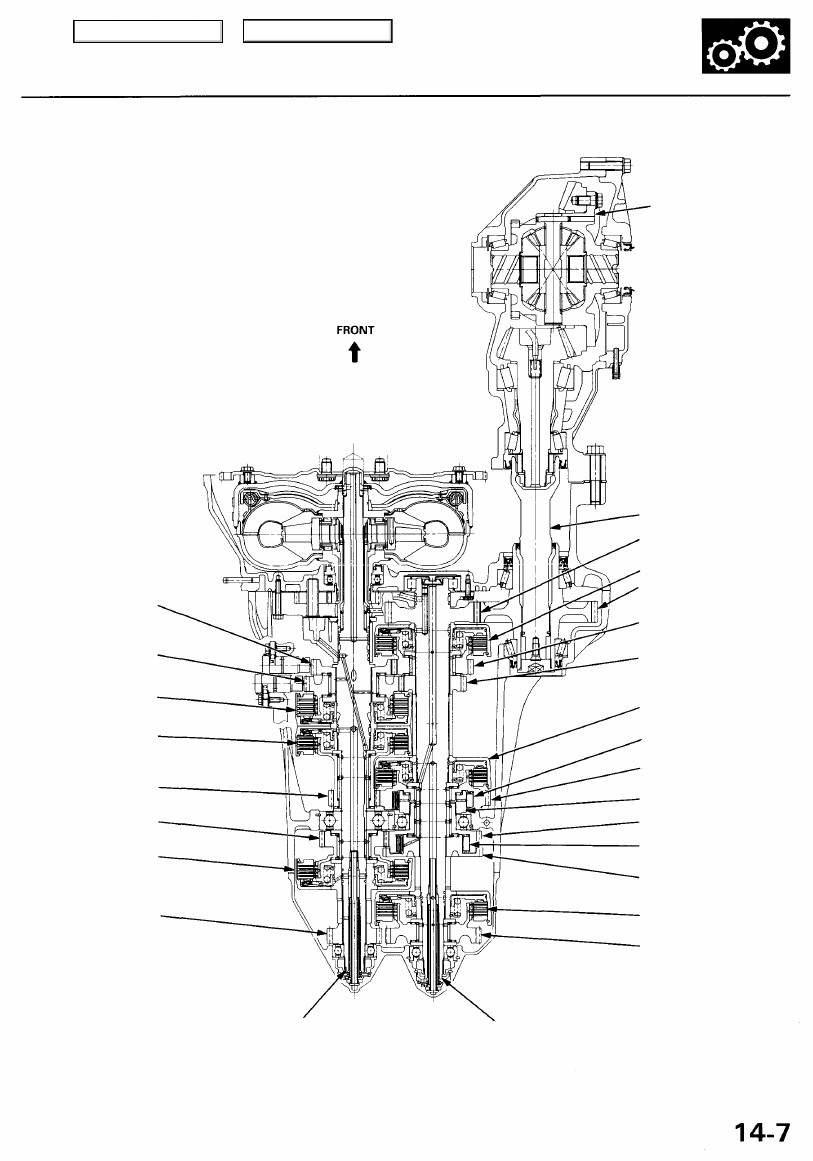

MAINSHAFT 3RD
GEAR

MAINSHAFT 4TH

GEAR

4TH CLUTCH

1ST CLUTCH

MAINSHAFT 1ST
GEAR

MAINSHAFT 2ND
GEAR

2ND CLUTCH

MAINSHAFT REVERSE
GEAR

DIFFERENTIAL

EXTENSION SHAFT

SECONDARY DRIVE
GEAR

3RD CLUTCH

SECONDARY DRIVEN GEAR

COUNTERSHAFT 3RD
GEAR

COUNTERSHAFT 4TH
GEAR

1ST-HOLD CLUTCH

1ST-GEAR ONE-WAY
CLUTCH

COUNTERSHAFT 1ST GEAR

ONE-WAY CLUTCH HUB

COUNTERSHAFT 2ND GEAR

2ND-GEAR ONE-WAY
CLUTCH

PARK GEAR

REVERSE CLUTCH

COUNTERSHAFT REVERSE
GEAR

MAINSHAFT

COUNTERSHAFT

Main Menu

Table of Contents

Description

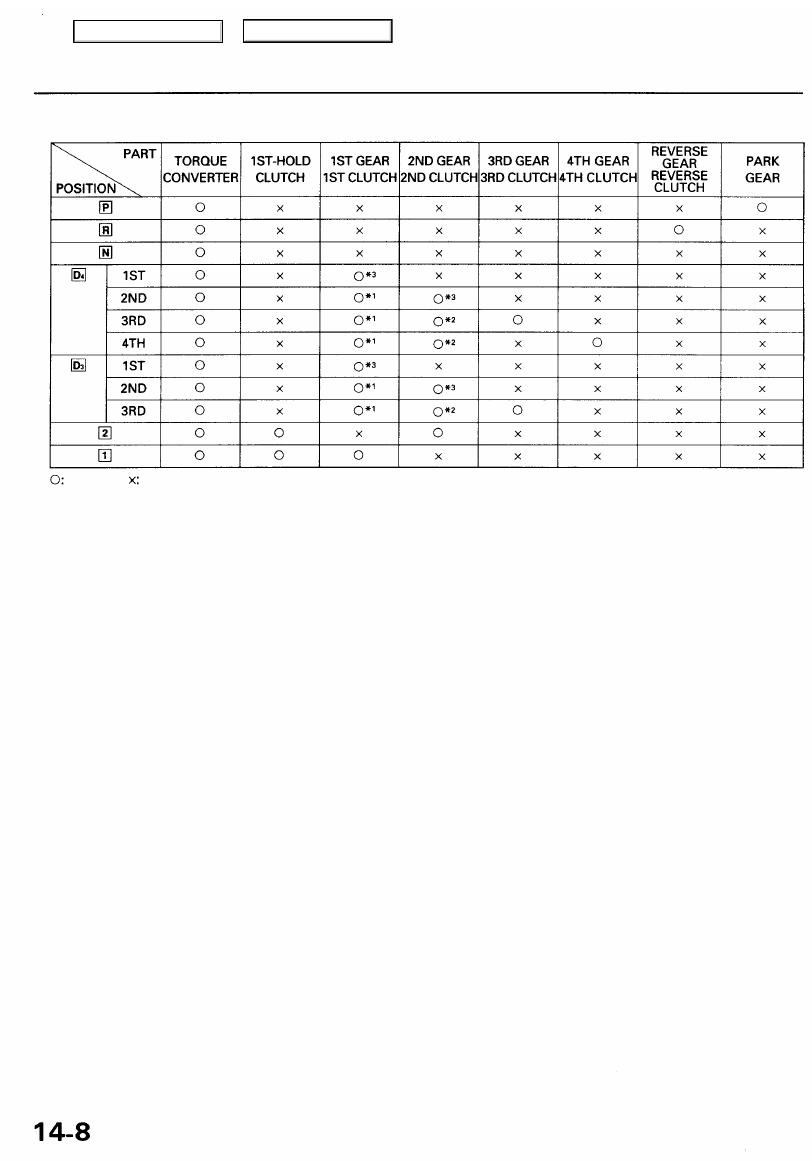

Power Flow

Operates, Doesn't operate.

*1: Although the 1st clutch engages, driving power is not transmitted as the 1st gear one-way clutch slips.
*2: Although the 1st and 2nd clutches engage, driving power is not transmitted as the one-way clutches slip.
*3: The one-way clutch engages when accelerating, and slips when decelerating.

Main Menu

Table of Contents

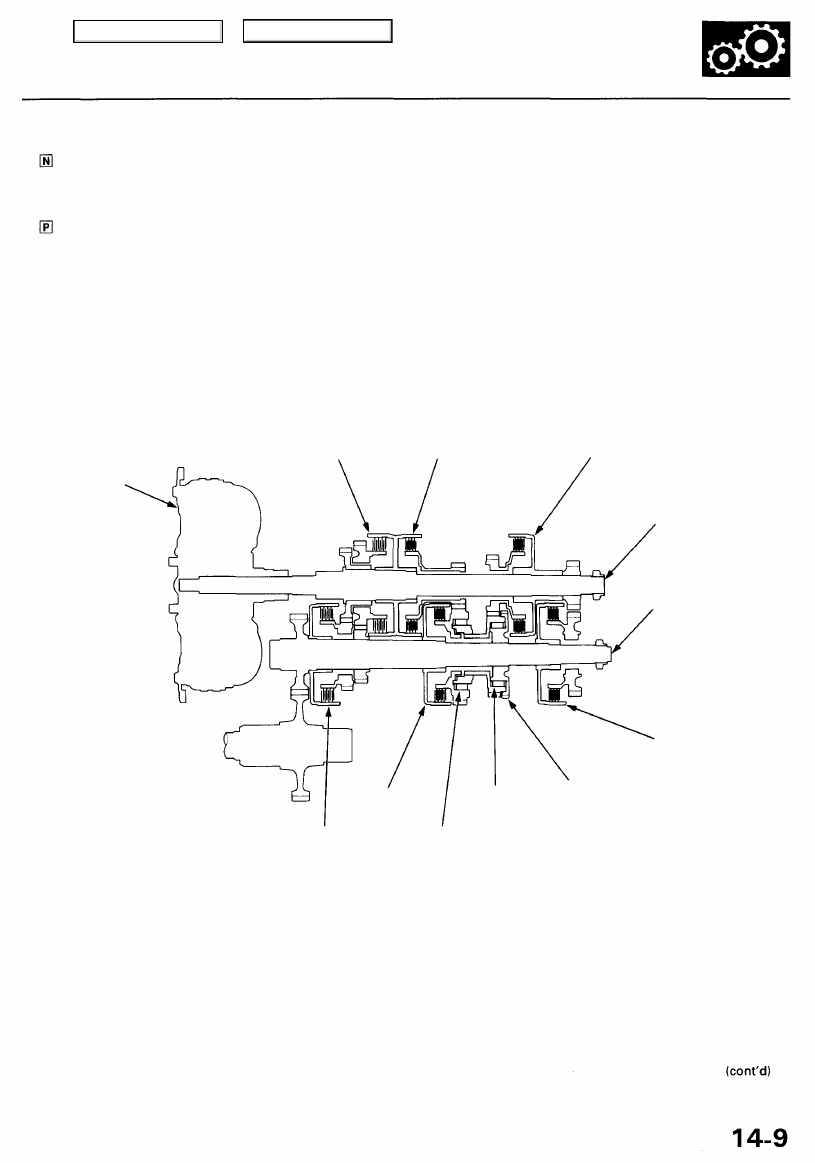

Position

Hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft.

Position

Hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft.

The countershaft is locked by the park pawl interlocking the park gear.

4TH CLUTCH

1ST CLUTCH

2ND CLUTCH

TORQUE
CONVERTER

MAINSHAFT

COUNTERSHAFT

REVERSE
CLUTCH

3RD CLUTCH

PARK GEAR

1ST GEAR

ONE-WAY CLUTCH

1ST-HOLD
CLUTCH

2ND GEAR
ONE-WAY
CLUTCH

Main Menu

Table of Contents

Description

Power Flow (cont'd)

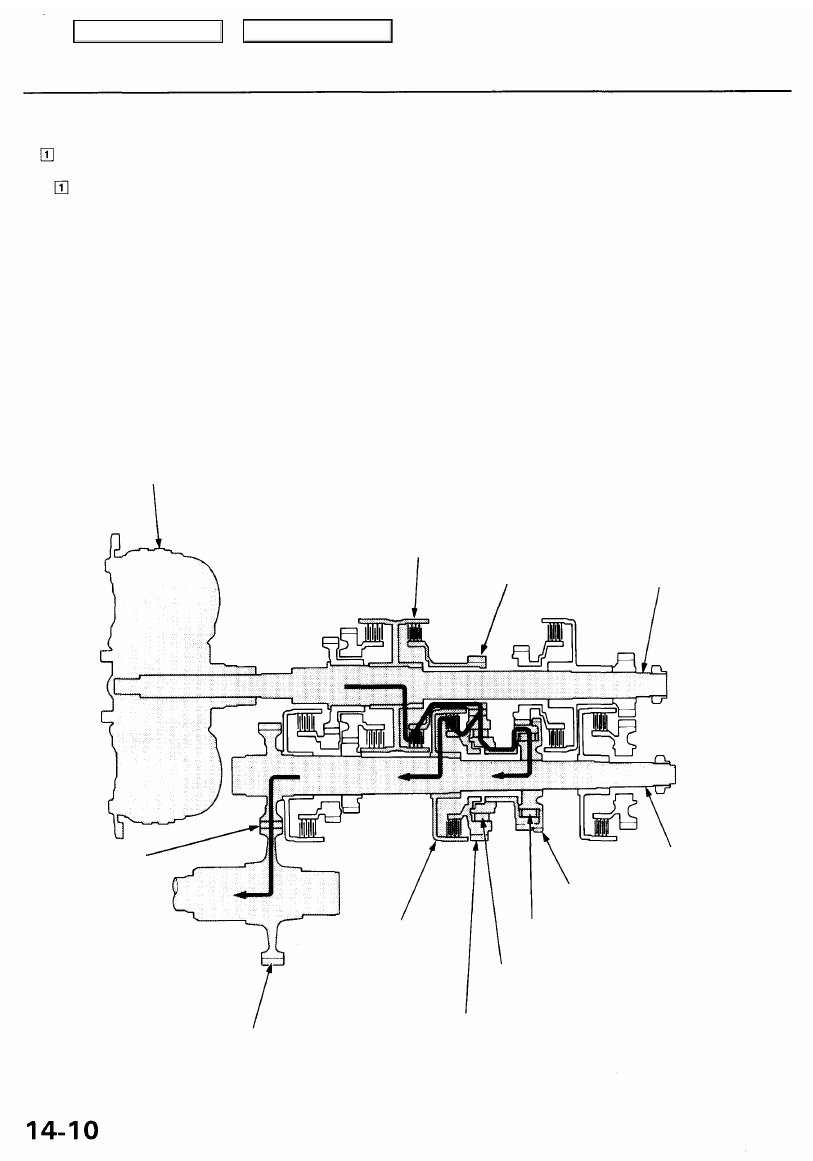

Position

In position, hydraulic pressure is applied to the 1st clutch and the 1st-hold clutch.

The power flow when accelerating is as follows:

1. The hydraulic pressure is applied to the 1st clutch on the mainshaft, and power is transmitted via the 1st clutch to the

mainshaft 1st gear.

2. The hydraulic pressure is also applied to the 1st-hold clutch on the countershaft. Power transmitted to the mainshaft

1st gear is conveyed via the countershaft 1st gear to the 1st gear one-way clutch, the 2nd gear one-way clutch, and the
1st-hold clutch. The one-way clutches are used to drive the countershaft, and the 1st-hold clutch drives the counter-

shaft.

3. Power is transmitted to the secondary drive gear, which drives the secondary driven gear.

TORQUE CONVERTER

SECONDARY
DRIVE GEAR

MAINSHAFT

2ND

 GEAR

ONE-WAY CLUTCH

1ST GEAR

ONE-WAY CLUTCH

SECONDARY DRIVEN GEAR

COUNTERSHAFT

1ST GEAR

COUNTERSHAFT

1ST-HOLD

CLUTCH

PARK GEAR

MAINSHAFT
1ST GEAR

1ST CLUTCH
