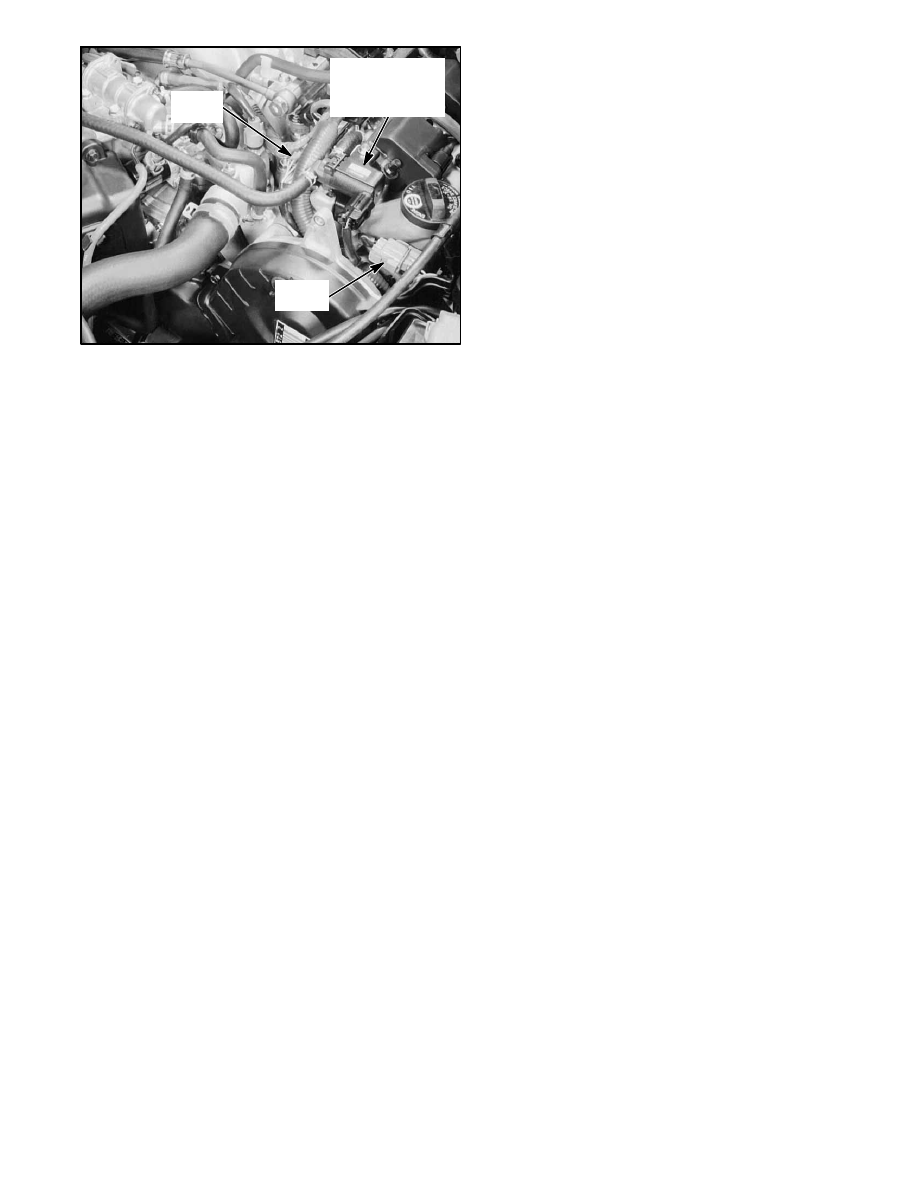

11. Top Left of Engine

EVAPORATIVE
EMISSION (EVAP)
PURGE CONTROL
SOLENOID VALVE

C130
(8-GRY)

C126
(4-GRY)

2004 American Honda Motor Co., Inc.

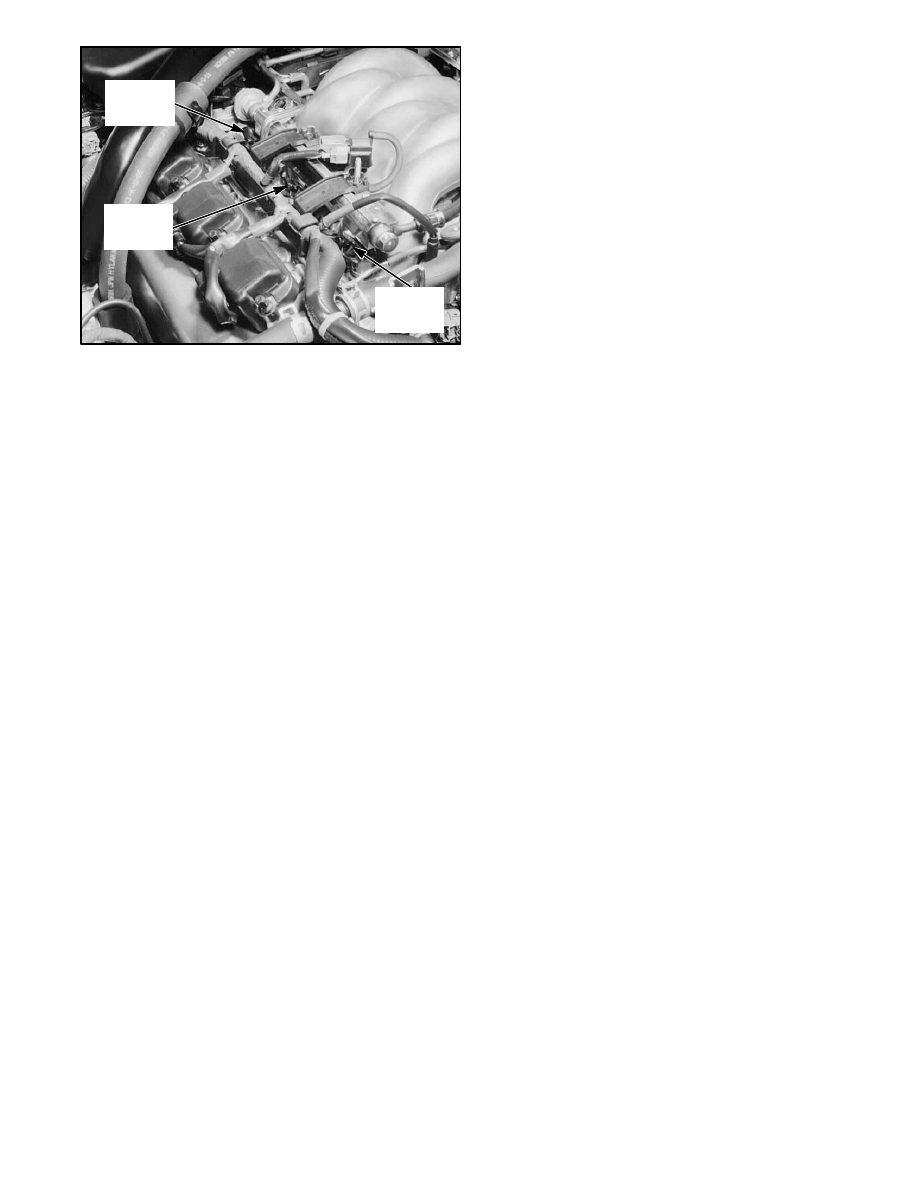

12. Top Right of Engine

ENGINE COOLANT
TEMPERATURE
SENDING UNIT
(’96-’02)

MANIFOLD
ABSOLUTE
PRESSURE
(MAP)
SENSOR

THROTTLE
POSITION
(TP) SENSOR

2004 American Honda Motor Co., Inc.

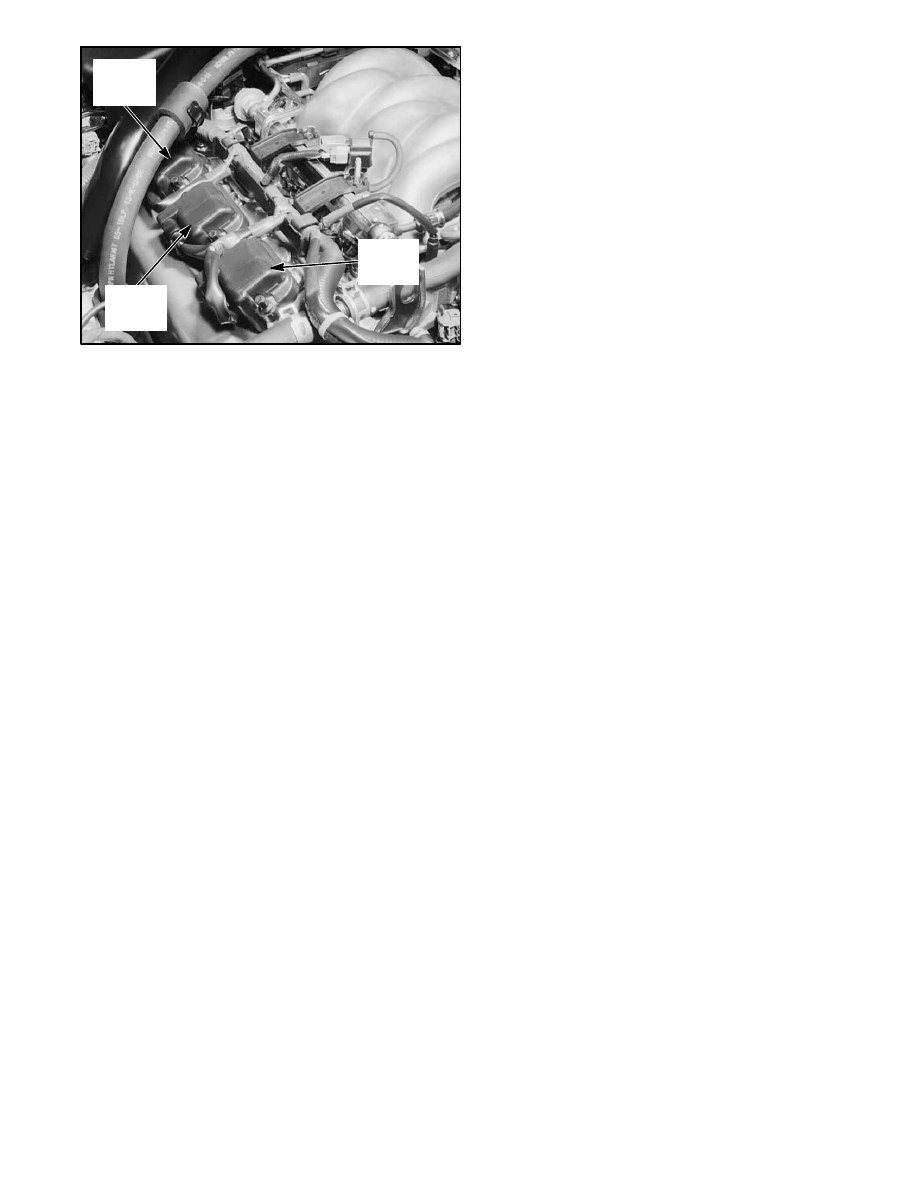

13. Top Right of Engine

NO. 1
FUEL
INJECTOR

NO. 3
FUEL
INJECTOR

NO. 2
FUEL
INJECTOR

2004 American Honda Motor Co., Inc.

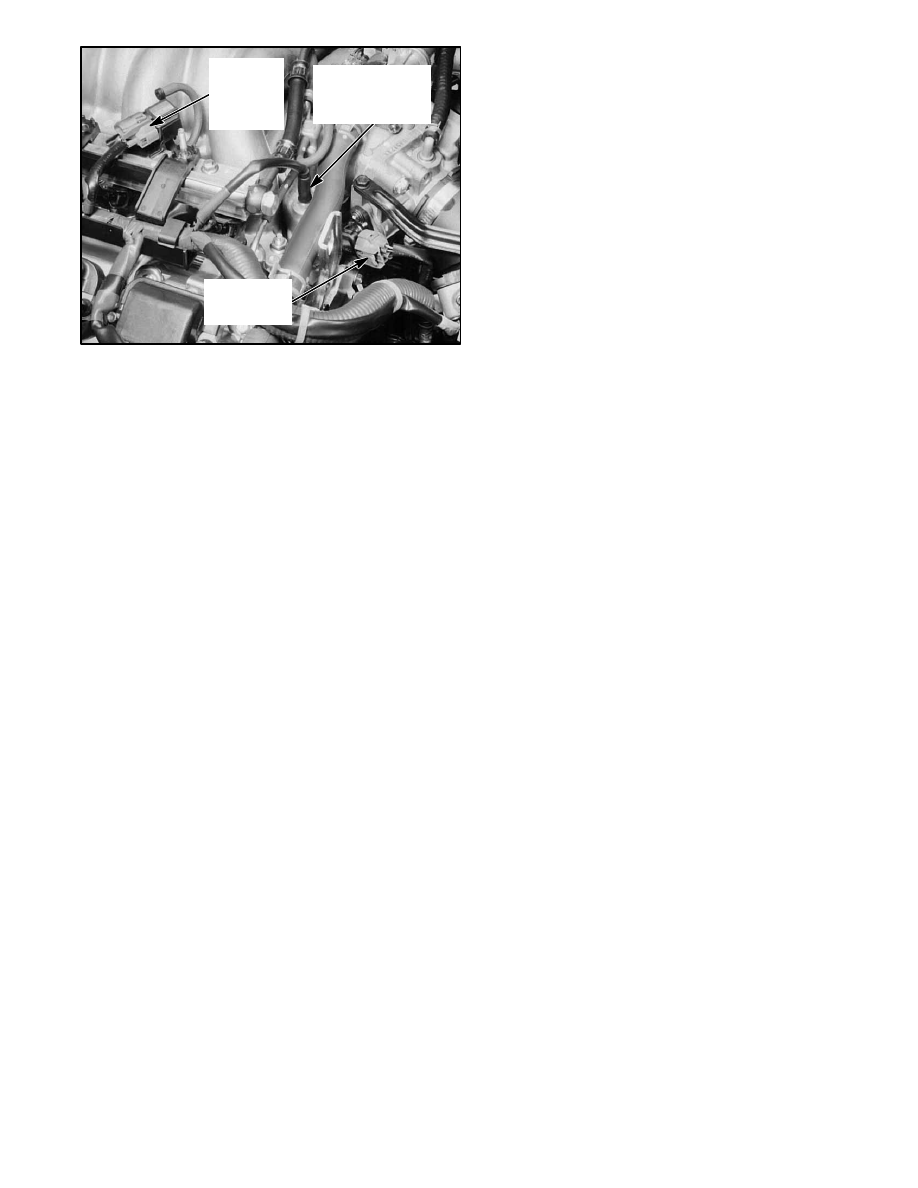

14. Top Right of Engine

NO. 3
IGNITION
COIL

NO. 1
IGNITION
COIL

NO.2
IGNITION
COIL
