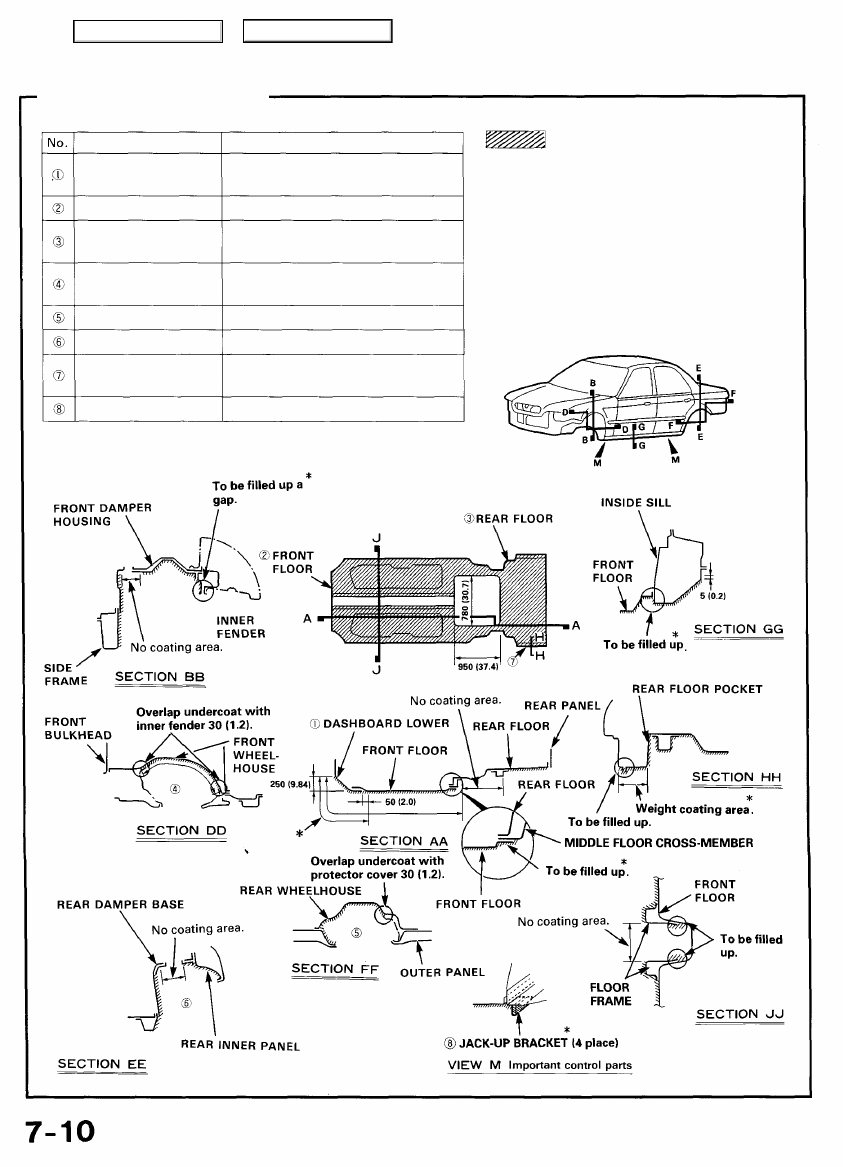

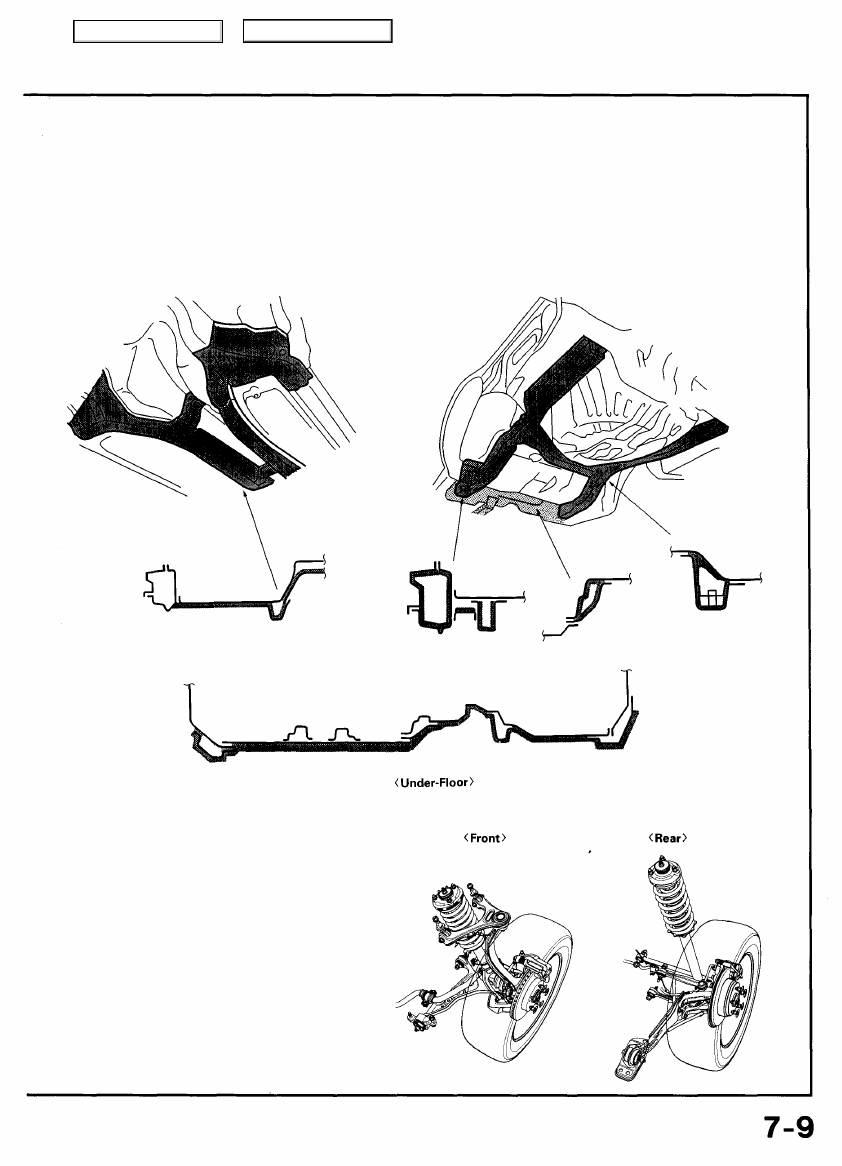

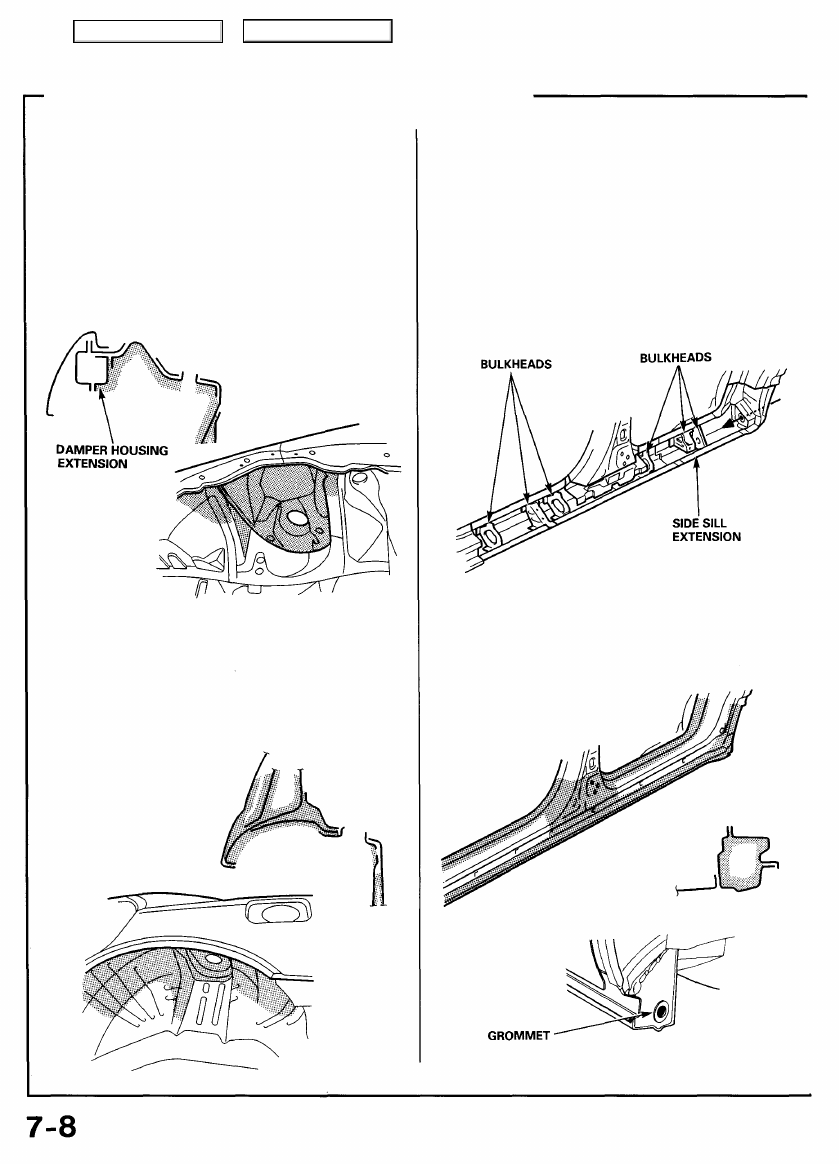

Rust-preventive Treatments Areas to be Covered by Anti-rust Agents (cont'd) Front Wheelhouse • Spray agent on the wheelhouse, front fender stay, upper member and damper bracket as shown. • Undercoat the wheelhouse where anti-rust agent or undercoat has not yet been applied. NOTE: • Coat the damper housing extension, particularly the upper face. • Undercoat the inner fender mounting area of the wheelhouse and upper face of the inner fender Nozzles used: A and C Side Sill, Inside • Remove the rear grommet and side sill panel to spray agent. • Insert the nozzle all the way through the grommet holes and spray. Move the nozzle right and left, and up and down while pulling it back out of the grommet hole. NOTE: Make sure that the nozzle is not interfering with the side sill bulkheads as shown. NOTE: Spray agent until it drips from the drain hole. Nozzles used: A and B Rear Wheelhouse • Coat the gaps between the inner and outer wheelhouses, including the damper base. • Apply agent to the edge of the rear side frame, side sill and rear floor. • Undercoat the wheelhouse where undercoat or anti-rust agent has not yet been applied. Nozzles used: B and C Main Menu Table of Contents |
