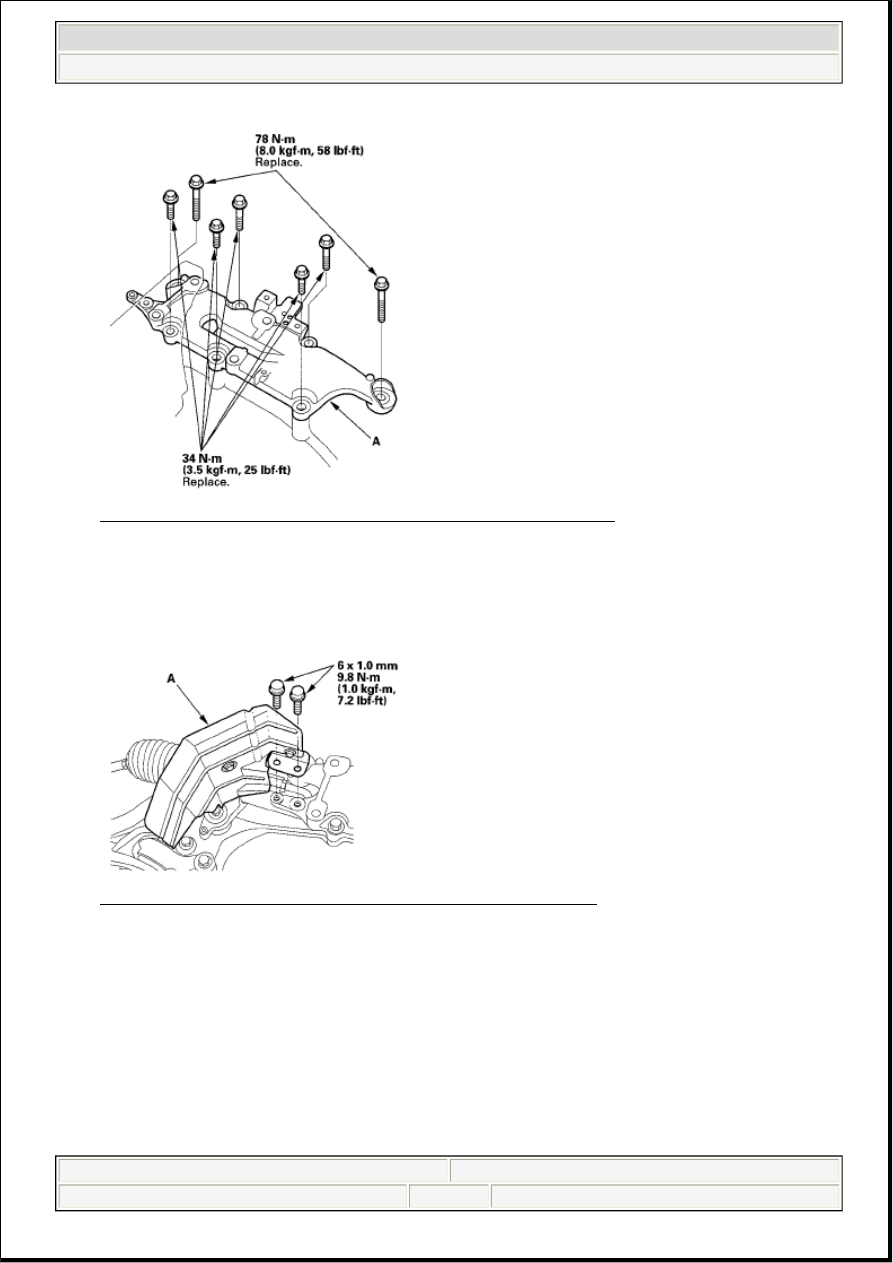

Fig. 138: Identifying Gearbox Stiffener With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install a dynamic damper in the reverse order of removal. Portion the gearbox stiffener and front

suspension subframe.

11. Install the P/S heat shield (A).

Fig. 139: Identifying P/S Heat Shield With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the return line joint (A) in the steering gearbox, then tighten it to the specified torque.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 79

© 2005 Mitchell Repair Information Company, LLC.

Fig. 140: Identifying Return Line Joint With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Connect the feed line (A), and tighten the 14 mm flare nut to the specified torque.

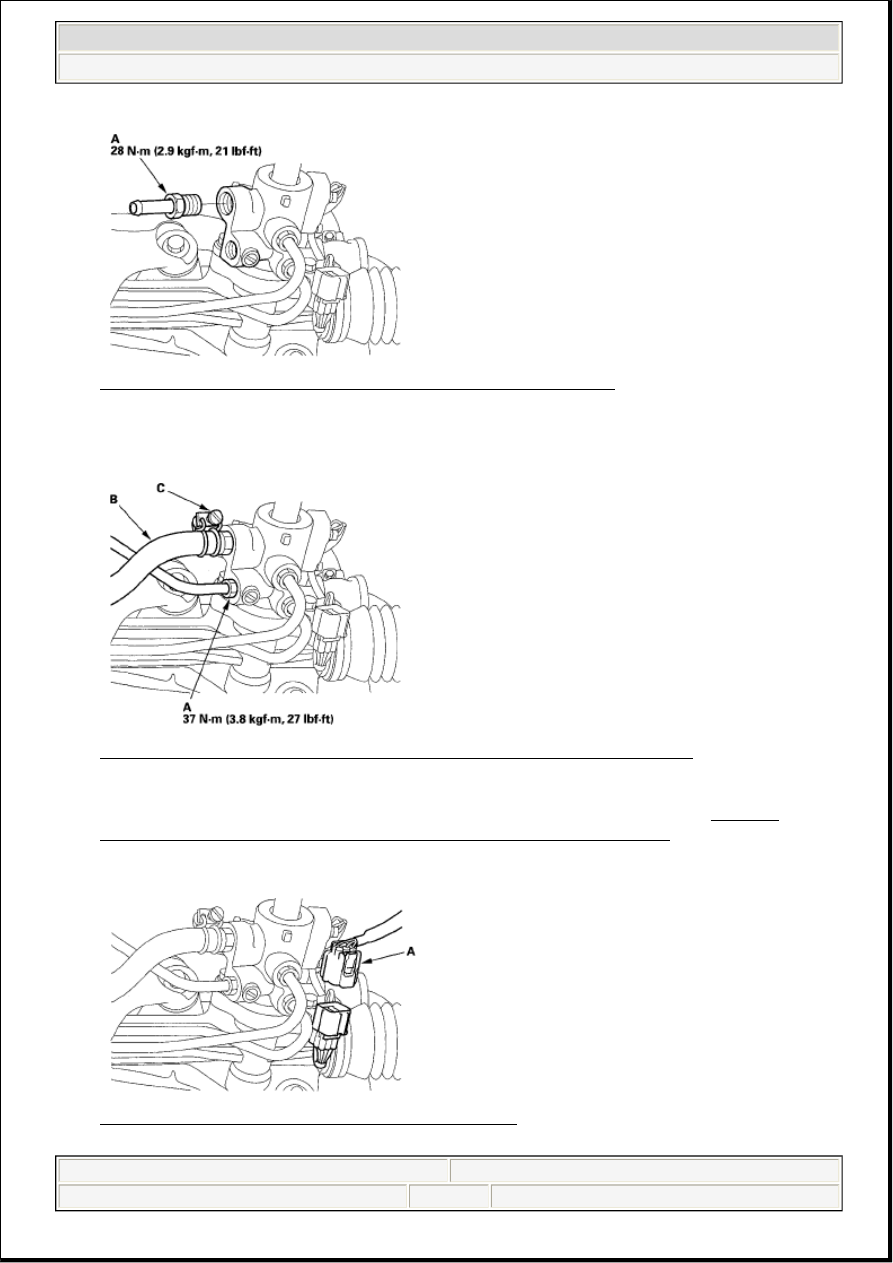

Fig. 141: Identifying Return Hose And Feed Line With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Connect the return hose (B) securely, and tighten the adjustable hose clamp (C) (see POWER

STEERING HOSE, LINE, AND PRESSURE SWITCH REPLACEMENT ).

15. Connect the stepping valve motor connector (A).

Fig. 142: Identifying Stepping Valve Motor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 80

© 2005 Mitchell Repair Information Company, LLC.

16. Install the feed line holder mounting bolt (A) and return line holder mounting bolt (A) on the gearbox.

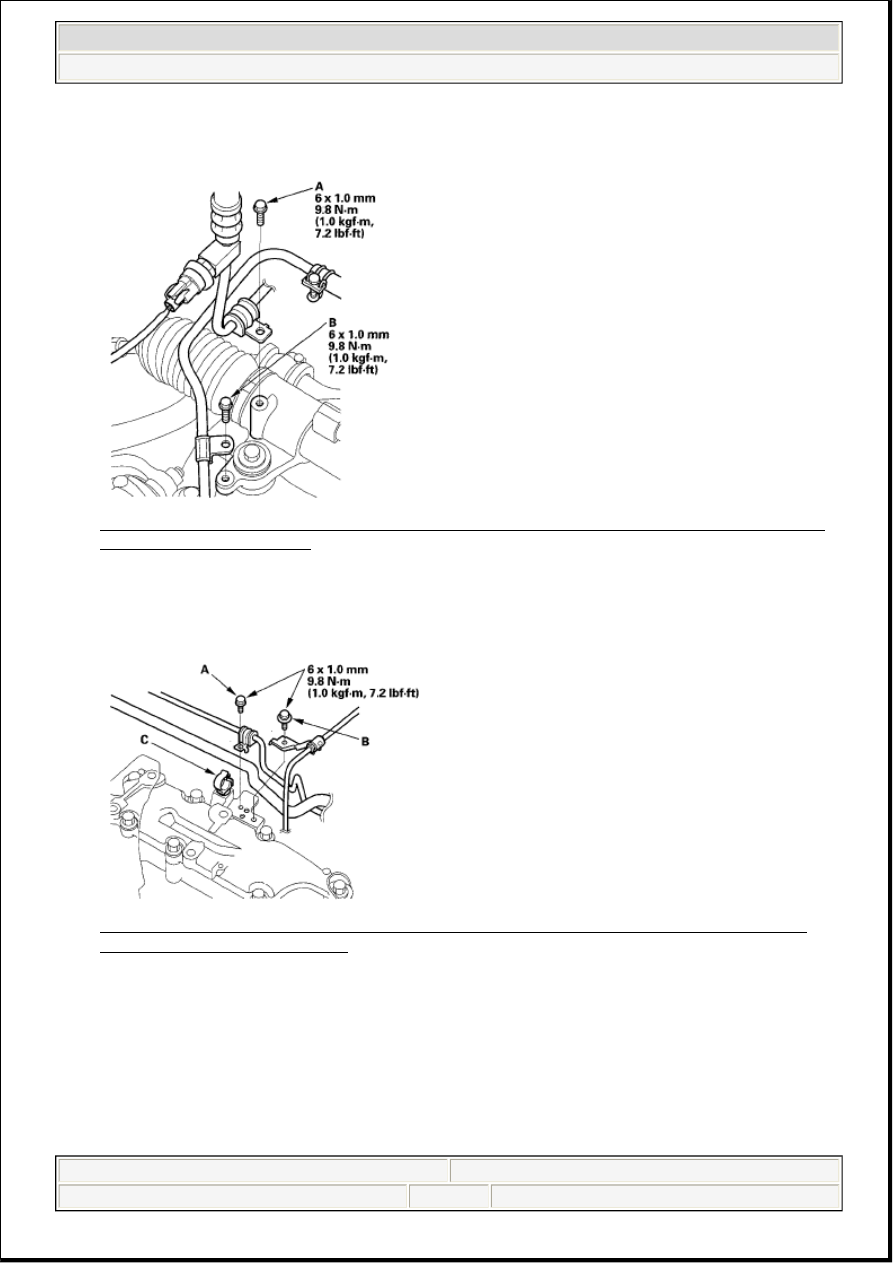

Fig. 143: Identifying Feed Line Holder Mounting Bolt And Return Line Holder Mounting Bolt
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Install the feed line holder mounting bolt (A) and A/T wire line holder mounting bolt (B) on the

gearbox stiffener.

Fig. 144: Identifying Feed Line Holder Mounting Bolt And A/T Wire Line Holder Mounting
Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Install the return hose in the clamp (C).

19. Connect the engine mount pressure hose (A) in the rear engine mount.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 81

© 2005 Mitchell Repair Information Company, LLC.

Fig. 145: Identifying Engine Mount Pressure Hose And Rear Engine Mount With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Install the rear engine mount (B), then tighten the new mounting bolts and the engine mount pressure

hose holder mounting bolt (C) on the gearbox stiffener to the specified torque.

21. Install the nuts (A) on the rear engine mount, then tighten them to the specified torque.

Fig. 146: Installing Rear Engine Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Wipe off any grease from the ball joint tapered section and threads. Then reconnect the tie-rod end

(A) to the knuckle arms.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 82
