82. After installing the boots, wipe any grease off the threaded section (D) of the rack end.

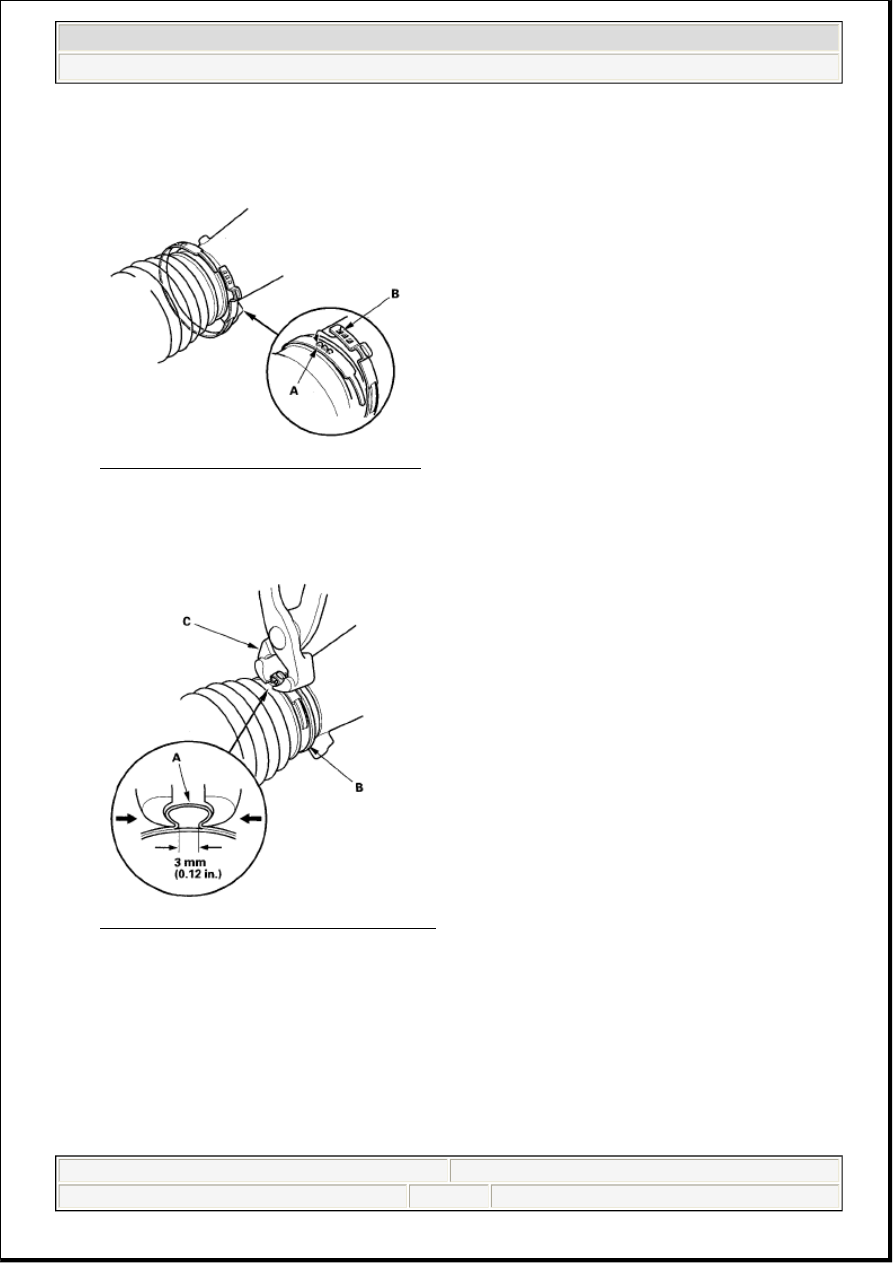

83. Install the new boot bands by aligning the tabs (A) with the holes (B) of the band.

Fig. 130: Identifying Boot And Boot Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

84. Close the ear portion (A) of the band (B) with commercially available pincers, Oetiker 1098 or

equivalent (C).

Fig. 131: Closing Ear Portion Of Boot Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

85. Slide the rack right and left to be certain that the boots are not deformed or twisted.

STEERING GEARBOX INSTALLATION

1. Before installing the steering gearbox, make sure that no power steering fluid is on the mating surface

of the gearbox and front suspension subframe. To prevent the gearbox mounting bolts from loosening
after the installation, remove any power steering fluid from the mount cushions and bolt holes.

2. Apply a mild soap and water solution to both sides of the mount cushion mating surfaces (A).



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 75

© 2005 Mitchell Repair Information Company, LLC.

Fig. 132: Guiding Steering Gearbox Through Wheelwell Opening On Driver's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

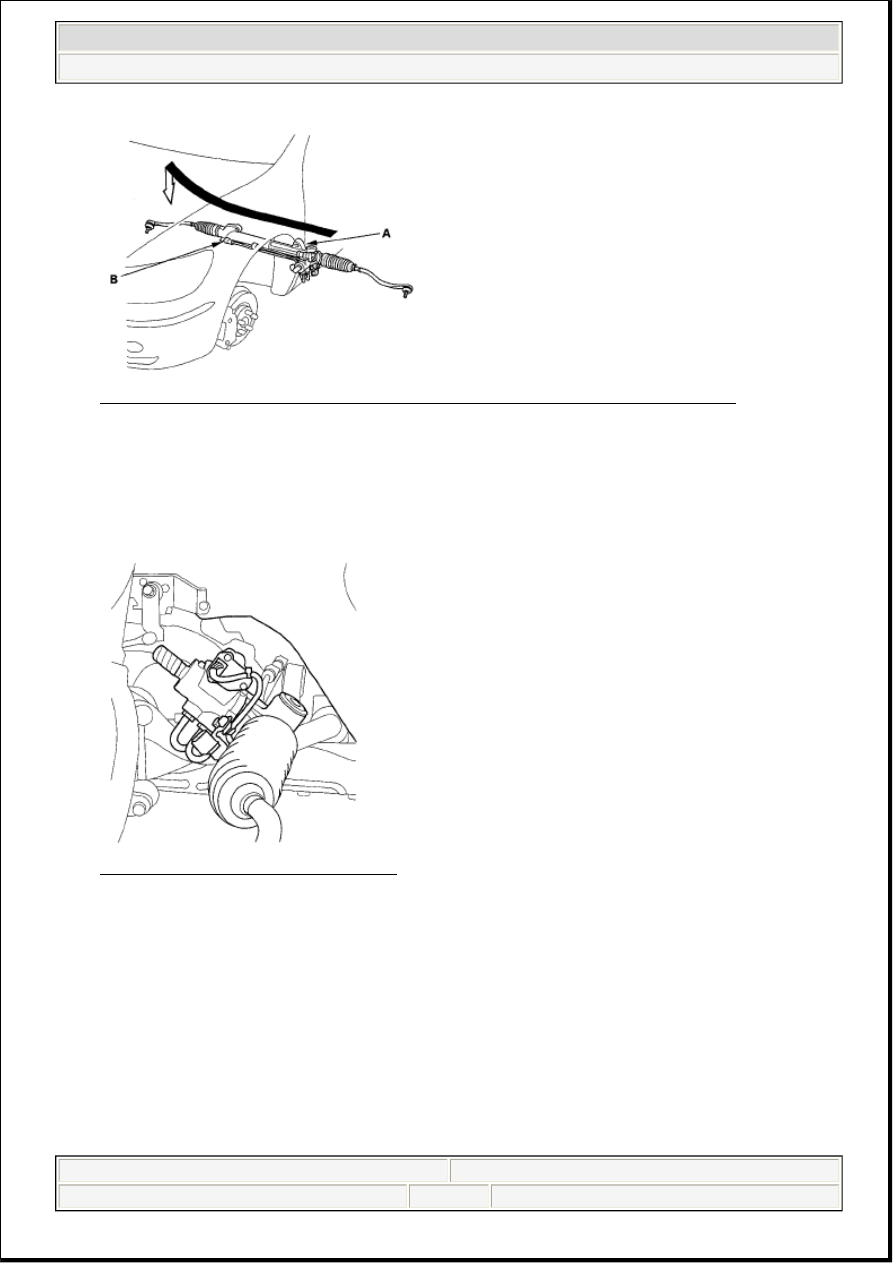

3. Lift and pass the passenger's side of the steering gearbox (B) through the wheelwell opening on the

driver's side.

4. Carefully move the steering gearbox toward the passenger's side until the pinion shaft clears the

wheelwell opening on the body.

Fig. 133: Identifying Steering Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.

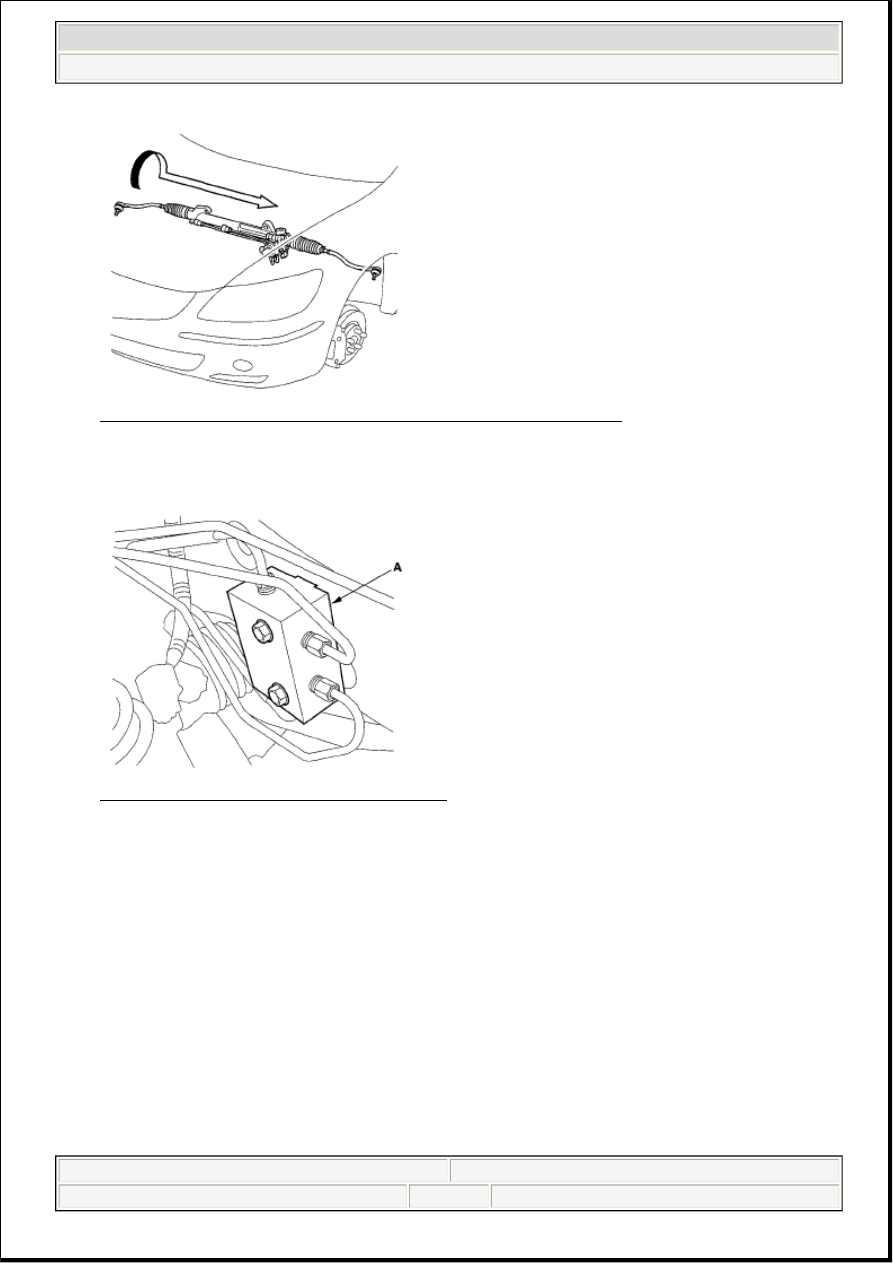

5. Rotate the steering gearbox so the pinion shaft points upward, then move the steering gearbox to the

driver's side.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 76

© 2005 Mitchell Repair Information Company, LLC.

Fig. 134: Rotating Steering Gearbox So Pinion Shaft Points Upward
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the 4-way brake line joint (A).

Fig. 135: Identifying 4-Way Brake Line Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.

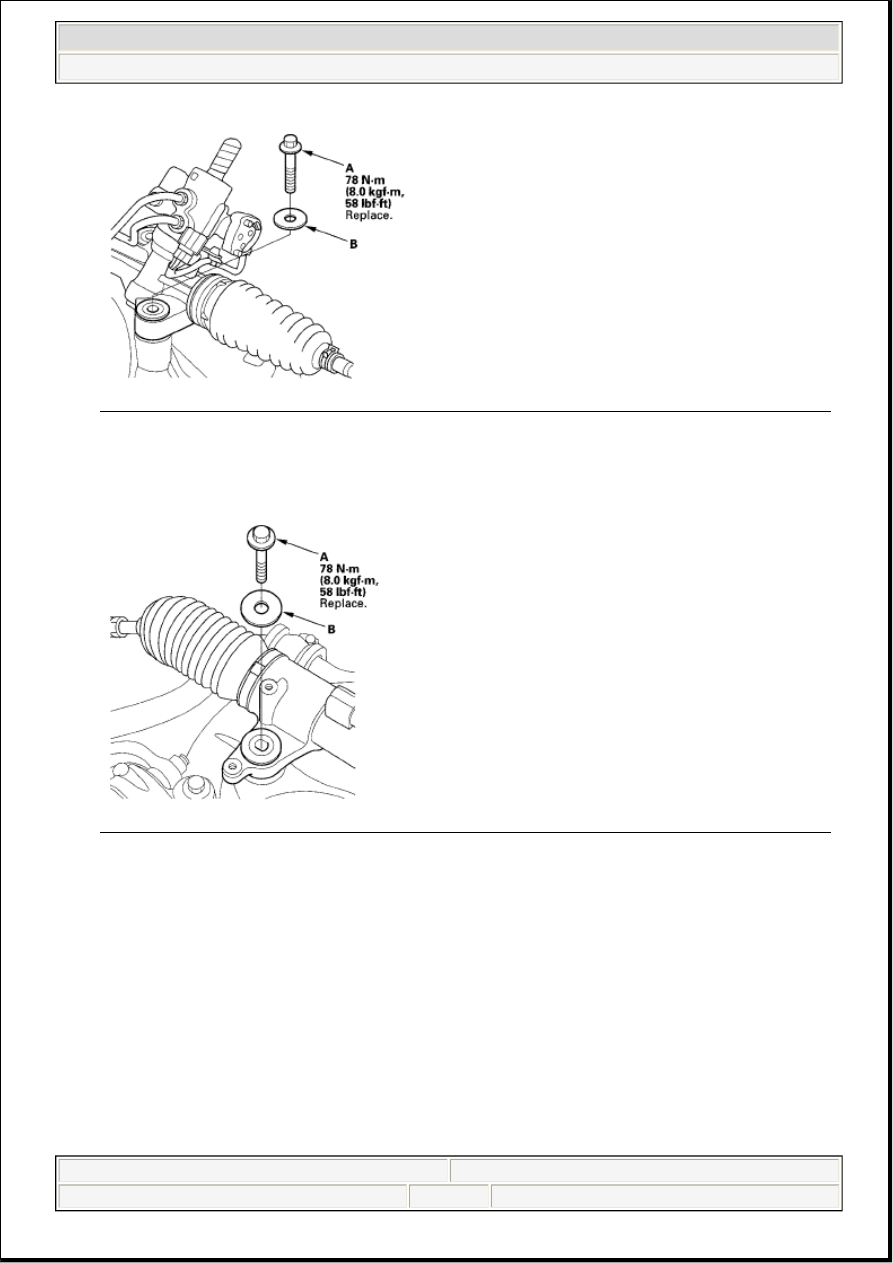

7. Install the new steering gearbox mounting bolt (A) and washer (B) on the left gearbox mount, then

tighten them to the specified torque.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 77

© 2005 Mitchell Repair Information Company, LLC.

Fig. 136: Identifying Steering Gearbox Mounting Bolt And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the new steering gearbox mounting bolt (A) and washer (B) on the right gearbox mount, then

tighten them to the specified torque.

Fig. 137: Identifying Steering Gearbox Mounting Bolt And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the gearbox stiffener (A), then tighten the new mounting bolts to the specified torque.
