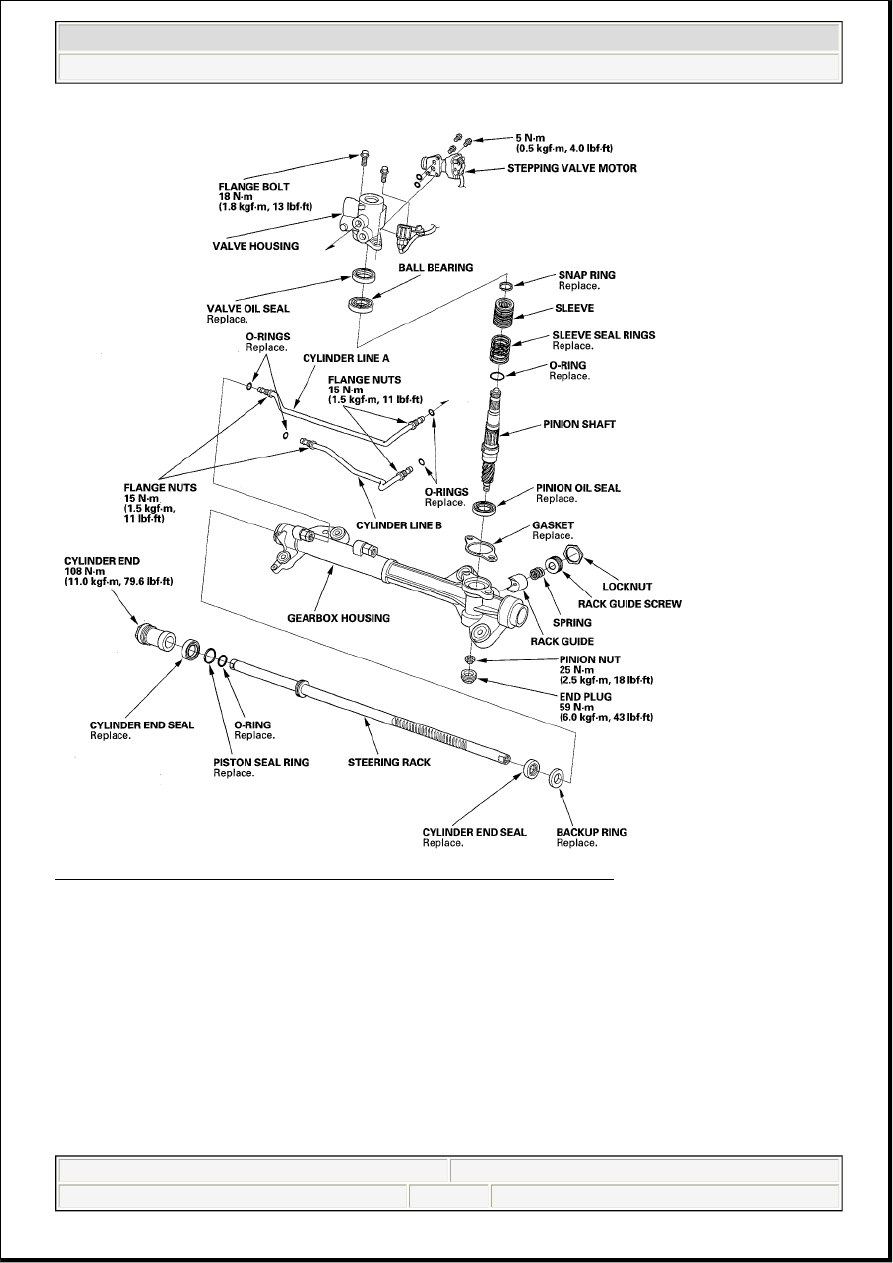

Fig. 80: Exploded View Of Steering Gearbox With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Cylinder end seal remover attachment 07NAD-SR3020A



Valve seal ring sizing tool 07NAG-SR3090A



Ball joint boot clip guide 07974-SA50800



Sleeve seal ring sizing tool 07974-SA5020A or 07974-SA50200



Attachment, 32 x 35 mm 07746-0010100



Attachment, 24 x 26 mm 07746-0010700



Driver 07749-0010000



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 51

© 2005 Mitchell Repair Information Company, LLC.



Piston seal ring guide 07HAG-SF10100



Piston seal ring sizing tool 07HAG-SF1020A or 07HAG-SF10200



Cylinder end seal slider 07ZAG-S5A0300



Pincers Oetiker 1098 or equivalent, commercially available

Removal

1. Remove the steering gearbox (see STEERING GEARBOX REMOVAL ).

Disassembly

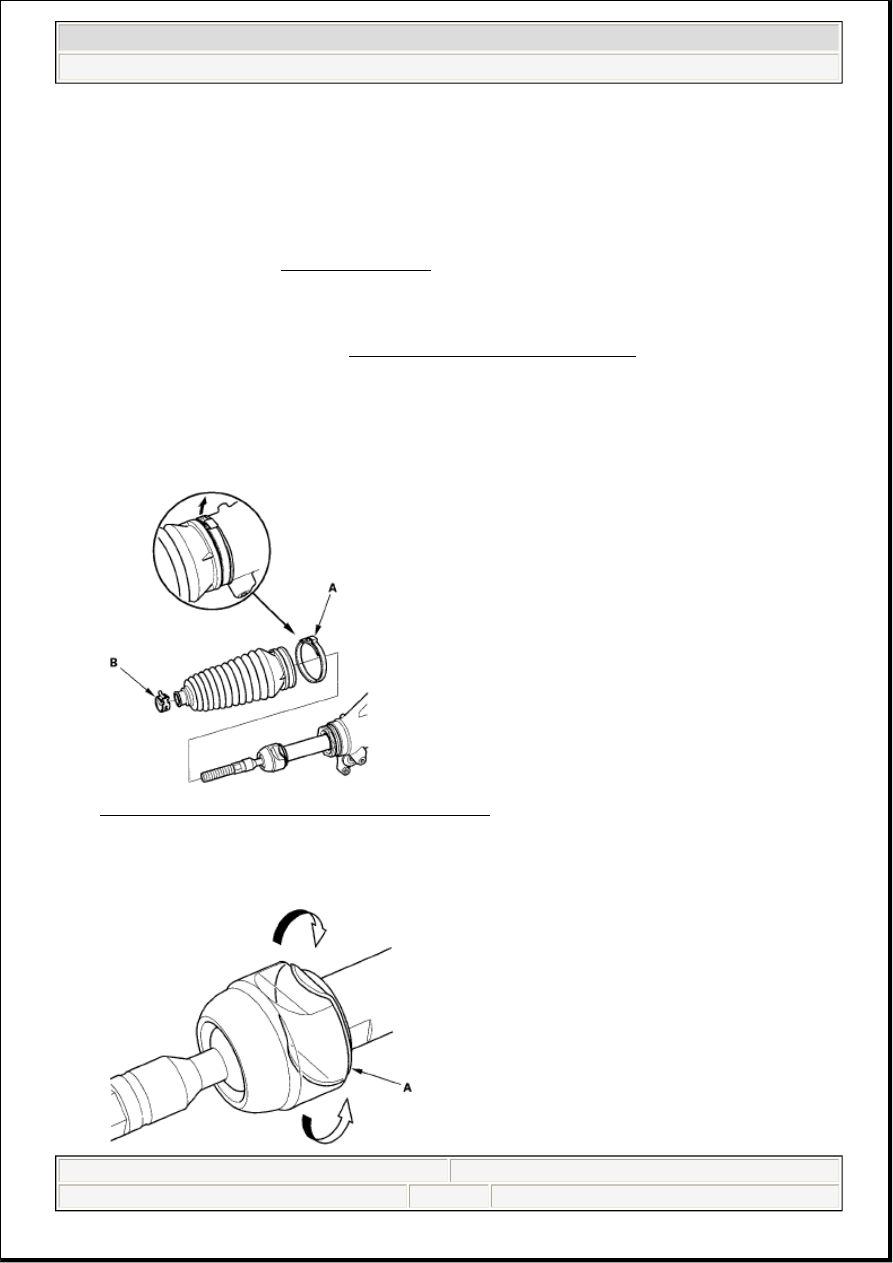

2. Remove the boot bands (A) and tie-rod clips (B). Pull the boot away from the ends of the steering

gearbox.

Fig. 81: Identifying Boot Bands And Tie-Rod Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Unbend the lock washers (A).

NOTE:

Refer to the EXPLODED VIEW as needed during this procedure.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 52

© 2005 Mitchell Repair Information Company, LLC.

Fig. 82: Identifying Lock Washers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

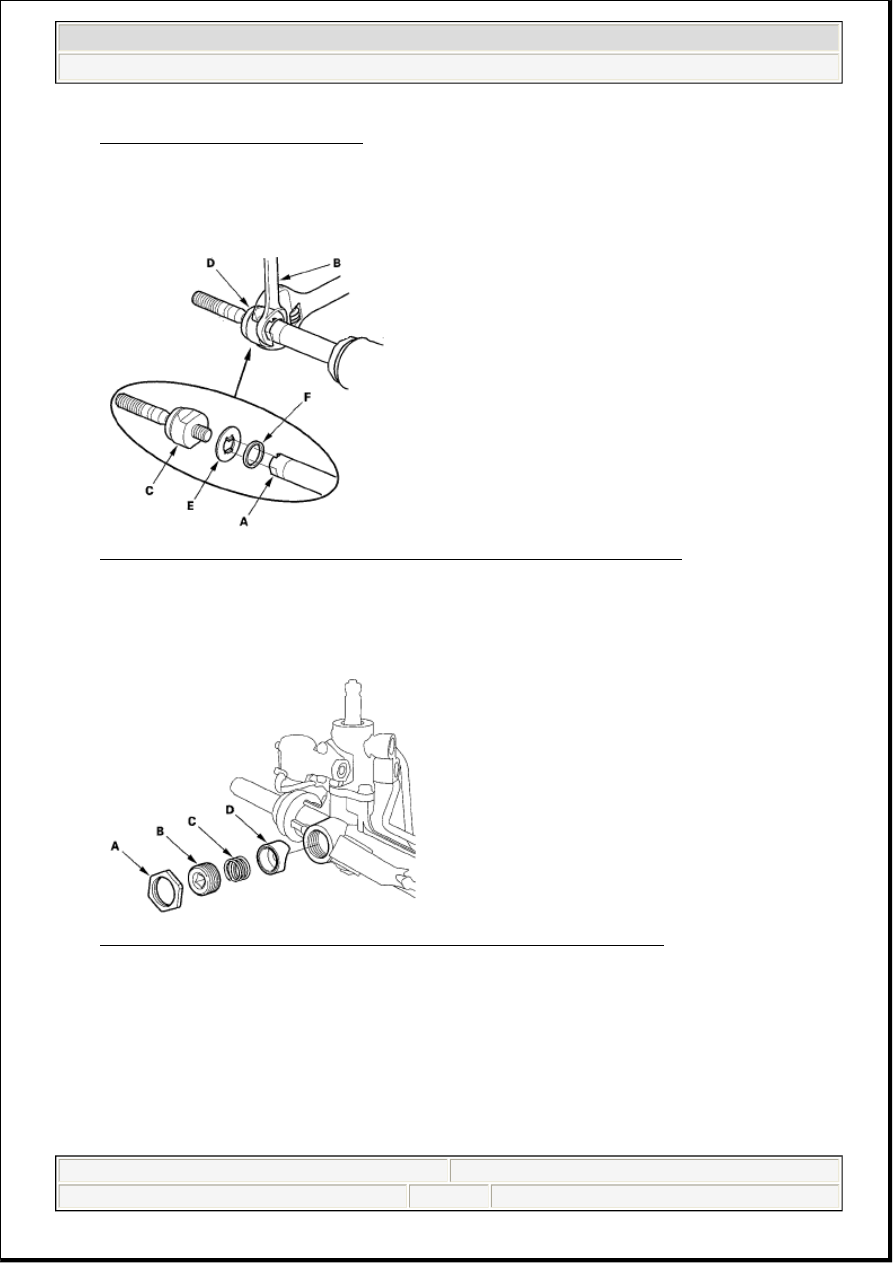

4. Hold the flat surface sections (A) of the steering rack with a wrench (B), and unscrew both rack ends

(C) with another wrench (D). Be careful not to damage the rack surface with the wrench.

Fig. 83: Identifying Flat Surface Sections, Wrench, Rack Ends And Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the lock washer (E) and rubber stop (F).

6. Loosen the locknut (A), then remove the rack guide screw (B).

Fig. 84: Identifying Locknut, Spring, Rack Guide And Rack Guide Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the spring (C) and the rack guide (D) from the gearbox housing.

8. Remove the cylinder lines from the gearbox.

NOTE:

Use a second wrench when loosening the cylinder lines to avoid
damage to the fittings on the steering gearbox. Do not loosen the A and
B connectors.



2007 Acura RL

2005-08 STEERING Steering - RL



me



Friday, June 05, 2009 2:20:15 PM

Page 53

© 2005 Mitchell Repair Information Company, LLC.

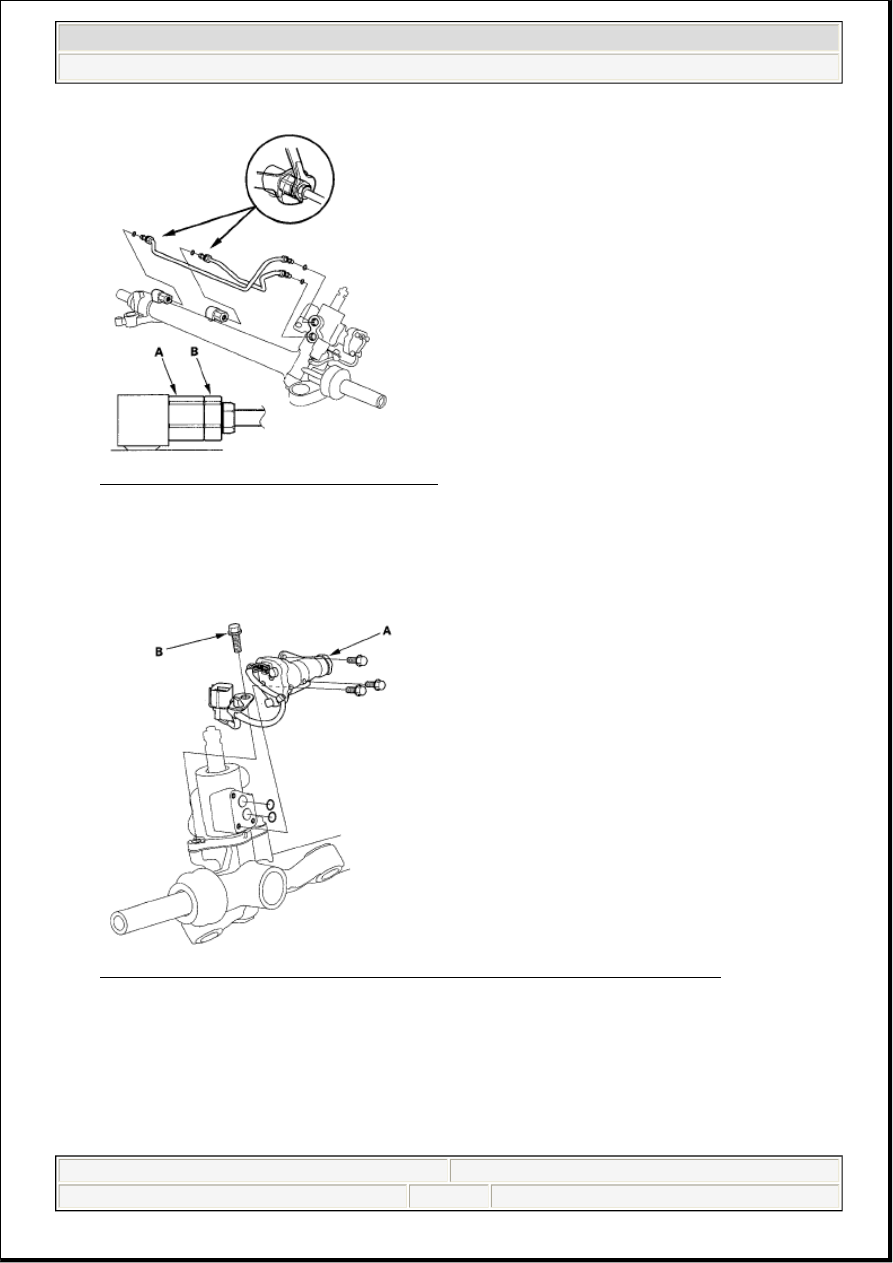

Fig. 85: Identifying Gearbox Cylinder Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Drain the fluid from the cylinder fittings by slowly moving the steering rack back and forth.

10. Remove the stepping valve motor (A), then remove the connector holder mounting bolt (B) on the

valve housing.

Fig. 86: Identifying Stepping Valve Motor And Connector Holder Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Remove the end plug (A) from the gearbox housing, then remove the nut (B) from the pinion shaft

end.
