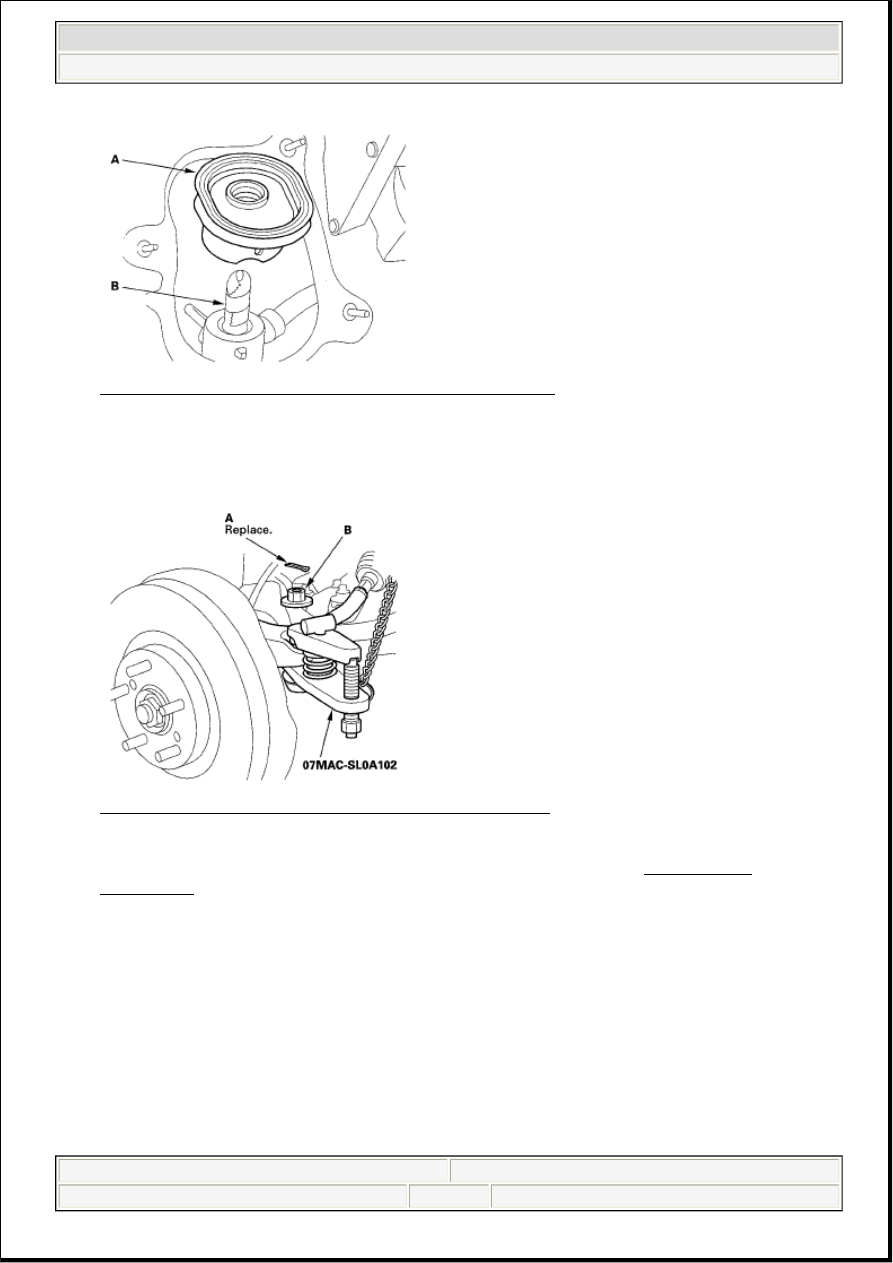

Fig. 63: Identifying Pinion Shaft Grommet And Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Apply vinyl tape (B) to the splines on the pinion shaft.

13. Remove and discard the cotter pin (A) from the tie-rod ball joint nut (B), and loosen the nut.

Fig. 64: Identifying Cotter Pin And Tie-Rod Ball Joint Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Separate the tie-rod ball joint and knuckle using the ball joint remover (see BALL JOINT

REMOVAL ).

15. Remove the nuts (A) from the rear engine mount.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 43

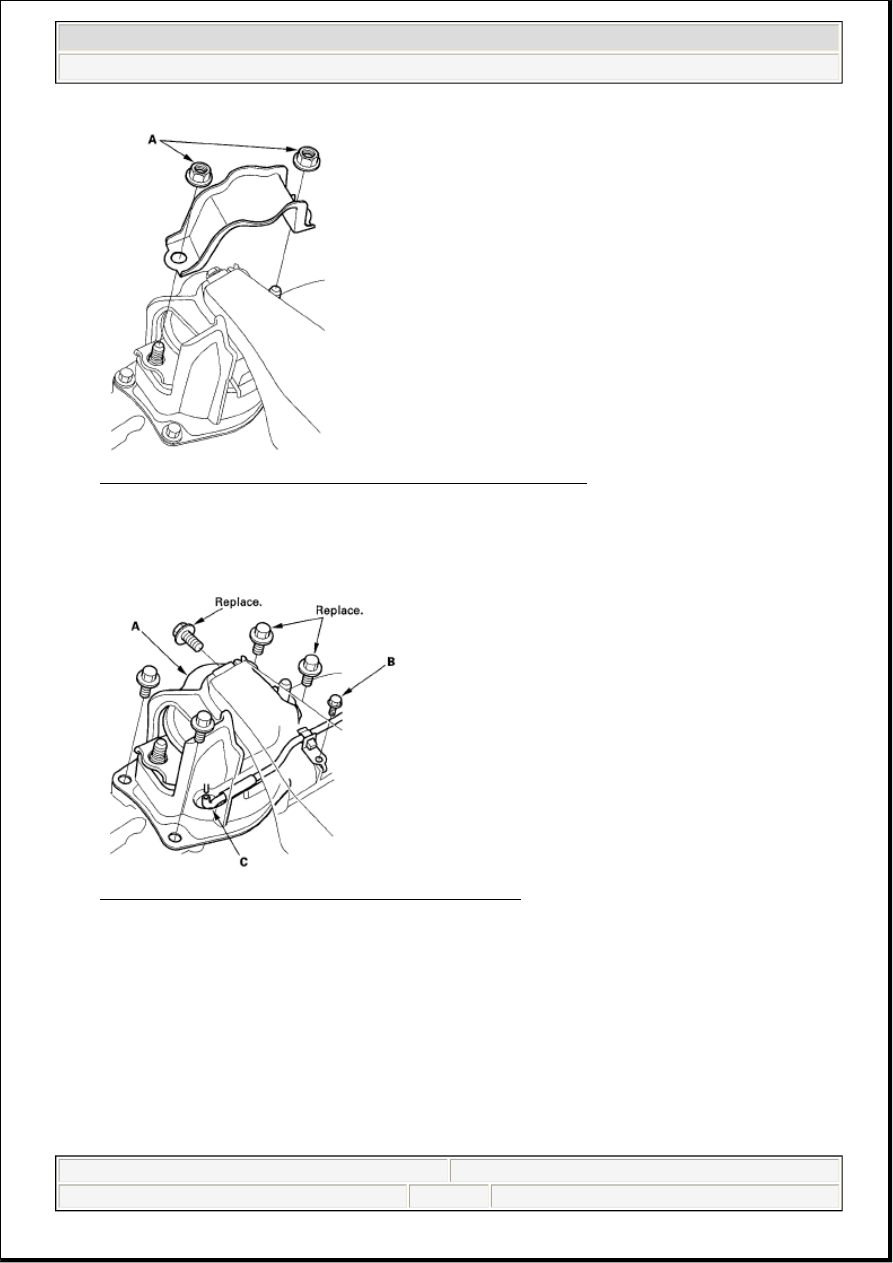

Fig. 65: Identifying Rear Engine Mount Bracket And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Remove the rear engine mount (A) and the engine mount pressure hose holder mounting bolt (B) on

the gearbox stiffener.

Fig. 66: Identifying Rear Engine Mount And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Disconnect the engine mount pressure hose (C) from the rear engine mount.

18. Remove the feed line holder mounting bolt (A) and A/T wire line holder mounting bolt (B) on the

gearbox stiffener.

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 44

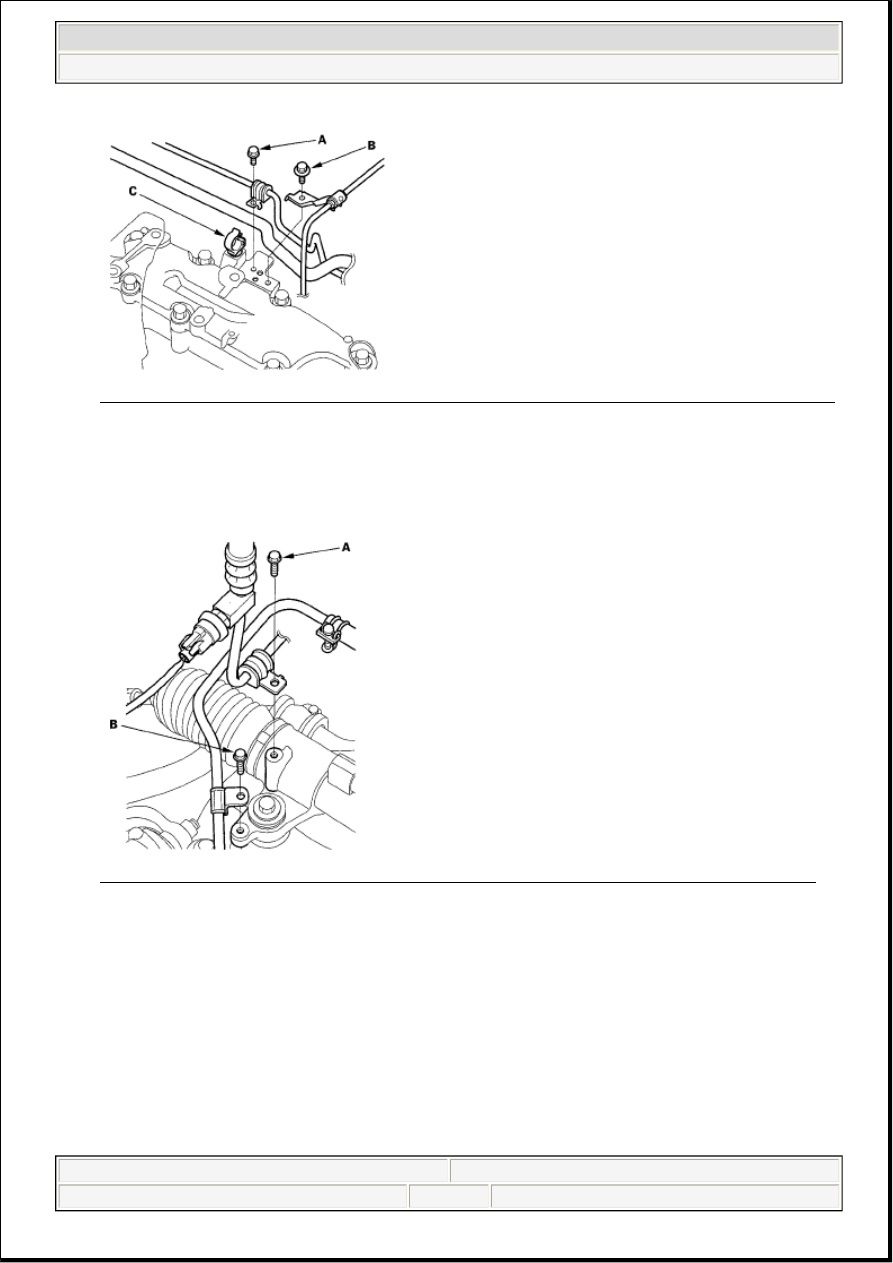

Fig. 67: Identifying Feed Line Holder Mounting Bolt And A/T Wire Line Holder Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Disconnect the return hose from the clamp (C).

20. Remove the feed line holder mounting bolt (A) and return line holder mounting bolt (B) on the

gearbox.

Fig. 68: Identifying Feed Line Holder Mounting Bolt And Return Line Holder Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Disconnect the stepping valve motor connector (A).

2007 Acura RL

2005-08 STEERING Steering - RL

Friday, June 05, 2009 2:20:15 PM

Page 45

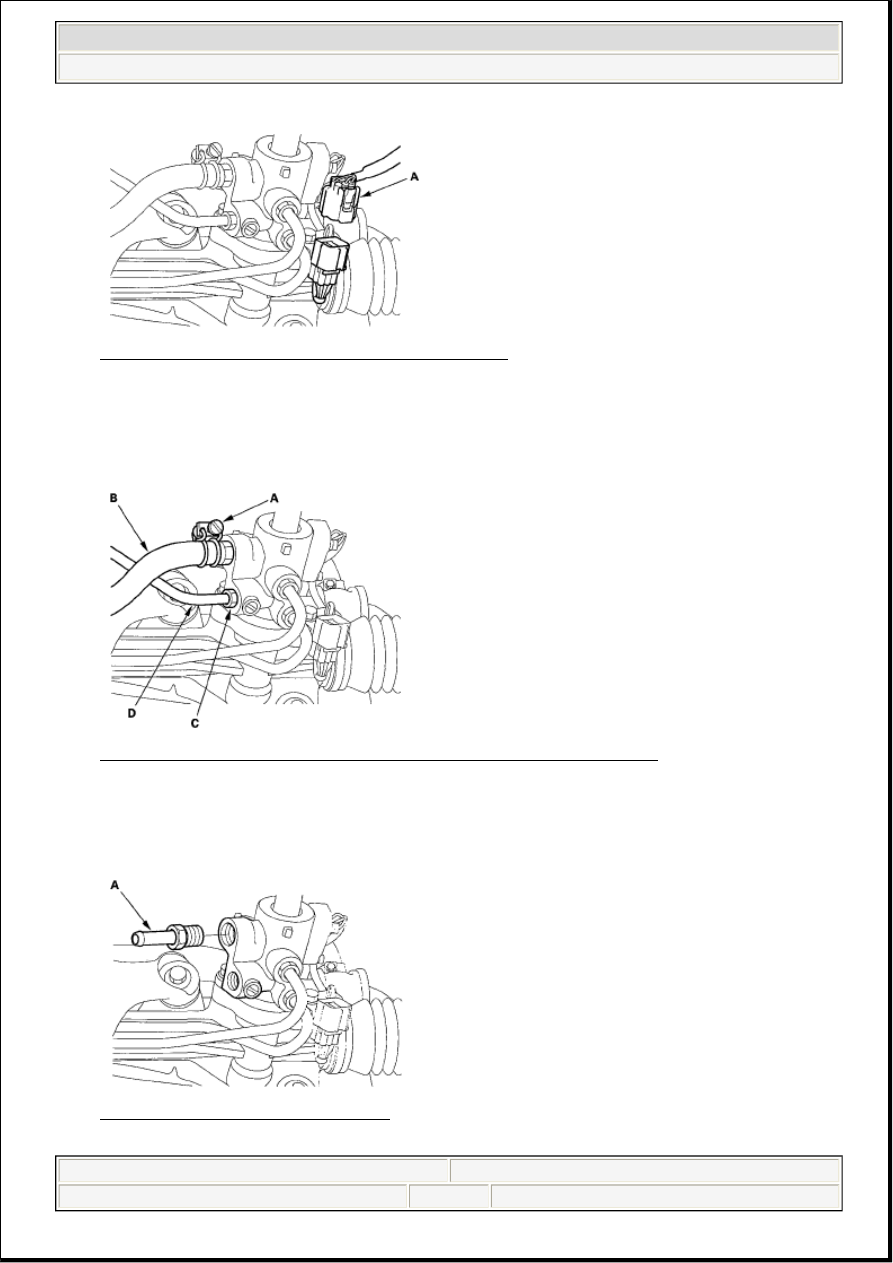

Fig. 69: Identifying Stepping Valve Motor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Place several shop towels under the line connections, and cover the gearbox mounting part to protect

it from the power steering fluid. Loosen the adjustable hose clamp (A), and disconnect the return hose
(B).

Fig. 70: Identifying Adjustable Hose Clamp, Flare Nut And Return Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Loosen the 14 mm flare nut (C), and disconnect the feed line (D).

24. Remove the return line joint (A) from the steering gearbox.

Fig. 71: Identifying Return Line Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
