3. Release the hooks (A).

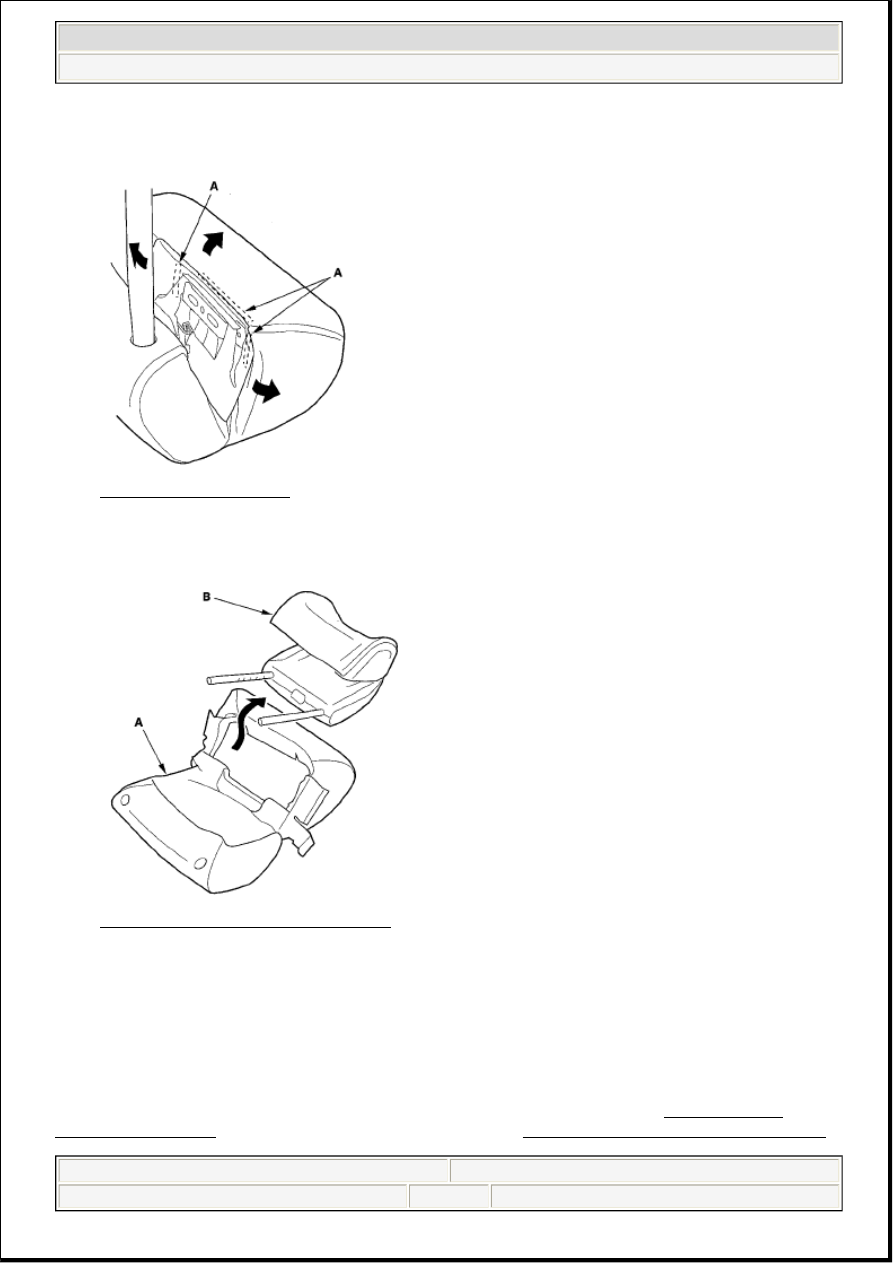

Fig. 48: Releasing Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Pull back the head restraint cover (A), then remove the head restraint cover from the pad (B).

Fig. 49: Pulling Head Restraint Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the head restraint cover in the reverse order of removal.

FRONT SEAT VENTILATION BLOWER MOTOR/DUCT REPLACEMENT

SEAT-BACK BLOWER MOTOR/DUCT

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).

2. Remove the seat-back (see SEAT-BACK/SEAT CUSHION ).

3. Remove the seat-back cover and pad (see FRONT SEAT-BACK COVER REPLACEMENT ).

4. Disconnect the connector (A), then remove the blower motor/duct (B) from the seat-back frame.

Fig. 50: Identifying Blower Motor/Duct And Seat-Back Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the clips, then separate the duct (A, B) and blower motor (C).

Fig. 51: Identifying Duct, Blower Motor And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the blower motor/duct in the reverse order of removal.

SEAT CUSHION REAR BLOWER MOTOR/DUCT

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )

NOTE:



Take care not to tear the seams or damage the seat covers.



Put on gloves to protect your hands.

NOTE:

Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

before doing repairs or service.

1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).

2. Remove the front seat cushion cover (see FRONT SEAT CUSHION COVER REPLACEMENT ).

3. Disconnect the blower motor connector (A), then remove the connector from the bracket.

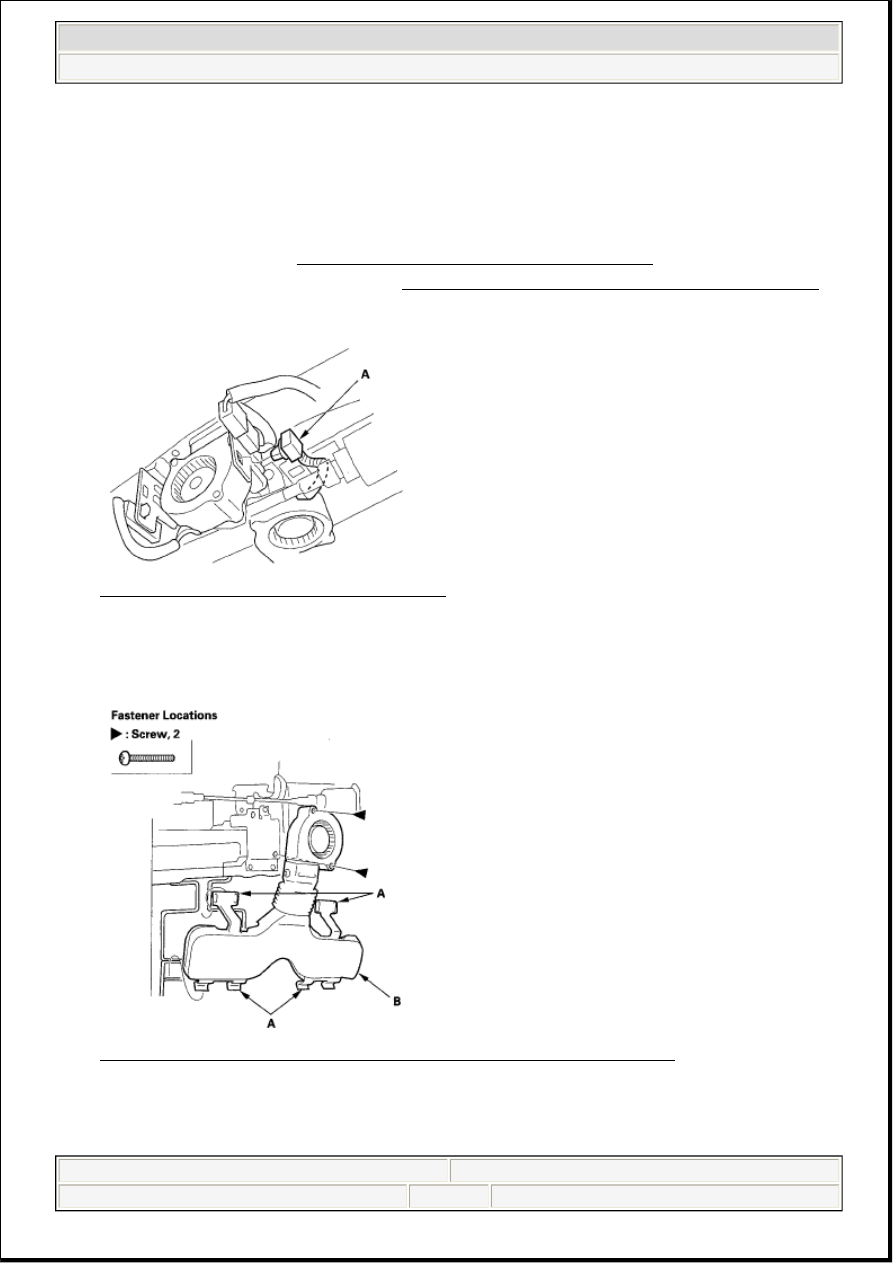

Fig. 52: Identifying Blower Motor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the screws, and release the hooks (A) from cushion frame wire, then remove the blower

motor/duct (B).

Fig. 53: Identifying Cushion Frame, Wire Blower Motor, Duct And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the clips, then separate the duct (A) and blower motor (B).

NOTE:



Take care not to tear the seams or damage the seat covers.



Put on gloves to protect your hands.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

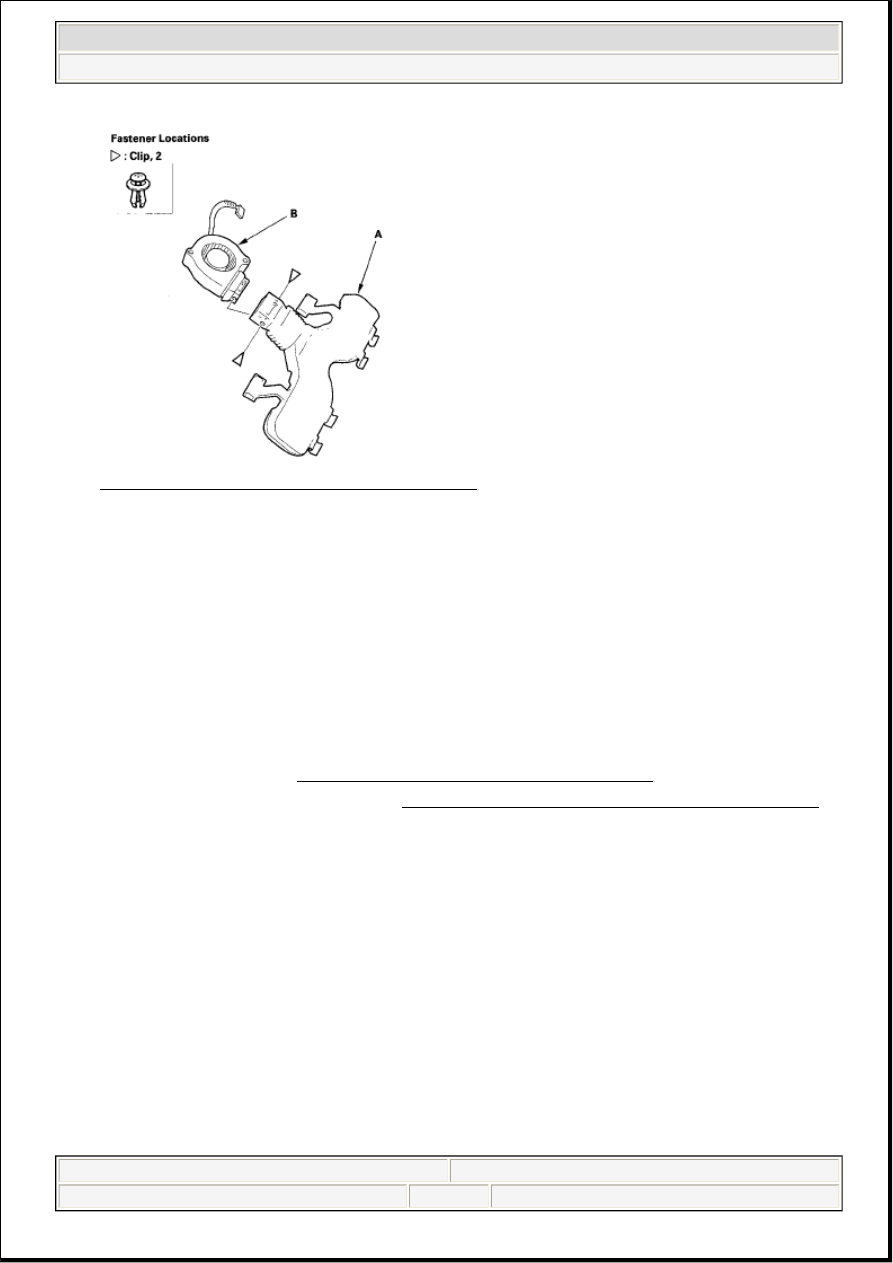

Fig. 54: Identifying Blower Motor Clip And Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the blower motor/duct in the reverse order of removal.

SEAT CUSHION FRONT BLOWER MOTOR

1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).

2. Remove the front seat cushion cover (see FRONT SEAT CUSHION COVER REPLACEMENT ).

3. Disconnect the blower motor connector (A) and remove the screws, then remove the blower motor (B)

from the duct.

NOTE:

Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.

NOTE:



Take care not to tear the seams or damage the seat covers.



Put on gloves to protect your hands.
