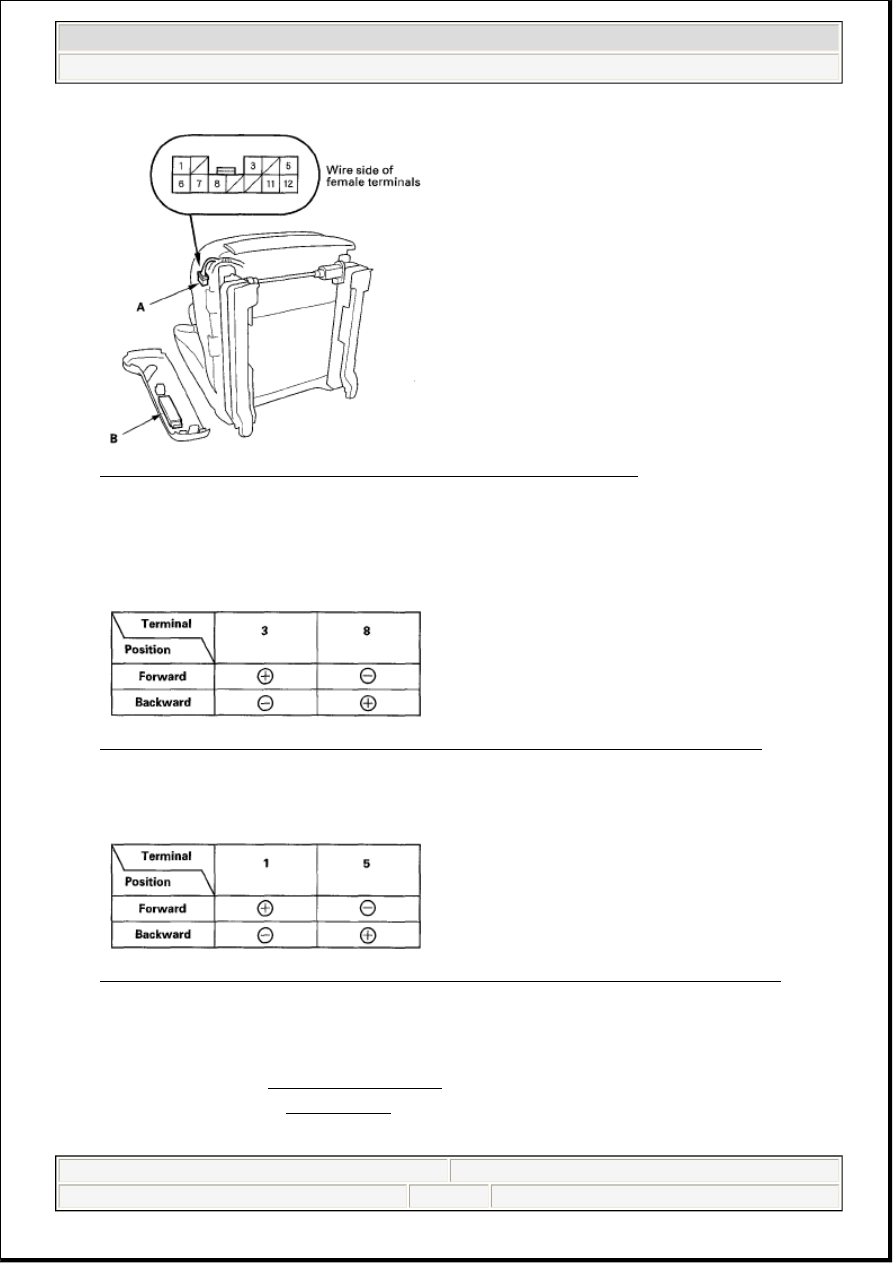

Fig. 5: Identifying Power Seat Adjustment Switch And 12P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Test each motor by applying battery voltage and body ground to the 12P connector terminals.

Slide motor

Fig. 6: Identifying Terminals Power And Body Ground Reference Chart - Slide Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Recline motor

Fig. 7: Identifying Terminals Power And Body Ground Reference Chart - Recline Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. If the motor does not run or fails to run smoothly, check for an open in the front passenger's seat wire

harness between the 12P connector and each motor connector. If the harness is OK, replace the motor.



Slide motor (see PASSENGER'S SEAT ).



Recline motor (see SEAT-BACK ).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Seats - RL



me



Friday, June 05, 2009 3:25:48 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Power Windows - RL

COMPONENT LOCATION INDEX

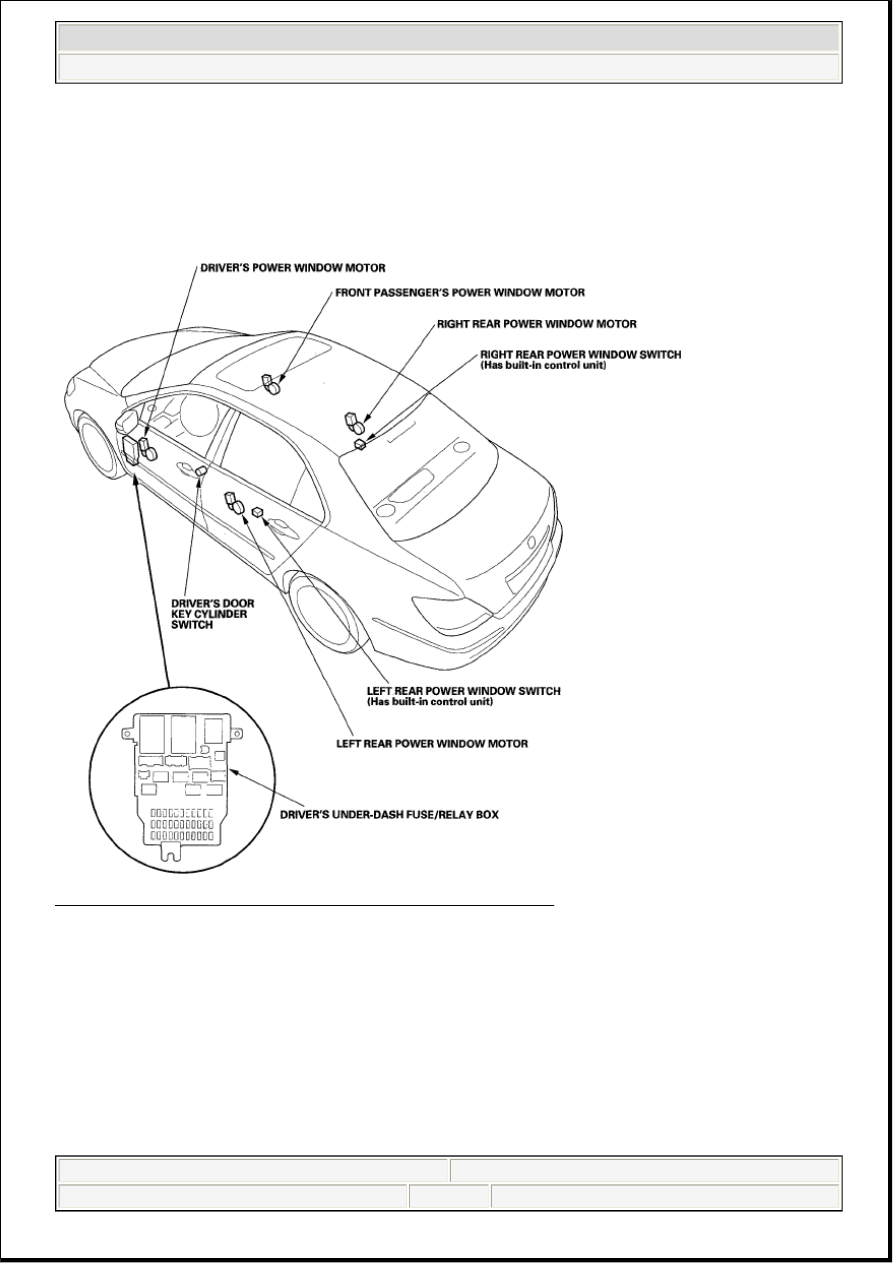

Fig. 1: Identifying Power Windows Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:27 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:20:32 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

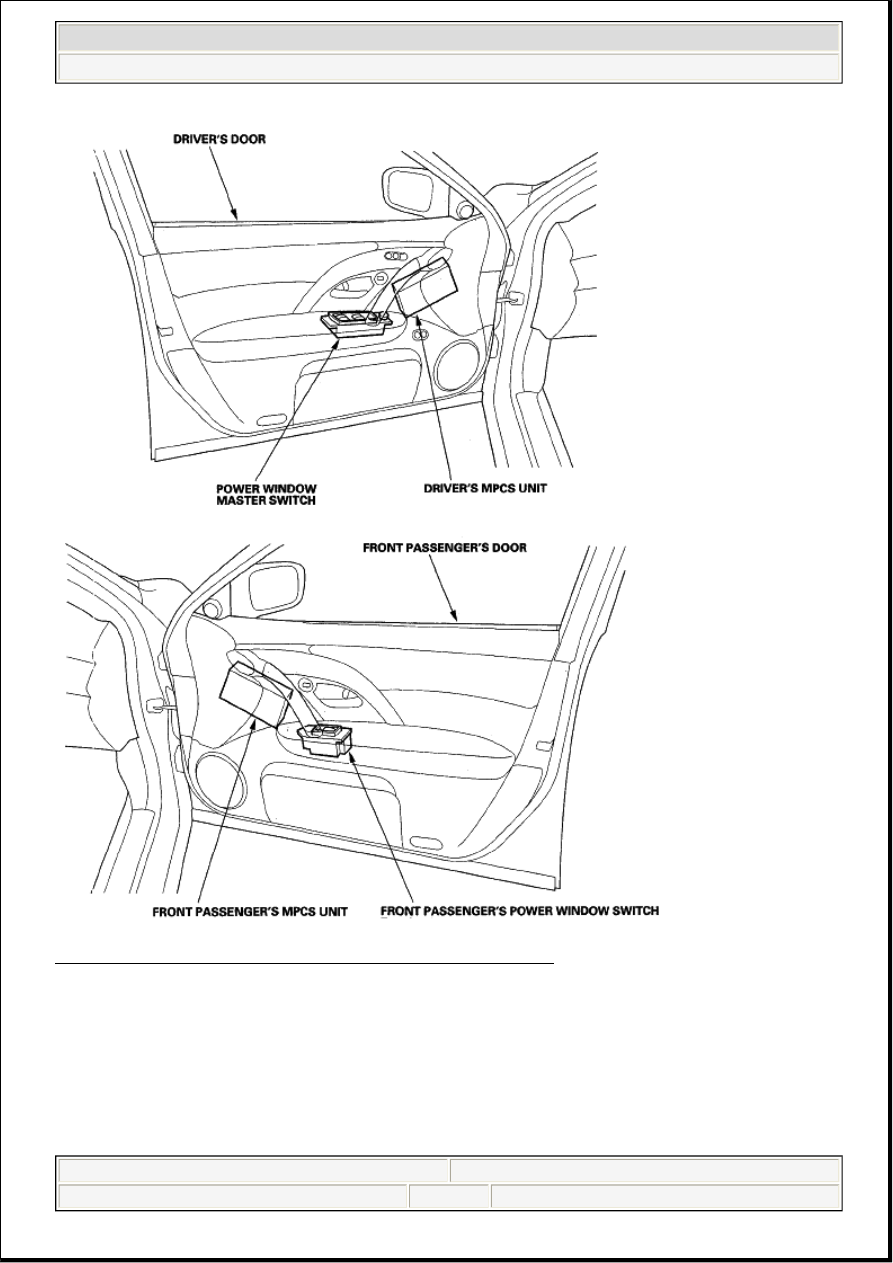

Fig. 2: Identifying Power Windows Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYSTEM DESCRIPTION

ANTI-PINCH POWER WINDOW OPERATION

The system is composed of the driver's MPCS unit, front passenger's MPCS unit, power window master
switch, passenger's power window switches, and power window motors.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Windows - RL



me



Friday, June 05, 2009 3:20:28 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

The rear power window switches have built-in control units.

The power window motor incorporates a pulser which generates pulses during the motor's operation and
sends pulses to the power window control unit. As soon as the power window control unit detects no pulses
from the pulser, the power window control unit makes the power window motor stop and reverse. This is to
prevent pinching your hand or fingers during auto-up operation.

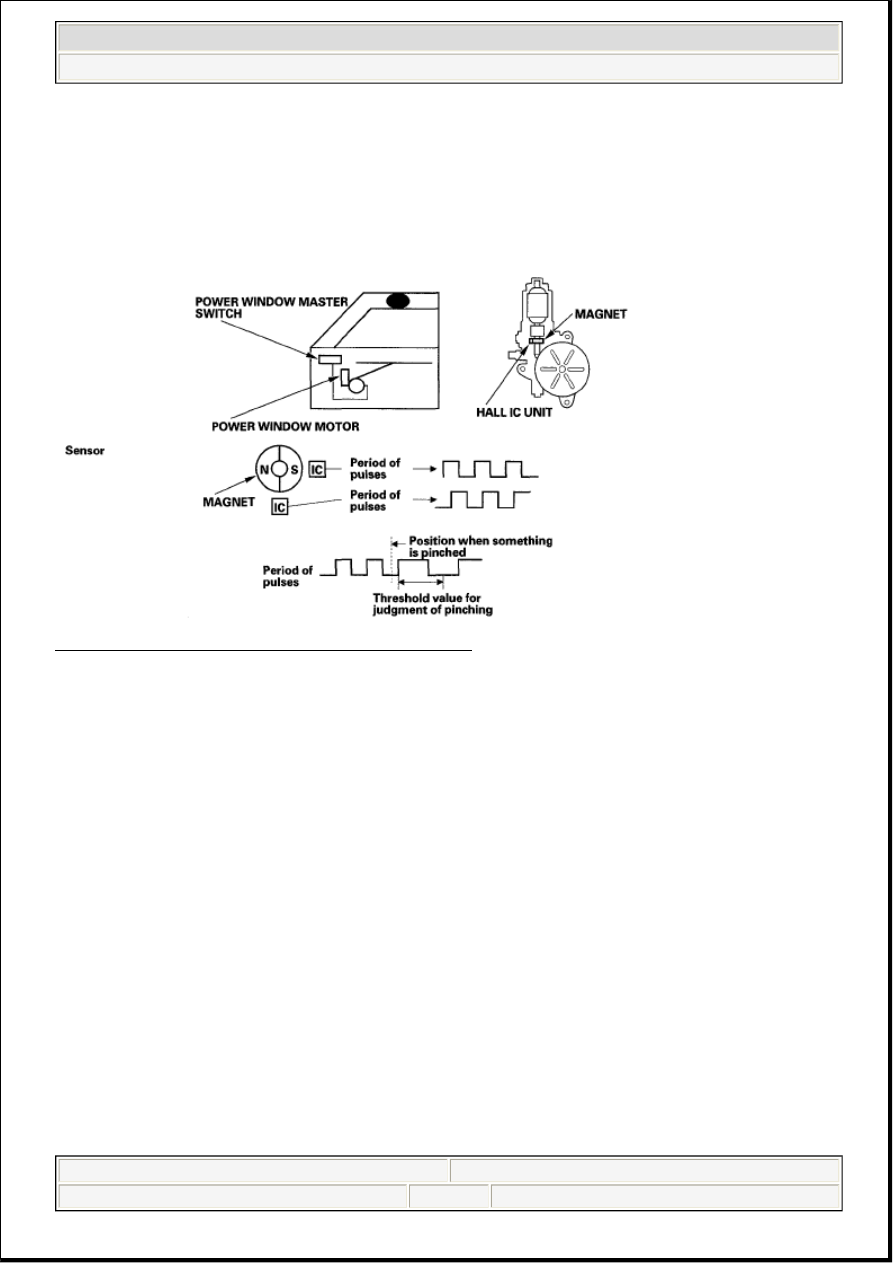

Fig. 3: Anti-Pinch Power Window Operation Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Key Cylinder Operation

With the key inserted in the driver's door key cylinder, turn the key a second time within 15 seconds and
hold it to operate the power windows and moonroof (clockwise to open, counterclockwise to close). The
power windows and moonroof stop moving when the key is released. The anti-pinch operation is not active
when closing the power windows and moonroof with the key cylinder.

Keyless Operation

By pressing the UNLOCK button of the remote a second time within 15 seconds and hold, the power
windows and moonroof open. The power windows and moonroof stop moving when the UNLOCK button is
released. The power windows do not close with the LOCK button.

CIRCUIT DIAGRAM
