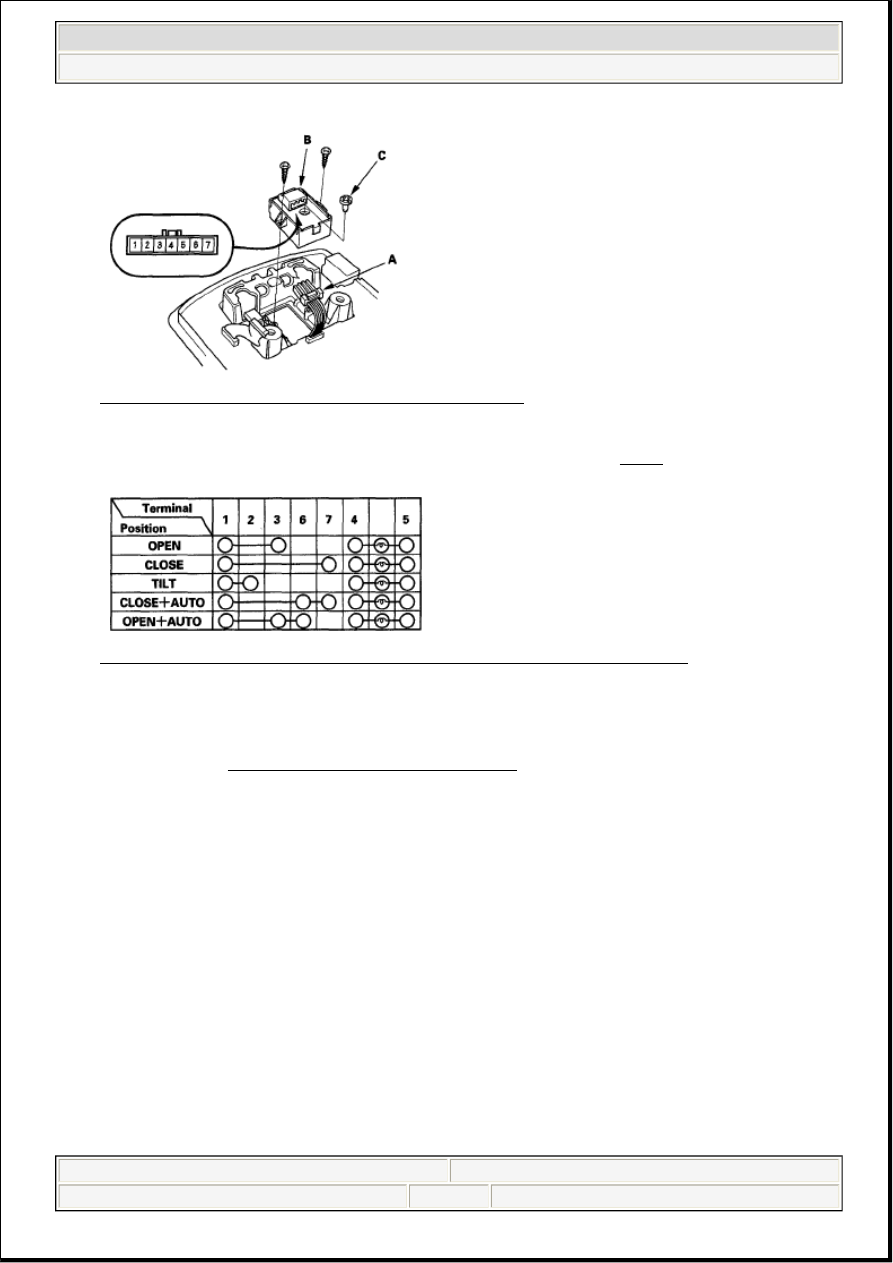

Fig. 6: Identifying Moonroof Switch And 7P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Check for continuity between the terminals in each switch position (see Fig. 7).

Fig. 7: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. If the continuity is not as specified, replace the illumination bulb (C) or the switch.

7. If the switch is OK, but there is a malfunction related to the moonroof switch operation, replace the

roof console (see ROOF CONSOLE REPLACEMENT ).

8. Install in the reverse order of removal.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Moonroof (Body Electrical) - RL



me



Friday, June 05, 2009 3:24:12 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Power Seats - RL

COMPONENT LOCATION INDEX

For the Driver's Power Seat, refer to DRIVER POSITION MEMORY SYSTEM (DPMS) for the
COMPONENT LOCATION INDEX .

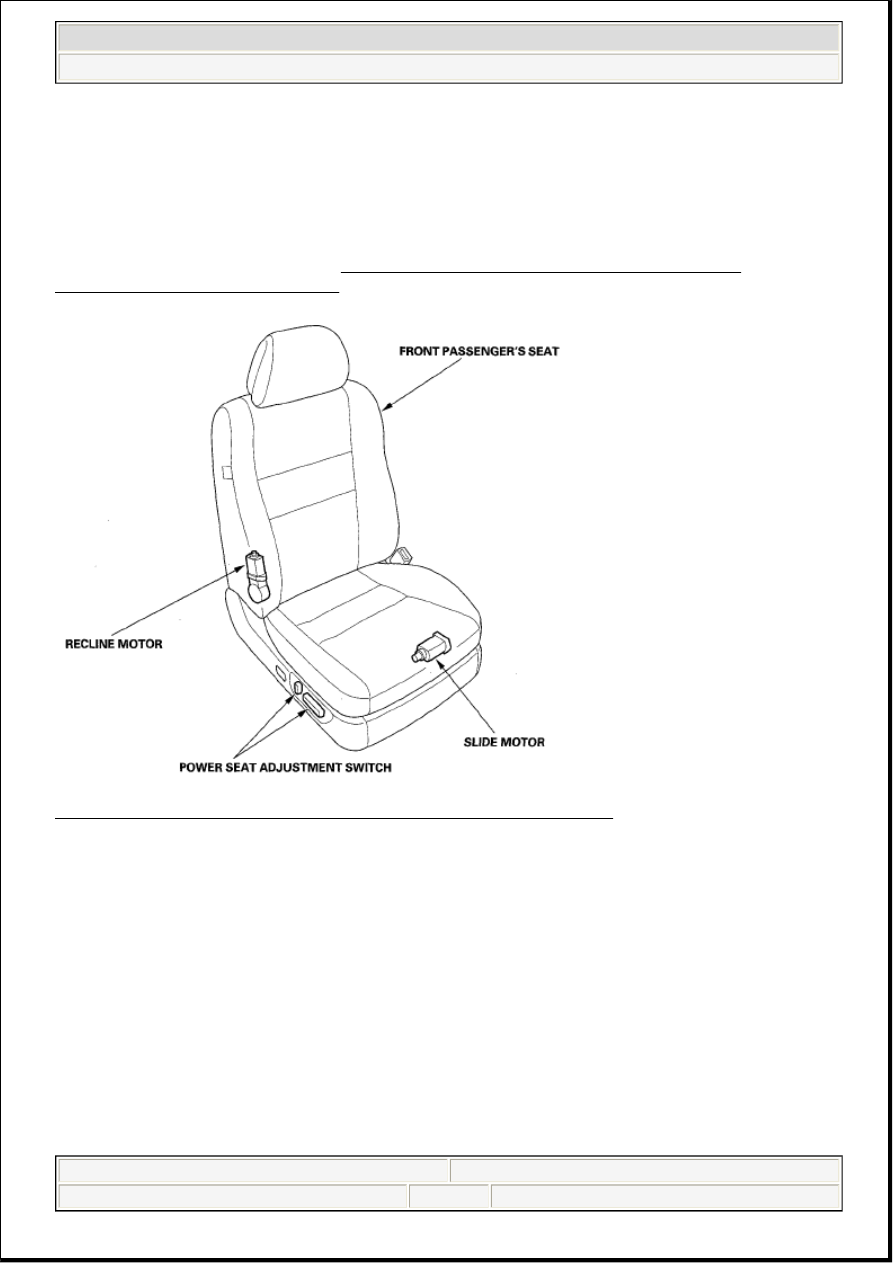

Fig. 1: Identifying Location Of Front Passenger Power Seat Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM - FRONT PASSENGER'S POWER SEAT



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Seats - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Seats - RL



me



Friday, June 05, 2009 3:25:48 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:25:51 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

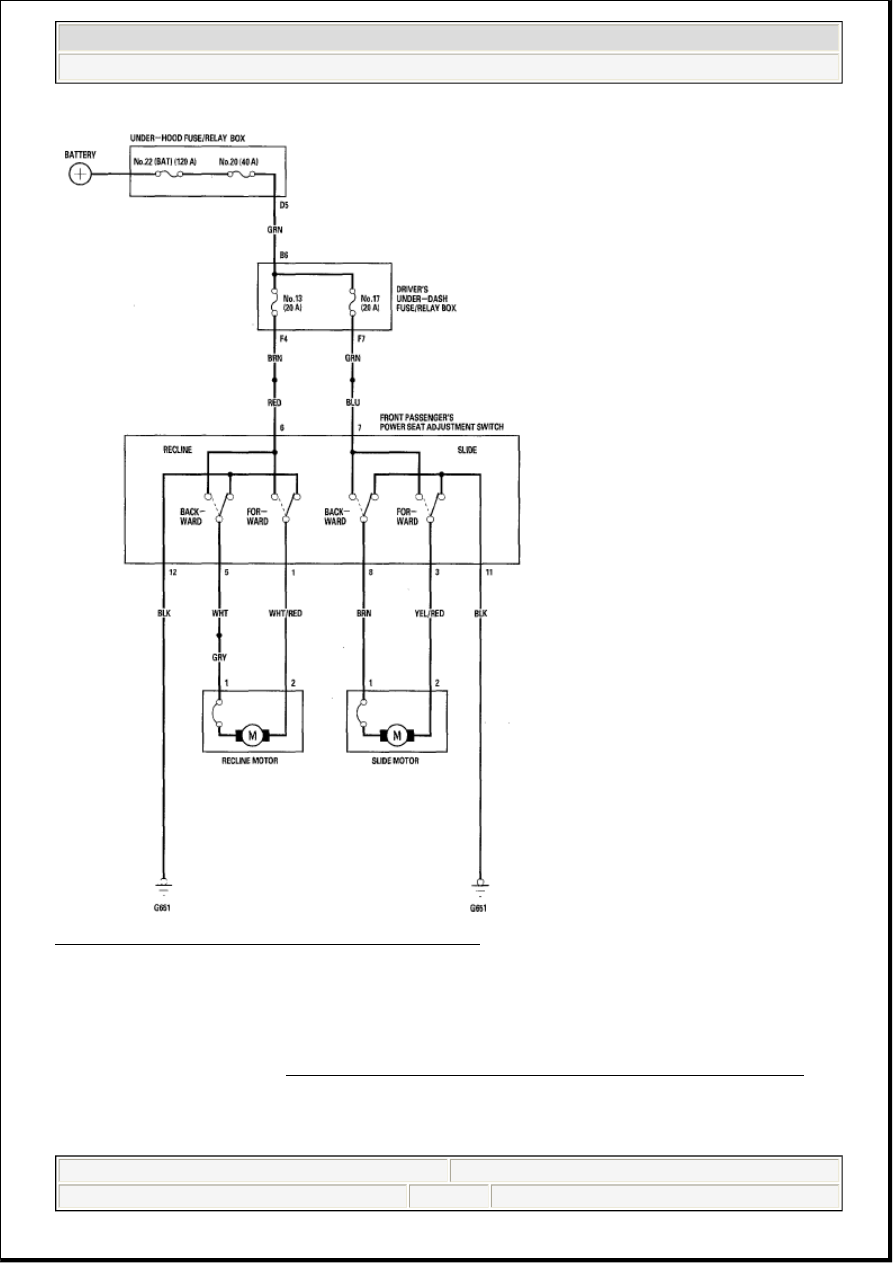

Fig. 2: Front Passenger's Power Seat - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER SEAT ADJUSTMENT SWITCH TEST/REPLACEMENT

FRONT PASSENGER'S SEAT

NOTE:

For the driver's power seat, refer to the Driving Position Memory System
(DPMS) (see POWER SEAT ADJUSTMENT SWITCH TEST/REPLACEMENT ).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Power Seats - RL



me



Friday, June 05, 2009 3:25:48 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the power seat adjustment switch knobs (A) and recline cover from the front passenger's seat

(see FRONT SEAT DISASSEMBLY/REASSEMBLY ).

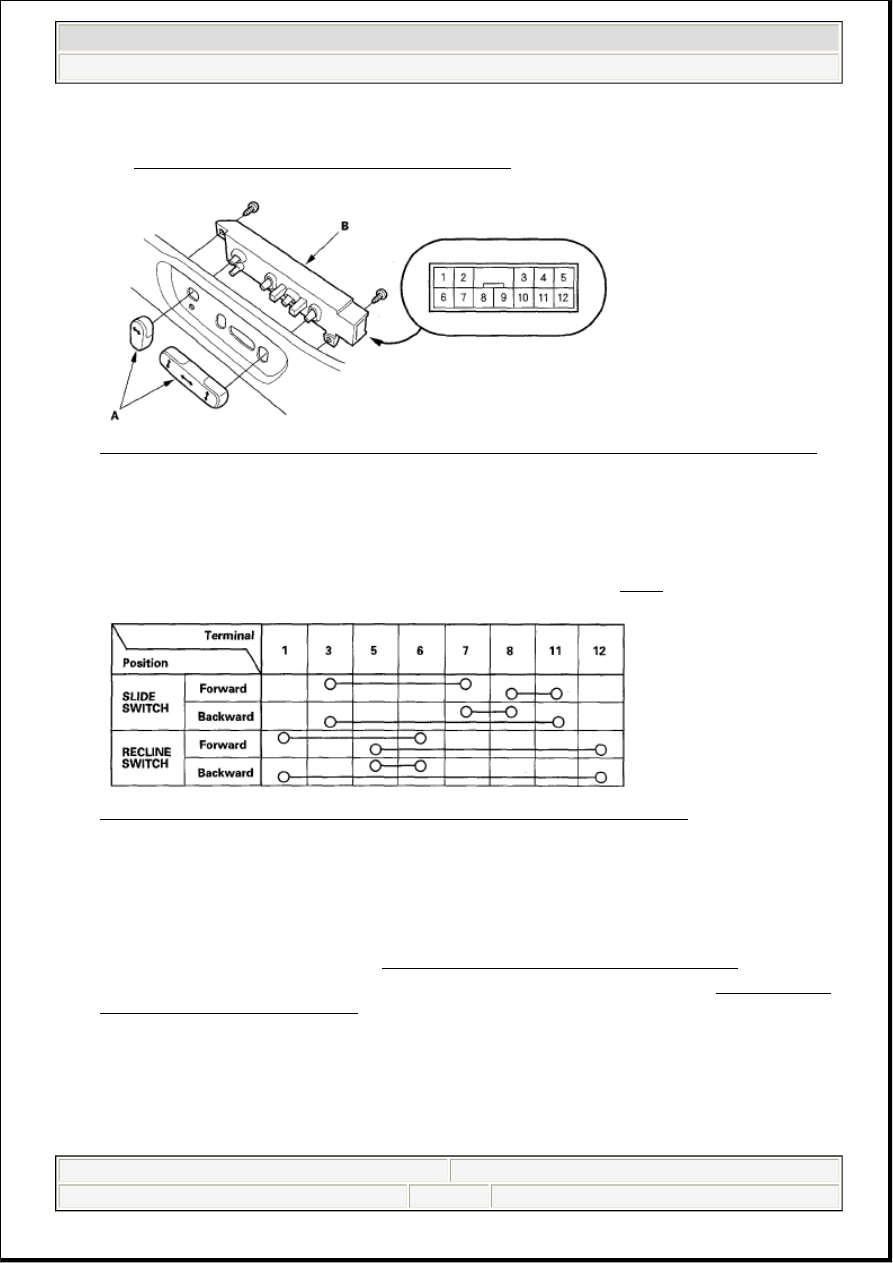

Fig. 3: Identifying Power Seat Adjustment Switch Knobs And Power Seat Adjustment Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the two screws and power seat adjustment switch (B).

3. Disconnect the 12P connector from the power seat adjustment switch.

4. Reinstall the switch knobs to the switch.

5. Check for continuity between the terminals in each switch position (see Fig. 4).

Fig. 4: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. If the continuity is not as specified, replace the switch.

FRONT PASSENGER'S POWER SEAT MOTOR TEST

1. Remove the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).

2. Remove the power seat adjustment switch knobs and recline cover from the seat (see FRONT SEAT

DISASSEMBLY/REASSEMBLY ).

3. Disconnect the 12P connector (A) from the power seat adjustment switch (B).
