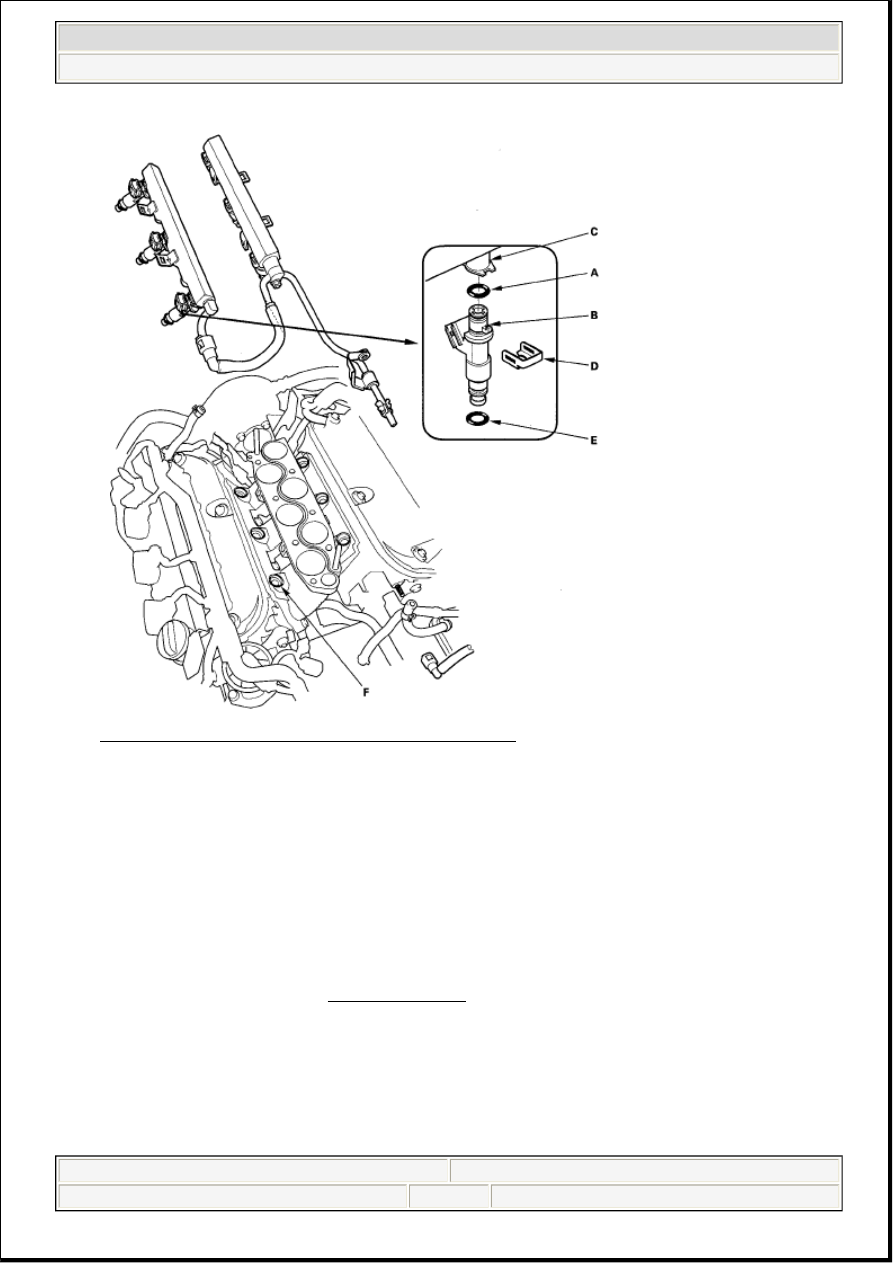

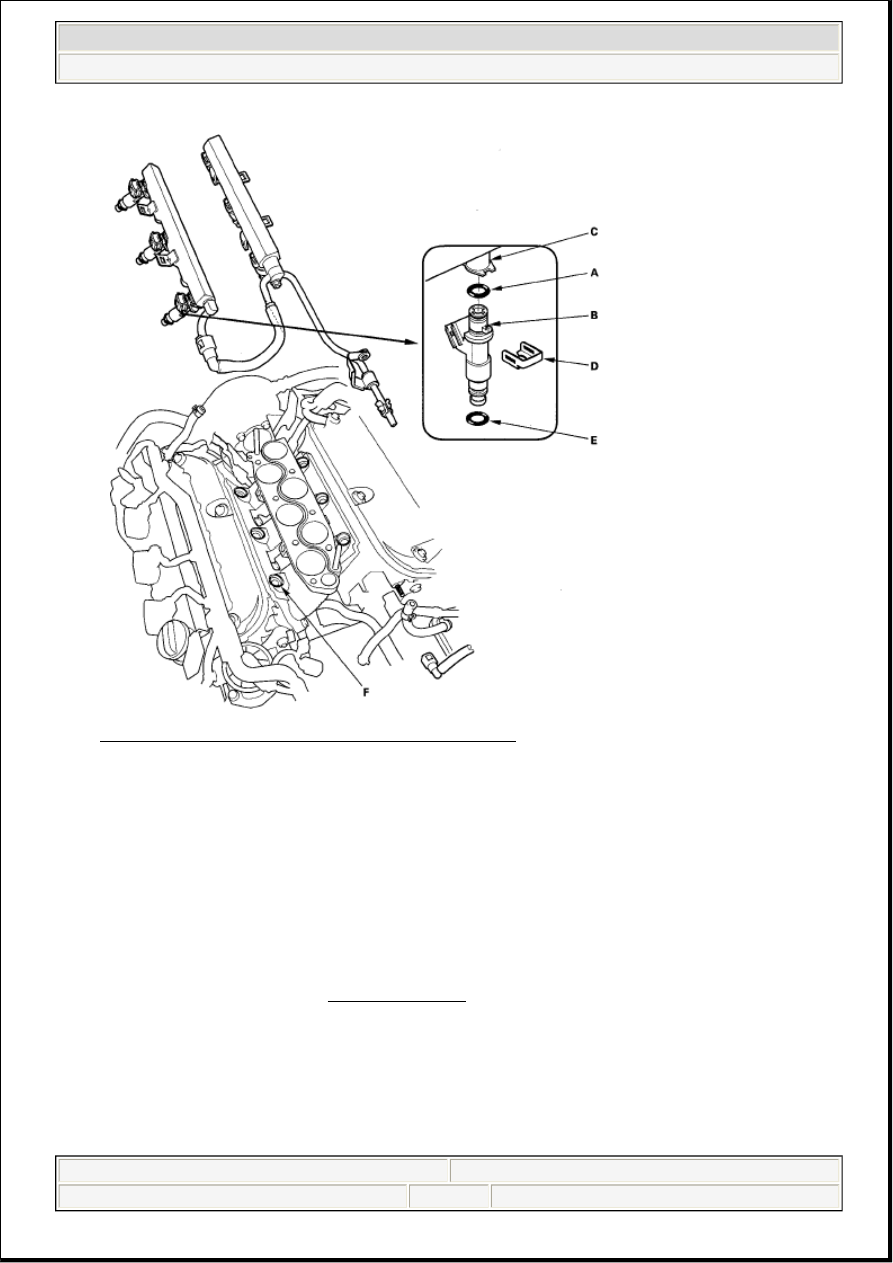

Fig. 205: Identifying O-Rings, Injectors And Fuel Rail
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the injector clips (D).

10. Coat the injector O-rings (E) with clean engine oil.

11. Install the injectors in the injector base (F).

12. Install the fuel rail mounting nuts.

13. Connect the connectors on the injectors.

14. Connect the quick-connect fittings.

15. Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs for about 2

seconds, the fuel rail will be pressurized. Repeat this two or three times, then check for fuel leakage.

16. Install the intake manifold (see INSTALLATION ).

A/F SENSOR REPLACEMENT

Special Tools Required

O2 sensor socket wrench. Snap-on YA8875, SP Tools 93750, or equivalent, commercially available



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 206  © 2005 Mitchell Repair Information Company, LLC.

FRONT BANK (BANK 2)

1. Disconnect the front A/F sensor 8P connector (A), then remove the A/F sensor (B) with an 02 sensor

socket wrench.

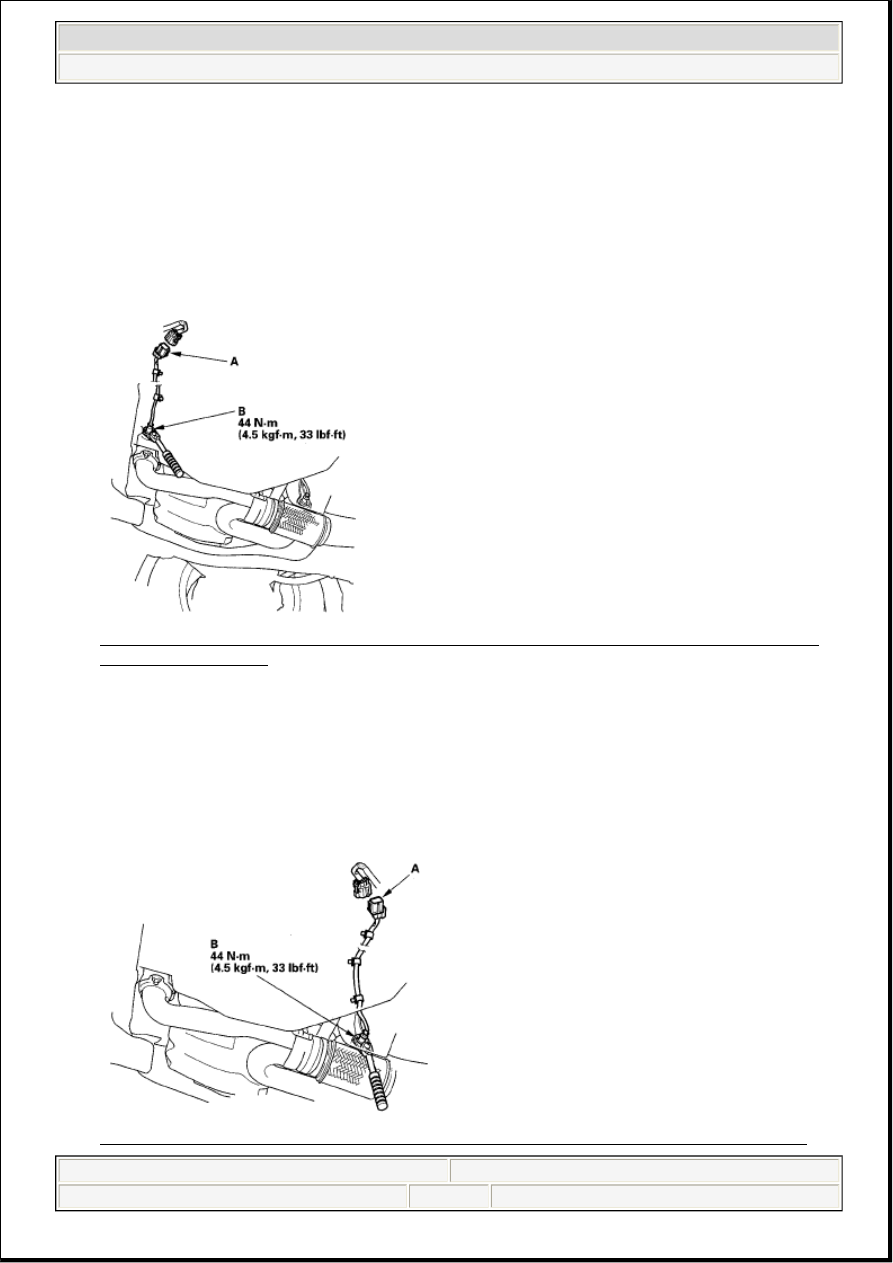

Fig. 206: Identifying Front A/F Sensor 8P Connector And A/F Sensor With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the parts in the reverse order of removal.

REAR BANK (BANK 1)

1. Disconnect the rear A/F sensor 8P connector (A), then remove the rear A/F sensor (B) with an 02

sensor socket wrench.

Fig. 207: Identifying Rear A/F Sensor 8P Connector And Rear A/F Sensor With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the parts in the reverse order of removal.

SECONDARY HO2S REPLACEMENT



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 207  © 2005 Mitchell Repair Information Company, LLC.

Special Tools Required

O2 sensor socket wrench, Snap-on YA8875 or SWR2, or equivalent, commercially available

FRONT BANK (BANK 2)

1. Disconnect the front secondary HO2S 4P connector (A), then remove the front secondary HO2S (B)

with an 02 sensor socket wrench.

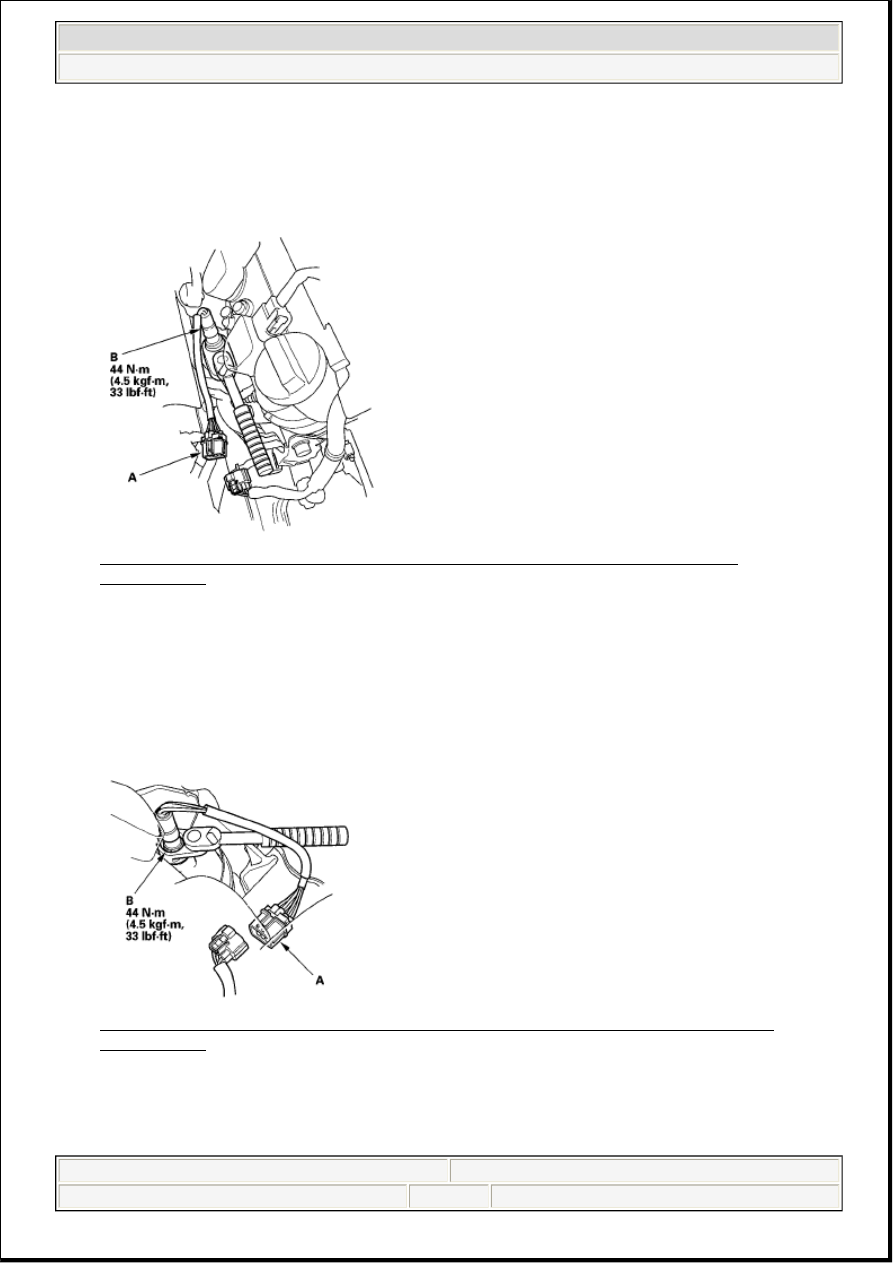

Fig. 208: Identifying Front Secondary HO2S 4P Connector And Front Secondary HO2S With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the parts in the reverse order of removal.

REAR BANK (BANK 1)

1. Disconnect the rear secondary HO2S 4P connector (A), then remove the rear secondary HO2S (B)

with an O2 sensor socket wrench.

Fig. 209: Identifying Rear Secondary HO2S 4P Connector And Rear Secondary HO2S With



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 208  © 2005 Mitchell Repair Information Company, LLC.

Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the parts in the reverse order of removal.

ECT SENSOR 1 REPLACEMENT

1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND

INSTALLATION ).

2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

3. Disconnect the ECT sensor 1 connector (A).

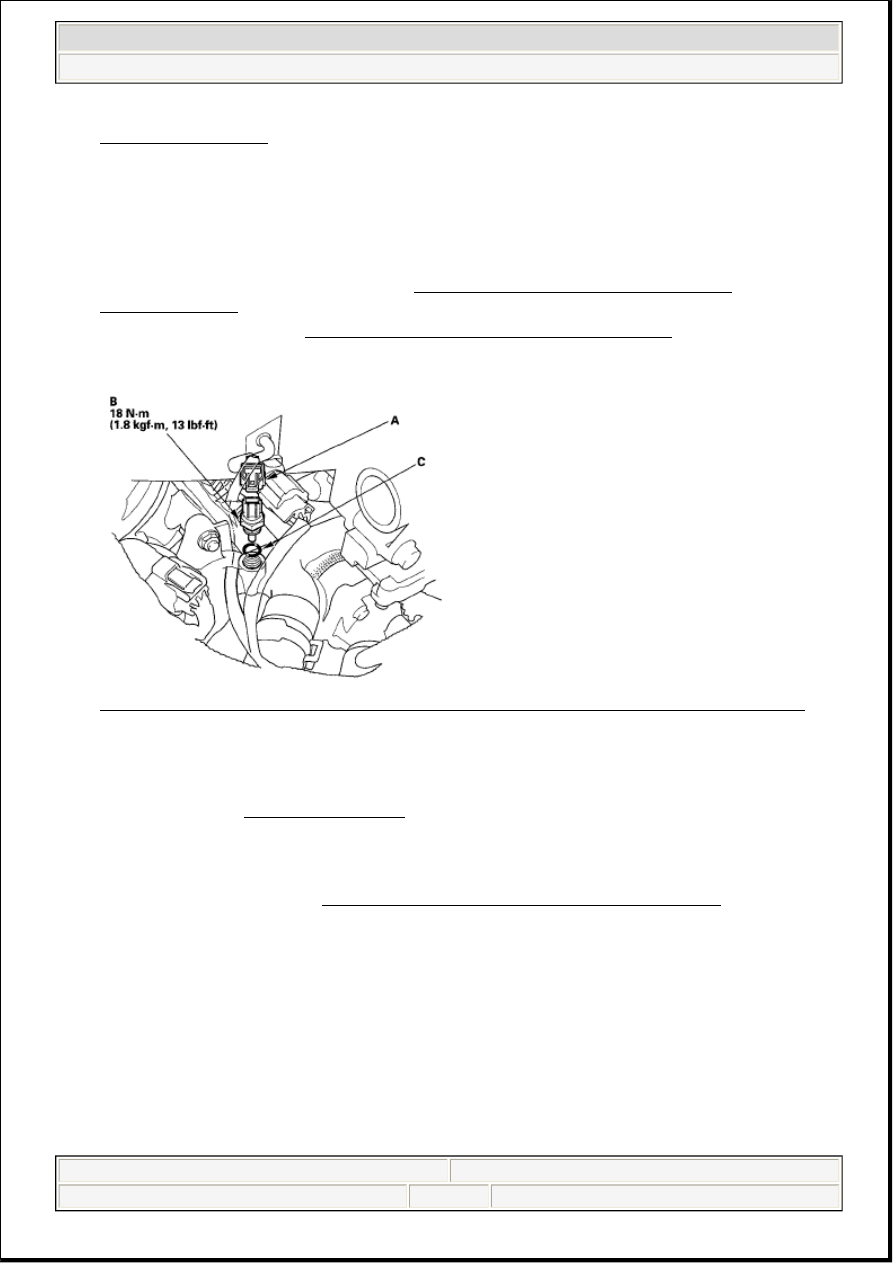

Fig. 210: Identifying ECT Sensor 1 Connector And ECT Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove ECT sensor 1 (B).

5. Install the parts in the reverse order of removal with a new O-ring (C). Then refill the radiator with

engine coolant (see COOLANT CHECK ).
