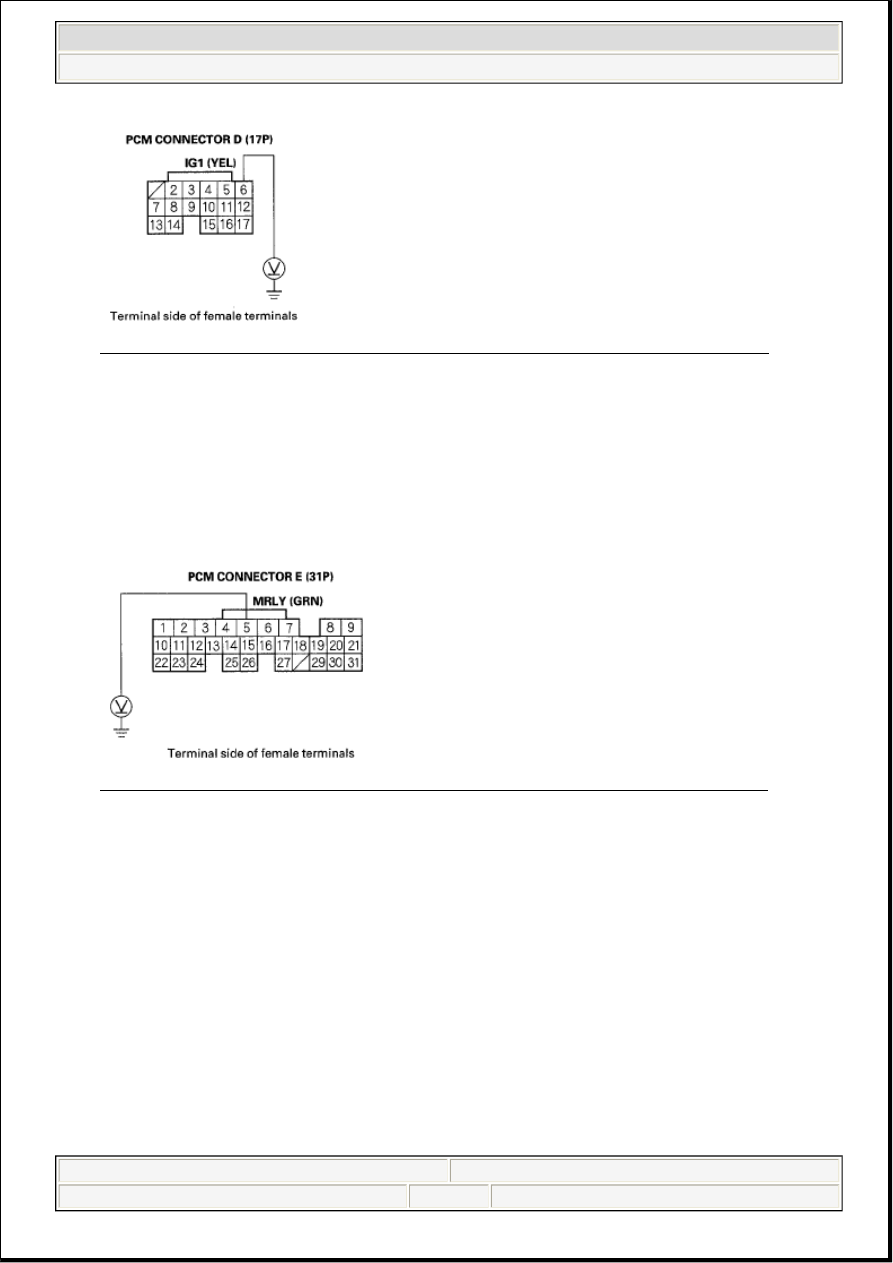

Fig. 195: Measuring Voltage Between PCM Connector Terminal D6 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 55.

NO - Repair open in the wire between the No. 19 FUEL PUMP (20A) fuse and the PCM (D6)

55. Measure voltage between PCM connector terminal E5 and body ground.

Fig. 196: Measuring Voltage Between PCM Connector Terminal E5 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 59.

NO - Go to step 56.

56. Turn the ignition switch OFF.

57. Disconnect the driver's under-dash fuse/relay box 39P connector.

58. Check for continuity between PCM connector terminal E5 and driver's under-dash fuse/relay box 39P

connector terminal No. 1.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 198  © 2005 Mitchell Repair Information Company, LLC.

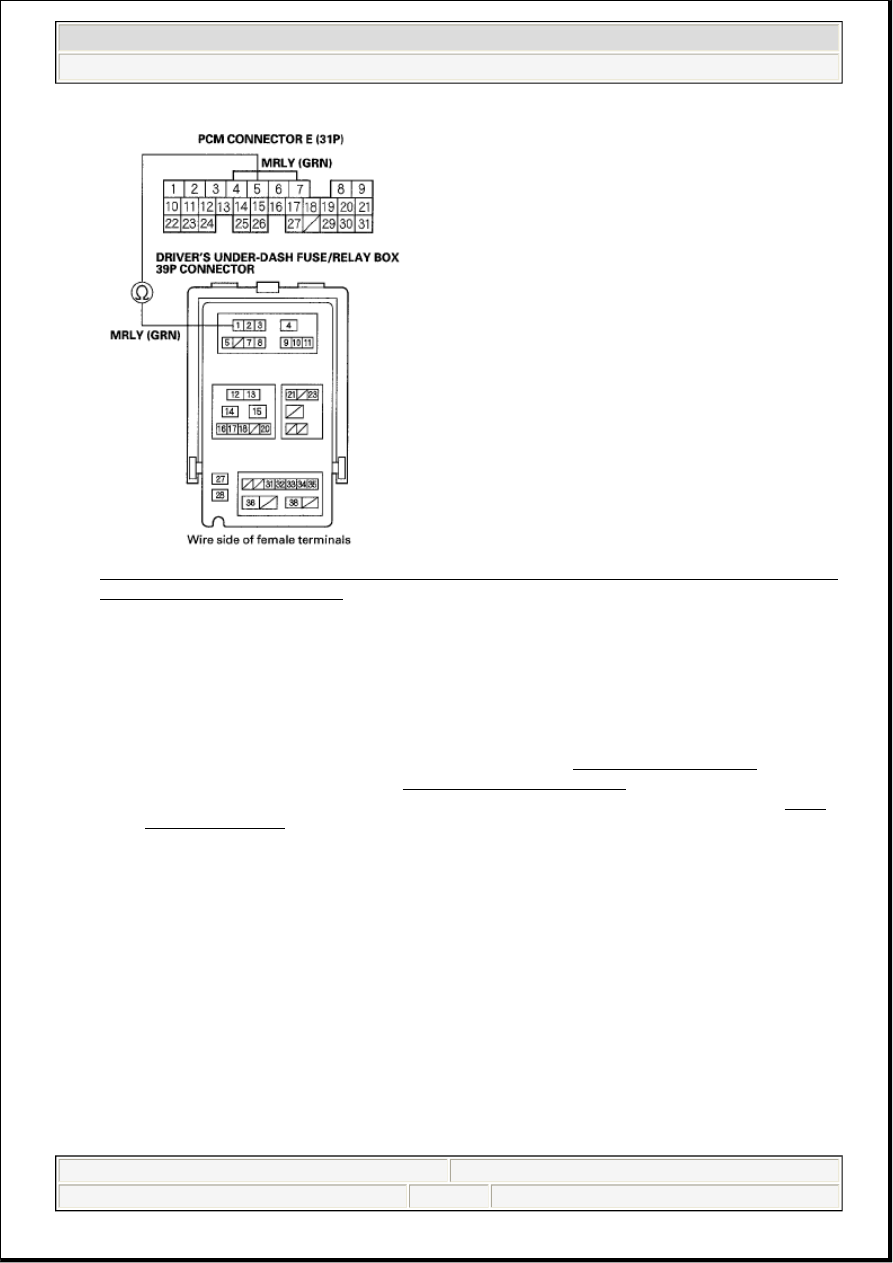

Fig. 197: Checking Continuity Between PCM Connector Terminal E5 And Driver's Under-Dash
Fuse/Relay Box 39P Terminal 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -



Replace the driver's under-dash fuse/relay box.



Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT ).

NO - Repair open in the wire between the PCM (E5) and the driver's under-dash fuse/relay box

59. Turn the ignition switch OFF.

60. Disconnect the driver's under-dash fuse/relay box 39 P connector.

61. Check for continuity between PCM connector terminal A4 and driver's under-dash fuse/relay box 39P

connector terminal No. 31.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 199  © 2005 Mitchell Repair Information Company, LLC.

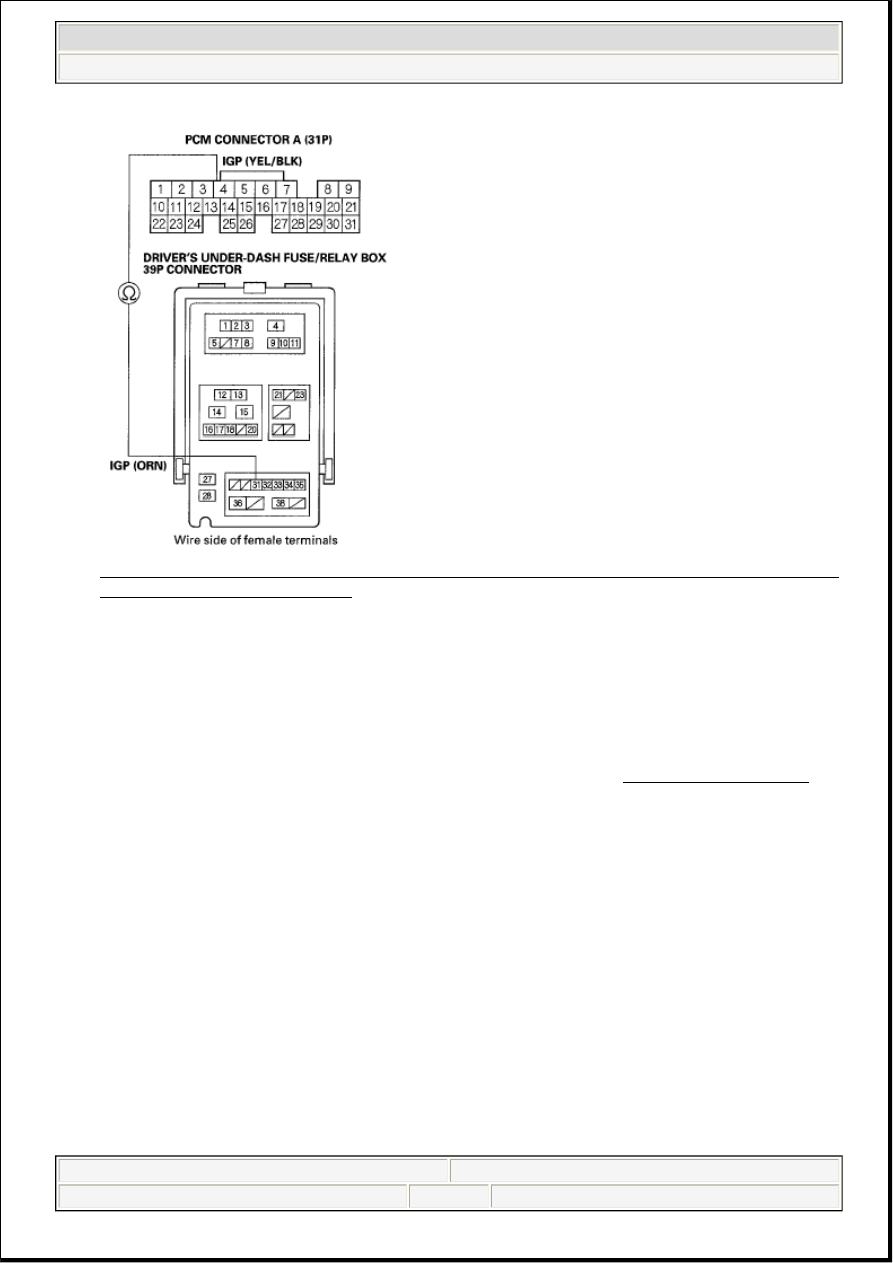

Fig. 198: Checking Continuity Between PCM Connector Terminal A4 And Driver's Under-Dash
Fuse/Relay Box 39P Terminal 31
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 62.

NO - Repair open in the wire between the PCM (A4) and the driver's under-dash fuse/relay box.

62. Test PGM-FI main relay 1 in the driver's under-dash fuse/relay box (see POWER RELAY TEST ).

Is PGM-FI main relay 1 OK?

YES - Go to step 63.

NO - Replace PGM-FI main relay 1.1

63. Disconnect PCM connector B (24P).

64. Check for continuity between body ground and PCM connector terminals A1, A2, A3, and B15

individually.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 200  © 2005 Mitchell Repair Information Company, LLC.

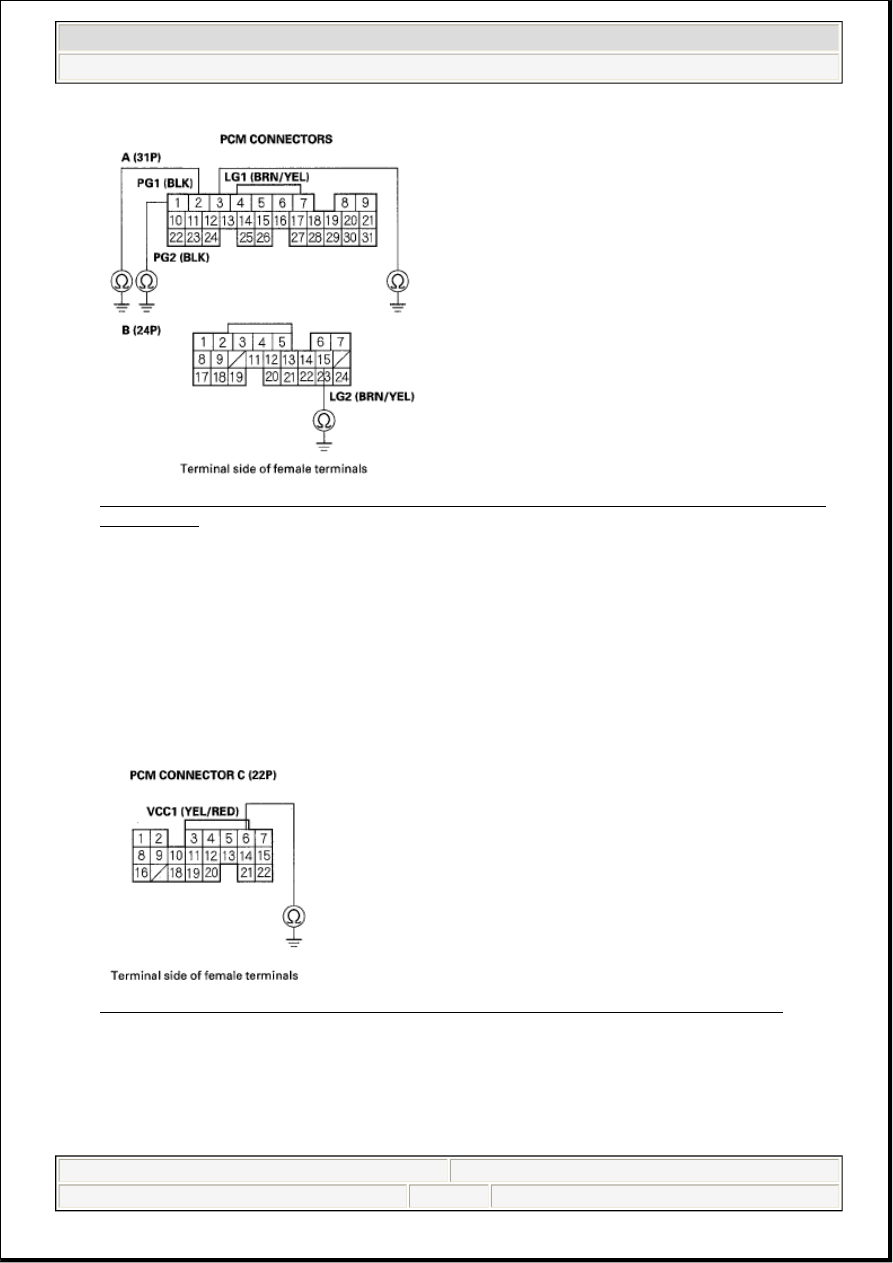

Fig. 199: Checking Continuity Between Body Ground And PCM Connector Terminals A1, A2,
A3, And B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 65.

NO - Repair open in the wire between the PCM (A1, A2, A3, B15) and G101

65. Disconnect PCM connector C (22P).

66. Check for continuity between PCM connector terminal C6 and body ground.

Fig. 200: Checking Continuity Between PCM Connector Terminal C6 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 67.

NO - Go to step 68.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 201  © 2005 Mitchell Repair Information Company, LLC.
