Are any B-CAN DTCs indicated?

YES - Go to the indicated DTCs troubleshooting

NO - Go to step 15.

15. Turn the ignition switch OFF.

16. Disconnect the HDS from the DLC.

17. Check for continuity between DLC terminal No. 7 and body ground.

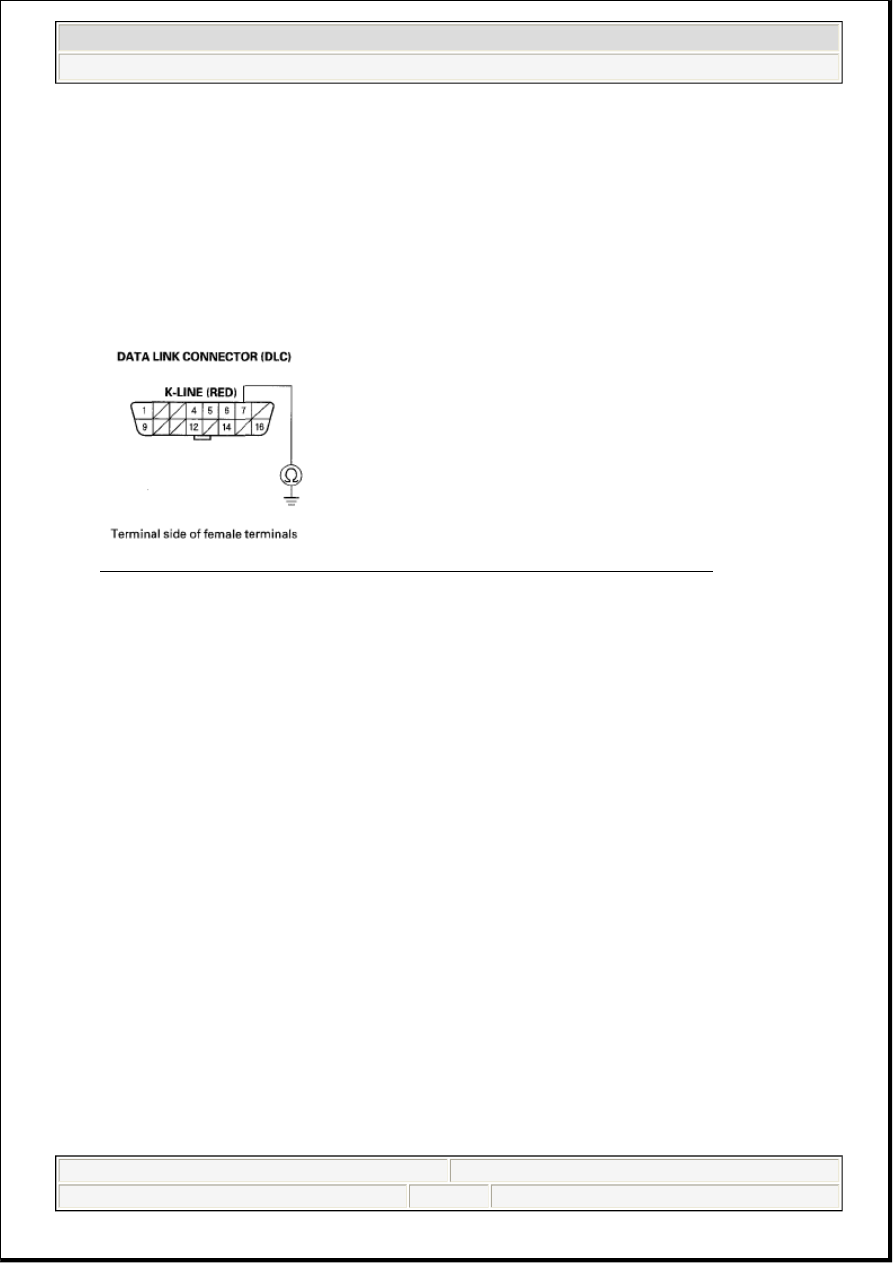

Fig. 183: Checking Continuity Between DLC Terminal No. 7 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 5 ohms or less?

YES - Go to step 18.

NO - Go to step 19.

18. Continue to check for continuity between DLC terminal No. 7 and body ground, while disconnecting

these parts, one at a time:



SRS unit connector A (28P)



VSA modulator-control unit 46P connector



SH-AWD control unit connector A (26P)



TPMS control unit connector B (20P)



MICU connector P (30P)



ACC unit 20P connector

Does continuity go away when one of the above components is disconnected?

YES - Replace the part that caused an open when it was disconnected

NO - Repair short in the wire between the DLC (K-line) and the VSA modulator-control unit, the SH-
AWD control unit, the TPMS control unit, or the ACC unit

19. Connect DLC terminal No. 7 to body ground with a jumper wire.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 190  © 2005 Mitchell Repair Information Company, LLC.

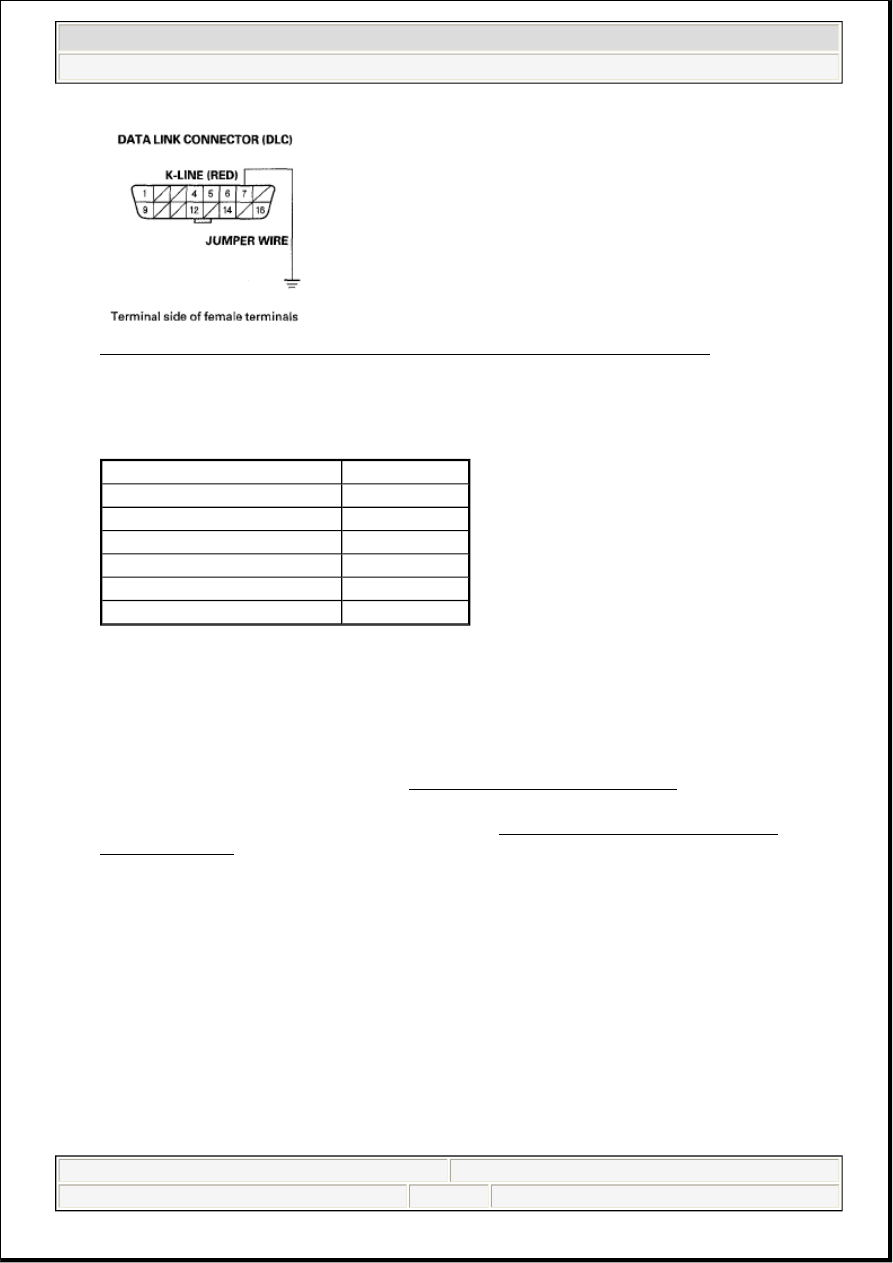

Fig. 184: Connecting DLC Terminal No. 7 To Body Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Check for continuity between body ground and these connector terminals:

CONNECTOR TERMINAL REFERENCE

Is there continuity between the DLC terminal and each of the terminals in the chart?

YES - Replace the unit that does not communicate with the HDS

NO - Repair open in the wire between the DLC (K-line) and the appropriate connector

21. Do the gauge self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ) to make sure the

gauge is known-good. If the function test is OK, go to step 22.

22. Check for B-CAN system DTCs without the HDS (see GENERAL TROUBLESHOOTING

INFORMATION ).

Is DTC B1168, B1169, and/or B1178 indicated?

YES - Go to step 35.

NO - Go to step 23.

23. Turn the ignition switch OFF.

24. Disconnect the HDS from the DLC.

25. Measure voltage between DLC terminal No. 16 and body ground.

Connector

Terminal

SRS unit A (28P)

No. 24 (RED)

VSA modulator-control unit 46P No. 11 (LTBLU)
SH-AWD control unit A (26P)

No. 15(LTBLU)

TPMS control unit B (20P)

No. 9 (LTBLU)

MICU 30P

No. 6 (RED)

ACC unit 20P

No. 8 (RED)



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 191  © 2005 Mitchell Repair Information Company, LLC.

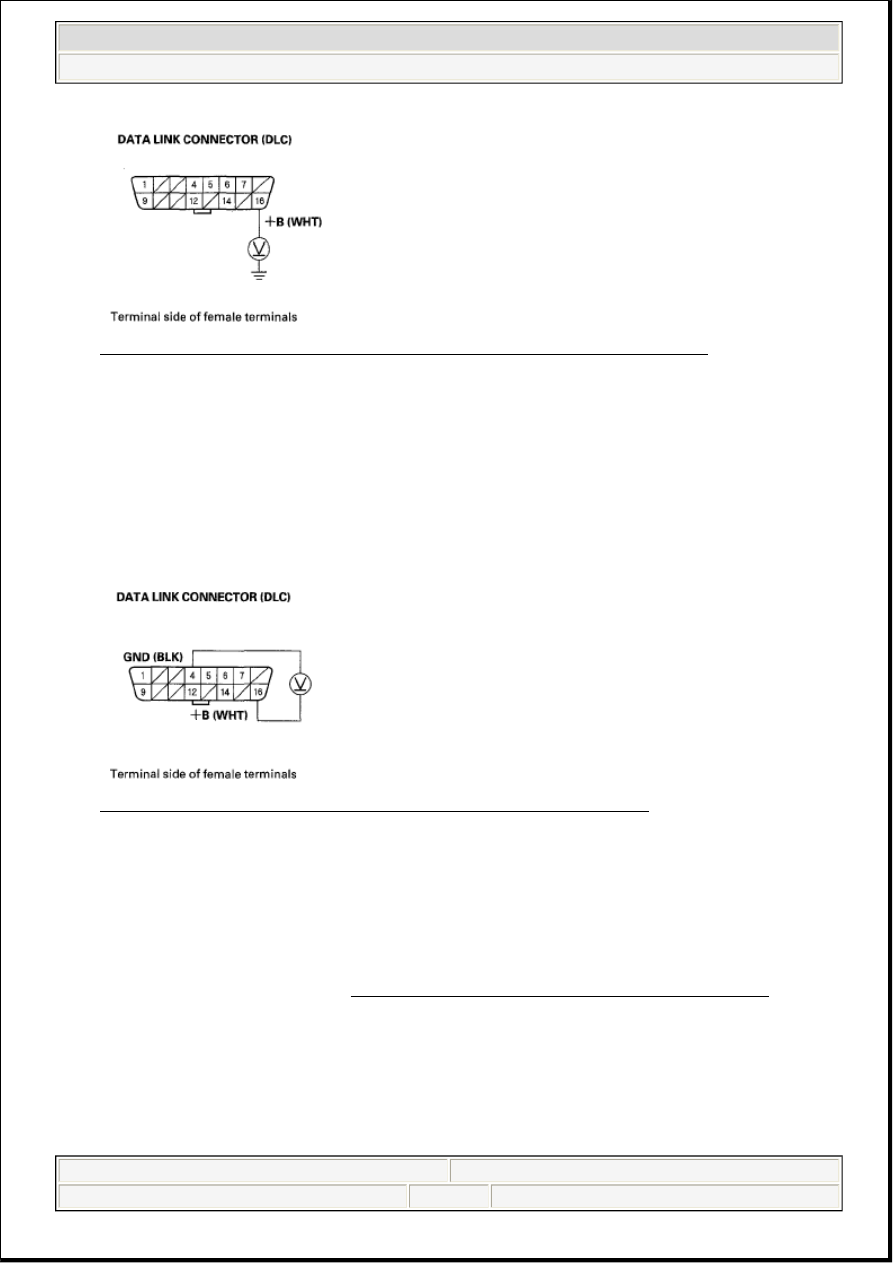

Fig. 185: Measuring Voltage Between DLC Terminal No. 16 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 26.

NO - Repair open in the wire between DLC terminal No. 16 and the No. 8 Fl ECU (PCM) (15A) fuse
in the under-hood fuse/relay box

26. Measure voltage between DLC terminals No. 4 and No. 16.

Fig. 186: Measuring Voltage Between DLC Terminals No. 4 And No. 16
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 27.

NO - Repair open in the wire between DLC terminal No. 4 and G501

27. Connect the HDS to the DLC (see GENERAL TROUBLESHOOTING INFORMATION ).

28. Jump the SCS line with the HDS.

29. Disconnect PCM connector E (31P).

30. Disconnect the HDS from the DLC.

31. Connect DLC terminal No. 6 to body ground with a jumper wire.



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 192  © 2005 Mitchell Repair Information Company, LLC.

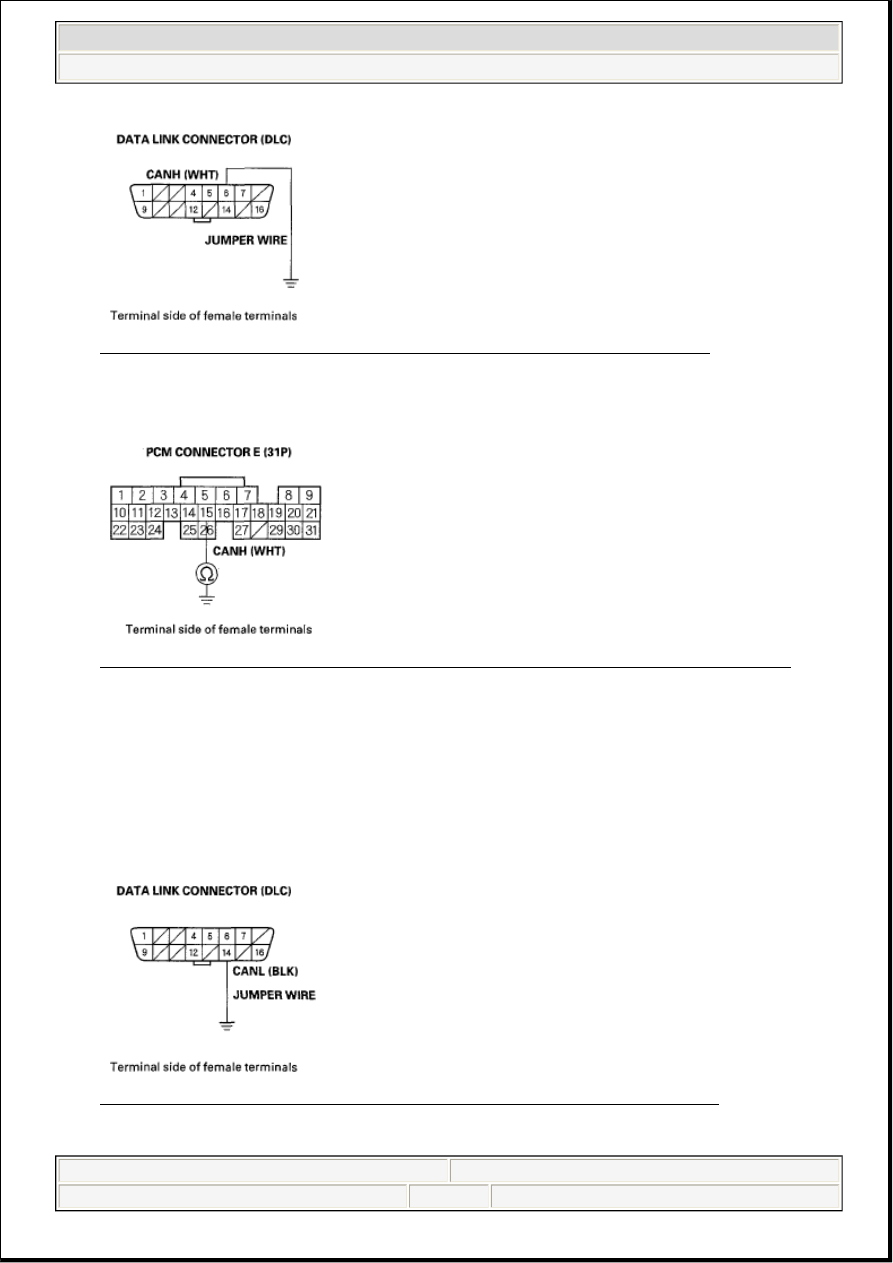

Fig. 187: Connecting DLC Terminal No. 6 To Body Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Check for continuity between PCM connector terminal E15 and body ground.

Fig. 188: Checking Continuity Between PCM Connector Terminal E15 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 33.

NO - Repair open in the wire between the PCM (E15) and DLC terminal No. 6

33. Connect DLC terminal No. 14 to body ground with a jumper wire.

Fig. 189: Connecting DLC Terminal No. 14 To Body Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.
