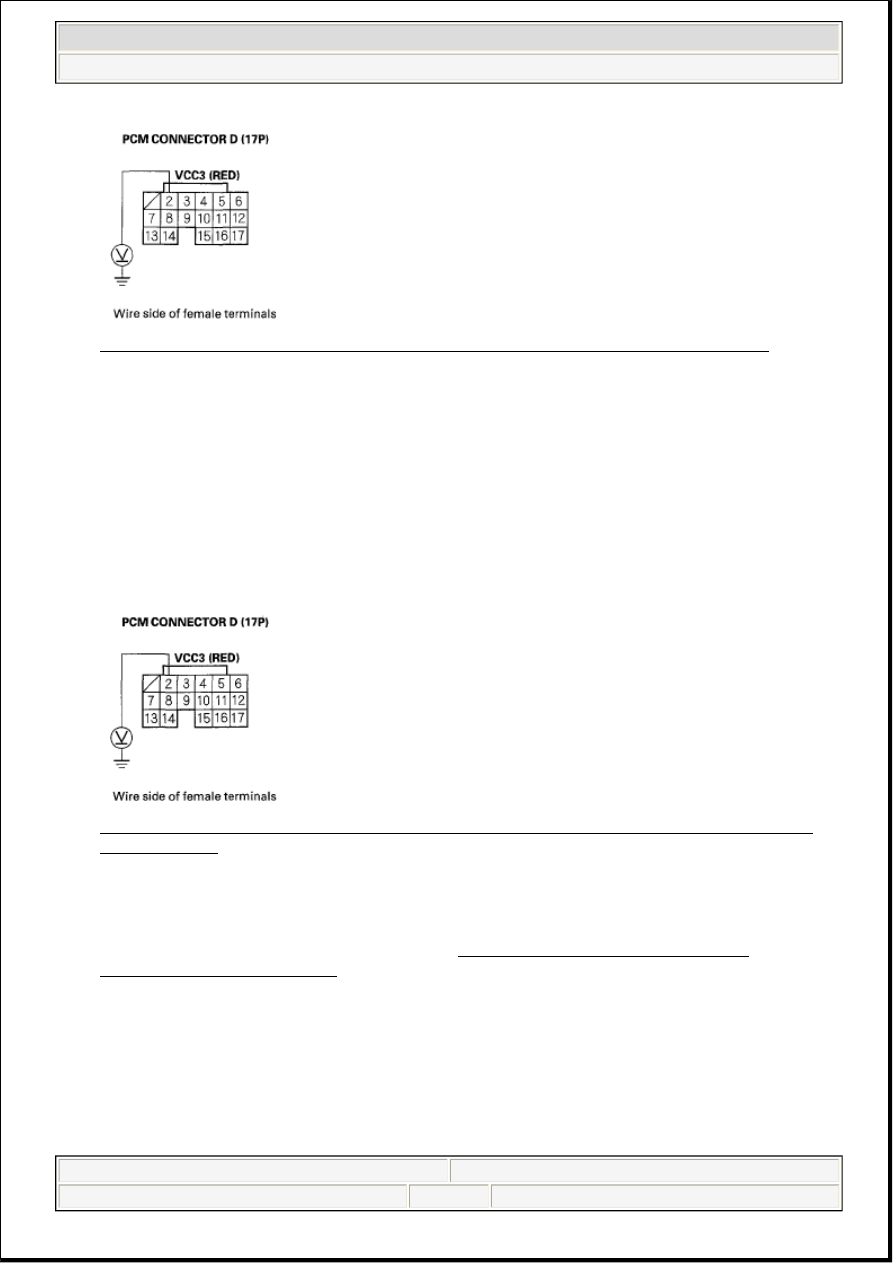

Fig. 170: Measuring Voltage Between Body Ground And PCM Connector Terminal D2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Go to step 75.

NO - Go to step 68.

68. Turn the ignition switch OFF.

69. Disconnect the APP sensor 6P connector, and measure voltage between body ground and PCM

connector terminal D2 with the ignition switch ON (II).

Fig. 171: Measuring Voltage Between Body Ground And PCM Connector Terminal D2 With
Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Replace the accelerator pedal module (see ACCELERATOR PEDAL MODULE
REMOVAL/INSTALLATION )

NO - Go to step 70.

70. Turn the ignition switch OFF.

71. Jump the SCS line with the HDS.

72. Disconnect the APP sensor 6P connector.

73. Disconnect PCM connector D (17P).



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 182  © 2005 Mitchell Repair Information Company, LLC.

74. Check for continuity between PCM connector terminal D2 and body ground.

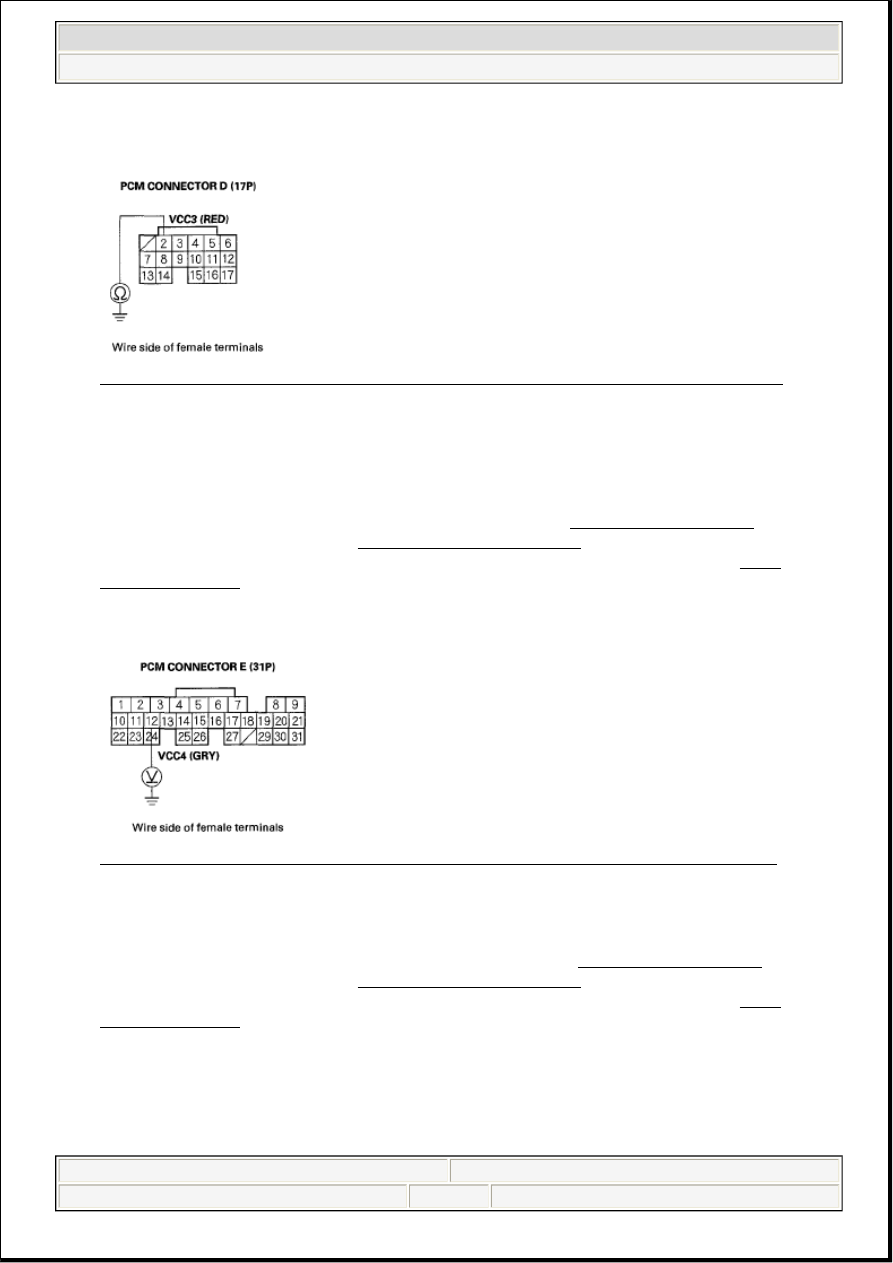

Fig. 172: Checking Continuity Between PCM Connector Terminal D2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between the PCM (D2) and the APP sensor

NO - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT )

75. Measure voltage between PCM connector terminal E12 and body ground.

Fig. 173: Measuring Voltage Between PCM Connector Terminal E12 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM
REPLACEMENT )

NO - Go to step 76.

76. Turn the ignition switch OFF.

77. Disconnect the connector, from each of the following sensors, one at a time, and measure voltage

between body ground and PCM connector terminal E12 with the ignition switch ON (II).



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 183  © 2005 Mitchell Repair Information Company, LLC.

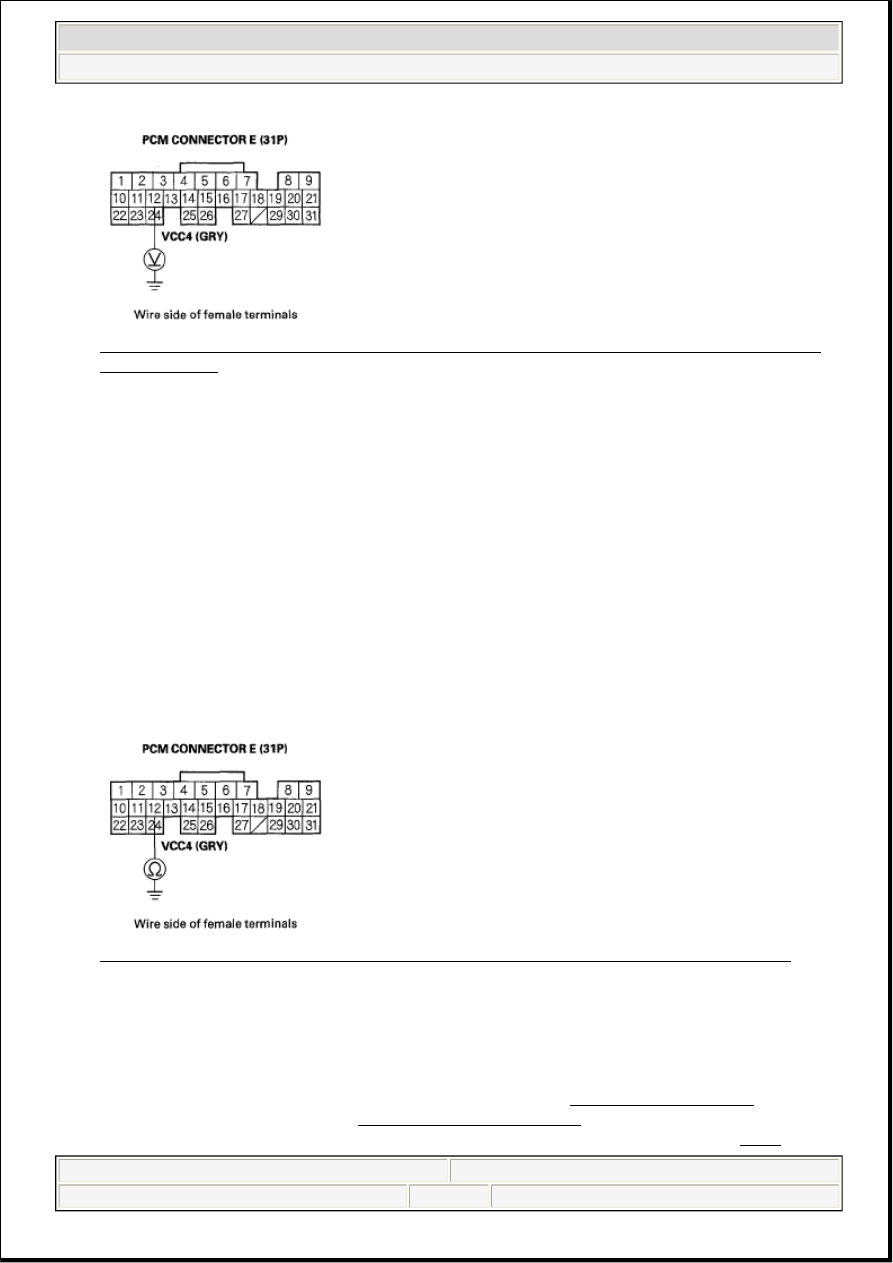

Fig. 174: Measuring Voltage Between Body Ground And PCM Connector Terminal E12 With
Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES - Repair the sensor that restored 5 V when disconnected

NO - Go to step 78.

78. Turn the ignition switch OFF.

79. Jump the SCS line with the HDS.

80. Disconnect the connectors from these sensors:



Accelerator pedal position (APP)



Fuel tank pressure (FTP) sensor

81. Disconnect PCM connector E (31P).

82. Check for continuity between PCM connector terminal E12 and body ground.

Fig. 175: Checking Continuity Between PCM Connector Terminal E12 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between the PCM (E12) and the APP sensor or the FTP sensor

NO - Update the PCM if it does not have the latest software (see UPDATING THE PCM ), or
substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM



2007 Acura RL

2005-08 ENGINE PERFORMANCE PGM-FI System - RL



me



Friday, June 05, 2009 2:35:00 PM

Page 184  © 2005 Mitchell Repair Information Company, LLC.

REPLACEMENT )

DLC CIRCUIT TROUBLESHOOTING

'05-07 MODELS

1. Measure voltage between DLC terminal No. 16 and body ground.

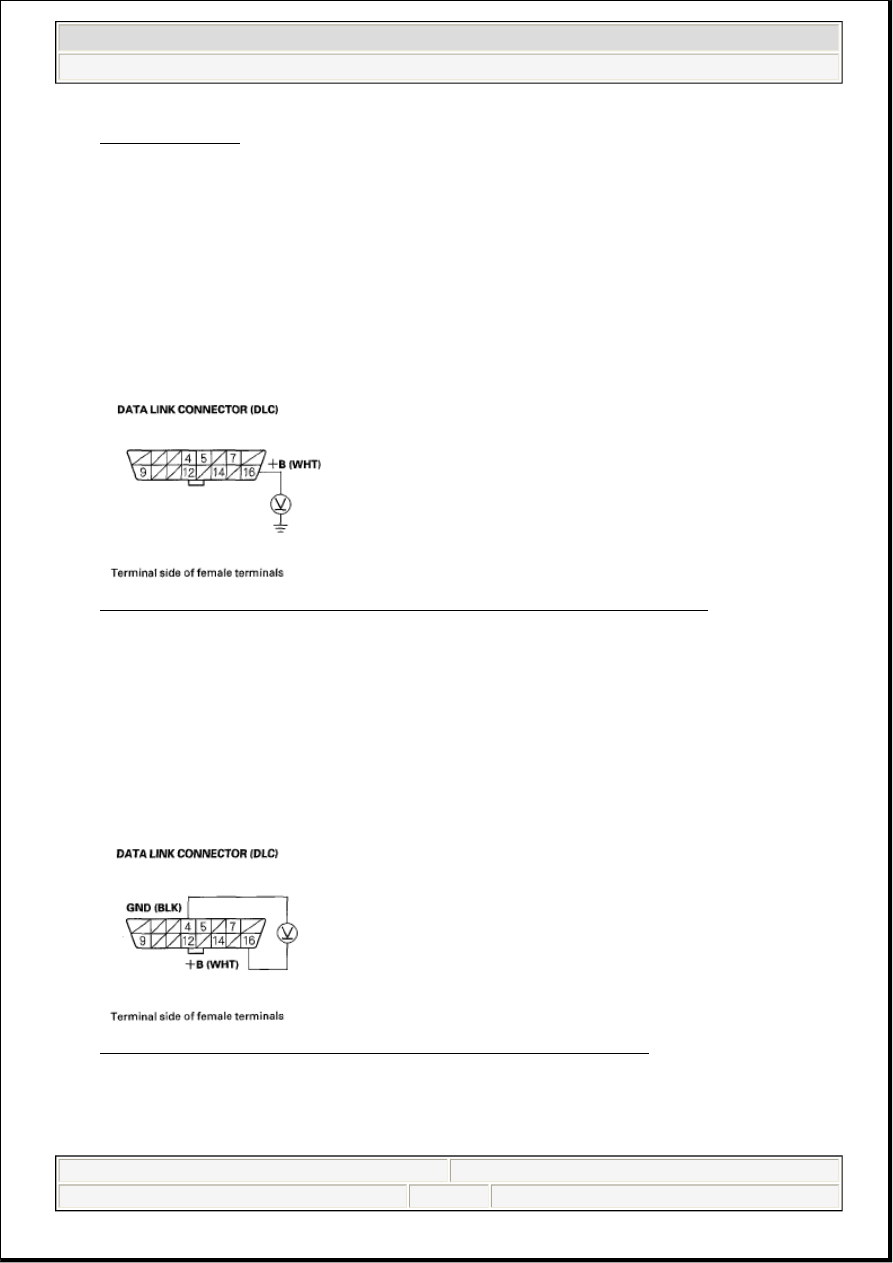

Fig. 176: Measuring Voltage Between DLC Terminal No. 16 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 2.

NO - Repair open in the wire between DLC terminal No. 16 and the No. 8 Fl ECU (PCM) (15A) fuse
in the under-hood fuse/relay box

2. Measure voltage between DLC terminals No. 4 and No. 16.

Fig. 177: Measuring Voltage Between DLC Terminals No. 4 And No. 16
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 3.

NOTE:



If the PCM does not communicate with the HDS, do this
troubleshooting procedure.



Check that MIL circuit is normal, then do this troubleshooting.
