VERSION

This screen displays the current version information for the navigation system software. In addition, this
screen allows the loading of updated software if requested by the factory, or instructed by a Service Bulletin.
Software may be loaded from a CD or a PC card.



Program Flash: Displays the version of the navi software in memory.



Program Disc: If displayed, this value represents the version of the navi software on the navi DVD.



IPL, APL, DBOOT, and System uCom, are all for factory use.



Model: For this model, the field should begin with "SJA."



Download: Do not touch, unless instructed by the factory.

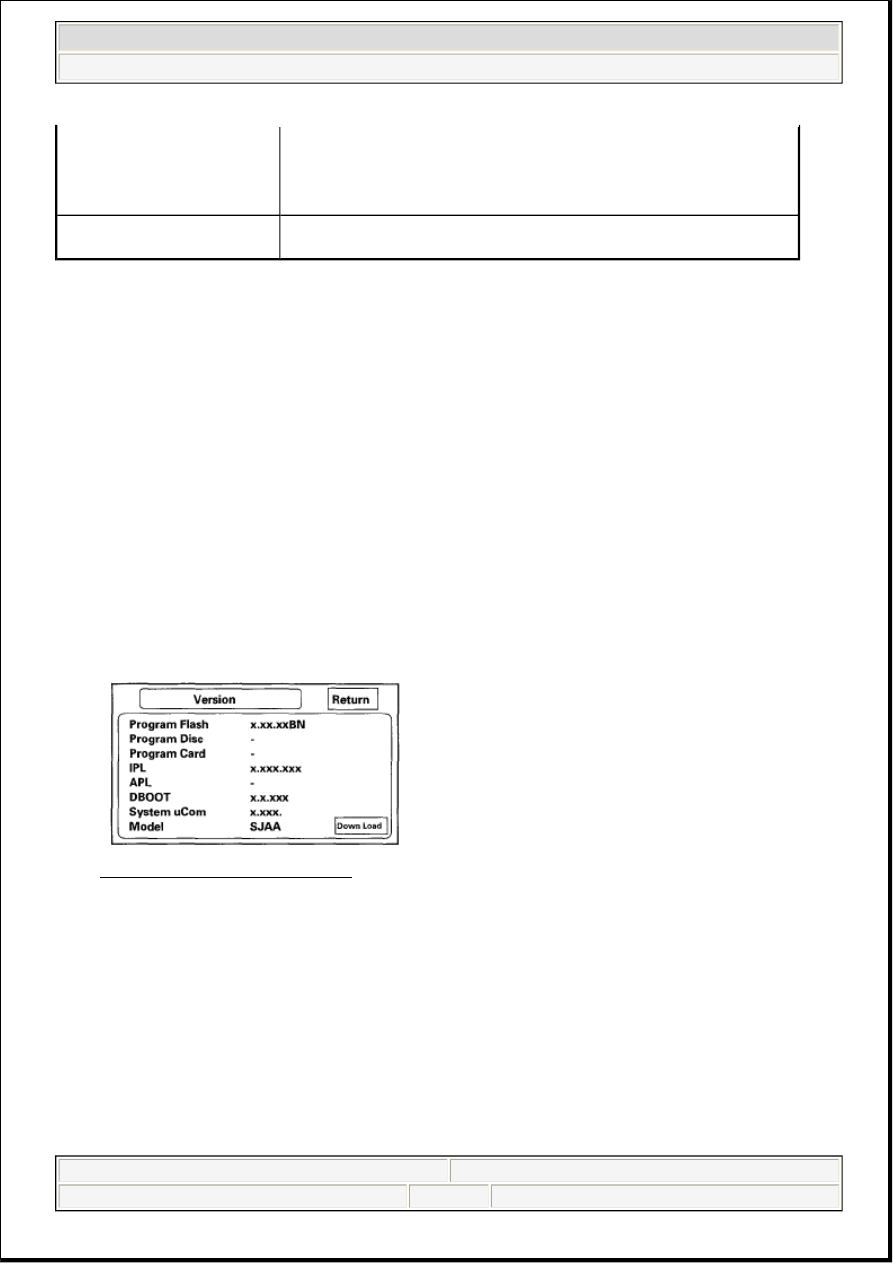

Fig. 88: Screen Display - Version
Courtesy of AMERICAN HONDA MOTOR CO., INC.

There are two navigation DVDs produced for this model.



The white DVD labeled "United States" is for the US market and contains maps for the contiguous 48
US states, Hawaii, and some southern portions of Canada.

Clients wanting additional northern coverage in Canada, can purchase a "Canada," DVD by
contacting the DVD fulfillment desk.



The gray DVD labeled "Canada," is for the Canada market, and contains maps for all of Canada, plus
some of the northern US states. If clients with this DVD require full US coverage (including states
like Florida and Texas), they may purchase a "United States" DVD by contacting the DVD fulfillment

system and can overheat or quit functioning, particularly in a hot
vehicle. They are not recommended.



Before performing the Import function, ensure that the client's
original DVD is loaded into the new core and working properly.

Are there any error messages
to tell me what is wrong?

There are no error messages associated with the Import/Export feature.
Follow the troubleshooting steps.

NOTE:

The last two letters of the Program "Flash" or DVD fields indicate which
DVD is installed in the unit. The letters "KA" imply that a "United
States" DVD is installed. If the letters are KC, then a "Canada" DVD is
installed. (See coverage discussion below.)

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:16 PM

desk.

XM (HIP)

These screens allow troubleshooting on XM or HIP (AcuraLink) problems. Select the item you want to
troubleshoot, and follow the diagnostic instructions.

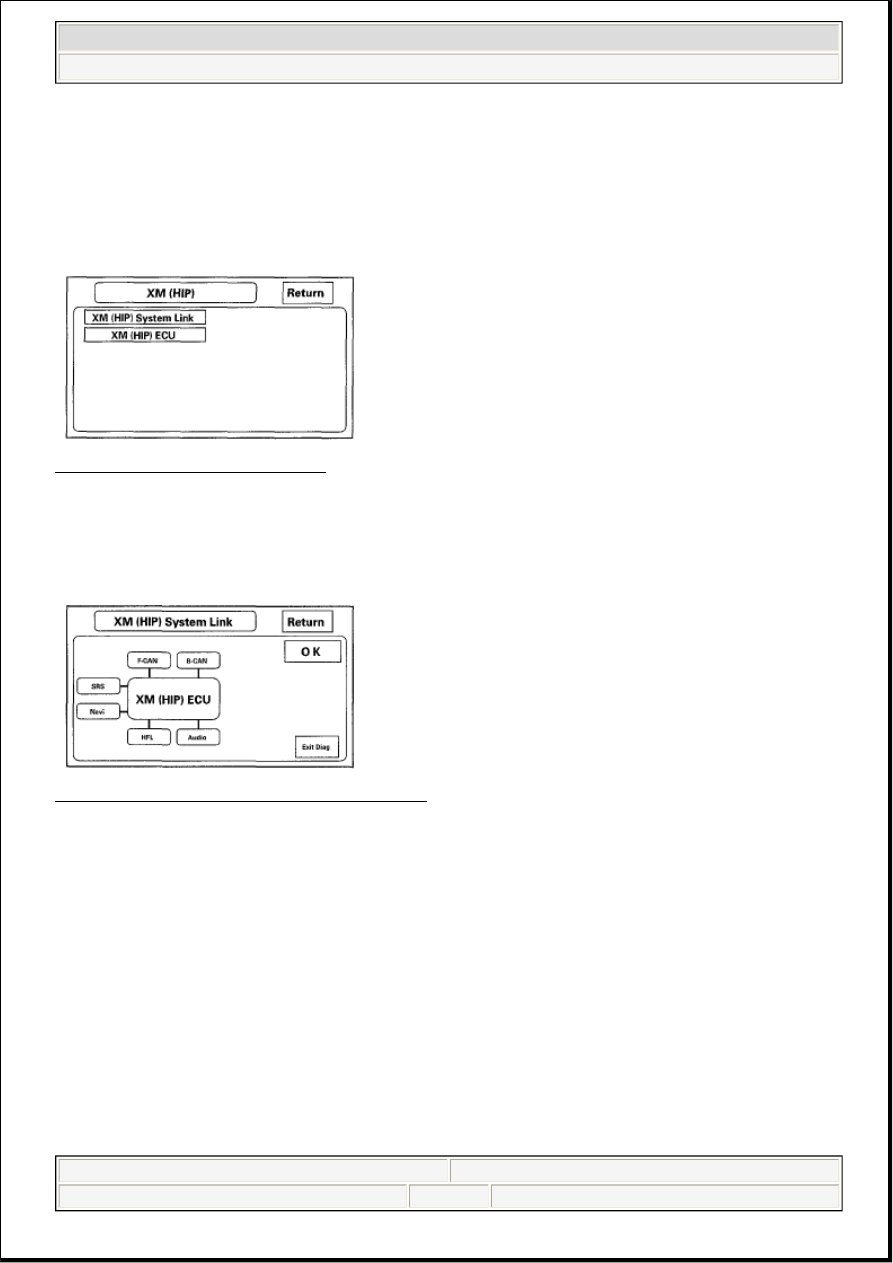

Fig. 89: Screen Display - XM (HIP)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

XM (HIP) System Link

This diagnostic tests the wires connecting the XM (HIP) components.

Fig. 90: Screen Display - XM (HIP) System Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.

XM (HIP) ECU

Select the item you want to troubleshoot, and follow the diagnostic instructions.

NOTE:

Only select "DATA RESET" when instructed. Selecting "DATA RESET" will
clear the AcuraLink registration, and the AcuraLink service will reset to the
factory default. If the vehicle was already registered for the AcuraLink
service, it will have to be reactivated by calling Acura Client Services and
asking for the activation before all features will be available. The reactivation
will cause the Feature Guide to start over at the first message, which will
result in the client getting repeated messages.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:16 PM

Fig. 91: Screen Display - XM (HIP) ECU
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Telematics Self-Diagnosis

This screen used to do self-diagnosis for the XM (HIP).

Fig. 92: Screen Display - Telematics Self-Diagnosis
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC Log Data

You can check the DTC log data in this screen.

Fig. 93: Screen Display - DTC Log Data
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Diagnostic Info

This screen lists messages that were displayed to the client. The client can clear the messages that are shown

NOTE:

When DTC B2200-B2249 is displayed. It is an engineering mode and is not
for trouble diagnosis.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:16 PM

with an "envelope" symbol.

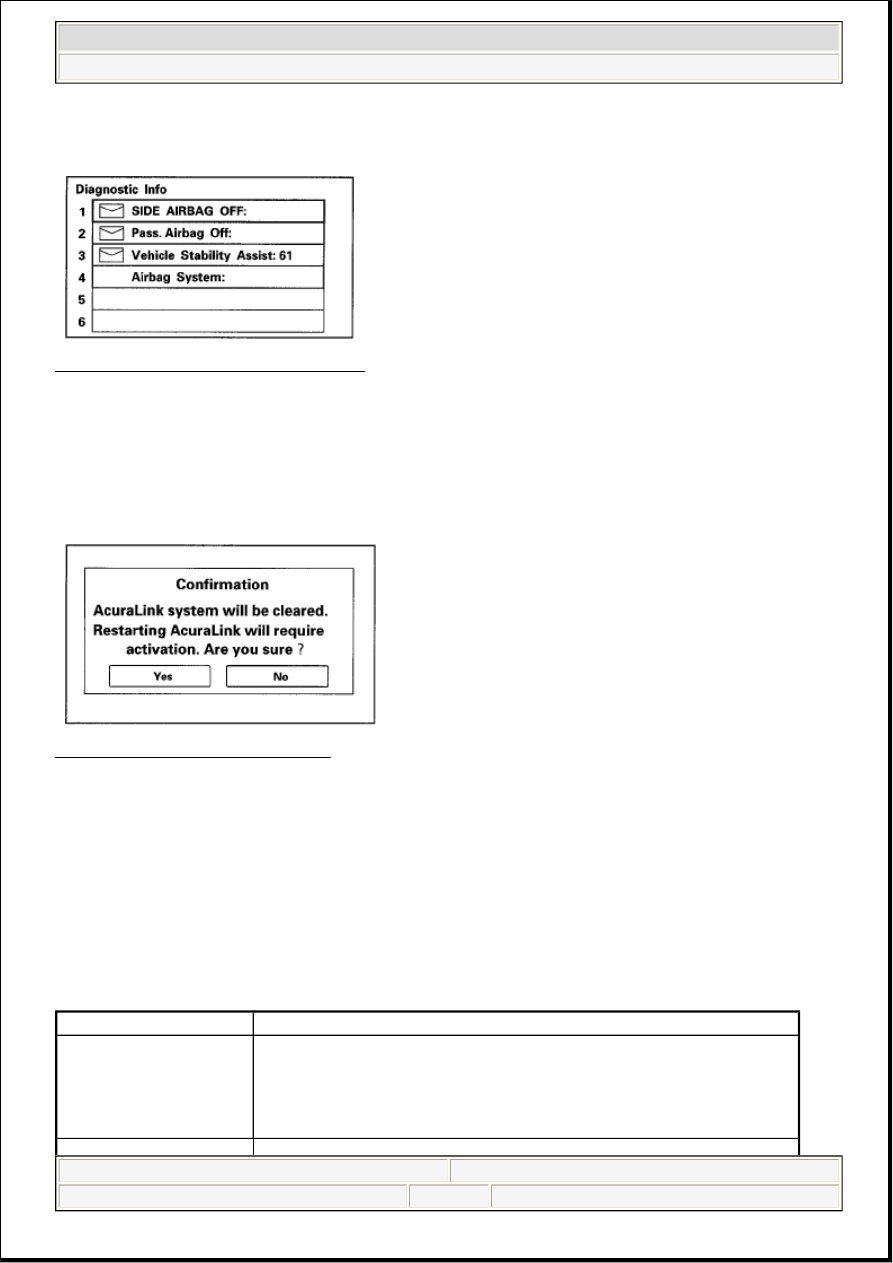

Fig. 94: Screen Display - Diagnostic Info
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Data Reset

This menu choice resets the AcuraLink control unit (XM receiver), and should not be selected. Only select
"DATA RESET" if instructed to do so by the factory. If chosen accidentally, a confirmation screen appears
to prevent accidental erasure. Select "No" to exit the screen.

Fig. 95: Screen Display - Data Reset
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ERROR MESSAGE TABLE

ERROR MESSAGE CHART

NOTE:

Selecting "DATA RESET" will clear the AcuraLink registration, and the
AcuraLink service will reset to the factory default. If the vehicle was already
registered for the AcuraLink service, it will have to be reactivated by calling
Acura Client Services before all features will be available. The reactivation
will cause the Feature Guide to start over at the first message, which will
result in the client getting repeated messages.

Screen Error Message

Solution

Navigation system is
unable to acquire a proper
GPS signal.

Make sure there is nothing on the rear shelf blocking the GPS antenna.
If not, move the vehicle to an open space away from tall buildings, trees,
etc.
Rear window tinting and after-market devices can affect the GPS
reception.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL

Friday, June 05, 2009 3:28:16 PM
