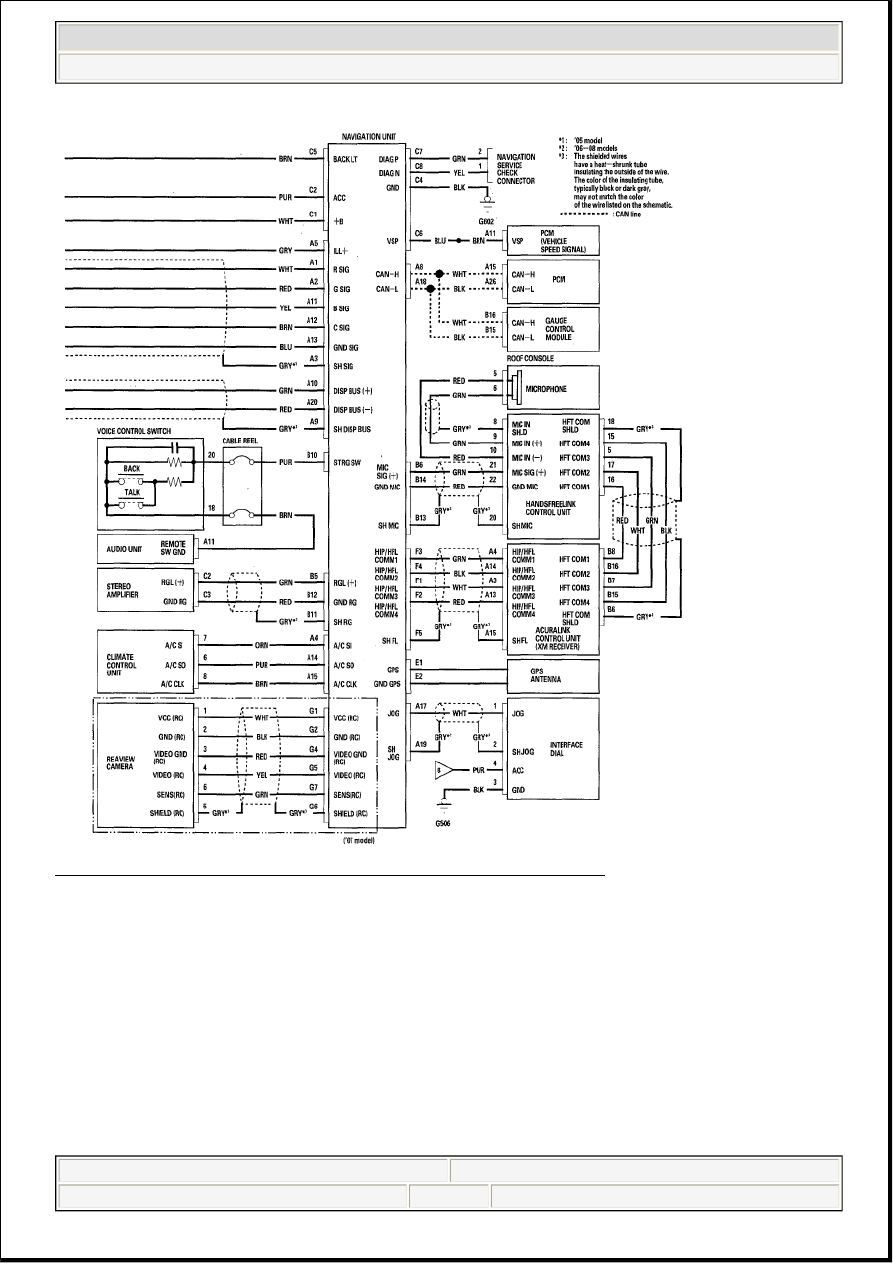

Fig. 25: Navigation System (With Acuralink) - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without AcuraLink



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

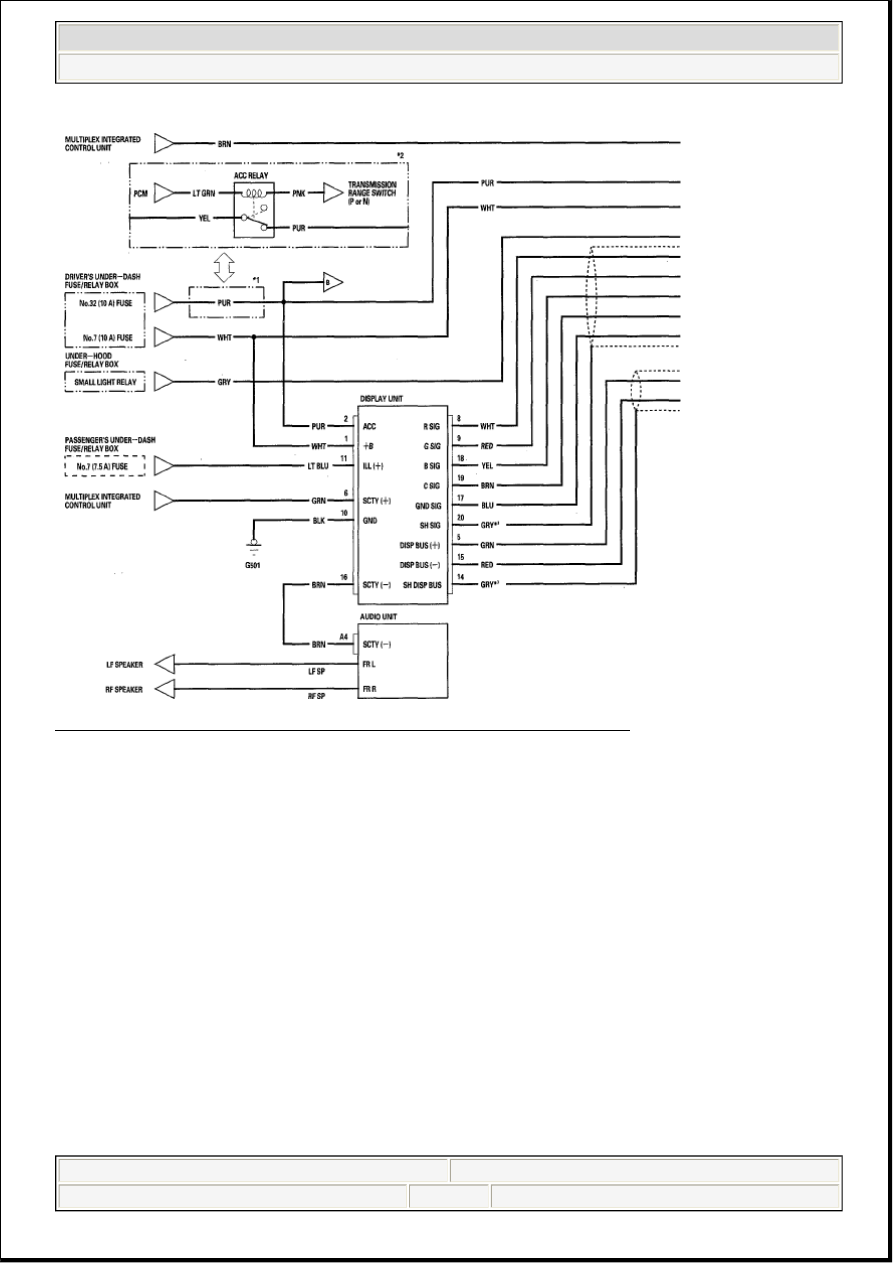

Fig. 26: Navigation System (Without Acuralink) - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

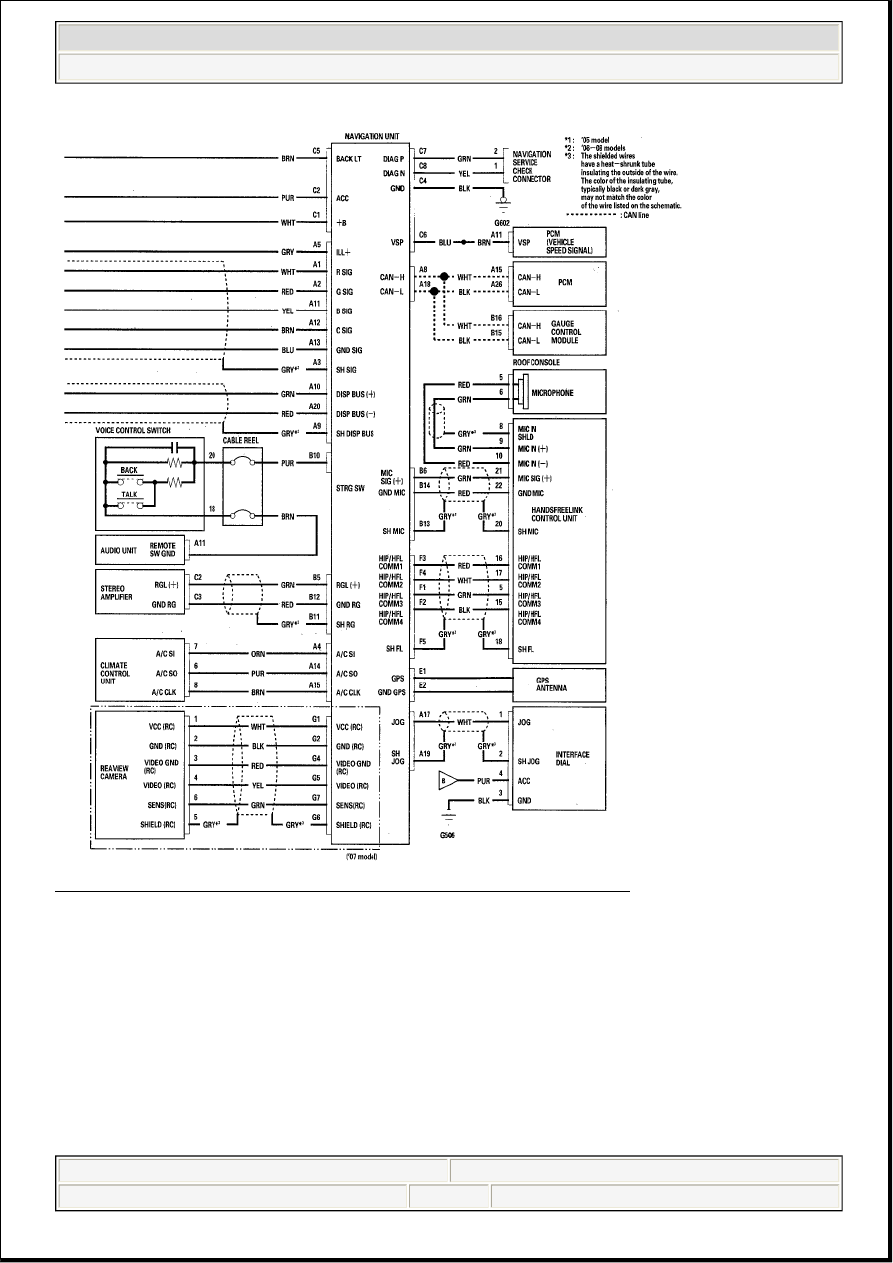

Fig. 27: Navigation System (Without Acuralink) - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING

NO PICTURE IS DISPLAYED

Diagnostic Test: Navi System Link

NOTE:



Check the vehicle battery condition first.



Always make sure that the correct DVD color and version are installed.



Inspect the DVD for dirt or damage.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

1. Check the No. 5 (7.5A), No. 7 (10A) fuse and No. 32 (10A) fuse in the driver's under-dash fuse relay

box, and reinstall the fuses if they are OK.

Are the fuses OK?

YES - Go to step 2.

NO - Replace the fuse and recheck.

2. Turn the ignition switch to ACC (I).

3. Operate the radio and listen to the audio.

Can you hear the audio?

YES - Go to step 4.

NO - Check the ACC circuit.

4. Turn the ignition switch to ON (II).

5. Measure the voltage between body ground and navigation unit connector C (8P) No. 1 and No. 2

terminals individually.

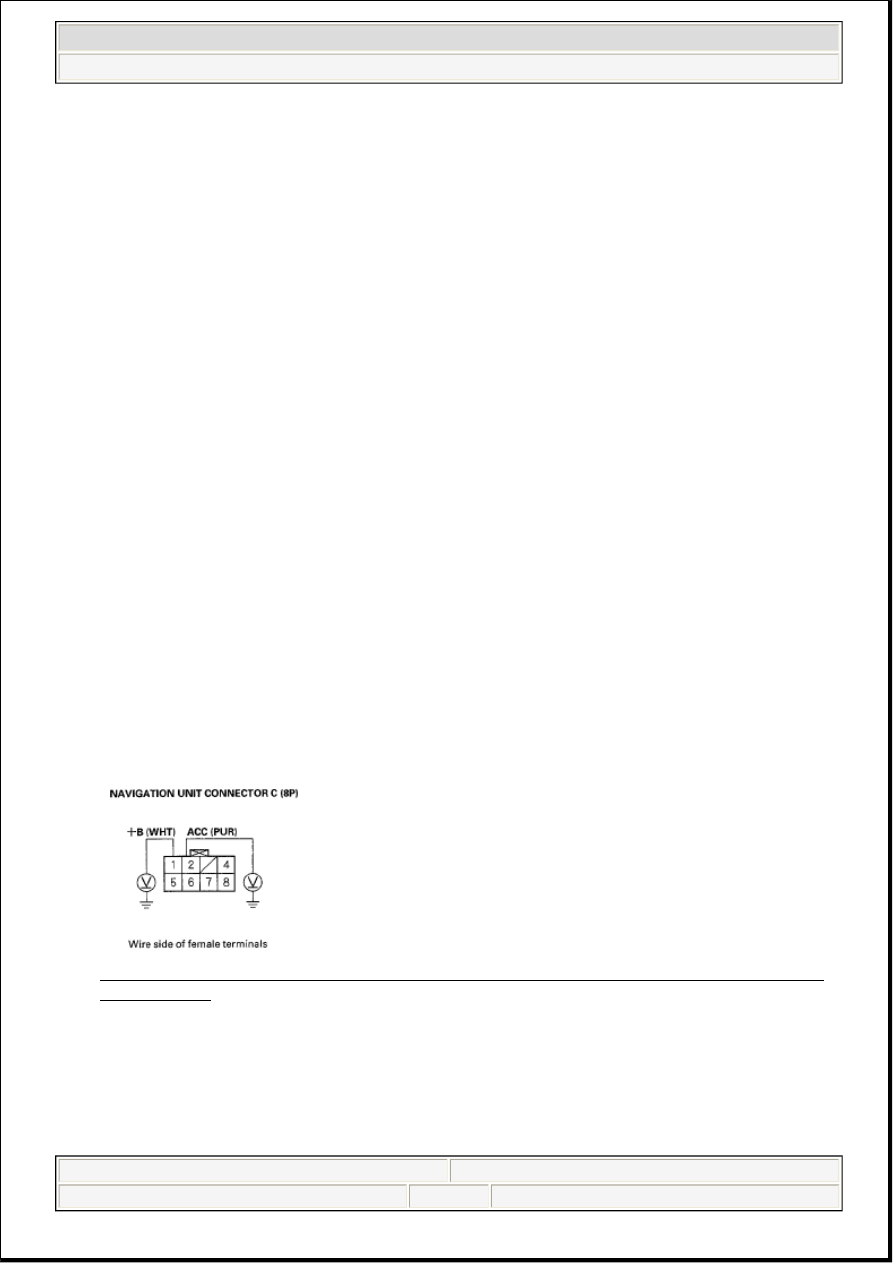

Fig. 28: Measuring Voltage Between Body Ground And Navigation Unit Connector C (8P) No.
1, 2 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 6.

NO - If the +B wire does not have voltage, repair open in the wire between the driver's under-dash



Check on-line for service bulletins or other service information for the
navigation system.



Always check the connectors for poor connections or loose terminals.



Before troubleshooting, make sure you have the anti-theft code for the
audio system and the navigation system.



Enter the anti-theft codes for the audio system and the navigation
system.
