Acura RL. Manual - part 645

1

WHT

+B (+B power
source)

Continuous power source

Battery
voltage

backlight visible).
If short to ground:
Blows fuse No. 7 (10A)
in the driver's under-
dash fuse/relay box.

2

PUR

ACC
(Accessory)

Power source for
accessory

Battery
voltage at
ACC (I)

If open: Display and
buttons do not work.
If short to ground:
Blows fuse No. 32
(10A) in the driver's
under-dash fuse/relay
box.

5

GRN

DISP BUS(-f)
(Display bus
positive)

Data bus (+) GA-Net

0-5 V pulses
average 2.5 V
depends on
bus traffic

If open: Navigation
buttons do not work.
If short to ground:
Navigation buttons do
not work.

6

GRN

SCTY(+)
(Security
positive)

Security signal

0 V

If open: If security
system set, it will not
trip when screen is
removed.
If short: If security
system set, it will not
trip when screen is
removed.

8

WHT

RSIG (Red
signal)

Red color signal

0-1 V

If open: Red color
missing (see "RGB
COLOR" diagnostic).
If short to ground: Red
color missing (see
"RGB COLOR"
diagnostic).

9

RED

GSIG (Green
signal)

Green color signal

0-1 V

If open: Green color
missing (see "RGB
COLOR" diagnostic).
If short to ground:
Green color missing (see
"RGB COLOR"
diagnostic).

10

BLK GND (Ground) Ground for display unit

0 V

If open: No change to
display.
If short to ground: No
change to display.

11

LT

BLU

ILL(+)
(Illumination
positive)

Parking light on signal
from dash and console
light

Lights on:
battery
voltage,
Lights off: 0
V

If open: When
brightness "Auto," then
night mode for the
display is inoperative
when lights on.
If short to ground:
Blows small light relay



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

Display unit 20P connector

in under-hood fuse/relay
box.

14

GRY

(1)

SH DISP BUS
(Shield display
bus)

Shield for display bus
No. 5, 16 terminals

0 V

If open: No change to
display.
If short to ground: No
change to display.

15

RED

DISP BUS(-)
(Display bus
negative)

Date bus (-) GA-Net

0-5 V pulses
average 2.5 V
depends on
bus traffic

If open: Navigation
buttons do not work.
If short to ground: Hard
buttons work OK.

16

BRN

SCTY(-)
(Security
negative)

Security signal

0 V

If open: If security
system set, it will not
trip when screen is
removed.
If short: If security
system set, it will not
trip when screen is
removed.

17

BLU

GND SIG
(Ground signal)

Ground for color signal

0 V

If open: No change to
display.
If short to ground: No
change to display.

18

YEL

BSIG (Blue
signal)

Blue color signal

0-1 V

If open: Blue color
missing (see "RGB
COLOR" diagnostic).
If short to ground: Blue
color missing (see
"RGB COLOR"
diagnostic).

19

BRN

C SIG
(Composite
signal)

Composite video
(vertical/horizontal)
synchronizing signal

0.3 V

If open: Picture rolls
horizontally, colors still
visible.
If short to ground:
Picture rolls
horizontally, colors still
visible.

20

GRY

(1)

SH SIG (Shield
signal)

Shield for No. 8, 9, 17,
18, 19 terminals

0 V

If open: No change to
display.
If short to ground: No
change to display.

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

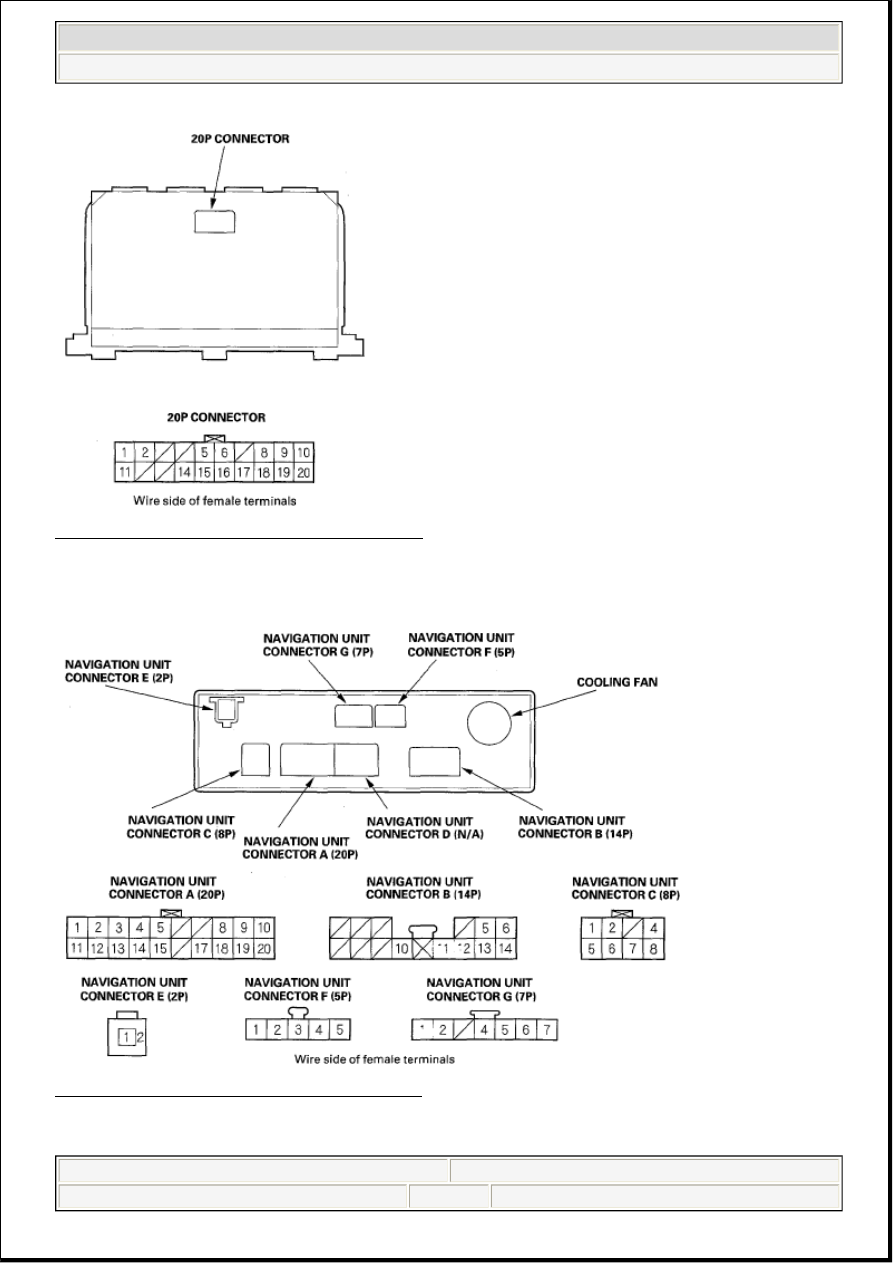

Fig. 22: Identifying Display Unit 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Navigation unit connectors

Fig. 23: Identifying Navigation Unit Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

CIRCUIT DIAGRAM

With AcuraLink

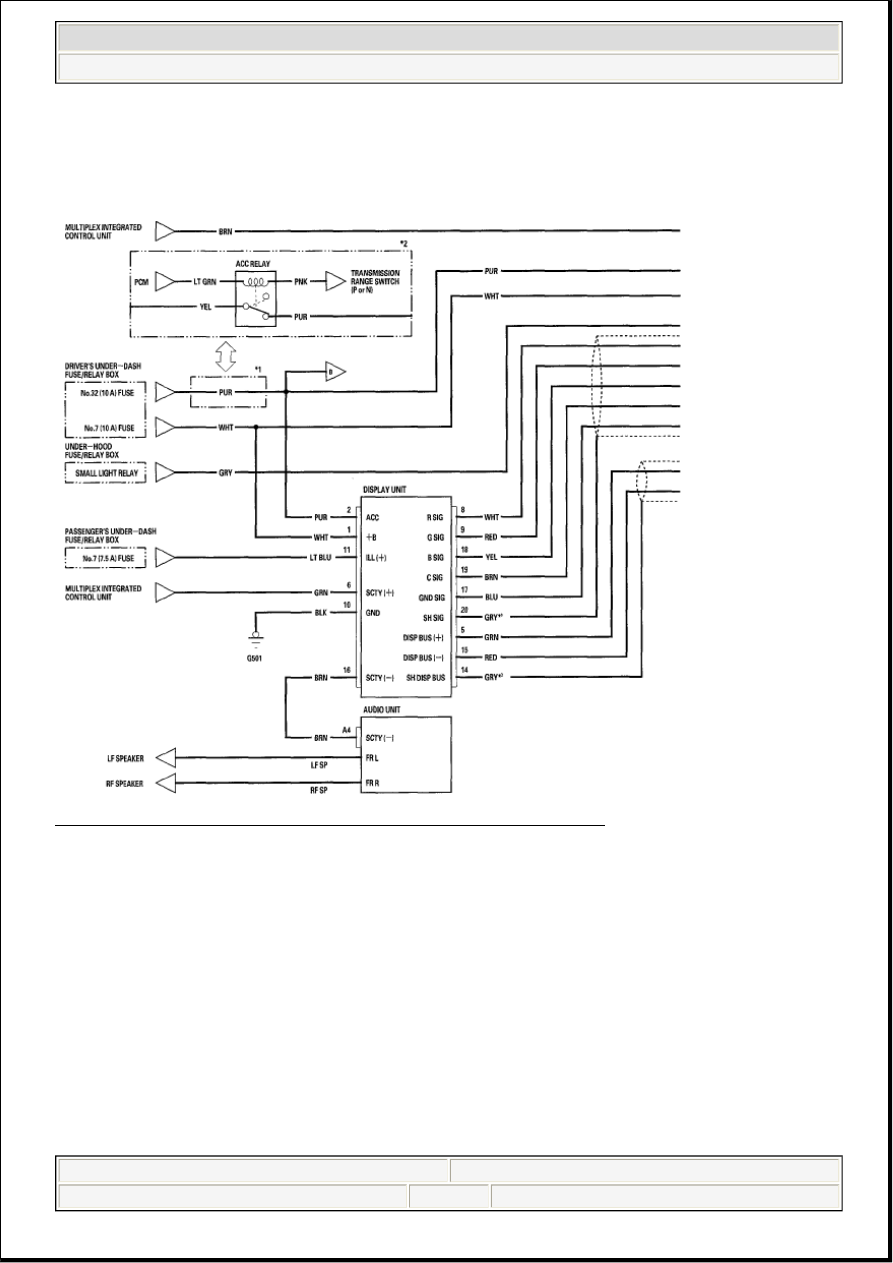

Fig. 24: Navigation System (With Acuralink) - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 42
