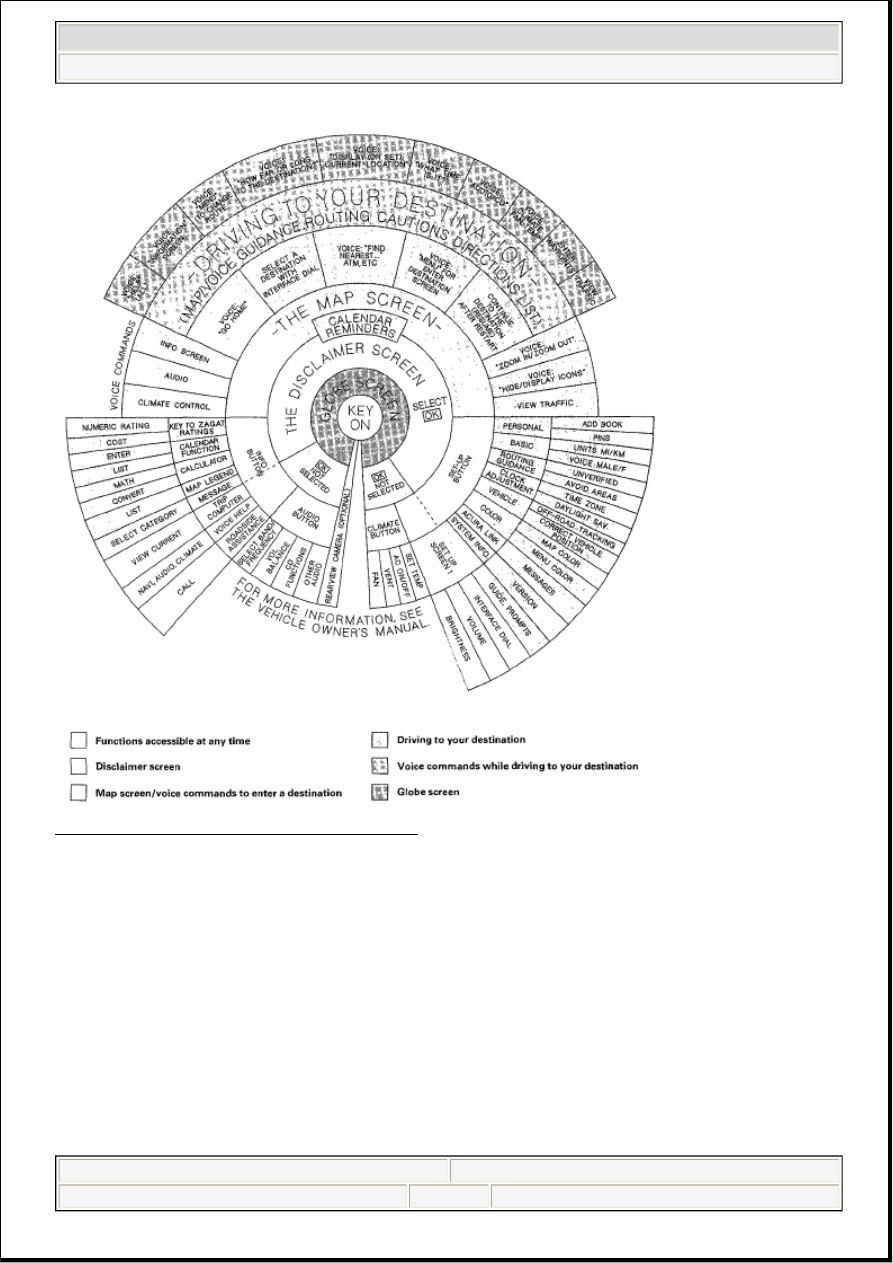

System Function Diagram

This diagram shows the features of the navigation system starting at the center and working outward in
layers. The navigation program starts at "Key ON", and then displays the globe screen. Once the disclaimer
screen is acknowledged, the next shaded portions of the diagram become active. However, some functions
of the INFO and SET UP buttons, and all functions of the AUDIO and A/C buttons can be accessed
immediately after the globe screen (white).

The items above the map screen show various ways to set a destination, such as "Go Home." Once you
begin driving to your destination, you are provided with map/voice guidance, routing cautions (in unverified
areas), and a directions list. While driving to your destination, use the voice control system as much as
possible to interact with the navigation, audio, and climate control systems.

VP

Vehicle Position. When in map mode, this circular icon shows the vehicle position
on the map. Touch this icon to show the latitude, longitude, and elevation of your
current position.

VR

Voice Recognition. This allows voice control of many of the navigation functions.
The hardware consists of the microphone, voice control switch (TALK/BACK
buttons), and the front speakers. See the overview for more information.

VSP

Vehicle Speed Pulse. This pulse signal coming from the PCM (via the CSS) is used
to update the vehicle position on the map. These pulses do not indicate direction
(forward or backward). When in reverse, the navigation receives a signal and directs
the VP to move backwards on the map.

WMA music
file

Windows media audio file. This is an accepted format for music file to be played on
either a CD or PC card.

XM

This device receives information from the XM satellites and passes XM audio
information to the audio unit. In addition, traffic information is sent to the navigation
unit.

Yaw Sensor

This device is located in the navigation system control unit and senses the side-to-
side twisting force generated when the vehicle turns. See Yaw Rate-Lateral
Acceleration Sensor.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

Fig. 13: Navigation System - Function Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

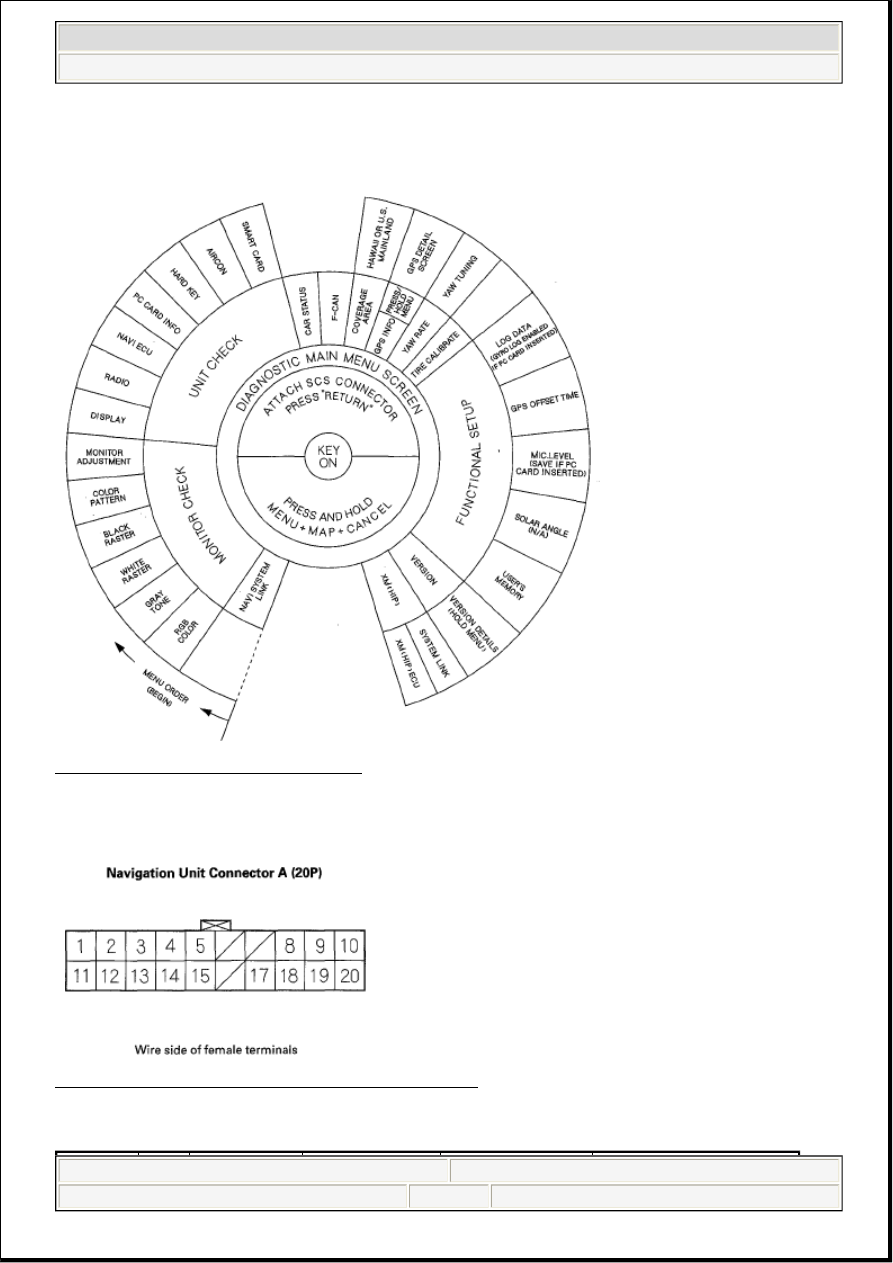

Diagnostic System Diagram

This diagram represents the diagnostic "slice" in the Navigation Functional diagram. The diagram shows an
overview of the navigation diagnostic features starting at the center and working outward in layers. The
diagram starts with "Key on". The diagram shows two ways to get to the diagnostic main menu:



By starting the vehicle with the SCS connector plugged in, you will enter the diagnostic "System
Links" screen, select "Return" to get to the main diagnostic menu.



From any of the navigation Map or Menu screens, press and simultaneously hold the keys Menu +
Map + Cancel. The diagram shows the available diagnostic menu choices, starting at the bottom left,
and moving clockwise. In most cases, do not clear or change settings in any diagnostic screen unless
instructed to do so in the explanation, or by the factory.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

If the factory asks you to insert a PCMCIA memory card into the PC Slot, insert the PC, card and the menu
options referring to the PC card become available.

Fig. 14: Navigation Functional Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NAVIGATION UNIT INPUTS AND OUTPUTS

Fig. 15: Identifying Navigation Unit Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NAVIGATION UNIT CONNECTOR REFERENCE



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Navigation System - RL



me



Friday, June 05, 2009 3:28:15 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

Terminal

Number

Wire

Color

Terminal

Name

Description

Voltage (about)

Symptom

1

WHT

RSIG (Red
signal)

Red color signal

0.2 VAC Average

If open: Red color missing
(see "RGB COLOR"
diagnostic).
If short to ground: Red
color missing (see "RGB
COLOR" diagnostic).

2

RED

GSIG (Green
signal)

Green color signal

0.2 VAC Average
in RGB diagnostic
mode

If open: Green color
missing (see "RGB
COLOR" diagnostic).
If short to ground: Green
color missing (see "RGB
COLOR" diagnostic).

3

GRY

(1)

SHSIG (Shield
signal)

Shield for No. 1,
2, 11, 12, 13
terminals

0 V

If open: No change to
display.
If short to ground: No
change to display.

4

ORN

A/C-SI (Air
conditioner
serial in)

Communication
signal for climate
control unit

-

-

5

GRY

ILL (+)
(Illumination
positive)

Parking light on
signal

Lights on: battery
voltage, Lights off:
0 V

If open: When brightness =
"Auto," night mode for the
display is inoperative when
lights on.
If short to ground: Blows
No. 4 (10A) fuse in under-
hood fuse/relay box.

8

WHT

CAN-H (CAN
high)

F-CAN bus
communication

Pulses 2.5-6 V
average 2.5 V
(depends on F-CAN
communication
traffic)

If open:

1. System Links FI-

ECU, and Meter both
show "NG."

2. F-CAN diagnostic =

"NG."

3. B-CAN diagnostic =

"NG."

4. Car status CHG

(CAN) = 0.

5. Functional Setup,

Trip info, FUP &
Sampled FL = 0.


If short to ground: Same
diagnostic conditions as
when open, and also sets
the following DTCs.
