The doors can also be locked by pushing down on the lock knob on the driver's door. Pulling up on the lock
knob only unlocks the driver's door. The lock knobs on the other doors only lock and unlock that door.
If the remote's built-in key is in the ignition, and a door is open, the doors will not lock using the master
door lock switches and the driver's MPCS will automatically unlock the doors if you push down on the
driver's door lock knob.
CIRCUIT DIAGRAM

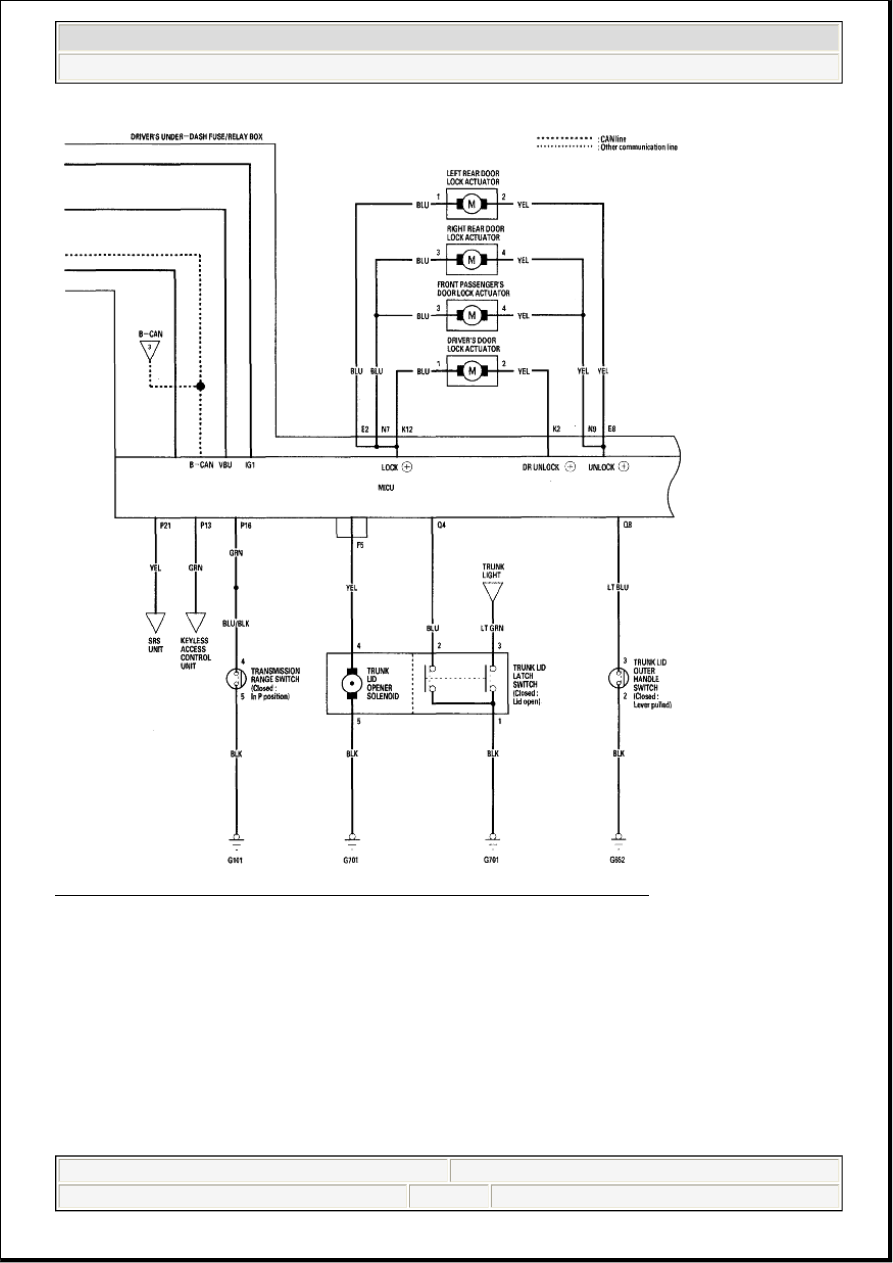

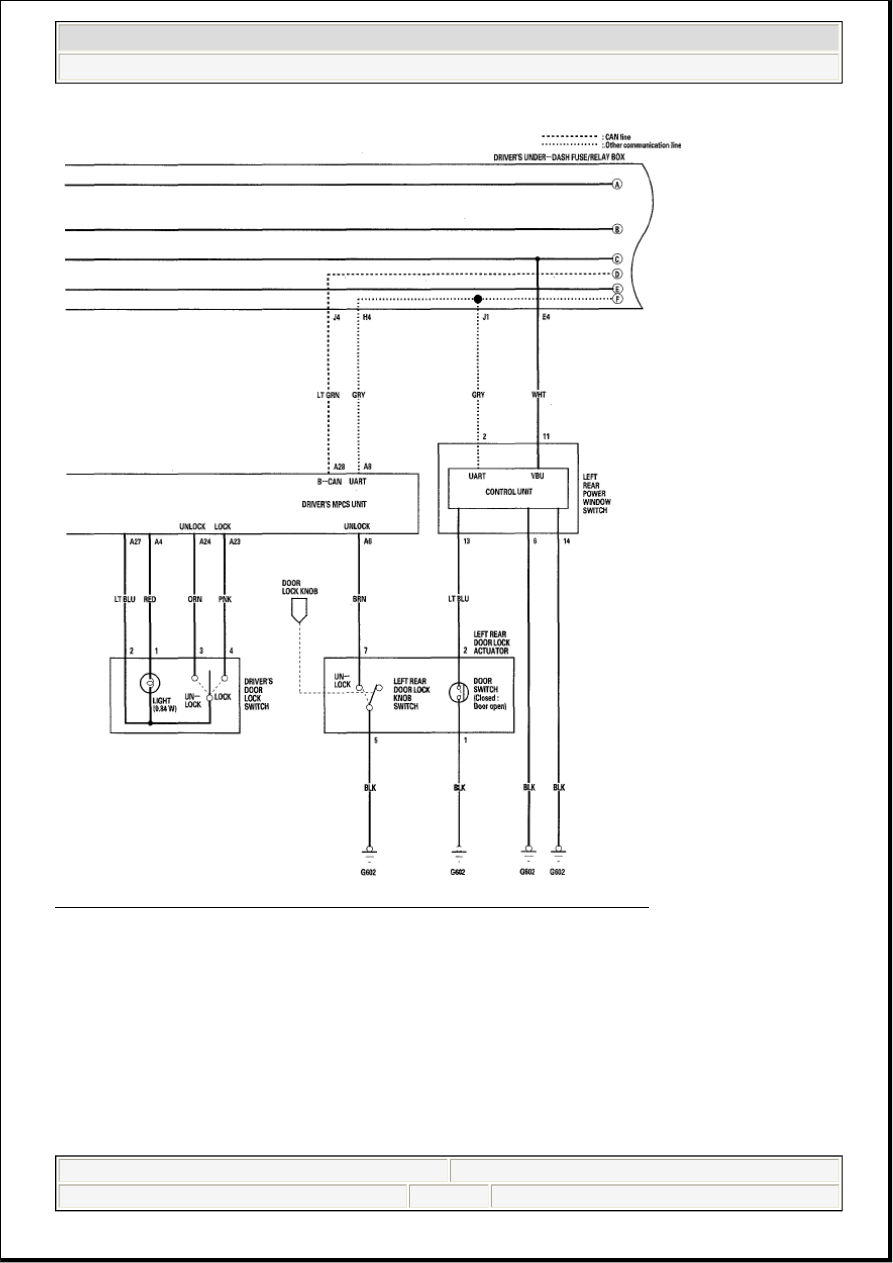

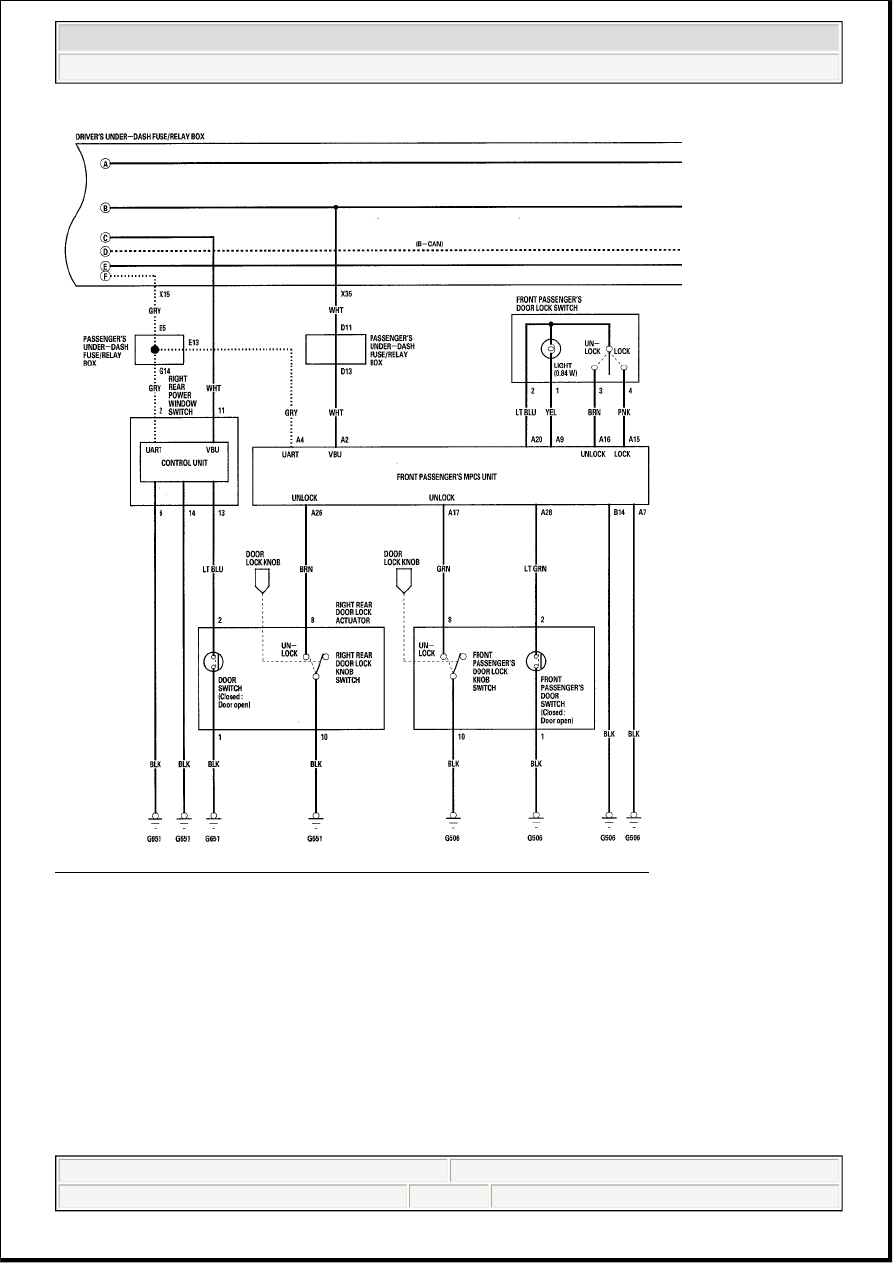

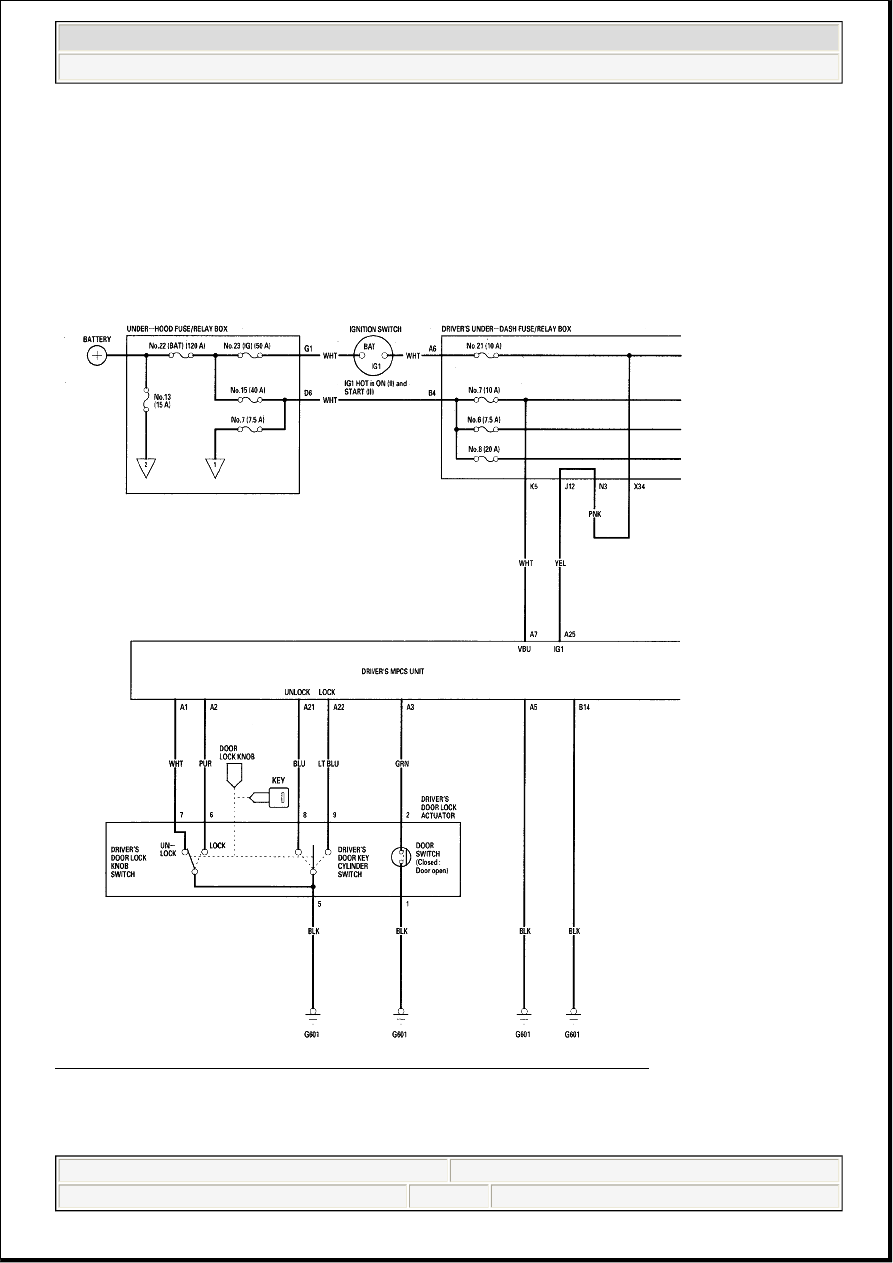

Fig. 3: Keyless/Power Door Locks/Security System - Circuit Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2007 Acura RL
2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL
