Acura RL. Manual - part 615



Any deformations in the grab handle (F)



Any cracks in the sunvisor stay base (G)



Any bends or cracks in the sunvisor stay shaft (H)



Any cracks in the sunvisor base (I)



Any cracks in the vanity mirror base (J)



Any deformations in the grab handle bracket



Replace any damaged parts with new ones.



Replace the removed aluminum seals with new ones.



Make sure the grab handle clips (K) are installed securely to the grab handle bracket (L).



Make sure the headliner overlaps the trim pieces correctly (see CHECKING AND
ADJUSTING THE HEADLINER/PILLAR TRIM OVERLAP ).



When passing the headliner through the door opening, be careful not to fold or bend it. Also, be
careful not to scratch the body.



If the threads on a visor screw are worn out, use an oversized self-tapping ET screw P/N 90137-
S30-003 made specifically for this application.



Check that both sides of the headliner are securely attached to the trim.

Headliner

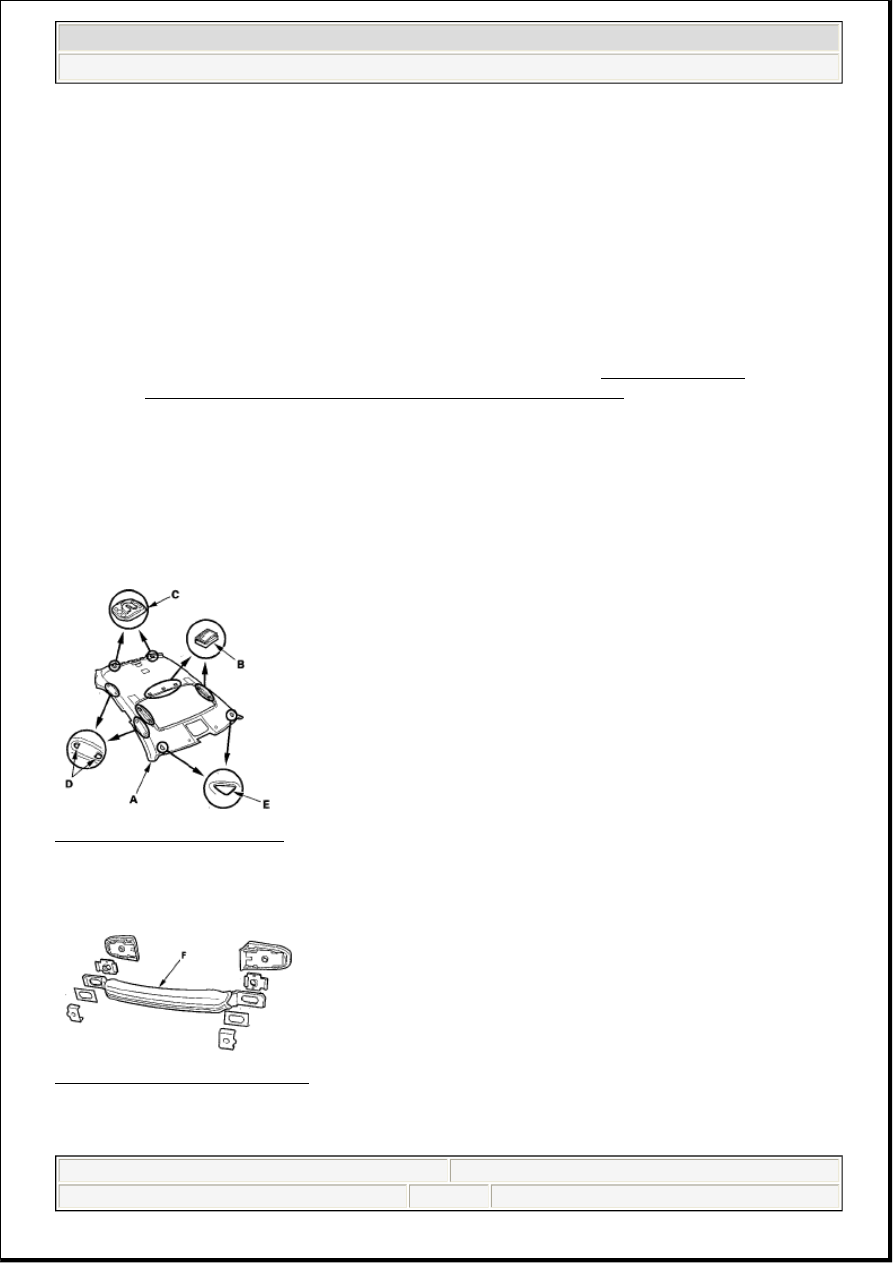

Fig. 55: Identifying Headliner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Grab handle

Fig. 56: Identifying Grab Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Sunvisor

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 36

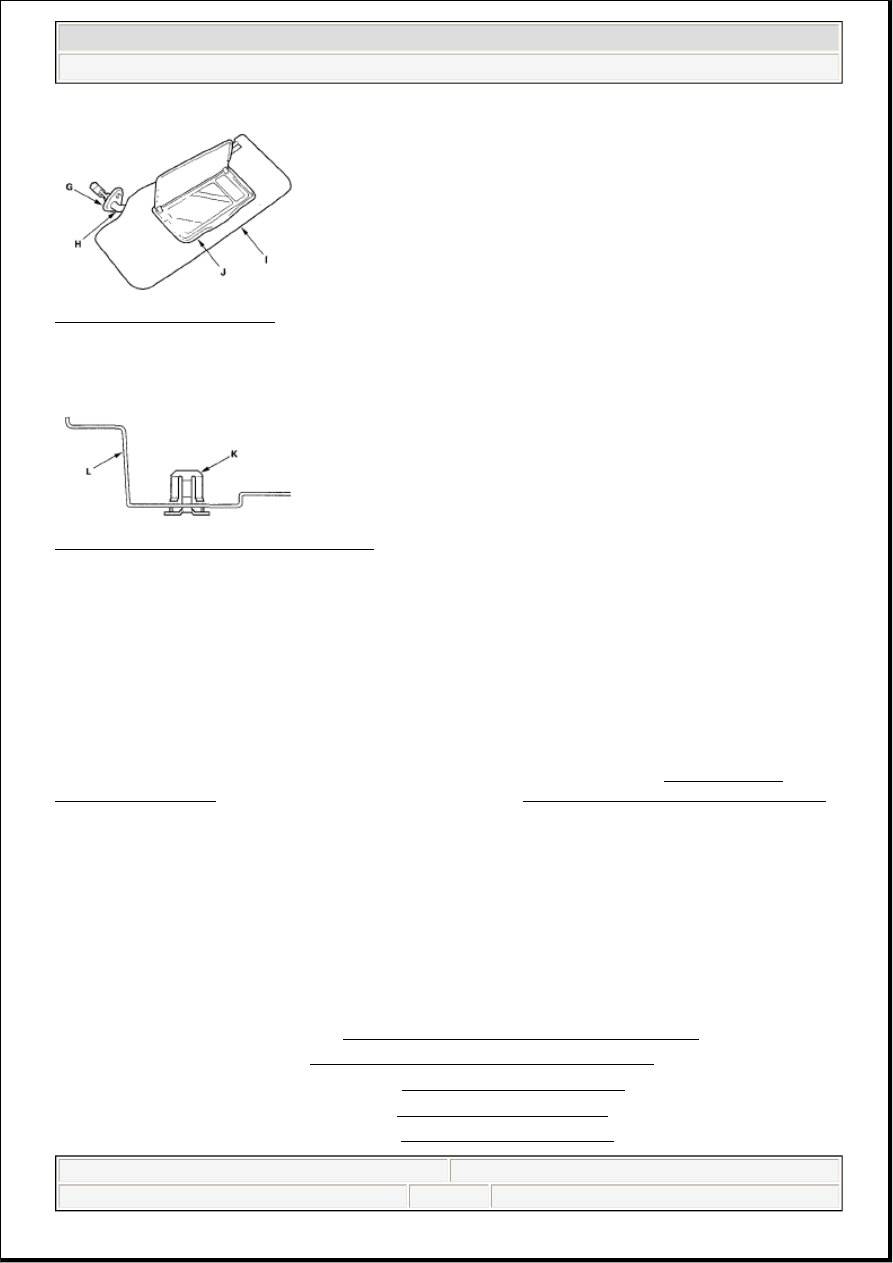

Fig. 57: Identifying Sunvisor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Grab handle bracket

Fig. 58: Identifying Grab Handle Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CARPET REPLACEMENT

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.

1. Remove these items:



Front seats, both sides (see FRONT SEAT REMOVAL/INSTALLATION )



Rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION )



Front door sill trim, both sides (see FRONT DOOR SILL AREA )



Rear door sill trim, both sides (see REAR DOOR SILL AREA )



B-pillar lower trim, both sides (see B-PILLAR LOWER TRIM )

NOTE:



Put on gloves to protect your hands.



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



Take care not to damage, wrinkle or twist the carpet.



Be careful not to damage the dashboard or other interior trim pieces.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 37



Kick panel, both sides (see FRONT DOOR SILL AREA )



Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )



Select lever bracket (see SHIFT LEVER REMOVAL )

2. Detach the clips, then remove the footrest (A).

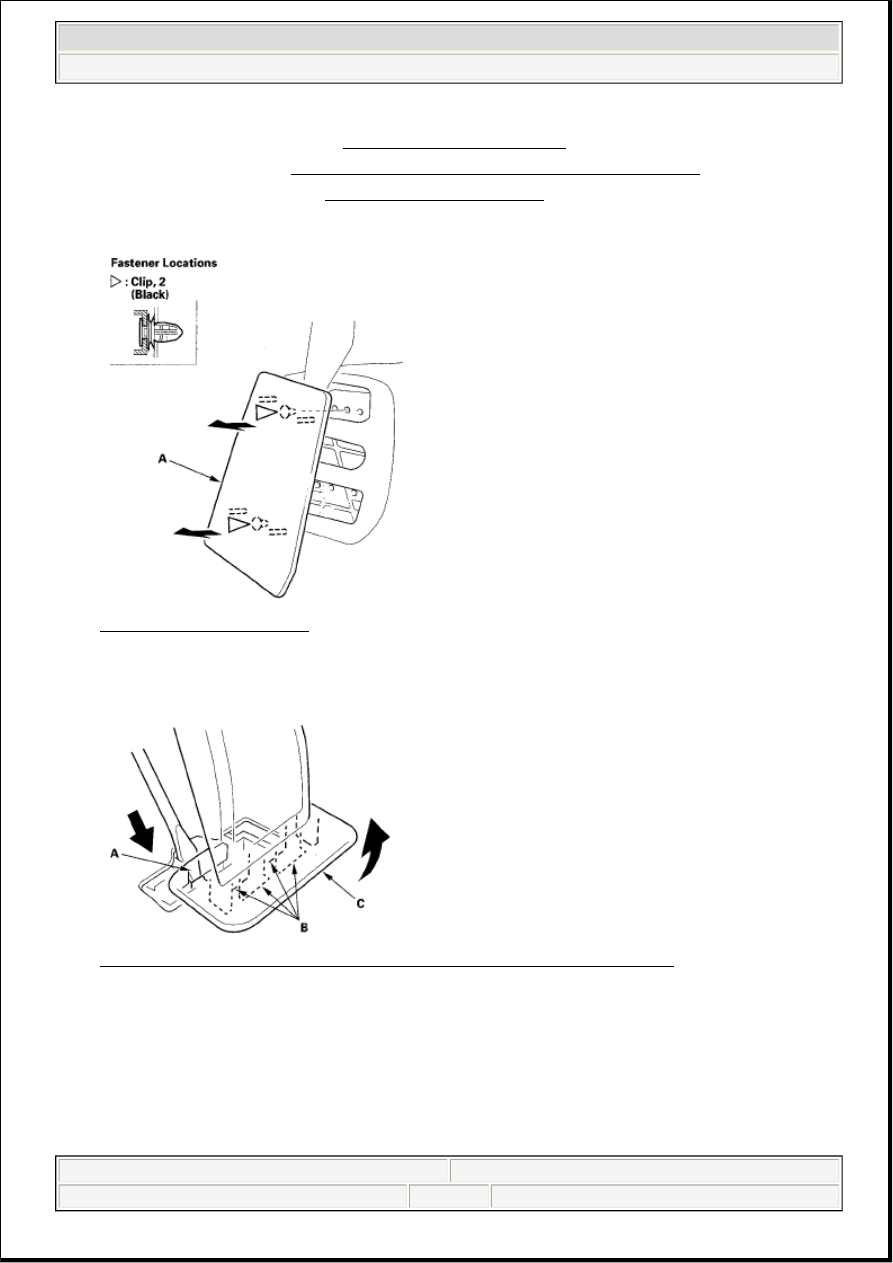

Fig. 59: Removing Footrest
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Push the knob (A) back to release the hooks (B), then pull up the accelerator pedal (C).

Fig. 60: Pushing Knob Back To Release Hooks (Pull Up Accelerator Pedal)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the bolts, then remove the rear vent duct C (A).

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 38

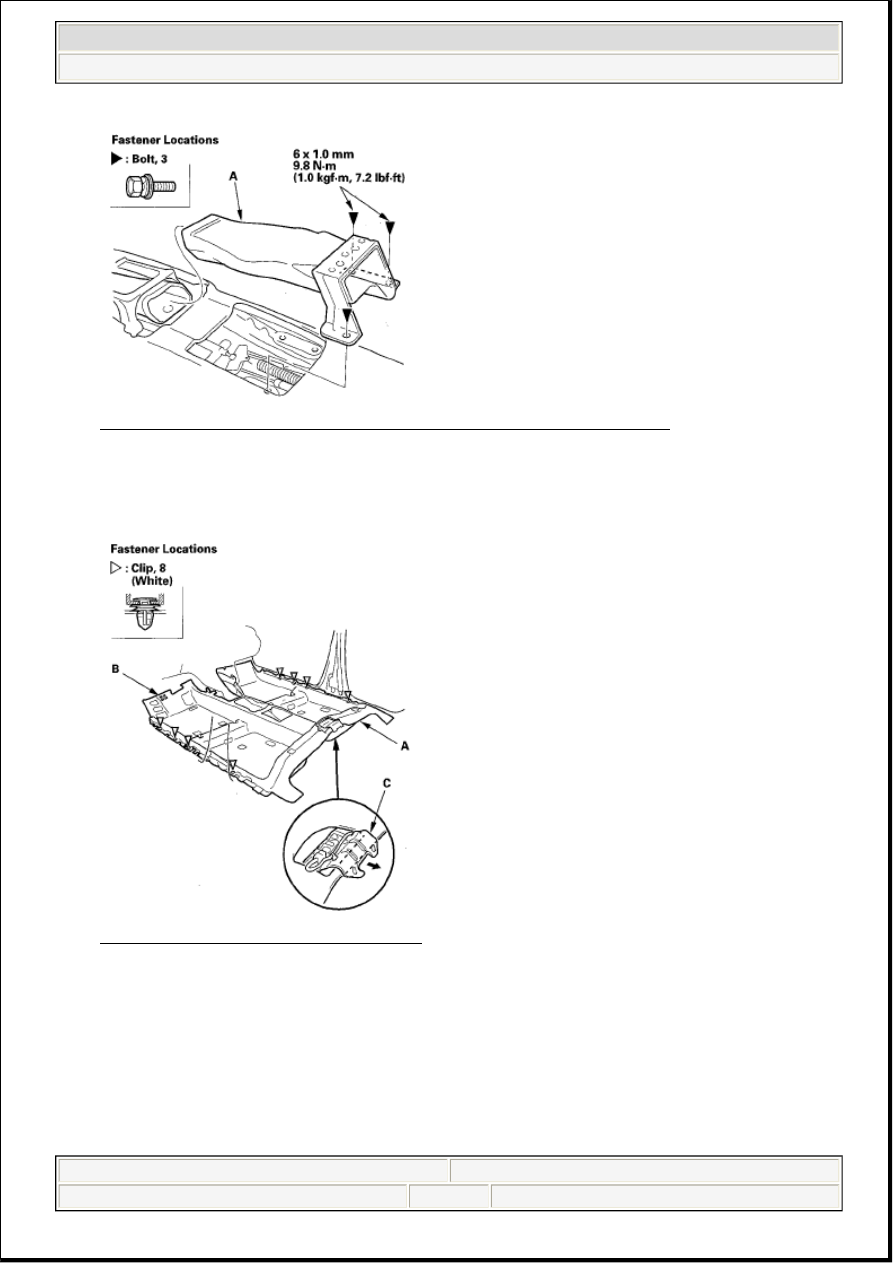

Fig. 61: Identifying Rear Vent Duct And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Detach the clips on both sides of the carpet (A). Pull the fastener (B) out, and pull out the carpet from

under the plate (C), then remove the carpet.

Fig. 62: Identifying Carpet And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the carpet in the reverse order of removal, and note these items:



Take care not to damage, wrinkle or twist the carpet.



Make sure the seat harnesses and antenna lead are routed correctly.



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new
ones.

2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL

Friday, June 05, 2009 3:37:01 PM

Page 39
