There should be continuity with the door open.



There should be no continuity with the door closed.

4. If the continuity is not as specified, replace the door lock actuator.

FRONT PASSENGER'S AND REAR DOOR

1. Remove the front passenger's door panel (see FRONT DOOR PANEL

REMOVAL/INSTALLATION ) or rear door panel (see FRONT DOOR WEATHERSTRIP
REPLACEMENT ).

2. Disconnect the 2P connector (A) from the door switch (B).

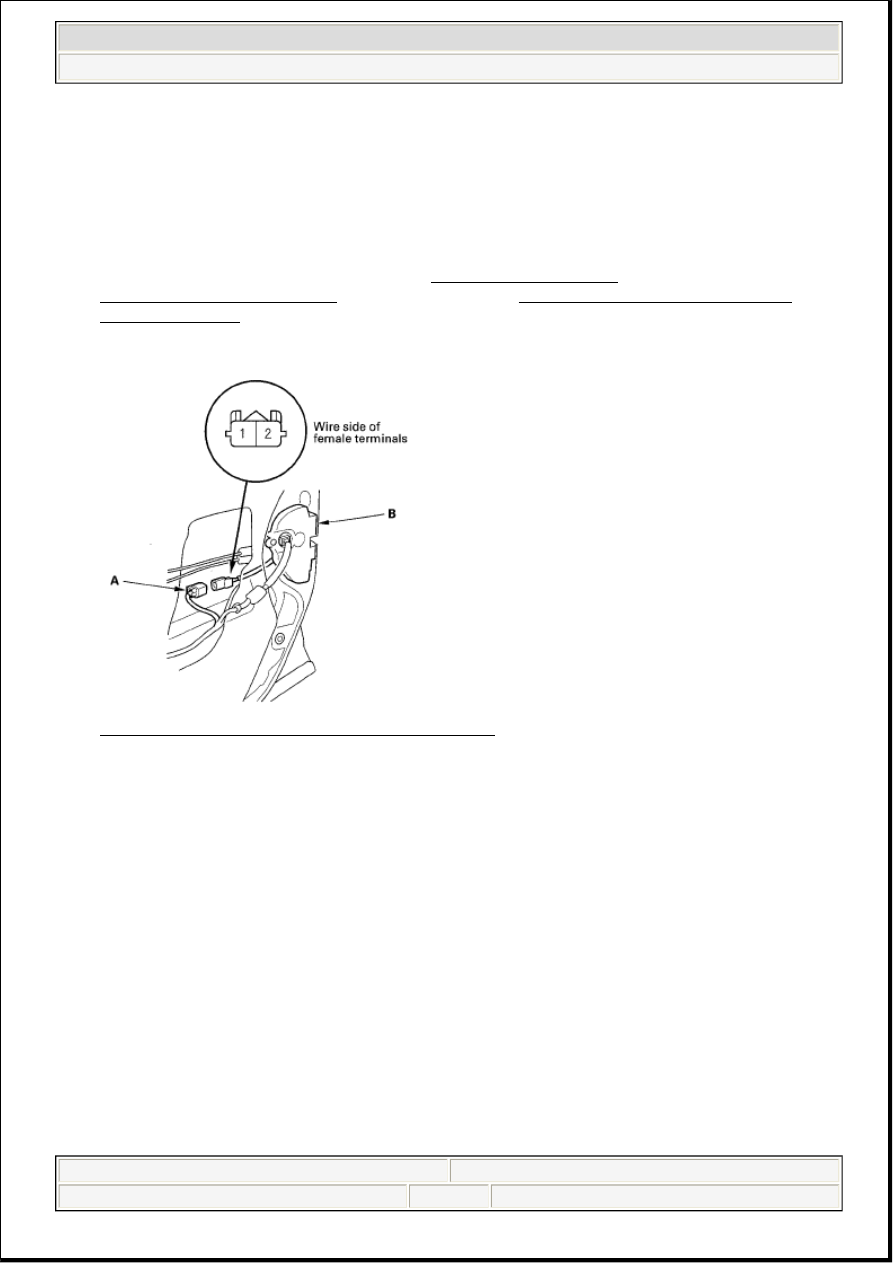

Fig. 28: Identifying Door Switch And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The illustration shows the front passenger's door.

3. Check for continuity between the No. 1 and No. 2 terminals.



There should be continuity with the door open.



There should be no continuity with the door closed.

4. If the continuity is not as specified, replace the door lock actuator.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ACCESSORIES AND EQUIPMENT

Interior Trim - RL

COMPONENT LOCATION INDEX

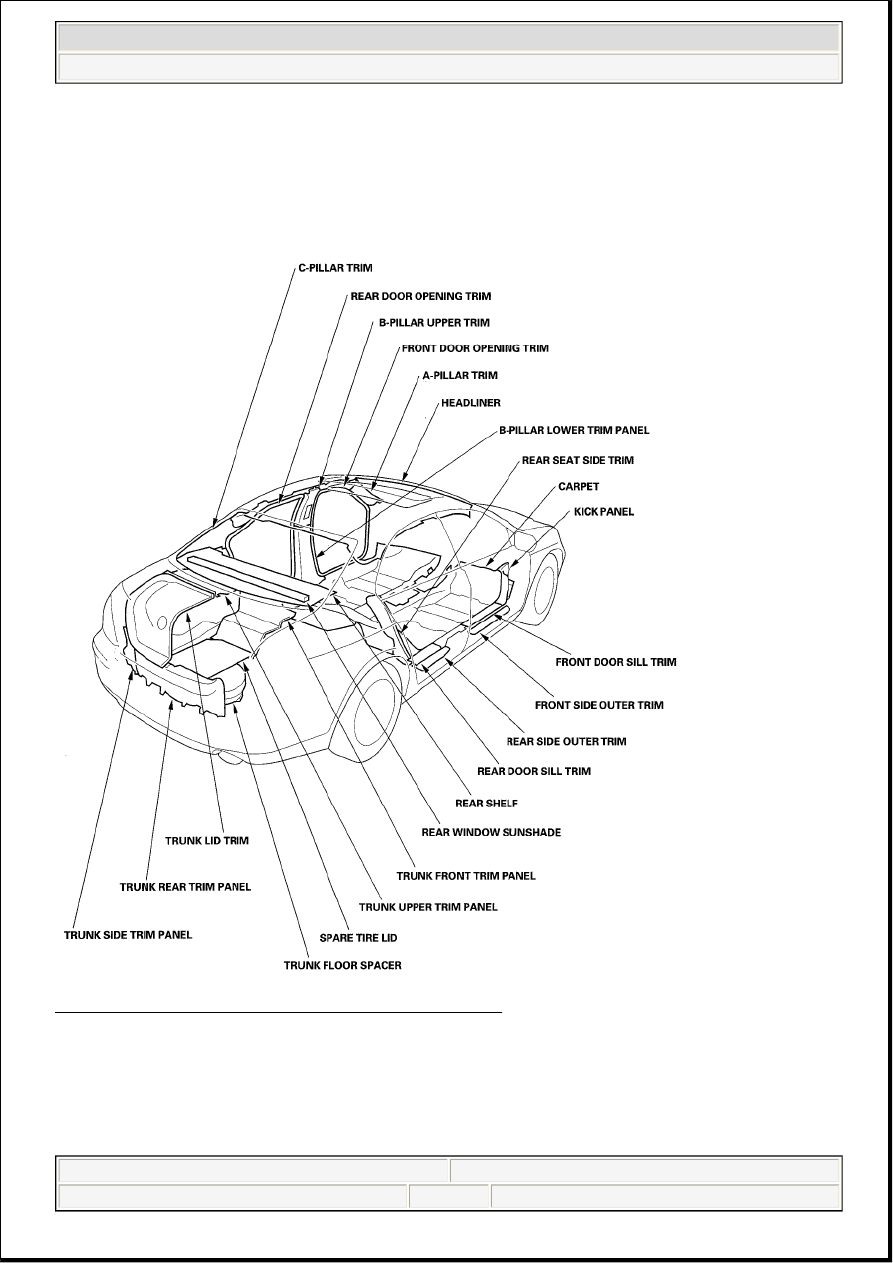

Fig. 1: Identifying Location Of Interior Trim Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRIM REMOVAL/INSTALLATION - DOOR AREAS

Special Tools Required



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:37:05 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

FRONT DOOR SILL AREA

1. Detach the hooks (A) and tabs (B) from the kick panel (C) and B-pillar lower trim (D), and pull the

front door sill trim (E) up by hand to detach the clips (F), then remove it from the front door opening
trim (G).

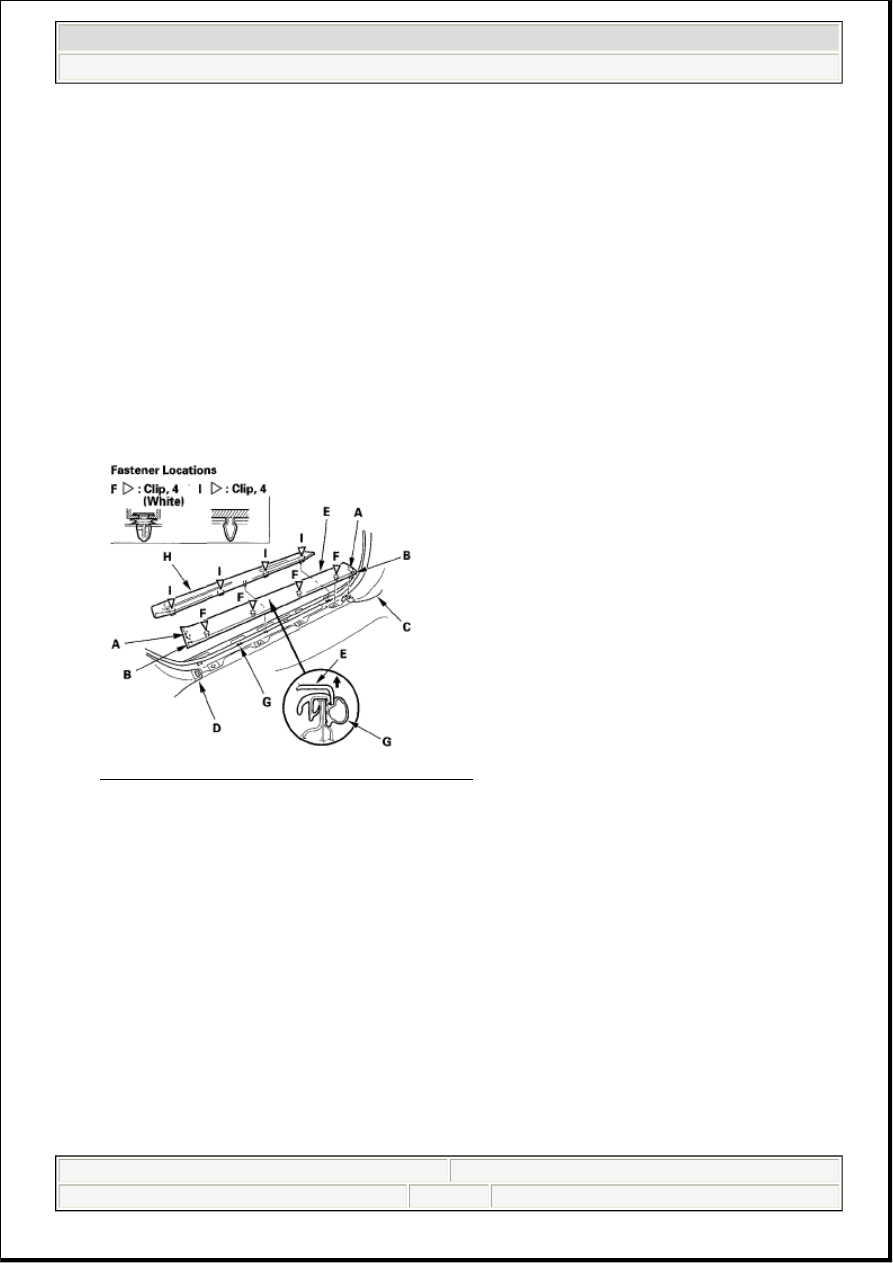

Fig. 2: Identifying Front Door Opening Sill Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. If necessary, pull the front side outer trim (H) up to detach the clips (I), then remove the trim.

3. Remove the left kick panel (A) or the right kick panel (B).

1. Pull out the door opening trim (C) as needed from the kick panel hooks (D) and the door

opening flange.

2. Pull the kick panel back by hand to detach the clips (E, F), then remove it.

Driver's

NOTE:



Put on gloves to protect your hands.



Take care not to bend or scratch the trim and panels.



Use the appropriate tool from the KTC trim tool set to avoid damage
when prying components.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

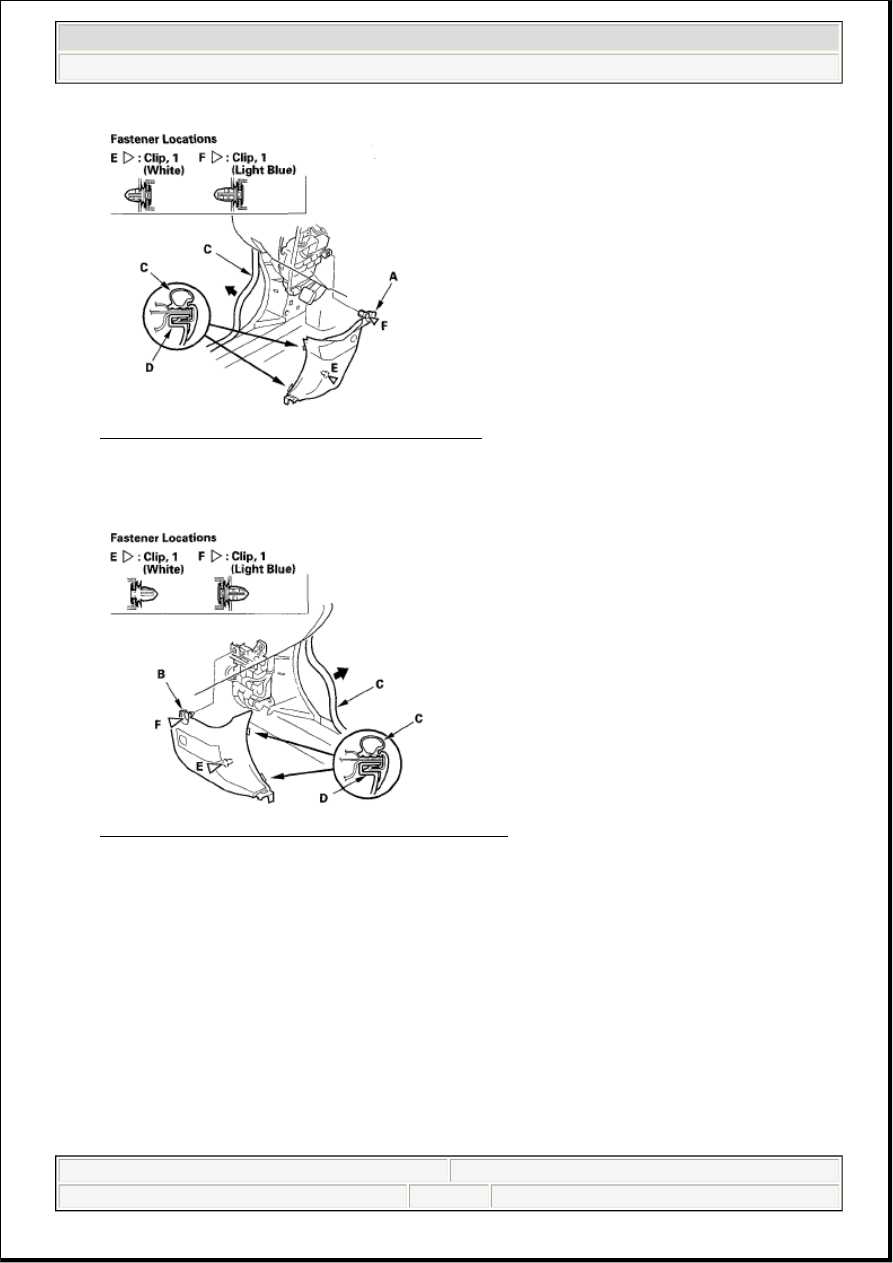

Fig. 3: Identifying Front Door Sill Area (Driver's)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's

Fig. 4: Identifying Front Door Sill Area (Passenger's)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Pull out the front door opening trim (A) from the trim hooks (B) and around the front door opening

flange, then remove the trim.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Trim - RL



me



Friday, June 05, 2009 3:37:01 PM

Page 3
