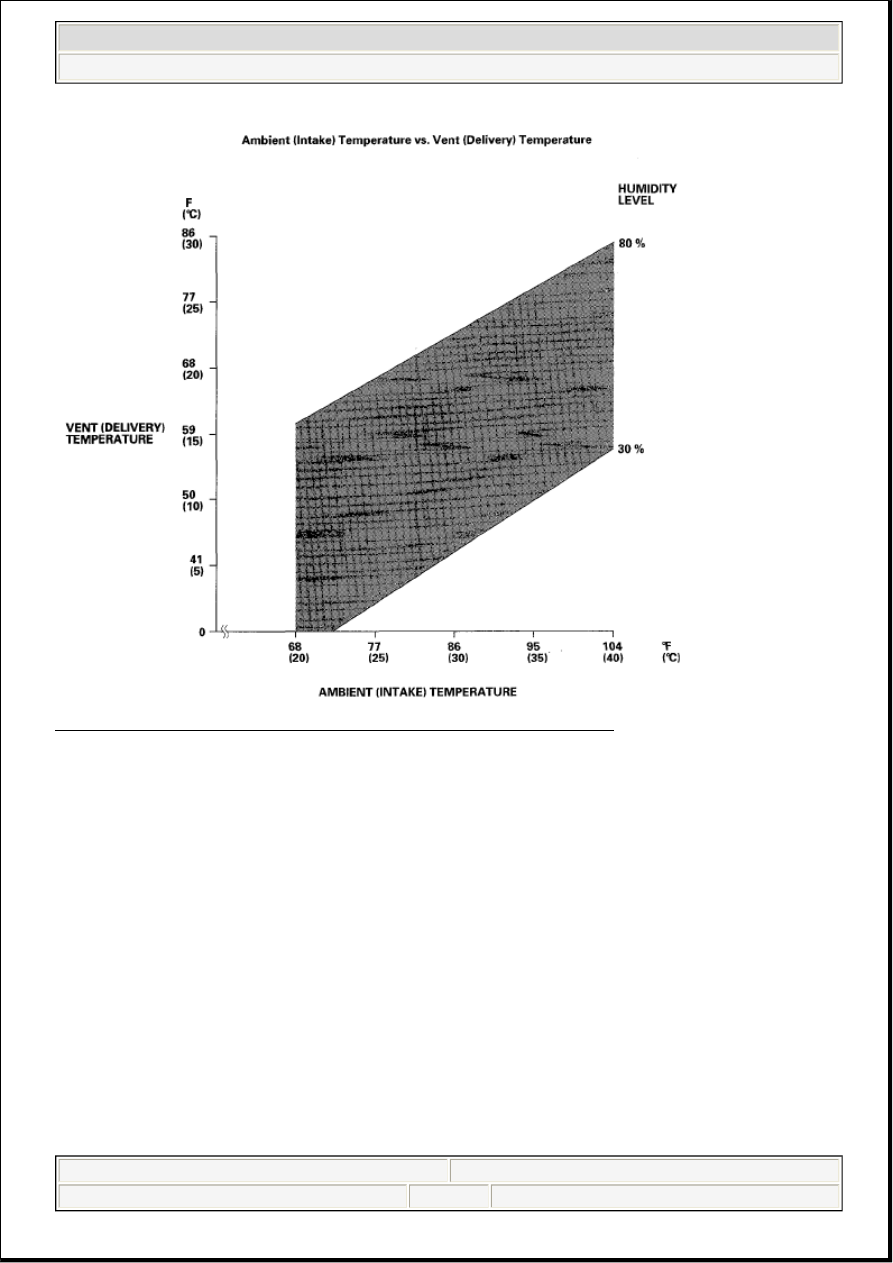

Fig. 168: Ambient Temperature Vs. Vent (Delivery) Temperature Graph
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:44 PM

Page 131  © 2005 Mitchell Repair Information Company, LLC.

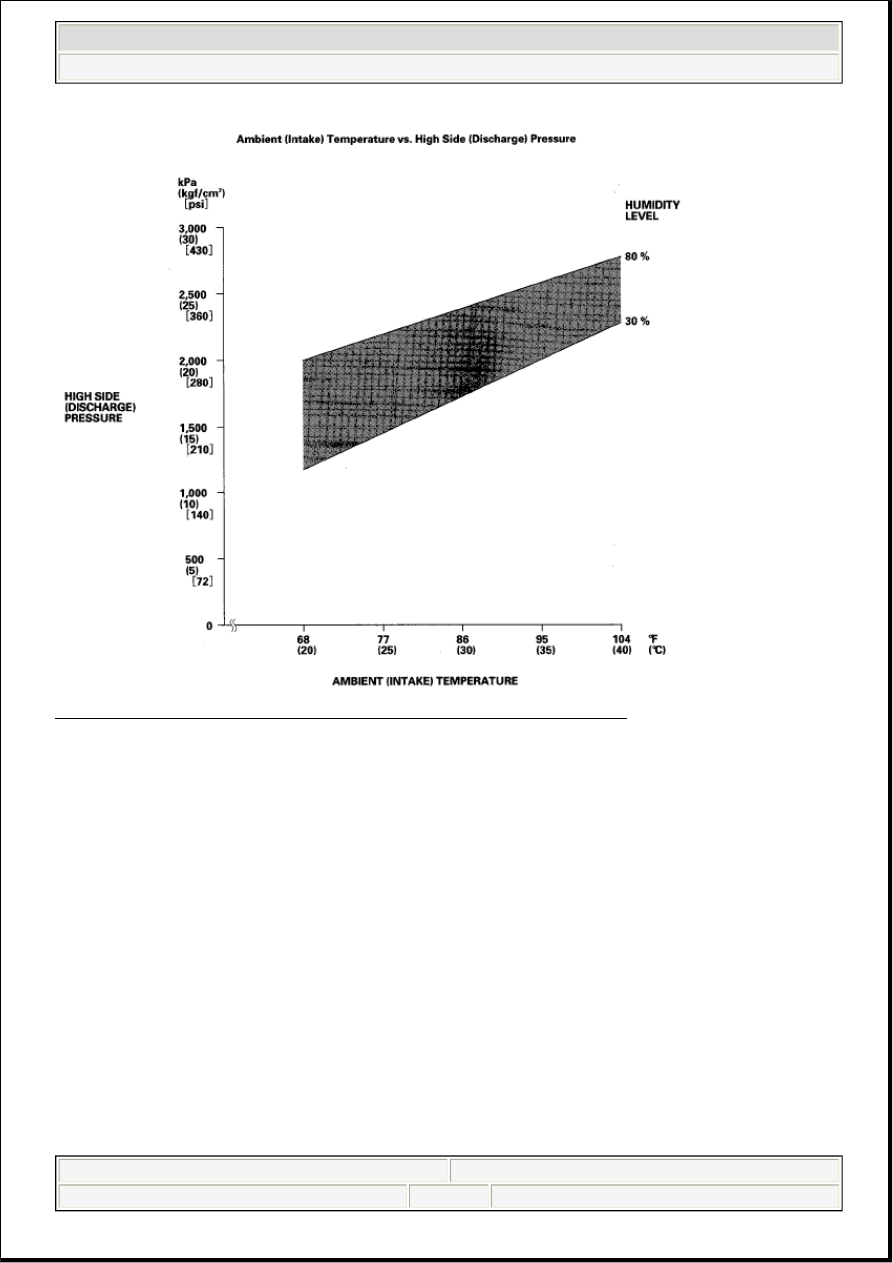

Fig. 169: Ambient Temperature Vs. High side (Discharge) Pressure Graph
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:44 PM

Page 132  © 2005 Mitchell Repair Information Company, LLC.

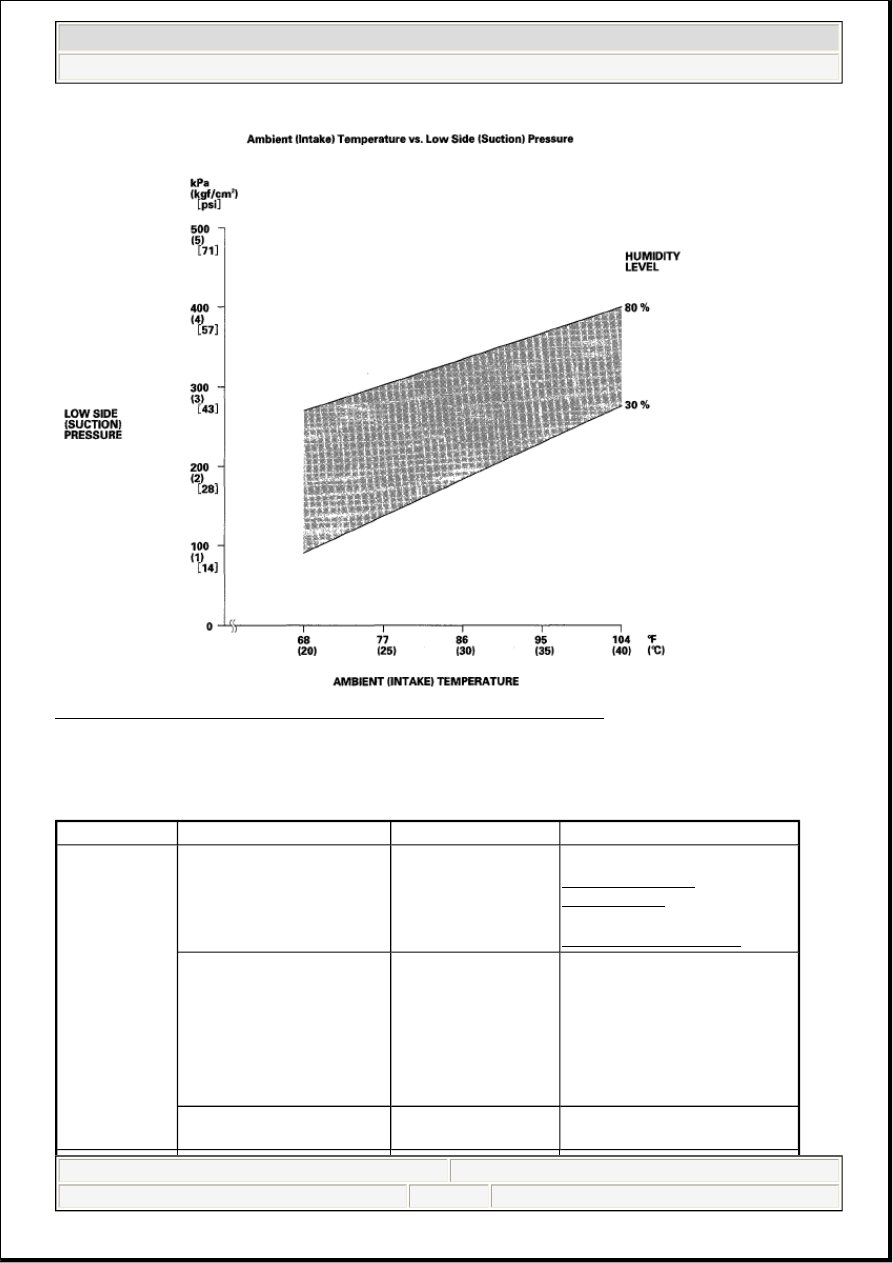

Fig. 170: Ambient Temperature Vs. Low side (Suction) Pressure Graph
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Pressure Test

SYMPTOMS REFERENCE

Test results

Related symptoms

Probable cause

Remedy

Discharge
(high) pressure
abnormally
high

After stopping A/C
compressor, pressure drops
about 196 kPa (2.0 kgf/cm

2

,

28 psi) quickly, and then
falls gradually.

Air in system

Recover, evacuate (see
REFRIGERANT
RECOVERY ), and recharge
with specified amount (see
SYSTEM CHARGING ).

Reduced or no airflow
through A/C condenser.



Clogged A/C
condenser or
radiator fins



A/C condenser
or radiator fan
not working
properly



Clean.



Check voltage and fan
rpm.



Check fan direction.

Line to A/C condenser is
excessively hot.

Restricted flow of
refrigerant in system

Restricted lines.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:44 PM

Page 133  © 2005 Mitchell Repair Information Company, LLC.

Discharge
pressure
abnormally low

High and low-pressures are
balanced soon after stopping
A/C compressor. Low side is
higher than normal.



Faulty A/C
compressor
discharge valve



Faulty A/C
compressor seal

Replace the A/C compressor.

Outlet of expansion valve is
not frosted, low-pressure
gauge indicates vacuum.



Faulty
expansion valve



Moisture in
system



Replace.



Recover, evacuate, and
recharge with specified
amount.

Suction (low)
pressure
abnormally low

Expansion valve is not
frosted, and low-pressure
line is not cold. Low-
pressure gauge indicates
vacuum.



Frozen
expansion valve
(Moisture in
system)



Faulty
expansion valve



Recover, evacuate, and
recharge With specified
amount,



Replace the expansion
valve.

Discharge temperature is
low, and the airflow from
vents is restricted.

Frozen evaporator

Run the fan with A/C
compressor off, then check
evaporator temperature sensor.

Expansion valve is frosted.

Clogged expansion
valve

Clean or replace.

Suction
pressure
abnormally
high

Low-pressure hose and
service port are cooler than
the temperature around
evaporator.

Expansion valve open
too long

Repair or replace.

Suction pressure is lowered
when A/C condenser is
cooled by water.

Excessive refrigerant
in system

Recover, evacuate, and recharge
with specified amount.

High and low-pressures are
equalized as soon as the A/C
compressor is stopped, and
both gauges fluctuate while
running.



Faulty gasket



Faulty high-
pressure valve



Foreign particle
stuck in high-
pressure valve

Replace the A/C compressor.

Suction and
discharge
pressures
abnormally
high

Reduced airflow through
A/C condenser.



Clogged A/C
condenser or
radiator fins



A/C condenser
or radiator fan
not working
properly



Clean.



Check voltage and fan
rpm.



Check fan direction.

Suction and
discharge
pressures
abnormally low

Low-pressure hose and
metal fittings are cooler than
evaporator.

Clogged or kinked
low-pressure hose
parts

Repair or replace.

Temperature around
expansion valve is too low
compared with that around

Clogged high-pressure
line

Repair or replace.
