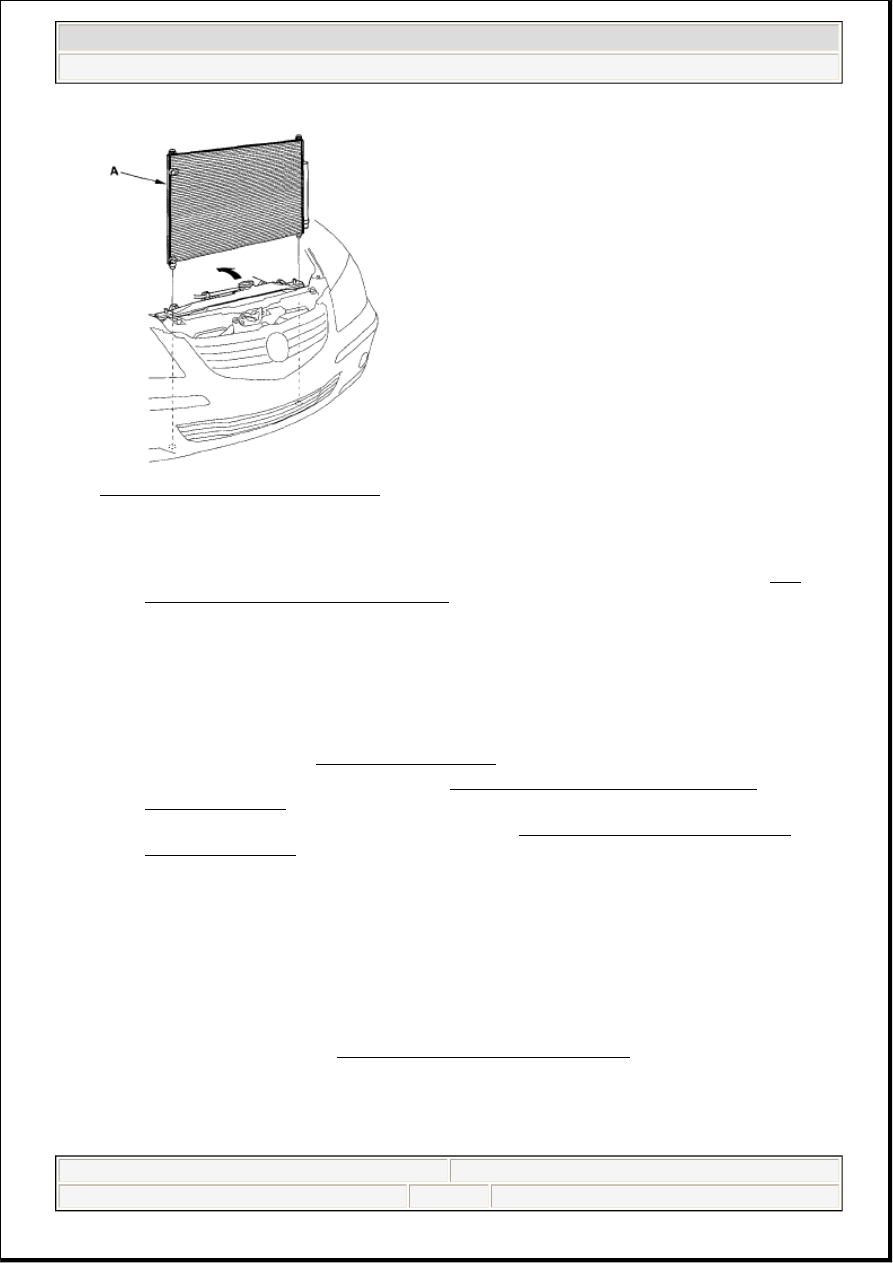

Fig. 161: Identifying A/C Condenser
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the A/C condenser in the reverse order of removal, and note these items:



If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C
SERVICE TIPS AND PRECAUTIONS ).



Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before
installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.



Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture
absorption.



Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil
contacts the paint, wash it off immediately.



Charge the system (see SYSTEM CHARGING ).



Reset the power window control unit (see RESETTING THE POWER WINDOW
CONTROL UNIT ).



Do the steering column position memorization (see STEERING COLUMN POSITION
MEMORIZATION ).



Enter the anti-theft codes for the audio system and the navigation system (if equipped).



Set the clock.

RECEIVER/DRYER DESICCANT REPLACEMENT

1. Remove the A/C condenser (see A/C CONDENSER REPLACEMENT ).

2. Remove the cap (A) from the bottom of the A/C condenser. Remove the O-ring (B) and the desiccant

(C).

NOTE:

Install the receiver/dryer as quickly as possible to prevent the system from
absorbing moisture from the air.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 123  © 2005 Mitchell Repair Information Company, LLC.

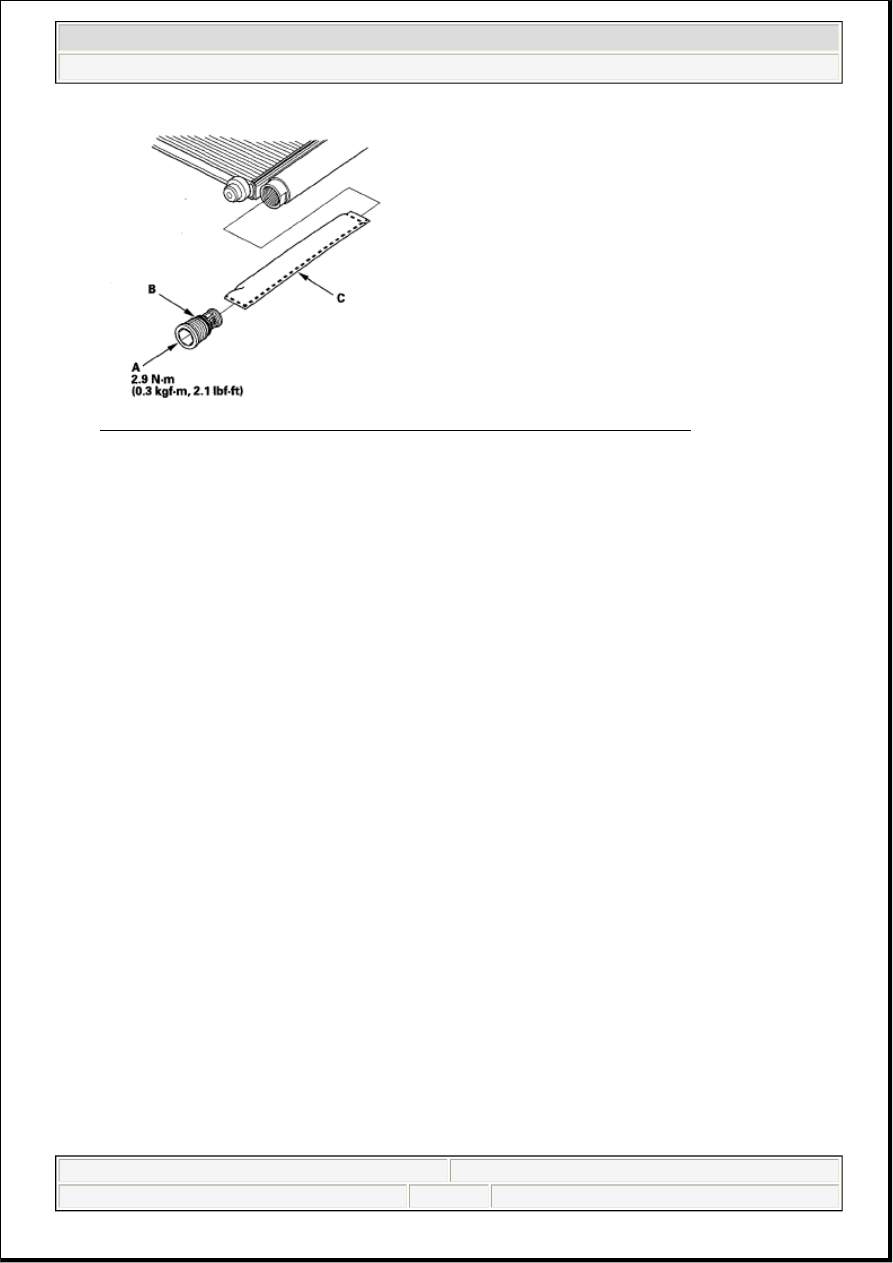

Fig. 162: Identifying Desiccant, Cap And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the receiver/dryer in the reverse order of removal, and note these items:



Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (DENSO ND-OIL 8)
before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid
leakage.



Install the cap to the specified torque. It is made of resin and can be easily stripped.

REFRIGERANT RECOVERY

1. Connect an R-134a refrigerant recovery/recycling/ charging station (A) to the high-pressure service

port (B) and the low-pressure service port (C), as shown, following the equipment manufacturer's
instructions.

CAUTION:



Air conditioning refrigerant or lubricant vapor can irritate your
eyes, nose, or throat.



Be careful when connecting service equipment.



Do not breathe refrigerant or vapor.

NOTE:



If accidental system discharge occurs, ventilate the work area before
resuming service.



Additional health and safety information may be obtained from the
refrigerant and lubricant manufacturers.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 124  © 2005 Mitchell Repair Information Company, LLC.

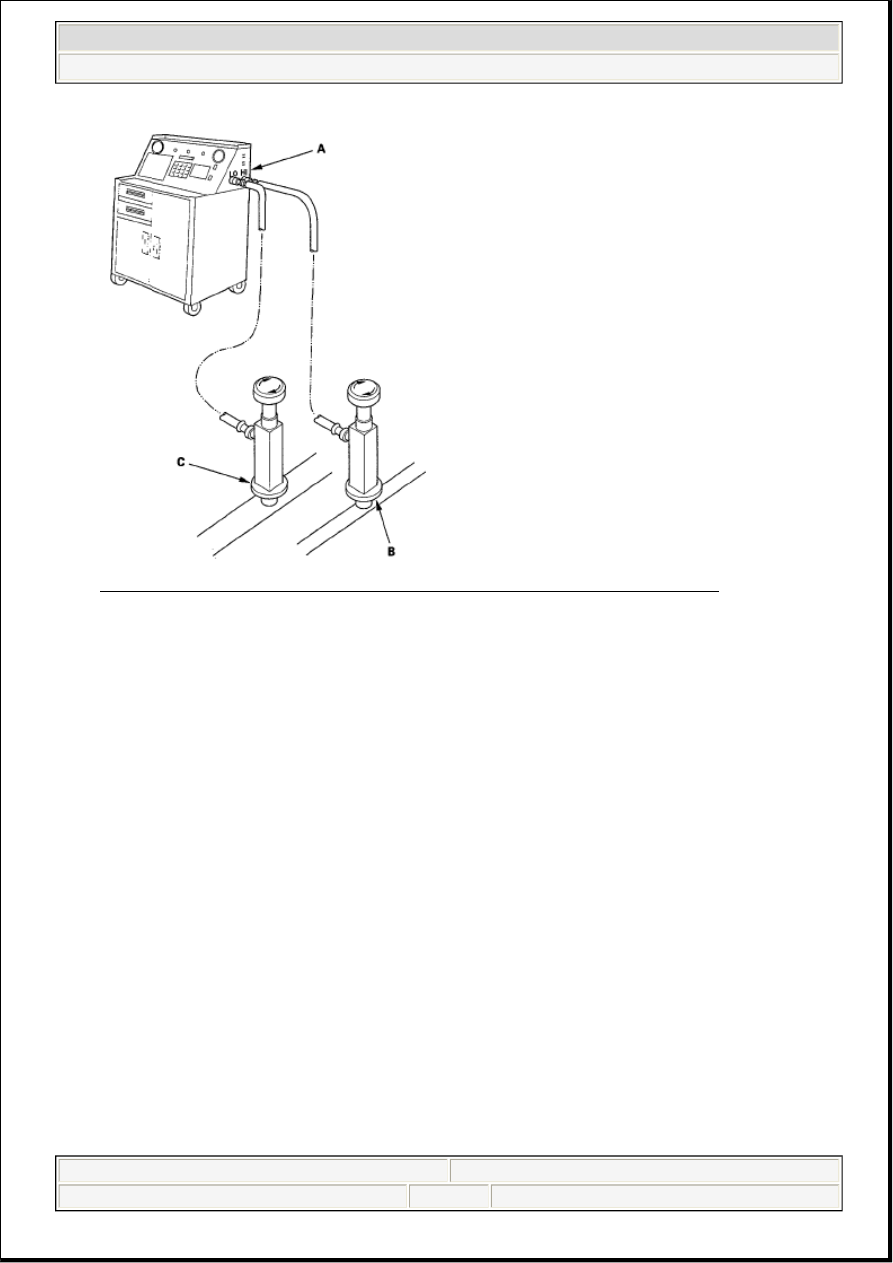

Fig. 163: Identifying High-Pressure Service Port And Low-Pressure Service Port
