Acura RL. Manual - part 582

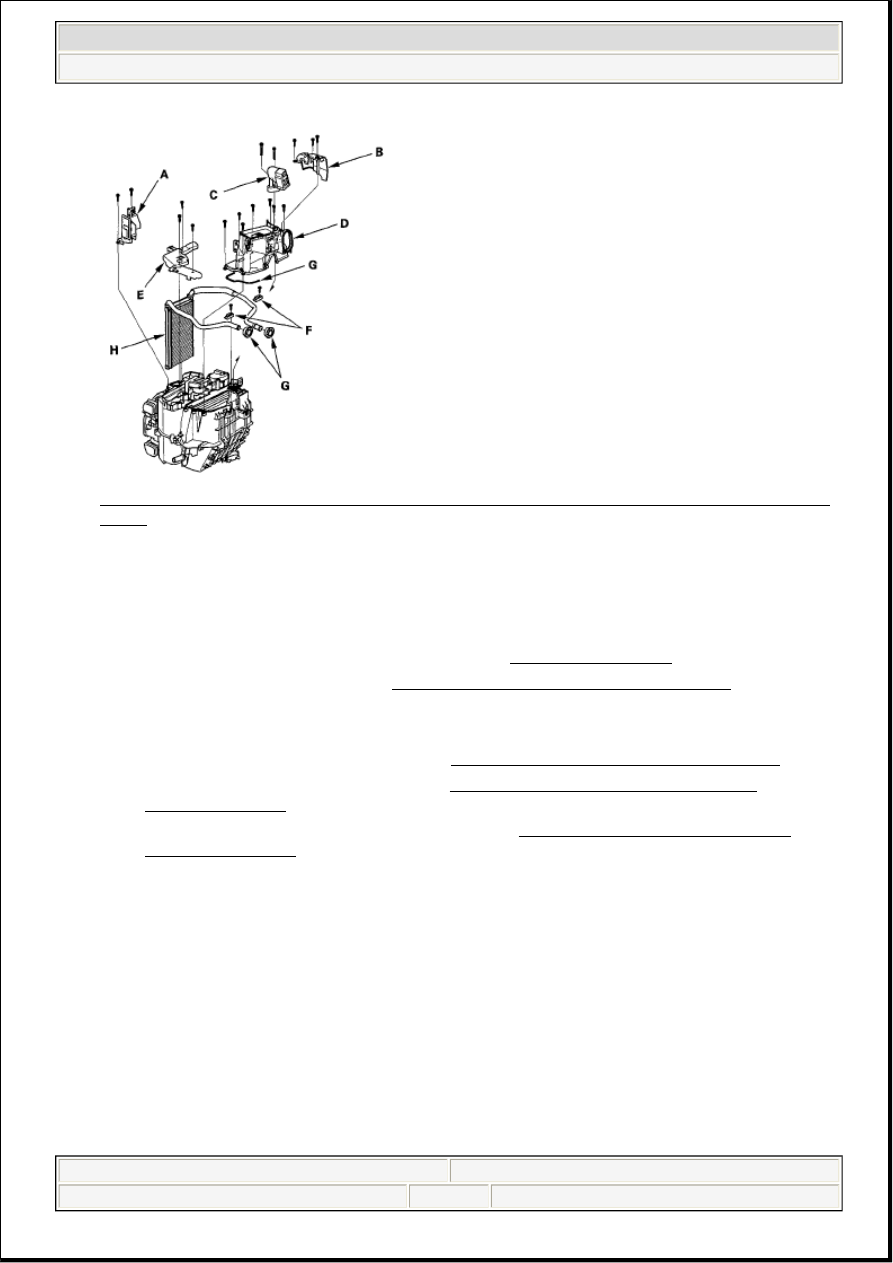

Fig. 141: Identifying Passenger's Heater Duct, Expansion Valve, Heater Core And Heater Core
Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Install the heater core and the evaporator core in the reverse order of removal.

16. Install the heater unit in the reverse order of removal, and note these items:



Do not interchange the inlet and outlet heater hoses, and install the hose clamps securely.



Refill the cooling system with engine coolant (see COOLANT CHECK ).



Adjust the heater valve cable (see HEATER VALVE CABLE ADJUSTMENT ).



Make sure that there is no coolant leakage.



Make sure that there is no air leakage.



Refer to evaporator core replacement (see EVAPORATOR CORE REPLACEMENT ).



Reset the power window control unit (see RESETTING THE POWER WINDOW
CONTROL UNIT ).



Do the steering column position memorization (see STEERING COLUMN POSITION
MEMORIZATION ).



Enter the anti-theft codes for the audio system and the navigation system (if equipped).



Set the clock.

HEATER VALVE CABLE ADJUSTMENT

1. From under the hood, open the cable clamp (A), then disconnect the heater valve cable (B) from the

heater valve arm (C).



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 111  © 2005 Mitchell Repair Information Company, LLC.

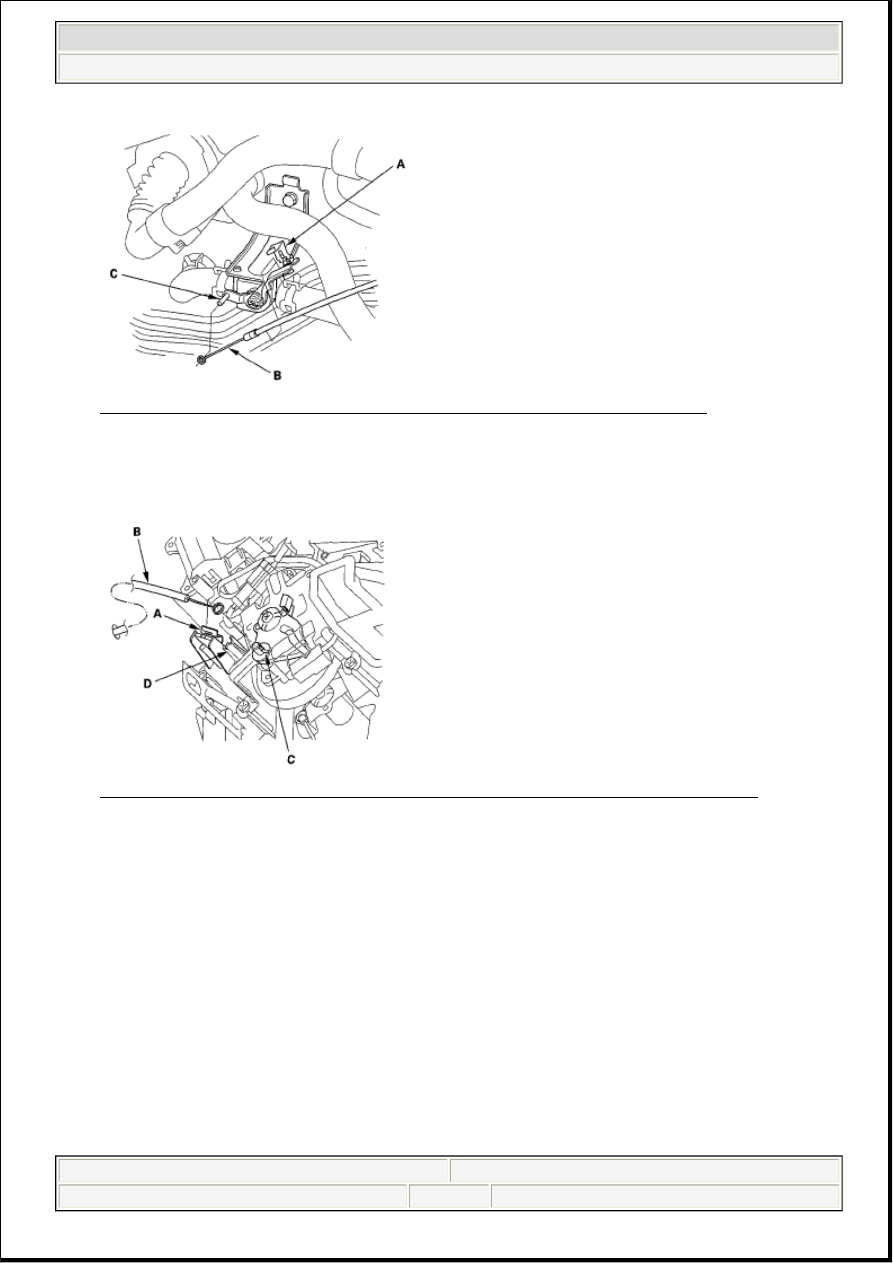

Fig. 142: Identifying Cable Clamp, Heater Valve Cable And Heater Valve Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. From under the dash, disconnect the heater valve cable housing from the cable clamp (A), and

disconnect the heater valve cable (B) from the air mix control linkage (C).

Fig. 143: Identifying Cable Clamp, Heater Valve Cable And Air Mix Control Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Set the temperature control button to Max Cool (Lo) with the ignition switch ON (II).

4. Attach the heater valve cable (B) to the air mix control linkage (C) as shown in step 2. Hold the end of

the heater valve cable housing against the stop (D), then snap the heater valve cable housing into the
cable clamp (A).

5. From under the hood, turn the heater valve arm (A) to the fully closed position as shown, and hold it.

Attach the heater valve cable (B) to the heater valve arm, and gently pull on the heater valve cable
housing to take up any slack, then install the heater valve cable housing into the cable clamp (C).

NOTE:

Make sure the ring-end of the cable is pushed all the way to the base of
the pin on air mix control linkage.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 112  © 2005 Mitchell Repair Information Company, LLC.

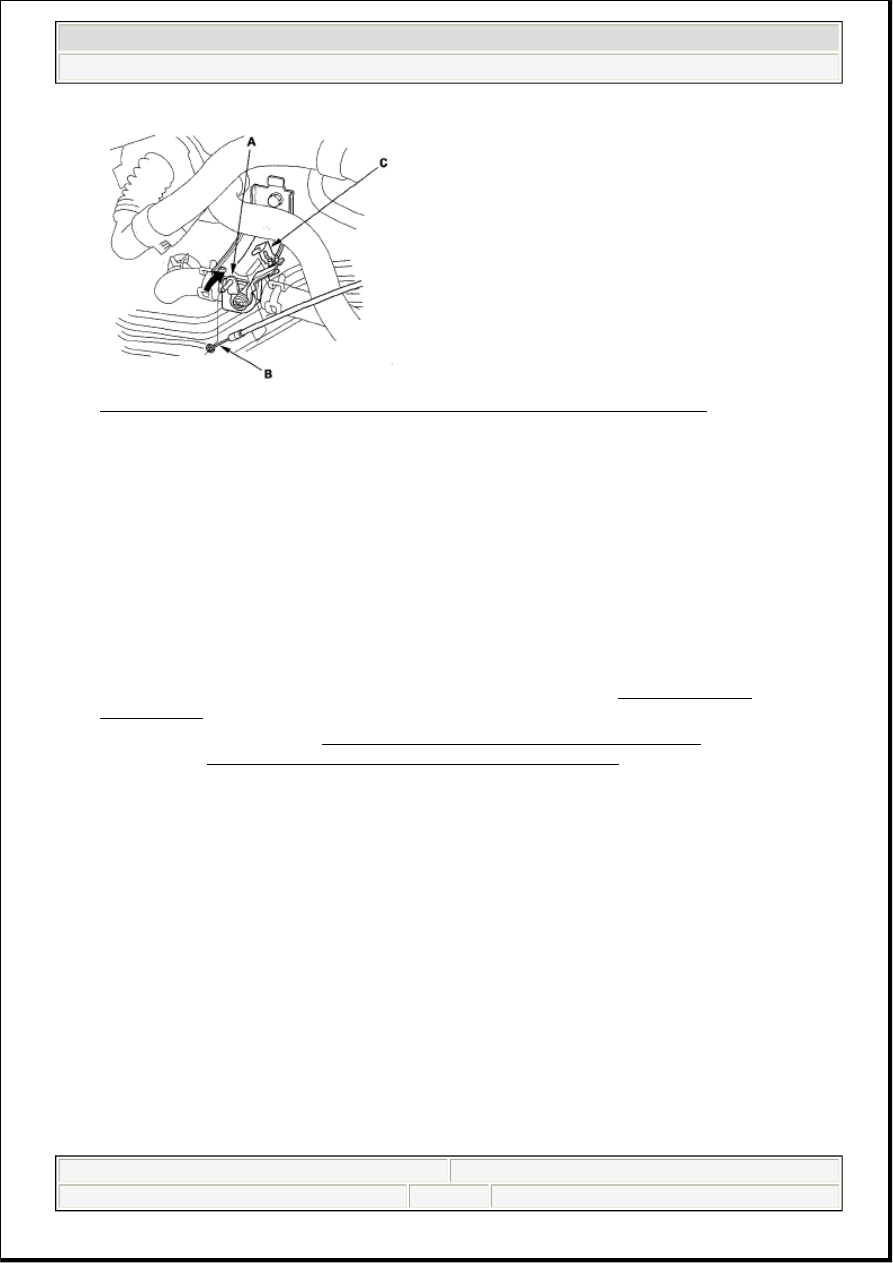

Fig. 144: Identifying Heater Valve Arm, Heater Valve Cable And Cable Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/C COMPRESSOR REPLACEMENT

1. If the A/C compressor is marginally operable, run the engine at idle speed, and let the air conditioning

work for a few minutes, then shut the engine off.

2. Make sure you have the anti-theft codes for the audio system and the navigation system (if equipped).

3. Make sure the ignition switch is OFF, then disconnect the negative cable from the battery.

4. Recover the refrigerant with a recovery/recycling/ charging station (see REFRIGERANT

RECOVERY ).

5. Remove the engine cover (see IGNITION COIL REMOVAL/INSTALLATION ), and the

alternator (see ALTERNATOR REMOVAL AND INSTALLATION ).

6. Remove the A/C compressor clutch connector (A) from the A/C condenser fan shroud (B). Remove

the clips (C). Disconnect the connector (D) from the radiator fan control unit. Loosen the lower
mounting bolts, then remove the upper mounting bolts. Detach the reserve tank (E) from the frame.
Remove the A/C condenser fan shroud. Be careful not to damage the radiator fins when removing the
A/C condenser shroud.

NOTE:

Do not install the A/C compressor into a system unless you are completely
sure that the system is free of contamination. Installing the A/C compressor
into a contaminated system can result in premature A/C compressor failure.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 113  © 2005 Mitchell Repair Information Company, LLC.

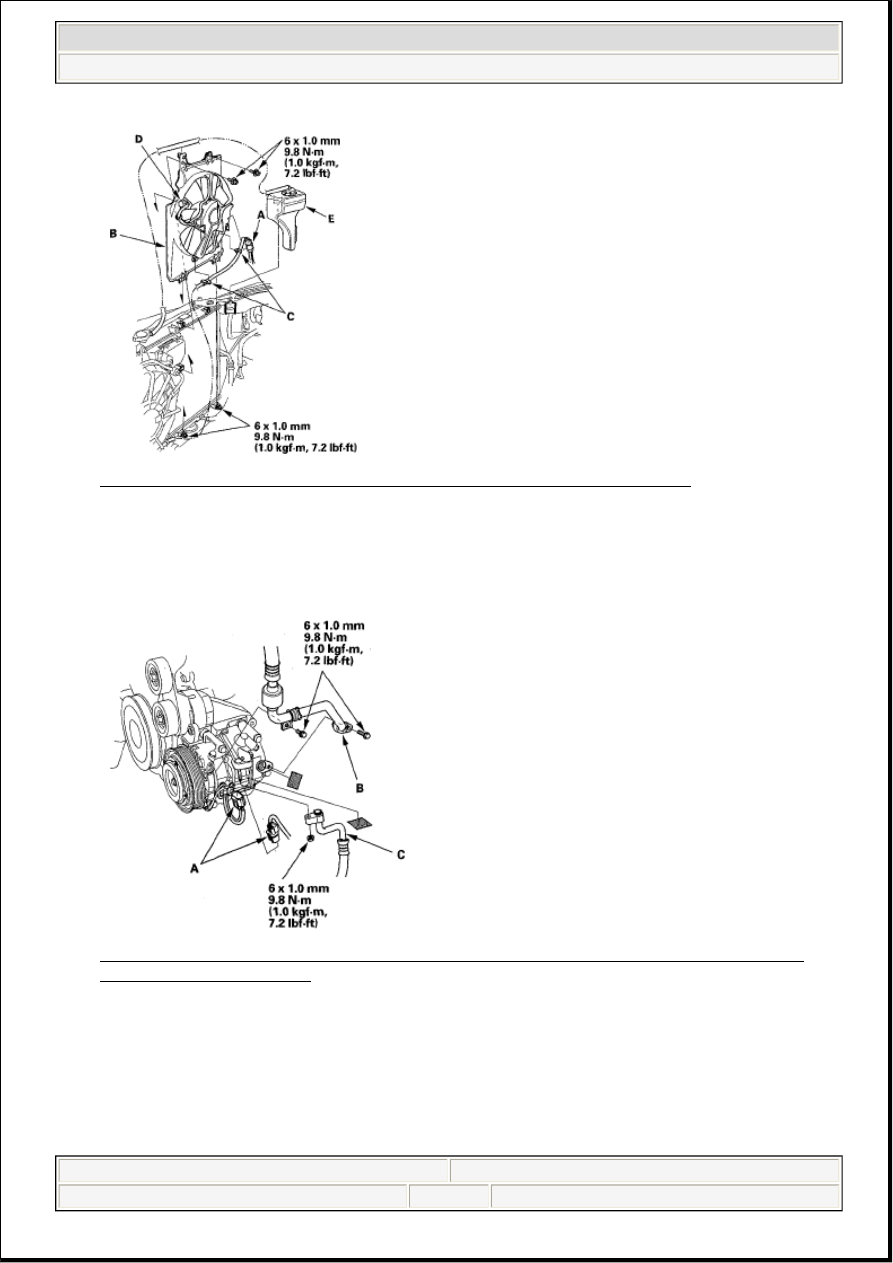

Fig. 145: Identifying A/C Condenser Fan Shroud With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Disconnect the A/C compressor clutch connector (A). Remove the bolts and the nuts, then disconnect

the suction hose (B) and discharge hose (C) from the A/C compressor. Plug or cap the lines
immediately after disconnecting them to avoid moisture and dust contamination.

Fig. 146: Identifying A/C Compressor Clutch Connector, Suction Hose And Discharge Hose
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the mounting bolts and the A/C compressor (A). Be careful not to damage the radiator fins

when removing the compressor.



2007 Acura RL

2005-08 HVAC HVAC - RL



me



Friday, June 05, 2009 2:25:43 PM

Page 114  © 2005 Mitchell Repair Information Company, LLC.
