Acura RL. Manual - part 536

2005-08 ELECTRICAL

Fuse/Relay Boxes - RL

CONNECTOR TO FUSE/RELAY BOX INDEX

UNDER-HOOD FUSE/RELAY BOX

UNDER-HOOD FUSE/RELAY BOX REFERENCE

Socket

Ref Terminal

Connects to

A/C compressor
clutch relay

2

4



A (ELD unit)

5

3

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

B

7

1

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

Blower motor relay

1

4



C

8

2

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

D

4

9

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

E

9

16

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

F

10

20

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

Fog lights relay

14

4



G

6

2

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

H

11

14

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

J

13

10

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

K

12

5

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

Rear window
defogger relay

3

4



Windshield wiper
relay

15

4



T1

17



Starter cable (see CONNECTOR TO HARNESS INDEX )

T101

16



Engine wire harness (see ENGINE WIRE HARNESS (FRONT
BRANCH) )



2007 Acura RL

2005-08 ELECTRICAL Fuse/Relay Boxes - RL





2007 Acura RL

2005-08 ELECTRICAL Fuse/Relay Boxes - RL



me



Friday, June 05, 2009 2:41:06 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 2:41:10 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

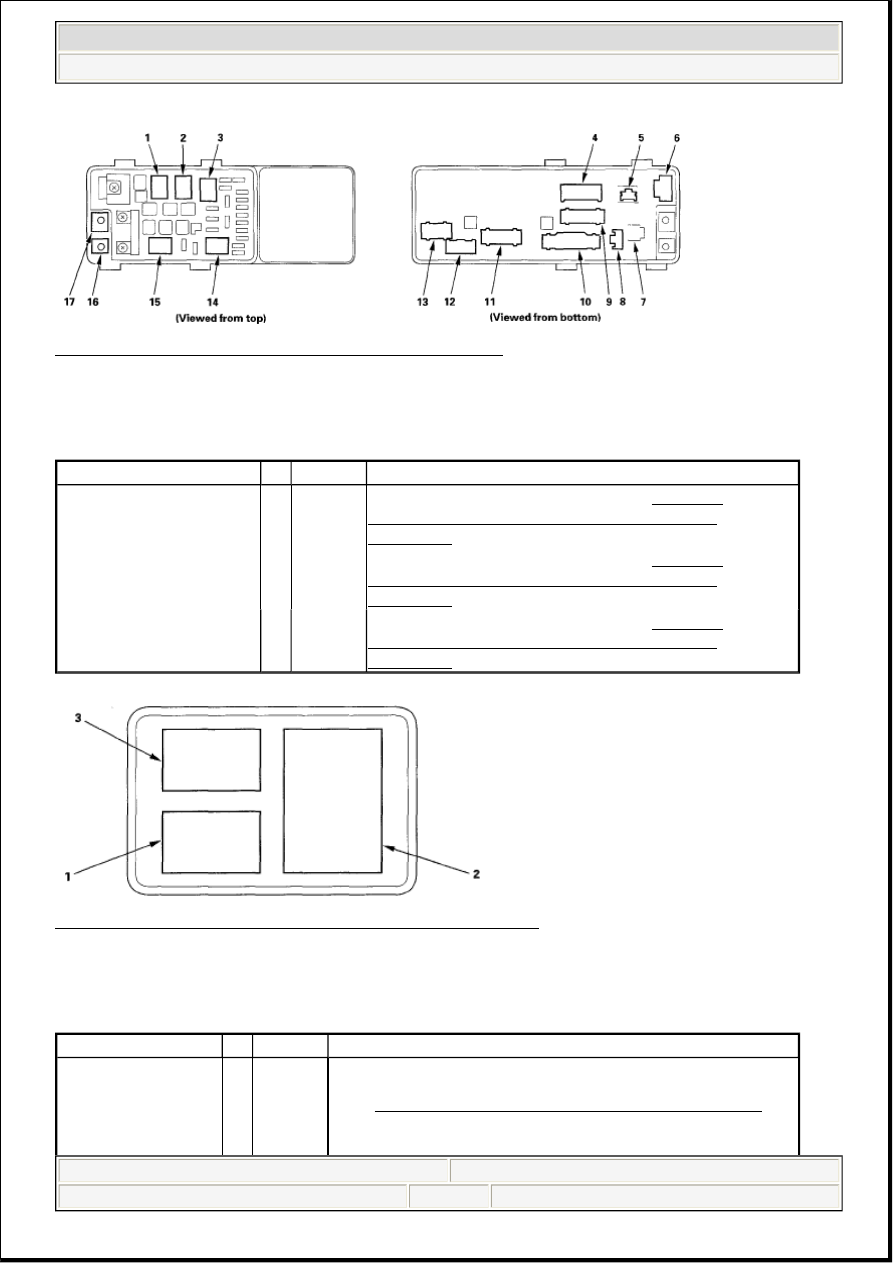

Fig. 1: Identifying Under-Hood Fuse/Relay Box Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUXILIARY UNDER-HOOD RELAY BOX

AUXILIARY UNDER-HOOD RELAY BOX REFERENCE

Fig. 2: Identifying Auxiliary Under-Hood Relay Box Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DRIVER'S UNDER-DASH FUSE/RELAY BOX

DRIVER'S UNDER-DASH FUSE/RELAY BOX REFERENCE

Socket

Ref Terminal

Connects to

Daytime running lights
relay (Canada models)

1

5

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT
BRANCH) )

Adaptive cruise control
(ACC) relay ('06-08
models)

3

5

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT
BRANCH) )

Radiator fan control (RFC)
unit relay

2

4

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT
BRANCH) )

Socket

Ref Terminal

Connects to

A

6

6



Dashboard wire harness B ('05 model) (see
DASHBOARD WIRE HARNESS B ('05 MODEL) )



Dashboard wire harness A ('06-08 models) (see
DASHBOARD WIRE HARNESS A (LEFT



2007 Acura RL

2005-08 ELECTRICAL Fuse/Relay Boxes - RL



me



Friday, June 05, 2009 2:41:06 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

BRANCH) ('06-08 MODELS) )

Accessory power
socket relay

19

4



A/F sensor relay

20

4



B

12

6

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

C

11

12

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

D

13

17

Engine compartment wire harness (see ENGINE
COMPARTMENT WIRE HARNESS (LEFT BRANCH) )

E

8

16

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

F

9

14

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

G

14

6

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

H

15

14

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

Ignition coil relay

23

4



J

27

21

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

K

26

12

Driver's door subharness (see DRIVER'S DOOR
SUBHARNESS )

M

25

3

MICU service check connector

N

2

45

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('06-08 MODELS) )

P (MICU)

17

30

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('06-08 MODELS) )

PGM-FI main relay 1
(Fl MAIN)

21

4



PGM-FI main relay 2
(FUEL PUMP)

24

4





22



Not used

Q (MICU)

16

14

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

R (MES connector)

3

2

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A



2007 Acura RL

2005-08 ELECTRICAL Fuse/Relay Boxes - RL



me



Friday, June 05, 2009 2:41:06 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

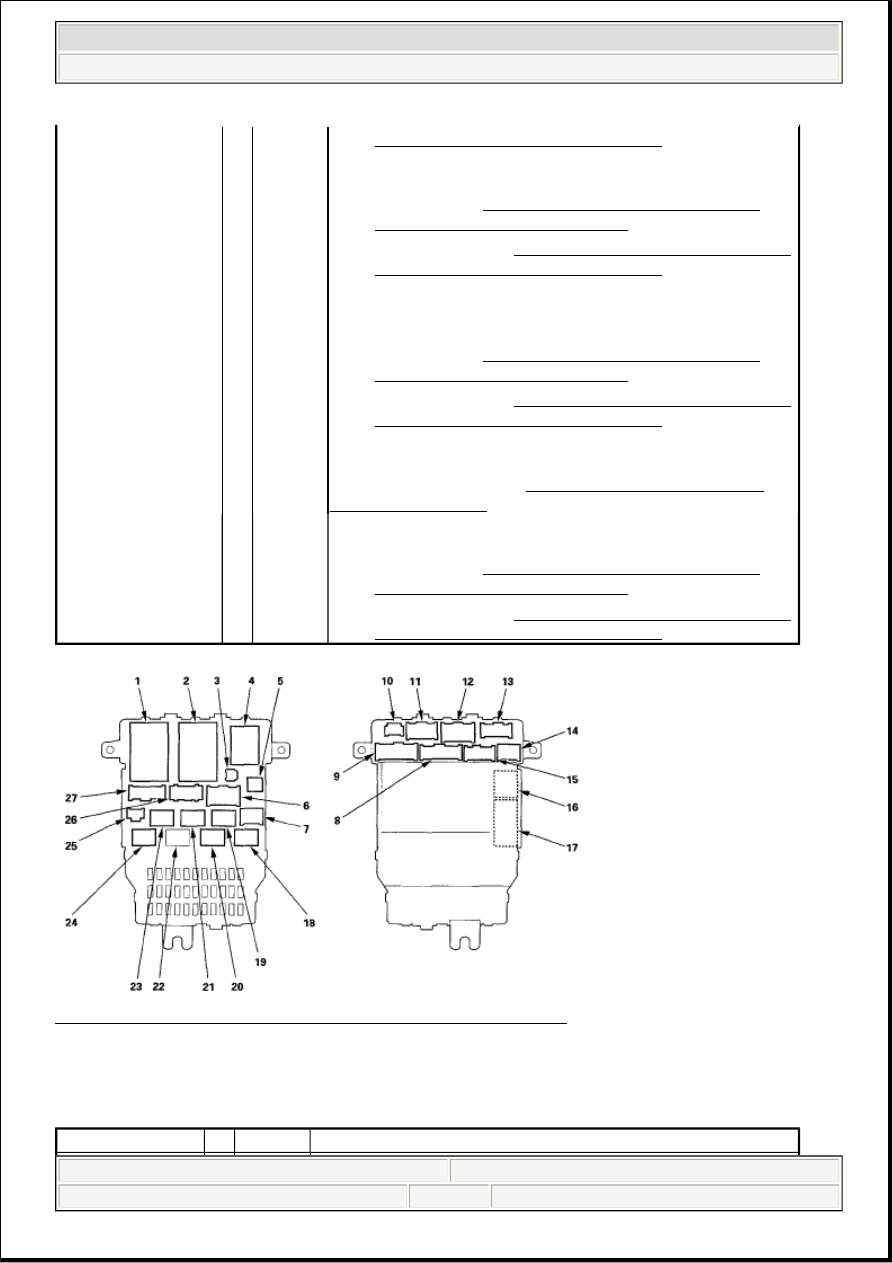

Fig. 3: Identifying Driver's Under-Dash Fuse/Relay Box Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PASSENGER'S UNDER-DASH FUSE/RELAY BOX

PASSENGER'S UNDER-DASH FUSE/RELAY BOX REFERENCE

(LEFT BRANCH) ('06-08 MODELS) )

S

5

2

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('06-08 MODELS) )

Starter cut relay 2

18

4



T

7

6

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('06-08 MODELS) )

Turn signal/hazard
relay

4

6



W

10

5

Left side wire harness (see LEFT SIDE WIRE HARNESS
(FRONT BRANCH) )

X

1

39

Dashboard wire harness A



'05 model (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('05 MODEL) )



'06-08 models (see DASHBOARD WIRE HARNESS A
(LEFT BRANCH) ('06-08 MODELS) )

Socket

Ref Terminal

Connects to
