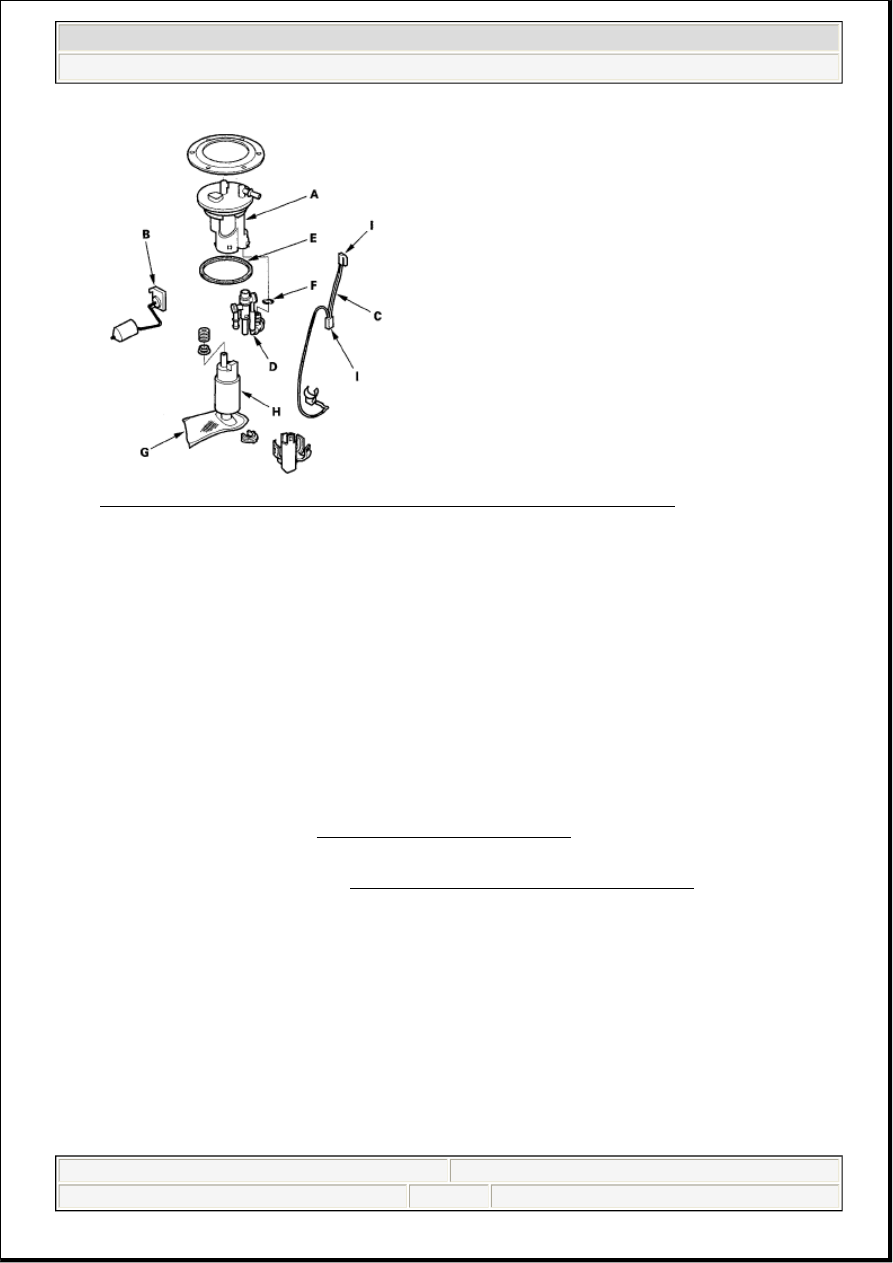

Fig. 69: Identifying Fuel Pressure Regulator And Fuel Gauge Sending Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the parts in the reverse order of removal with a new base gasket (E) and a new O-ring (F), then

check these items:



Make sure the connection is secure and the suction filter (G) is firmly connected to the fuel
pump (H).



Connect the transfer tube.



When connecting the wire harness, make sure the connection is secure and the connectors (I)
are firmly locked into place.



When installing the fuel gauge sending unit, make sure the connection is secure and the
connector is firmly locked into place. Be careful not to bend or twist it excessively.

SECONDARY FUEL GAUGE SENDING UNIT REPLACEMENT

1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).

2. Remove the fuel cap.

3. Remove the rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).

4. Remove the access panel (A) from the right side of the floor.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:31 PM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

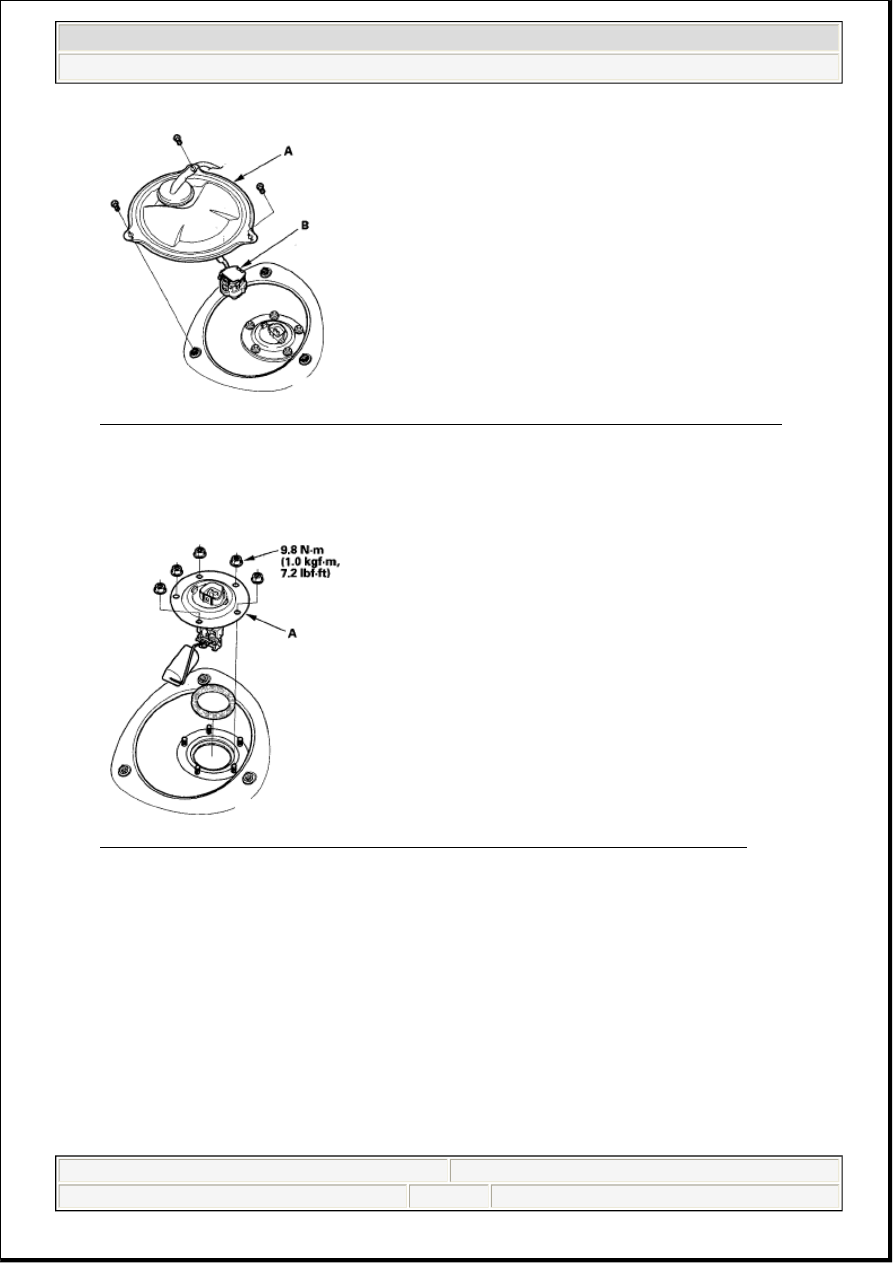

Fig. 70: Identifying Secondary Fuel Gauge Sending Unit 5P Connector And Access Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the secondary fuel gauge sending unit 5P connector (B).

6. Remove the secondary fuel gauge sending unit (A).

Fig. 71: Identifying Secondary Fuel Gauge Sending Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the fuel gauge sending unit (A).



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:31 PM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

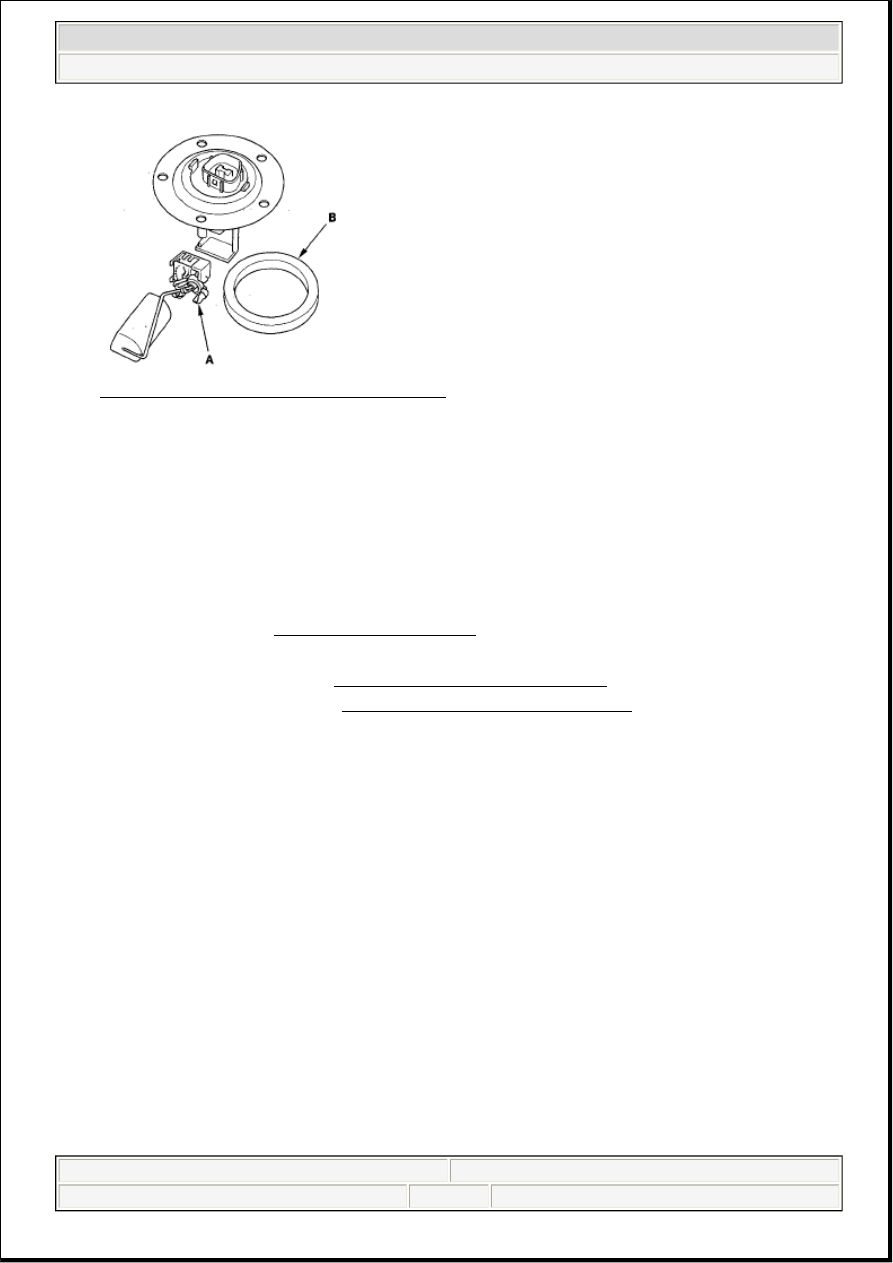

Fig. 72: Identifying Fuel Gauge Sending Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the parts in the reverse order of removal with a new base gasket (B).

FUEL TANK REPLACEMENT

1. Drain the fuel tank (see FUEL TANK DRAINING ).

2. Reinstall the fuel tank unit.

3. Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).

4. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).

5. Jack up the vehicle, and support it with jackstands.

6. Remove the fuel tank covers (A) and parking brake cable bolts (B).

NOTE:

When installing the fuel gauge sending unit, make sure the connection
is secure and the connector is firmly locked into place. Be careful not
to bend or twist it excessively.



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL



me



Friday, June 05, 2009 3:13:31 PM

Page 51

© 2005 Mitchell Repair Information Company, LLC.

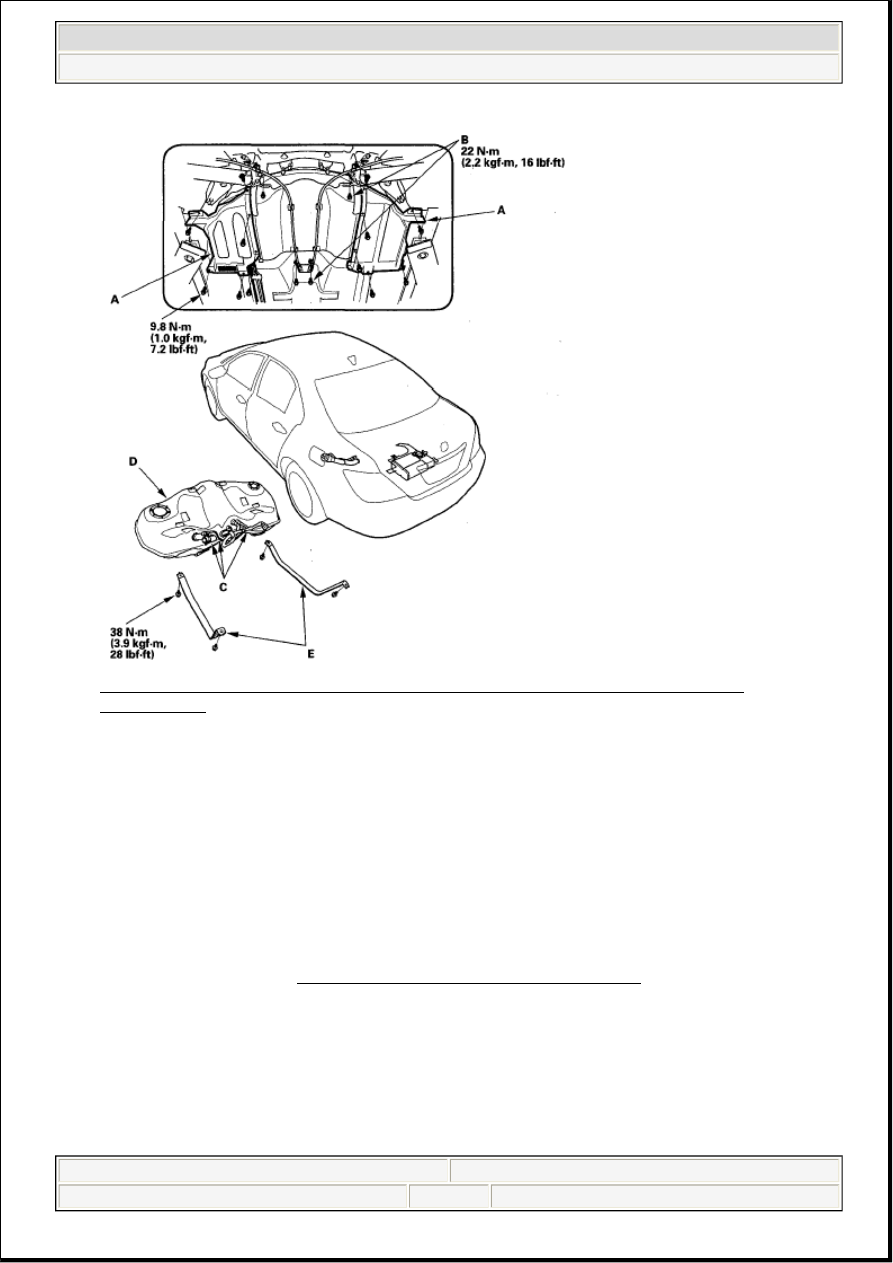

Fig. 73: Identifying Fuel Tank Covers And Parking Brake Cable Bolts With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Disconnect the hoses (C). Slide back the clamps, then twist the hoses as you pull to avoid damaging

them.

8. Place a jack, or other support, under the tank (D).

9. Remove the strap bolts, and let the straps (E) fall free.

10. Remove the fuel tank. If it sticks to the undercoat on its mount, carefully pry it off the mount.

11. Install the parts in the reverse order of removal.

FUEL PUMP CONTROL MODULE REPLACEMENT

1. Remove the seat-back (see REAR SEAT REMOVAL/INSTALLATION ).

2. Disconnect the fuel pump control module connector (A).
