FUEL LINE/QUICK-CONNECT FITTING INSTALLATION

1. Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

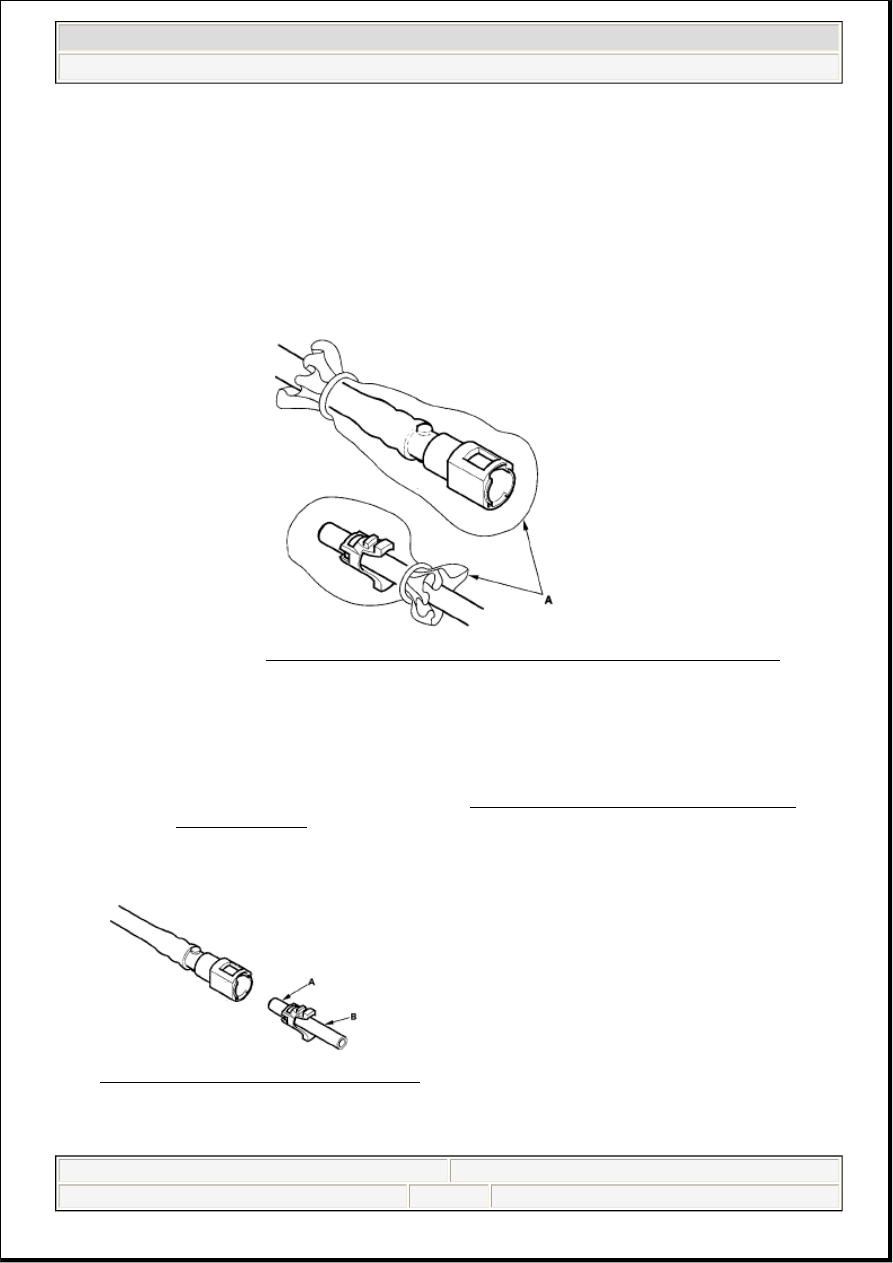

Fig. 57: Identifying Contact Area Of Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:



replacing the fuel rail.



replacing the fuel feed line.



replacing the fuel pump.



replacing the fuel filter.



replacing the fuel gauge sending unit.



it has been removed from the line.



it is damaged.

Fig. 56: Covering Fuel Quick-Connect Fittings In Plastic Bag
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Before you work on the fuel lines and fittings, read the "Fuel Line/Quick-
Connect Fitting Precautions" (see FUEL LINE/QUICK-CONNECT FITTING
PRECAUTIONS ).

2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL

Friday, June 05, 2009 3:13:31 PM

Page 41



replacing the fuel rail.



replacing the fuel feed line.



replacing the fuel pump.



replacing the fuel filter.



replacing the fuel gauge sending unit.



removing the retainer from the line.

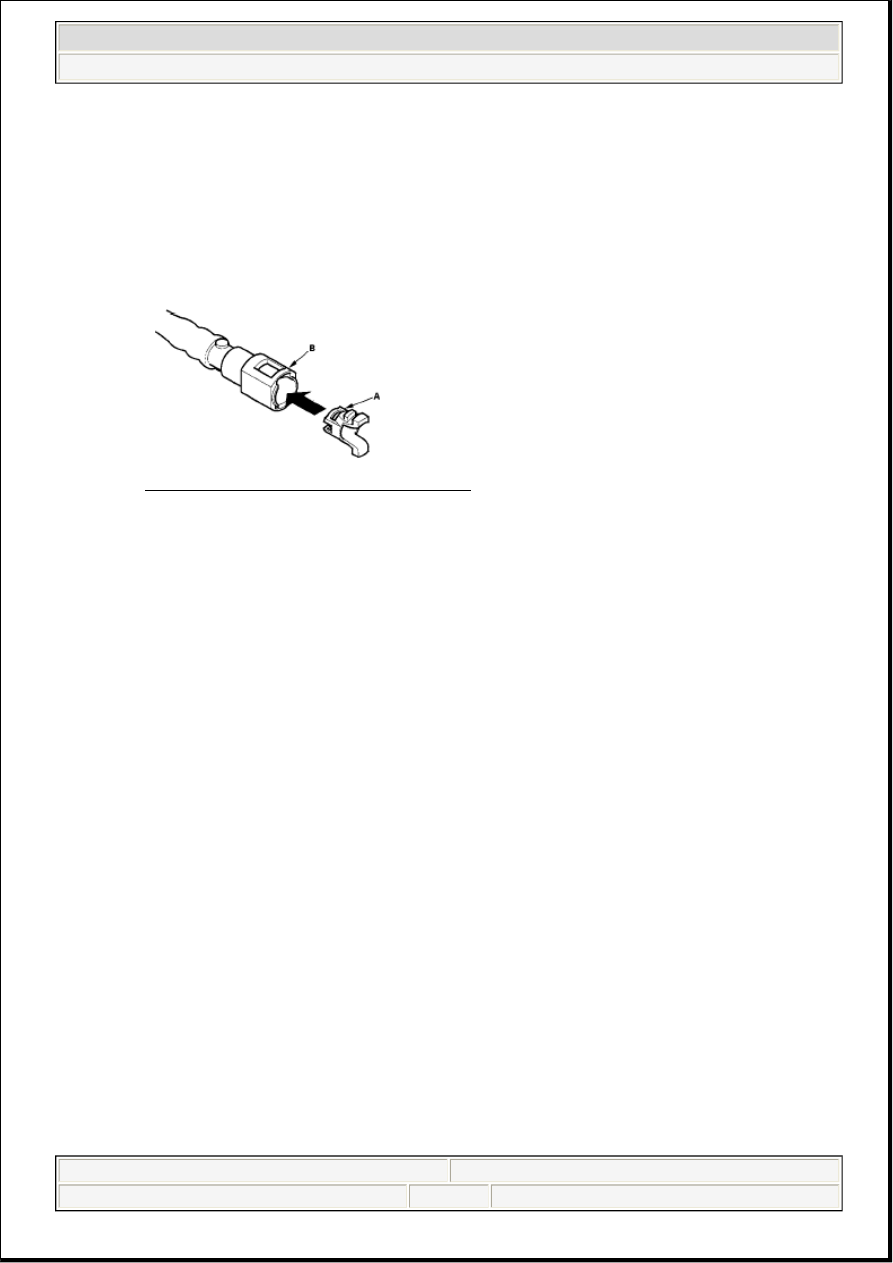

Fig. 58: Inserting Retainer Into Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Before connecting a new fuel tube/quick-connect fitting assembly (A), remove the old retainer from

the mating line.

2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL

Friday, June 05, 2009 3:13:31 PM

Page 42

Fig. 59: Identifying Fuel Tube/Quick-Connect Fitting Assembly

2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL

Friday, June 05, 2009 3:13:31 PM

Page 43

Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the

connector grooves (C). Then press the quick-connect fittings onto the line until both retainer tabs lock
with a clicking sound.

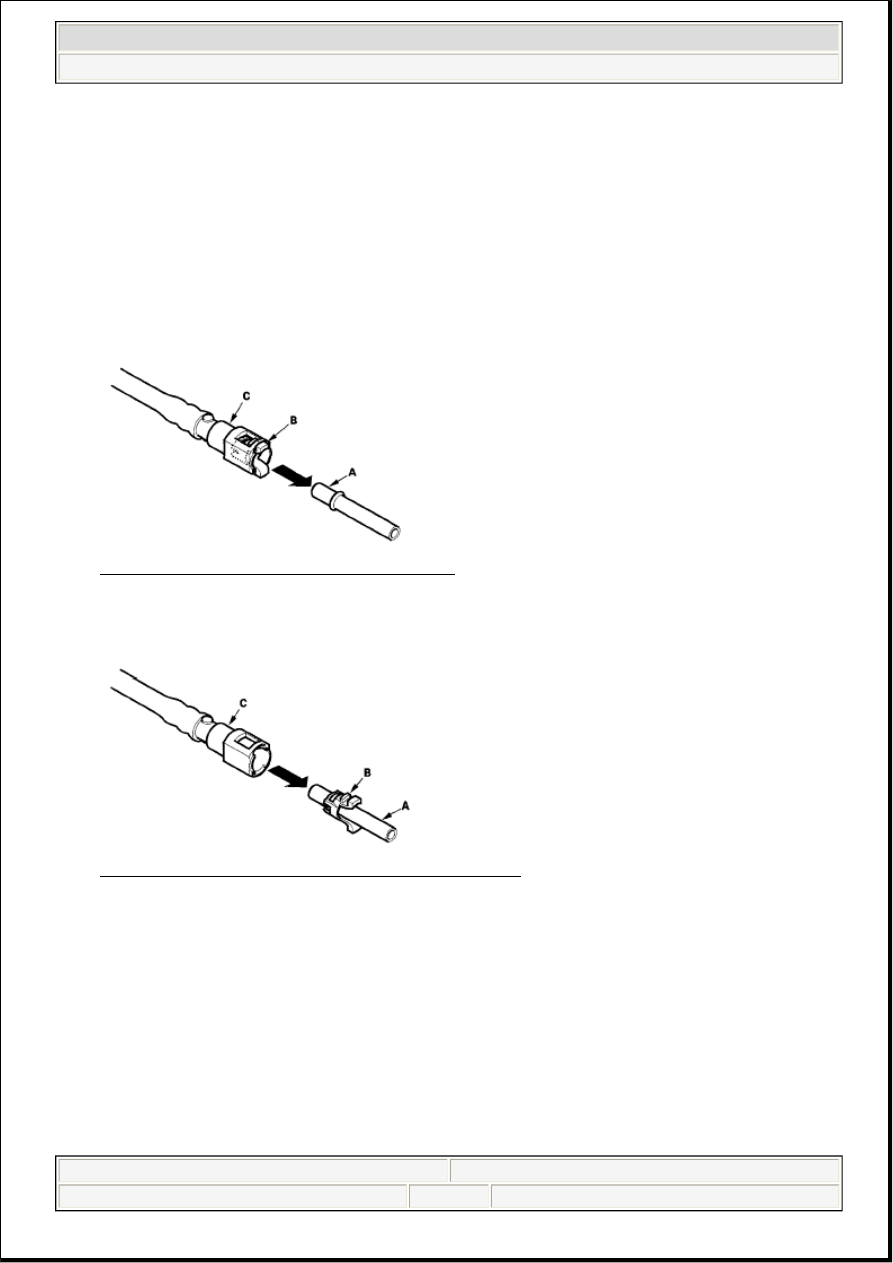

Connection with new retainer

Fig. 60: Identifying Connection With Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Reconnection to existing retainer

Fig. 61: Identifying Reconnection To Existing Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

NOTE:

If it is hard to connect, put a small amount of new engine oil on the line
end.

2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel Supply System - RL

Friday, June 05, 2009 3:13:31 PM

Page 44
