6. Remove the camshaft thrust cover (A), then pull out the camshaft (B).

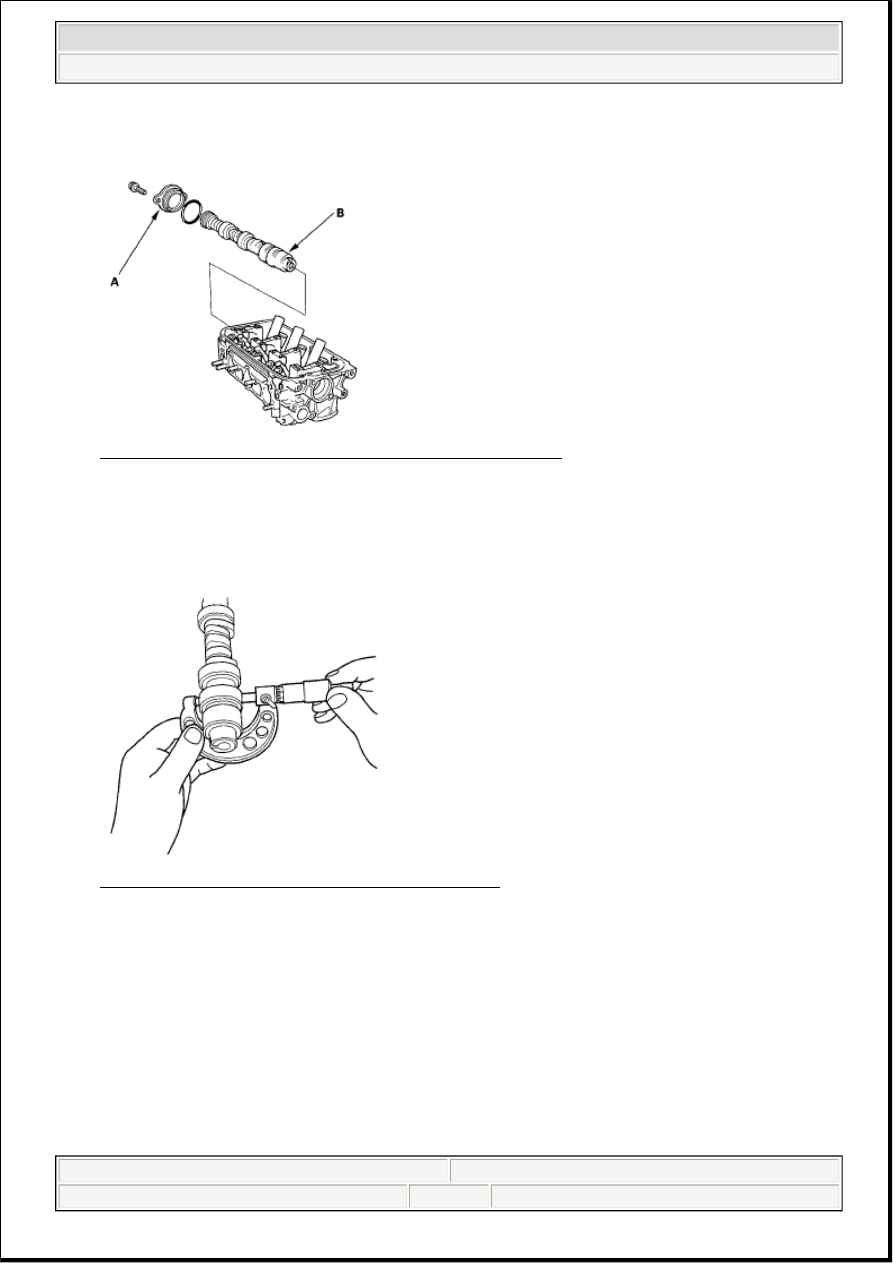

Fig. 105: Identifying Camshaft Thrust Cover And Camshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Wipe the camshaft clean, then inspect the lift ramps. Replace the camshaft if any lobes are pitted,

scored, or excessively worn.

8. Measure the diameter of each camshaft journal.

Fig. 106: Measuring Diameter Of Camshaft Journal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Zero the gauge to the journal diameter.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 57

© 2005 Mitchell Repair Information Company, LLC.

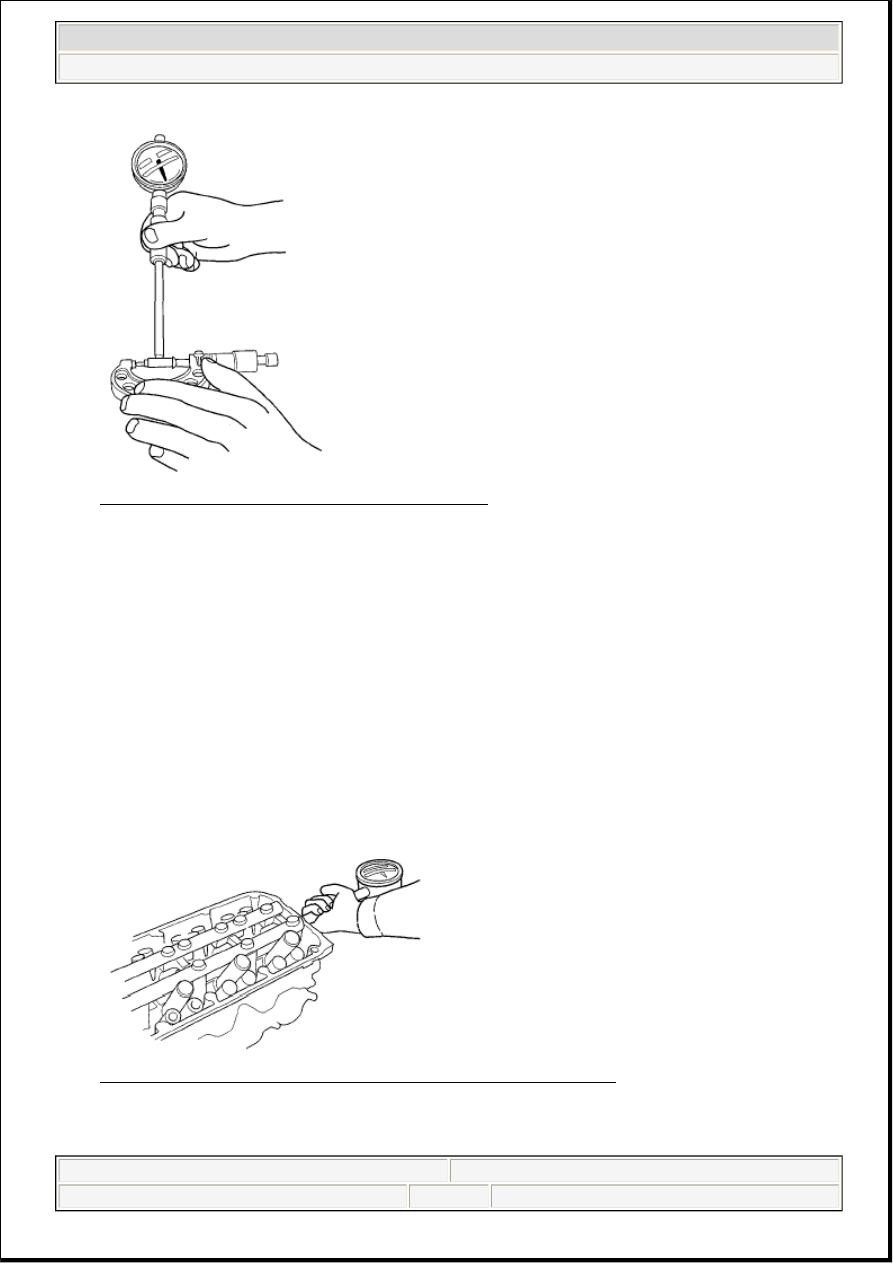

Fig. 107: Zeroing Gauge To The Journal Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Clean the camshaft bearing surfaces in the cylinder head. Measure the inside diameter of each

camshaft bearing surface, and check for an out-of-round condition.



If the camshaft-to-holder clearance is within limits, go to step 12.



If the camshaft-to-holder clearance is beyond the service limit and the camshaft has been
replaced, replace the cylinder head.



If the camshaft-to-holder clearance is beyond the service limit and the camshaft has not been
replaced, go to step 11.

Camshaft-to-Holder Oil Clearance

Standard (New): 0.050-0.089 mm (0.0020-0.0035 in.)

Service Limit: 0.15 mm (0.006 in.)

Fig. 108: Measuring Inside Diameter Of Camshaft Bearing Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Check total runout with the camshaft supported on V-blocks.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 58

© 2005 Mitchell Repair Information Company, LLC.



If the total runout of the camshaft is within the service limit, replace the cylinder head.



If the total runout is beyond the service limit, replace the camshaft and recheck the oil
clearance. If the oil clearance is still out of tolerance, replace the cylinder head.

Camshaft Total Runout

Standard (New): 0.03 mm (0.001 in.) max.

Service Limit: 0.04 mm (0.002 in.)

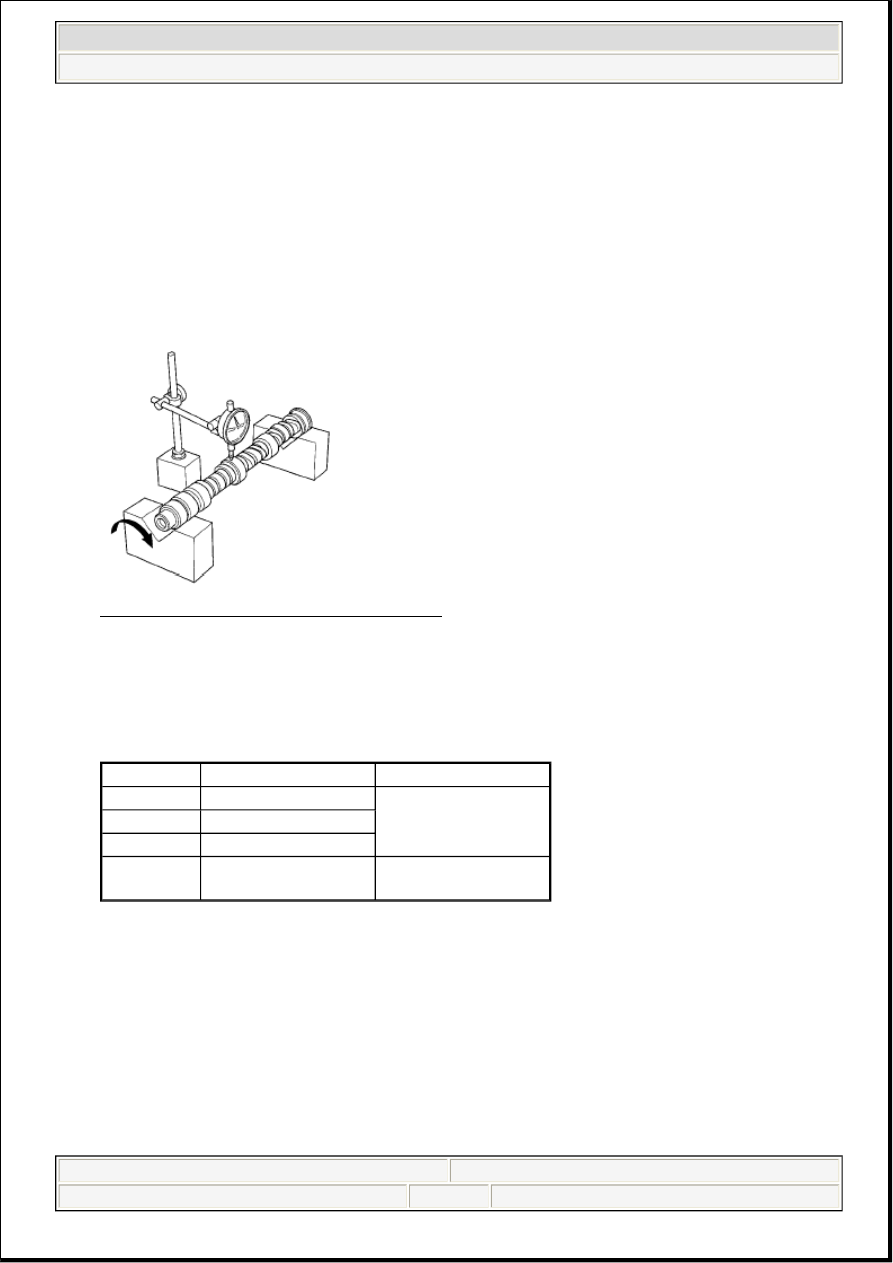

Fig. 109: Measuring Camshaft Total Runout
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Measure cam lobe height.

Cam Lobe Height Standard (New):

CAM LOBE HEIGHT SPECIFICATION



INTAKE

EXHAUST

PRI

35.112 mm (1.3824 in.)

36.389 mm (1.4326 in.)

MID

36.394 mm (1.4328 in.)

SEC

35.112 mm (1.3824 in.)

PRI: Primary
IN: Intake

MID: Mid

EX: Exhaust

SEC: Secondary

T/B: Timing Belt



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:37 PM

Page 59

© 2005 Mitchell Repair Information Company, LLC.

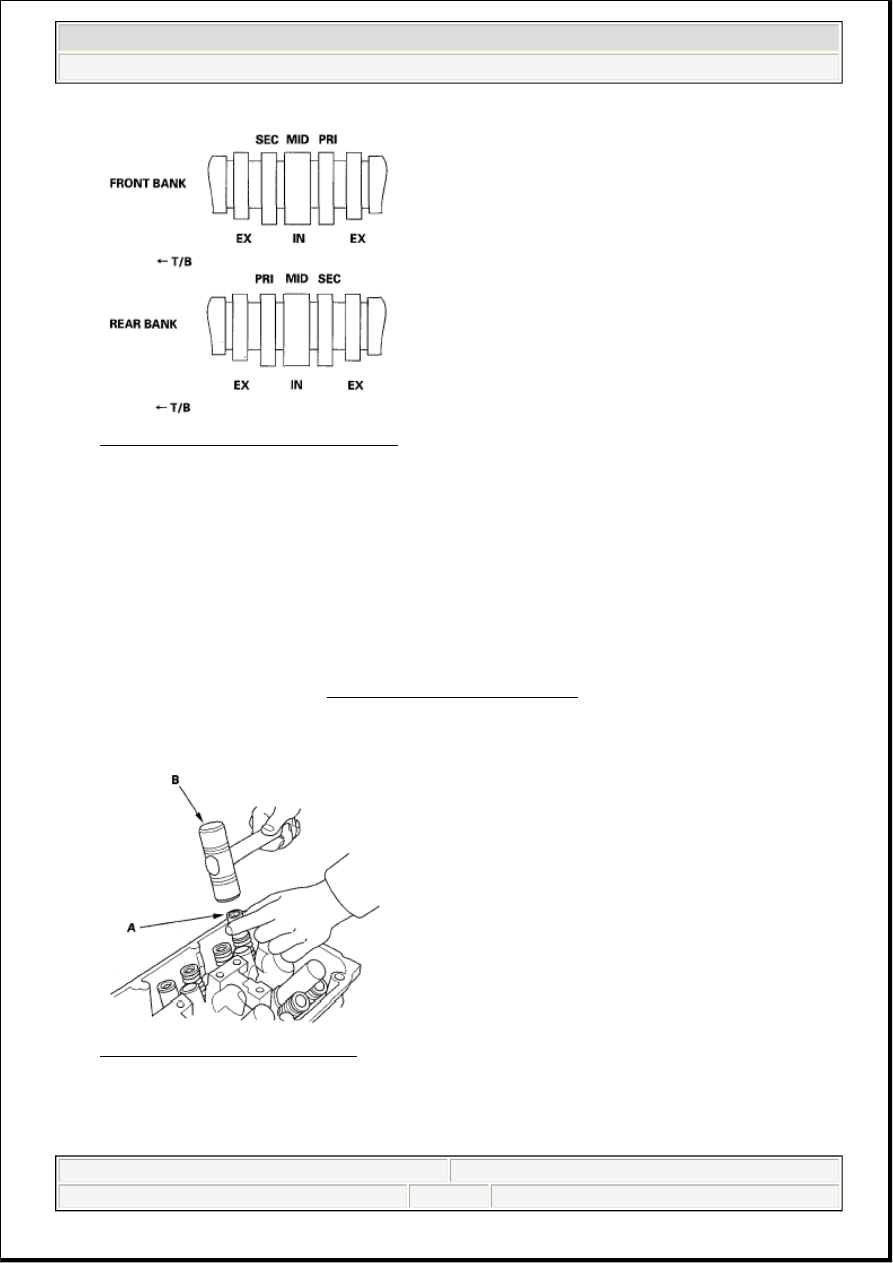

Fig. 110: Identifying Cam Lobe Height
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VALVE, SPRING, AND VALVE SEAL REMOVAL

Special Tools Required

Valve spring compressor attachment 07757-PJ1010A

Label the valves and valve springs as they are removed so that each item can be reinstalled in its original
position.

1. Remove the cylinder head (see CYLINDER HEAD REMOVAL ).

2. Using an appropriate-sized socket (A) and plastic mallet (B), lightly tap the valve retainer to loosen

the valve cotters.

Fig. 111: Tapping Valve Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the special tool. Compress the spring and remove the valve cotters.
