PROBLEM SYMPTOM CHART

While monitoring cruise control inputs, flex their circuits, and note if
any of the test results change.

Signal to be

tested

Test condition

Parameter: Desired result

Possible cause if result is not

obtained

Brake switch
signal

Brake pedal
pressed, then
released

CRUISE BRAKE SW should
indicate OFF when the brake pedal
is pressed and ON when the brake
pedal is released.



Faulty brake pedal
position switch



Blown No. 18 (15A)
fuse in the driver's
under-dash fuse/relay
box



An open in the wire
between the powertrain
control module (PCM)
and the brake pedal
position switch



A wire shorted to
ground between the
PCM and the brake
pedal position switch

Transmission
range switch
signal

Shift lever in D
or D3

SHIFT/CLUTCH SW should
indicate OFF in P, R, and N and
ON in D and D3.



Faulty transmission
range switch



An open in the wire
between the PCM and
the transmission range
switch



A wire shorted to
ground between the
PCM and the
transmission range
switch



Poor ground G101 and
G102

Cruise control
main switch
signal

Cruise control
main switch ON
and OFF

CRUISE CONTROL MAIN SW
should indicate ON when the cruise
control main switch is turned ON
and OFF when the cruise control
main switch is turned OFF.



Faulty cruise control
combination switch



An open in the wire
between the gauge
control module and the
cruise control
combination switch



A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch



An open in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:58 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

CRUISE CONTROL COMBINATION SWITCH TEST/REPLACEMENT

There are SRS components located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND
PROCEDURES ), in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).

2. Disconnect the connectors, then remove the switch.

between the cruise
control combination
switch and ground

Set switch
signal

Set/decel switch
pressed and
released

CRUISE CONTROL SET SW
should indicate ON when the
set/decel switch is pressed and OFF
when the set/decel switch is
released.



Faulty cruise control
combination switch



An open in the wire
between the gauge
control module and the
cruise control
combination switch



A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch

Resume switch
signal

Resume/accel
switch pressed
and released

CRUISE CONTROL RESUME
SW should indicate ON when the
resume/accel switch is pressed and
OFF when the resume/accel switch
is released.



Faulty cruise control
combination switch



An open in the wire
between the gauge
control module and the
cruise control
combination switch



A wire shorted to
ground between the
gauge control module
and the cruise control
combination switch

Cancel switch
signal

Cancel switch
pressed and
released

CRUISE CONTROL CANCEL SW
should indicate ON when the cancel
switch is pressed and OFF when the
cancel switch is released.

Faulty cruise control
combination switch



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:59 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

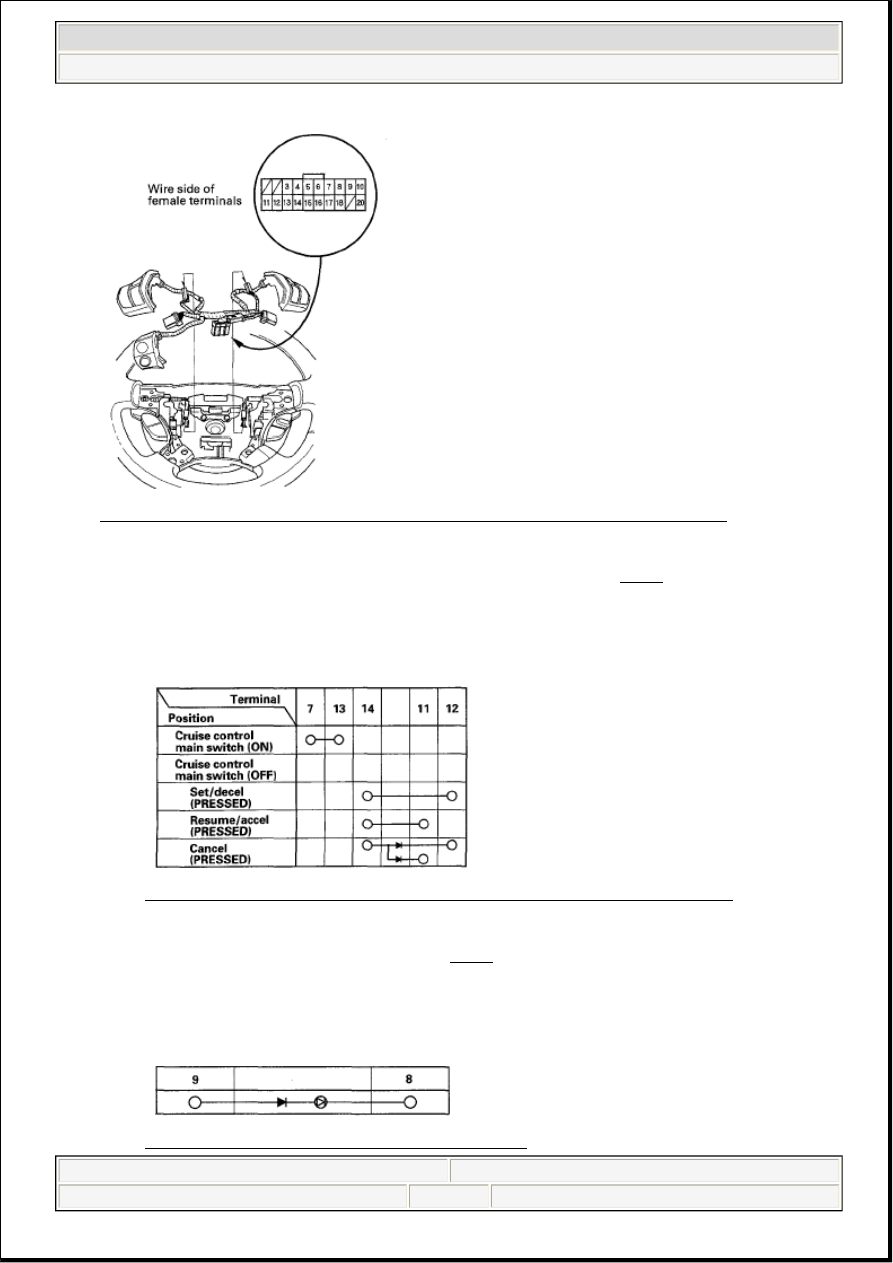

Fig. 3: Identifying Cruise Control Combination Switch Connector And Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals in each switch position (see Fig. 4).



If there is continuity, and it matches the table, but switch failure occurred on the cruise control
input test, check and repair the wire harness on the switch circuit.



If there is no continuity in one or both positions, replace the switch.

Fig. 4: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check for continuity between the terminals (see Fig. 5).



If there is continuity, and it matches the table, check and repair the wire harness on the switch
circuit.



If there is no continuity in one or more positions, replace the switch.

Fig. 5: Checking for continuity between terminals



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:59 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.
