Cruise Control - RL

COMPONENT LOCATION INDEX

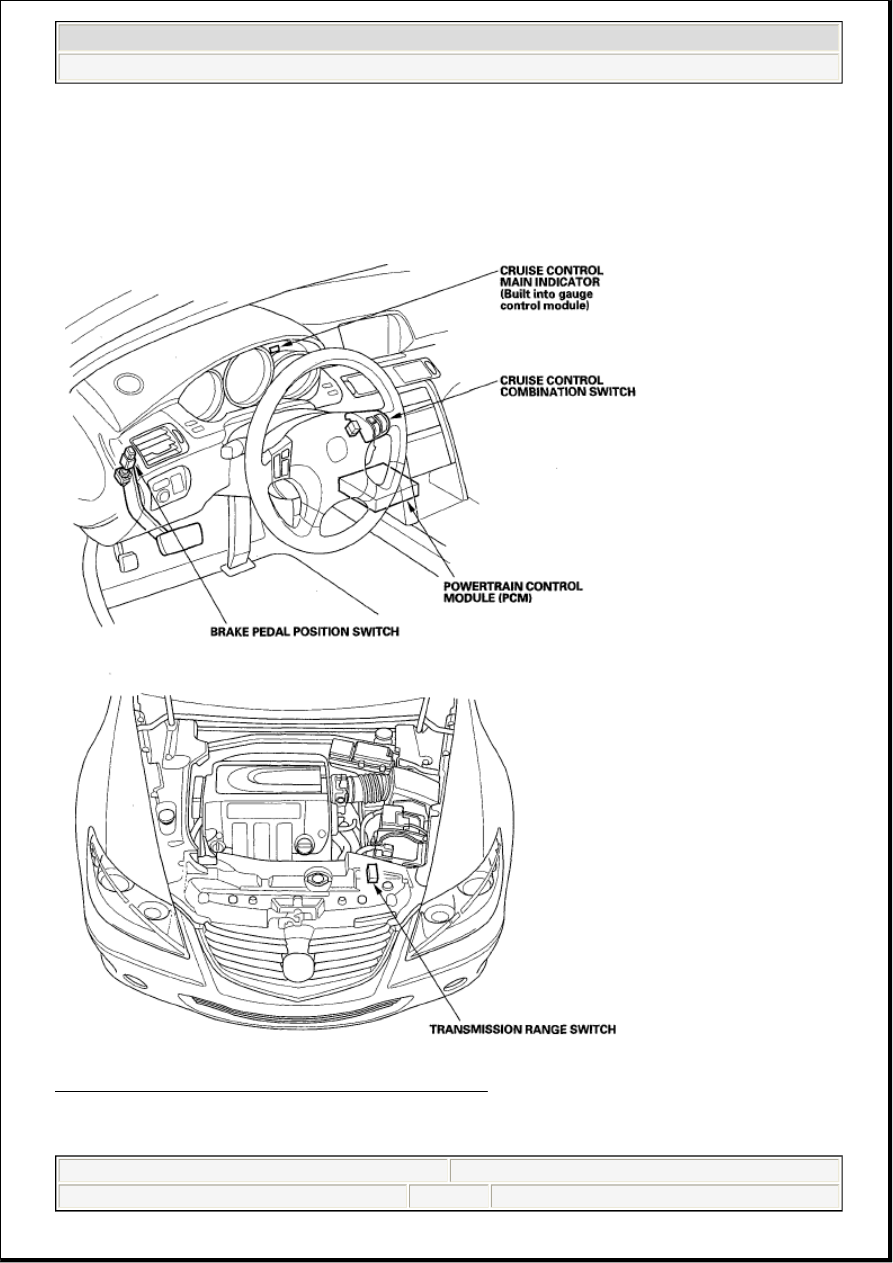

Fig. 1: Identifying Cruise Control Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:58 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:39:02 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Also check for

Cruise control cannot be set

1. Check for PGM-FI and body DTCs.

2. Check the No. 13 (15A) fuse in the under-

hood fuse/relay box, and the No. 18 (15A)
fuse in the driver's under-dash fuse/relay
box.

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).

4. Do the cruise control combination switch

test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).



Cruise control can be set,
but the cruise main
indicator does not come on

1. Check for PGM-FI and body DTCs.

2. Do the gauge control module self-

diagnostic function procedure (see SELF-
DIAGNOSTIC FUNCTION ).

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control main switch signal
input.

Faulty gauge control
module

Vehicle does not decelerate
or accelerate accordingly
when the set/decel or
resume/accel switch is
pressed

1. Check for PGM-FI and body DTCs.

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control set/decel and
resume/accel switch signal inputs.

3. Do the cruise control combination switch

test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).

Open circuit, loose or
disconnected terminals:
GRN/YEL, GRY,
YEL/WHT, or LT GRN

Set speed does not cancel
when the brake pedal is
pressed

1. Check for PGM-FI and body DTCs.

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the brake pedal position switch signal
input.



Short to power in
the BRN wire



Faulty brake
pedal position
switch

Set speed does not cancel
when the cruise control
main switch is pressed

1. Check for PGM-FI and body DTCs.

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control master button
signal input.

3. Do the cruise control combination switch

test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).

Short to ground in the
BRN or PNK wire

1. Check for PGM-FI and body DTCs.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:58 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

CIRCUIT DIAGRAM

Set speed does not cancel
when the cancel switch is
pressed

2. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control cancel switch
signal input.

3. Do the cruise control combination switch

test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).

Open circuit, loose or
disconnected terminals:
GRN/YEL, GRY,
YEL/WHT, or LT GRN

Set speed will not resume
when the resume/accel
switch is pressed (with the
cruise control main switch
turned on, and set speed
temporarily canceled by
pressing the brake pedal)

1. Check for PGM-FI and body DTCs.

2. Check the brake pedal position switch

adjustment (see BRAKE PEDAL AND
BRAKE PEDAL POSITION SWITCH
ADJUSTMENT ).

3. Do the cruise control input test (see

CRUISE CONTROL INPUT TEST ).
Test the cruise control resume/accel
switch signal input. Test the brake pedal
position switch signal input.

4. Do the cruise control combination switch

test (see CRUISE CONTROL
COMBINATION SWITCH
TEST/REPLACEMENT ).



Open circuit,
loose or
disconnected
terminals:
YEL/WHT or LT
GRN



Faulty brake
pedal position
switch

With the ignition switch
ON (II), and the lighting
switch turned on, the cruise
control combination switch
illumination does not come
on

Do the cruise control combination switch test
(see CRUISE CONTROL COMBINATION
SWITCH TEST/REPLACEMENT ).





2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Cruise Control - RL



me



Friday, June 05, 2009 3:38:58 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

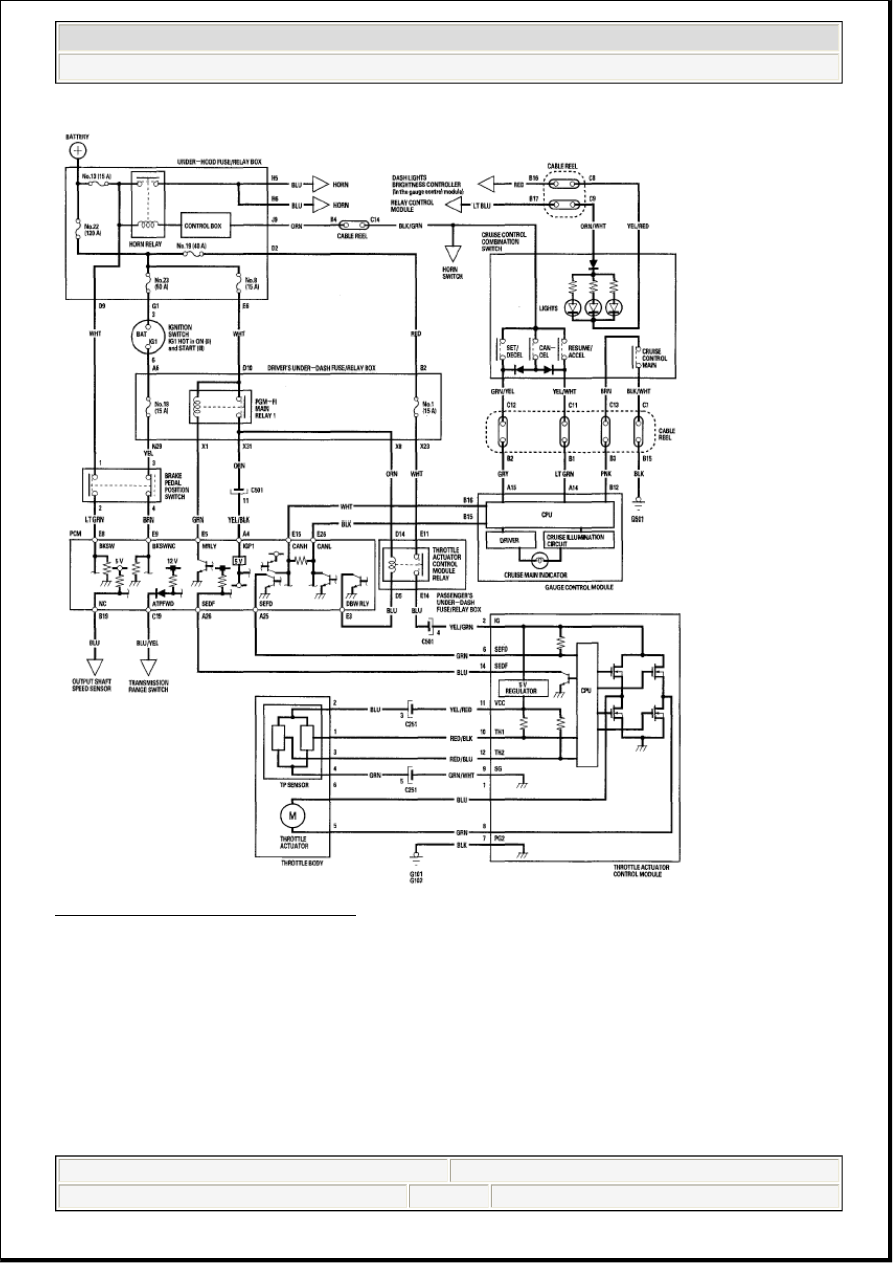

Fig. 2: Cruise Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CRUISE CONTROL INPUT TEST

1. Connect the HDS to the data link connector (DLC) (see step 2 on page 11-3).

2. Turn the ignition switch ON (II).

3. Go to , and check for DTCs.

4. Do the following tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.

NOTE:

Intermittent failures are often caused by loose circuit connections.
