74. Install the ATF dipstick tube (A) with the new O-ring (B).

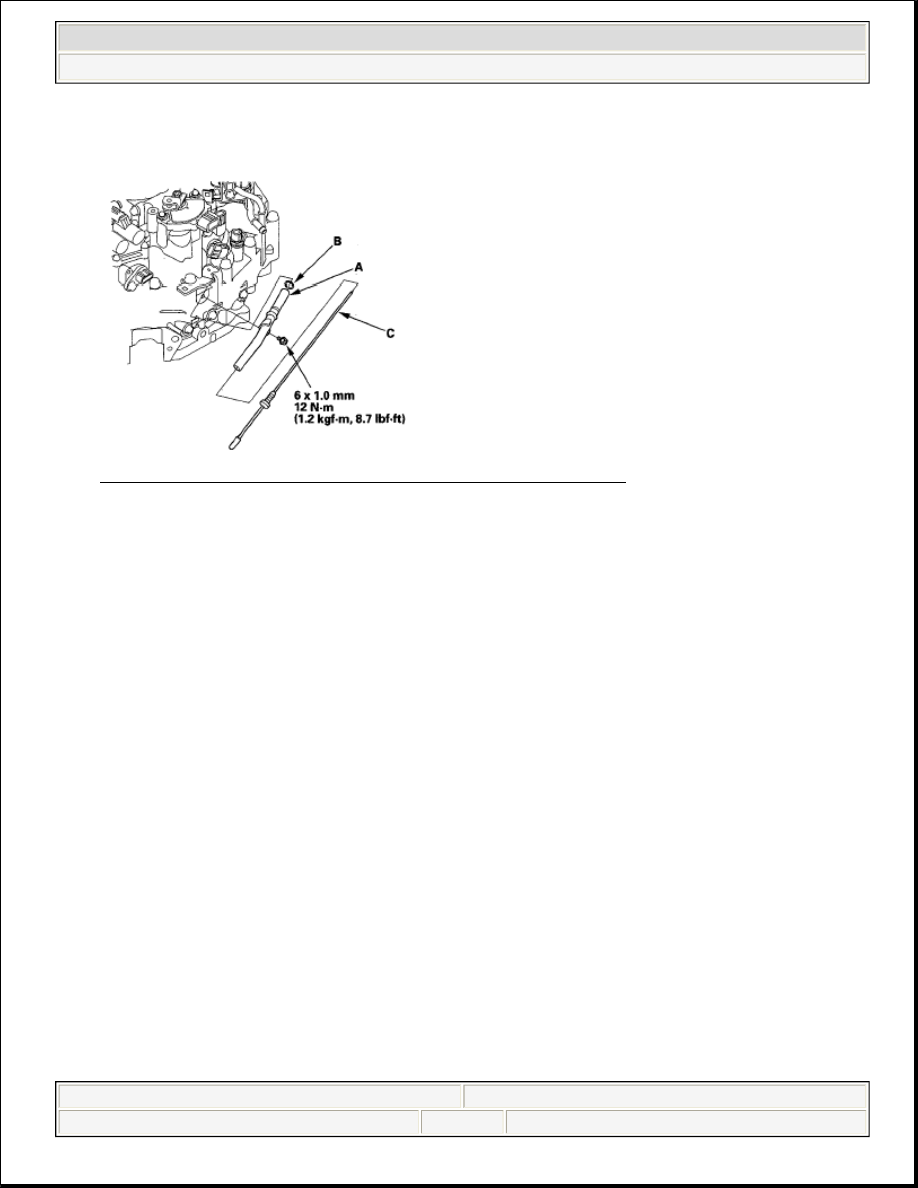

Fig. 629: Identifying ATF Dipstick Tube With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

75. Install the ATF dipstick (C) in its tube.

A/T DIFFERENTIAL

COMPONENT LOCATION INDEX



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 543

© 2005 Mitchell Repair Information Company, LLC.

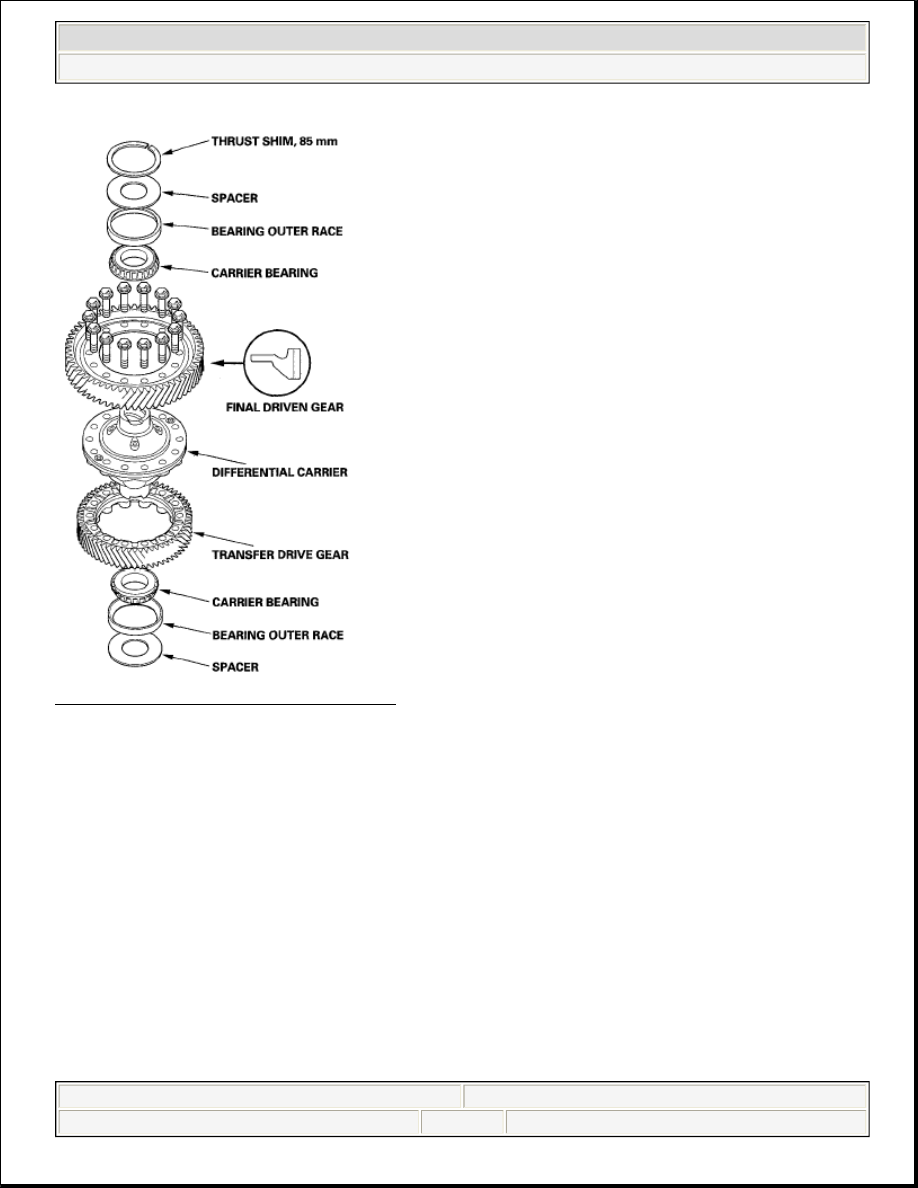

Fig. 630: Exploded View Of A/T Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.

BACKLASH INSPECTION

1. Install the driveshaft and intermediate shaft into the differential assembly.

2. Carefully clamp the driveshaft (A) in a vise (B).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 544

© 2005 Mitchell Repair Information Company, LLC.

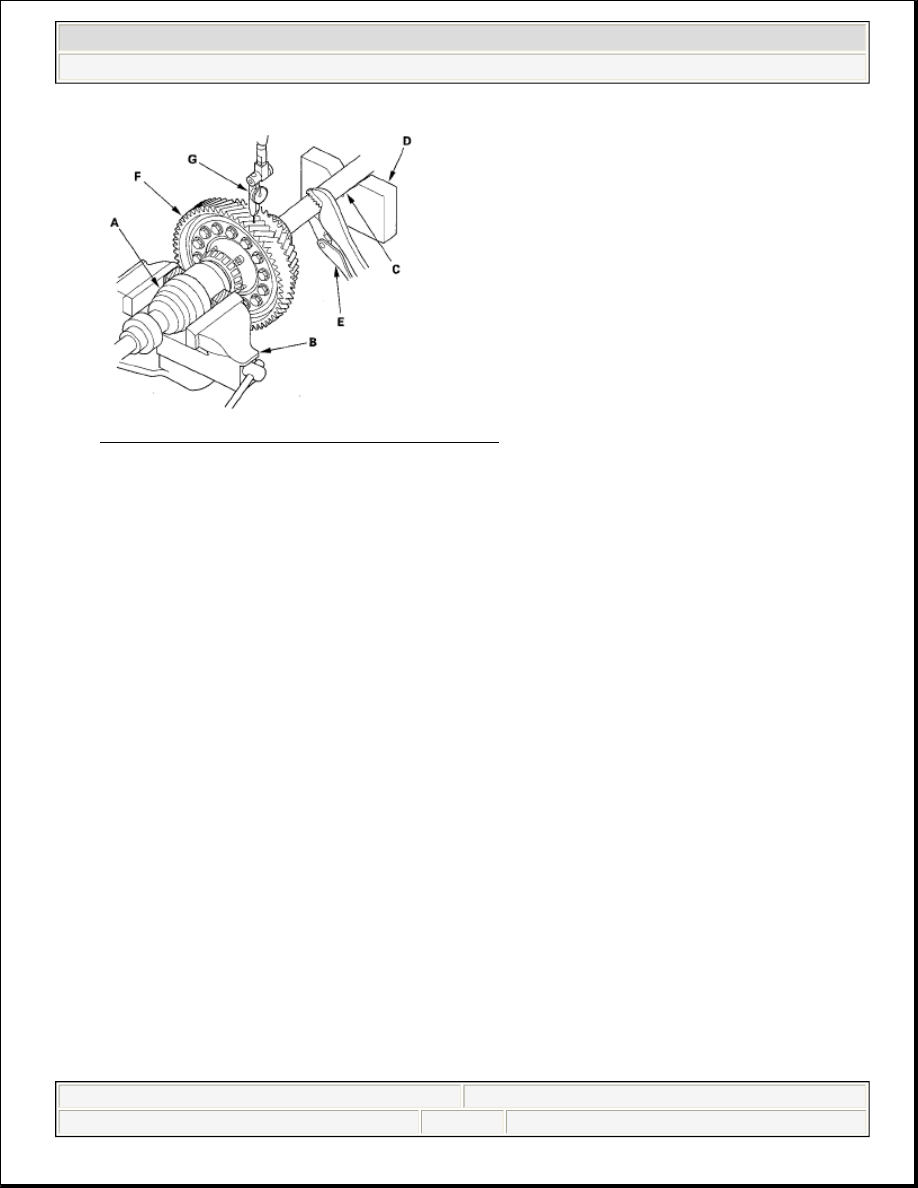

Fig. 631: Measuring Backlash Of Final Driven Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Place the intermediate shaft (C) on a V-block (D), then hold the intermediate shaft with locking pliers (E).

4. Measure backlash of the final driven gear (F) with a dial indicator (G). If the backlash is not within the

standard, replace the differential carrier.

Standard (New): 1.2-1.8 mm (0.047-0.071 in.)

DIFFERENTIAL CARRIER, FINAL DRIVEN GEAR, AND TRANSFER DRIVE GEAR
REPLACEMENT

1. Remove the final driven gear (A) and transfer drive gear (B) from the differential carrier (C).

NOTE:

Inspect and adjust the bearing preload whenever the carrier is replaced.

NOTE:

The final driven gear bolts have left-hand threads.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 545

© 2005 Mitchell Repair Information Company, LLC.

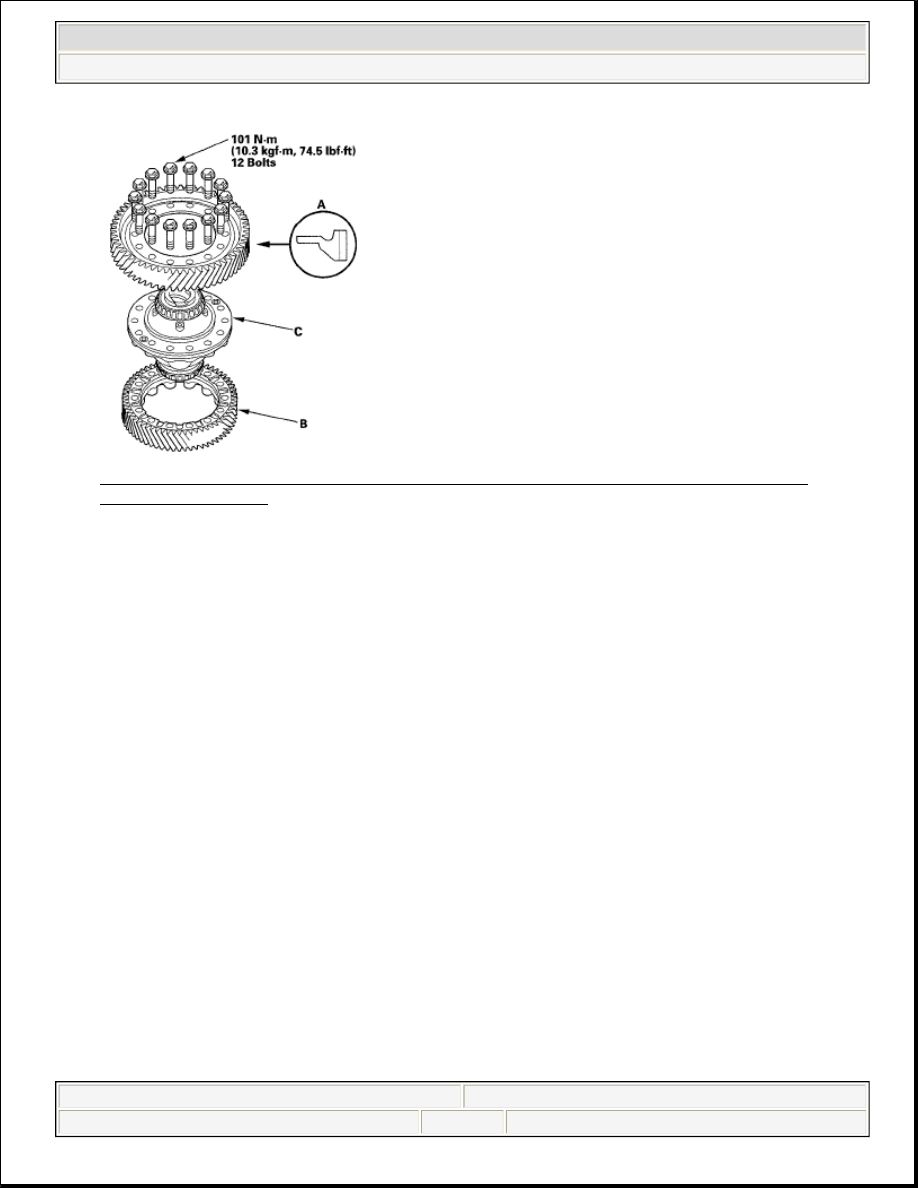

Fig. 632: Identifying Final Driven Gear, Transfer Drive Gear And Differential Carrier With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the final driven gear with the chamfered side on the inner bore facing the differential carrier.

3. Install the bolts through the differential carrier to the transfer drive gear.

4. Tighten the bolts to the specified torque in a crisscross pattern.

CARRIER BEARING REPLACEMENT

Special Tools Required

Attachment, 45 x 55 mm 07MAD-PR90100

1. Remove the carrier bearing (A) with a commercially available bearing puller (B), bearing separator (C),

and stepped adapter (D).

NOTE:



The bearing and outer race should be replaced as a set.



Inspect and adjust the bearing preload whenever the bearing is replaced.



Check the bearing for wear and rough rotation. If the bearing is OK,
removal is not necessary.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 546
