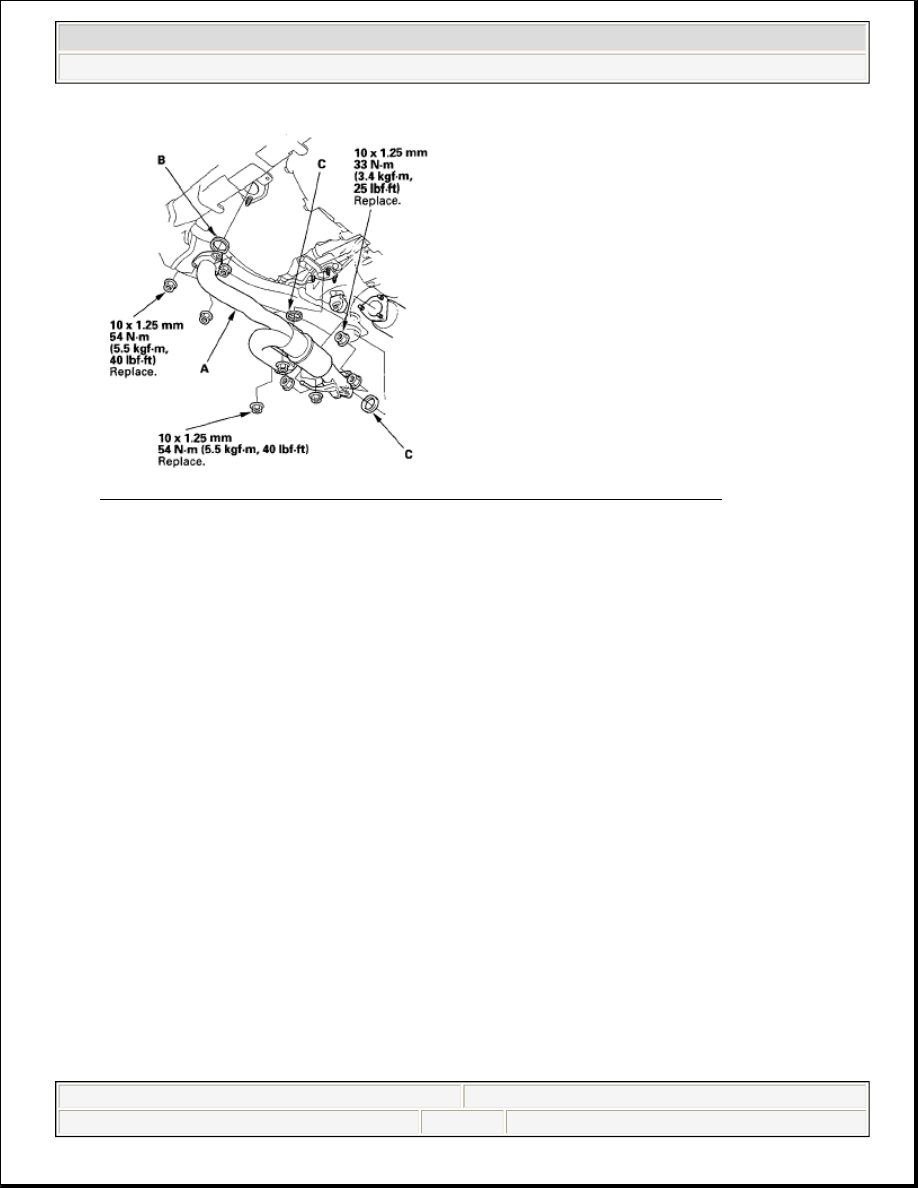

Fig. 319: Identifying Exhaust Pipe Nuts And Gaskets With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

42. Install the damper forks (A) with the damper pinch bolts, new damper fork bolts, and new self-locking

nuts. Attach the knuckle holders (B) to each knuckle, and secure the knuckle holders with the bolts and
new nuts.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 343

© 2005 Mitchell Repair Information Company, LLC.

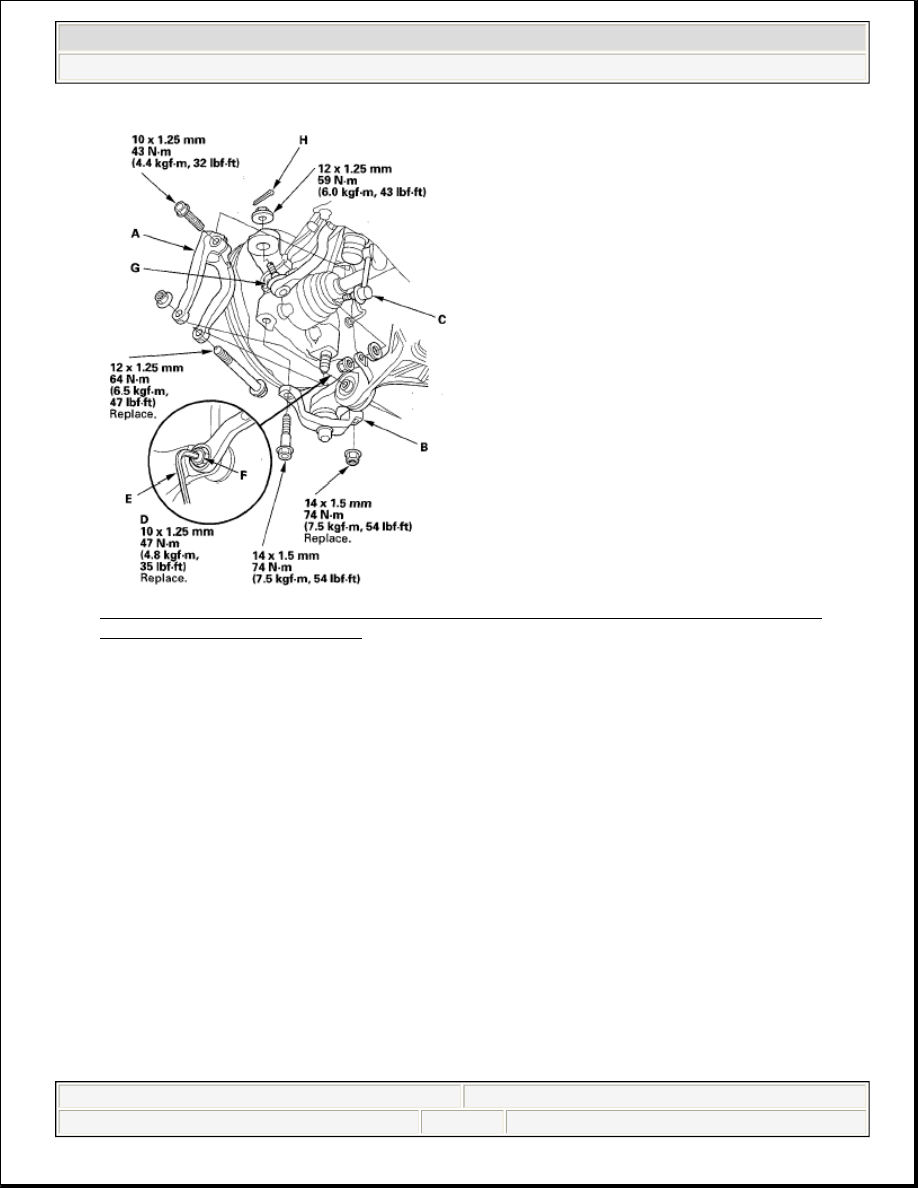

Fig. 320: Identifying Damper Forks, Knuckle Holders, Stabilizer Links And Tie-Rod End Ball
Joints With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

43. Install the stabilizer links (C) to the lower arms, and install the nuts (D). Insert a 6 mm Allen wrench (E)

in the ball joint pin (F), and tighten the nuts.

44. Install the tie-rod end ball joints (G) to each knuckle with the nuts and new cotter pins (H).

45. Install the new rear mount bolt, and install the rear mount stop with the new nuts.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 344

© 2005 Mitchell Repair Information Company, LLC.

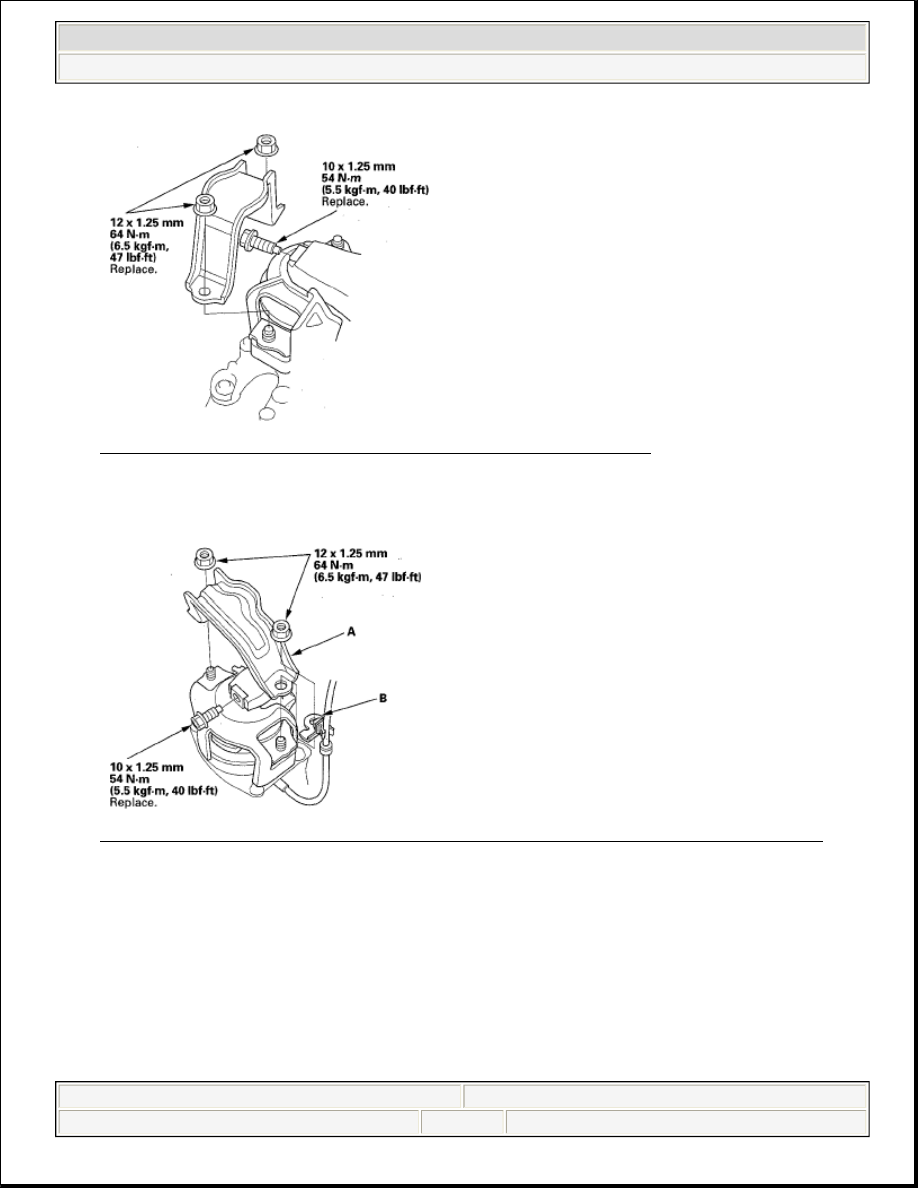

Fig. 321: Identifying Rear Mount Stop Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

46. Install the new front mount bolt, and install the front mount stop (A) and vacuum hose clamp (B).

Fig. 322: Identifying Front Mount Stop And Vacuum Hose Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

47. Remove the engine support hanger and engine hanger balancer bar.

48. Install the connector bracket on the engine front cylinder head.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 345

© 2005 Mitchell Repair Information Company, LLC.

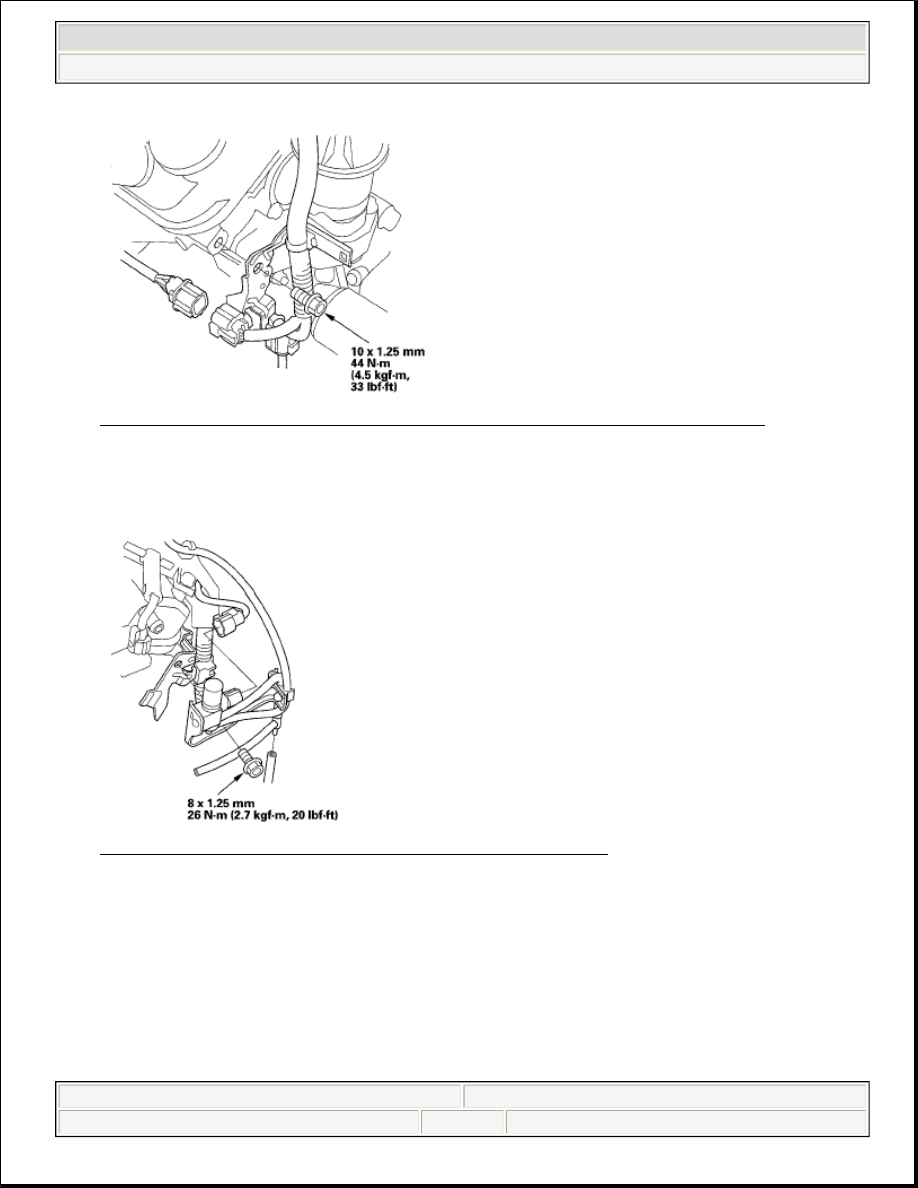

Fig. 323: Identifying Connector Bracket At Cylinder Head With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

49. Install the clamp brackets on the engine rear cylinder head, and connect the vacuum tube and solenoid

connector.

Fig. 324: Identifying Solenoid Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

50. Install the shift cable bracket on the steering gearbox stiffener.
