25. Loosen the right rear mounting bolt, then tighten the bolt to the specified torque.

26. Tighten the left rear mounting bolt to the specified torque.

27. Tighten the right and left front mounting bolts to the specified torque.

28. Check that the positioning holes and slot are aligned using the special tool.

29. Tighten the rear and front stiffener mounting bolts to the specified torque.

30. Remove the jack and front subframe adapter.

31. Install the new transmission lower mount bolts.

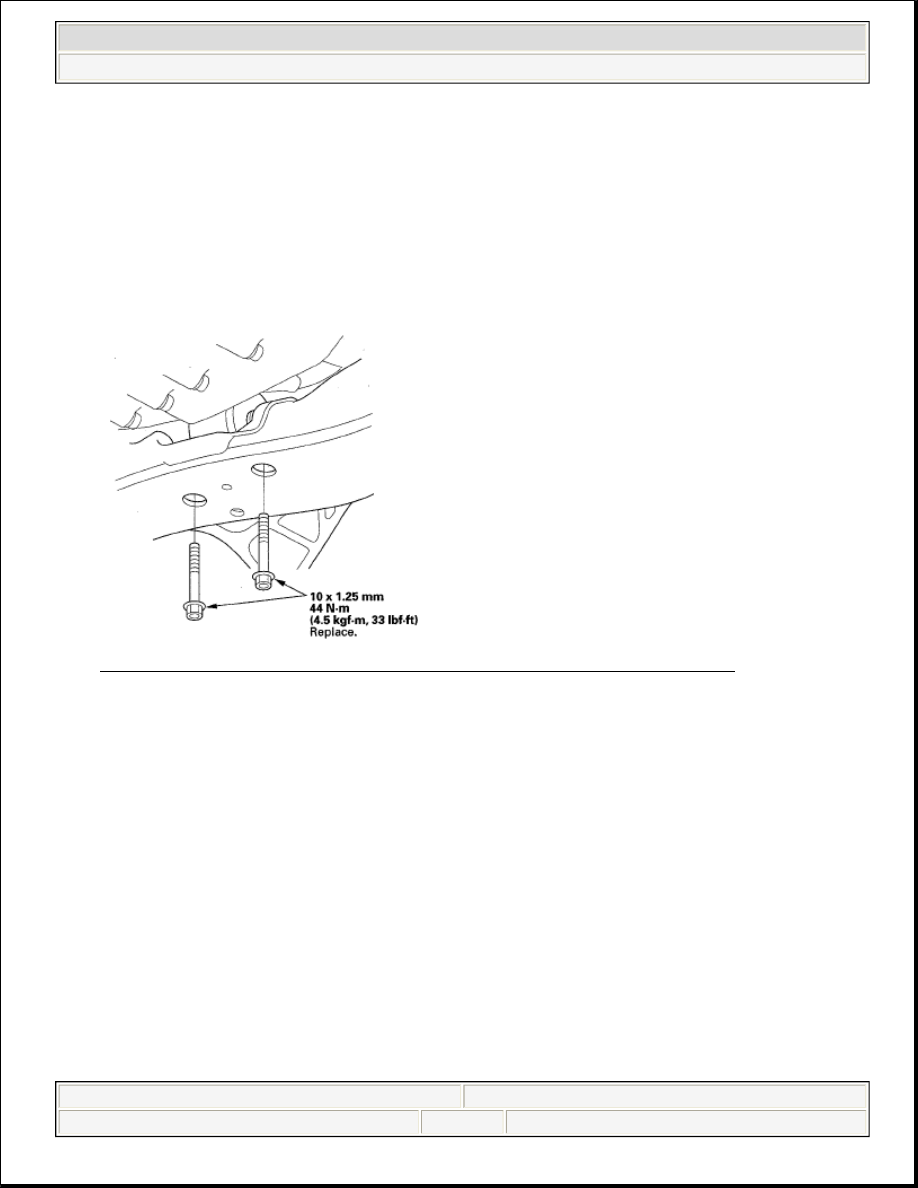

Fig. 312: Identifying Transmission Lower Mount Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Attach the torque converter to the drive plate (A) with eight bolts (B). Rotate the crankshaft pulley as

necessary to tighten the bolts to 1/2 of the specified torque, then to the final torque, in a crisscross pattern.
After tightening the last bolt, check that the crankshaft rotates freely.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 339

© 2005 Mitchell Repair Information Company, LLC.

Fig. 313: Identifying Drive Plate Bolts And Torque Converter Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

33. Install the torque converter cover (C).

34. Connect the power steering fluid hose (A) to the line (B) at the right front of the front subframe, and

secure the hose with its hose clamp (C).

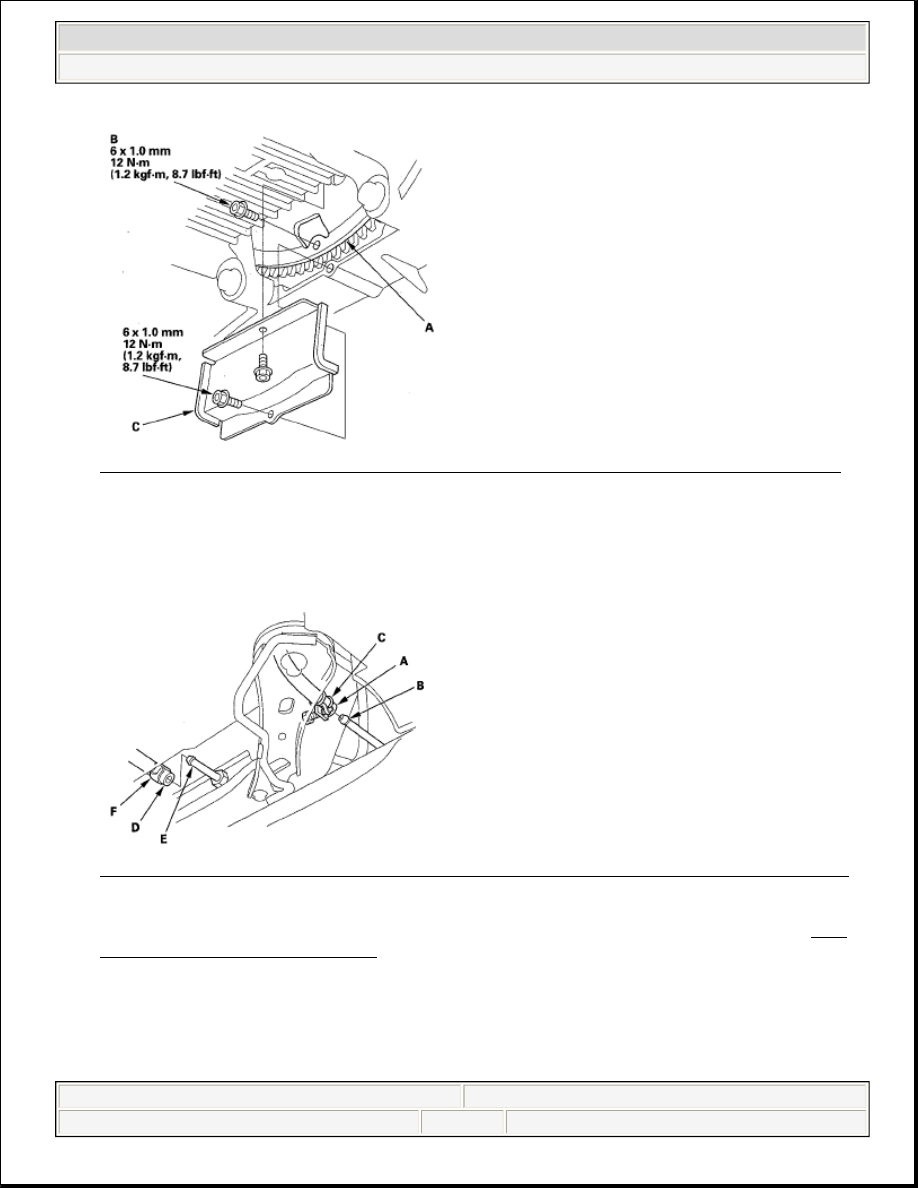

Fig. 314: Identifying Power Steering Fluid Hose, Hose Clamp, ATF Cooler Hose And ATF Cooler
Courtesy of AMERICAN HONDA MOTOR CO., INC.

35. Connect the ATF cooler hose (D) to the ATF cooler (E), and secure the hose with the clip (F) (see ATF

COOLER HOSE REPLACEMENT ).

36. Install the steering gearbox heat shield.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 340

© 2005 Mitchell Repair Information Company, LLC.

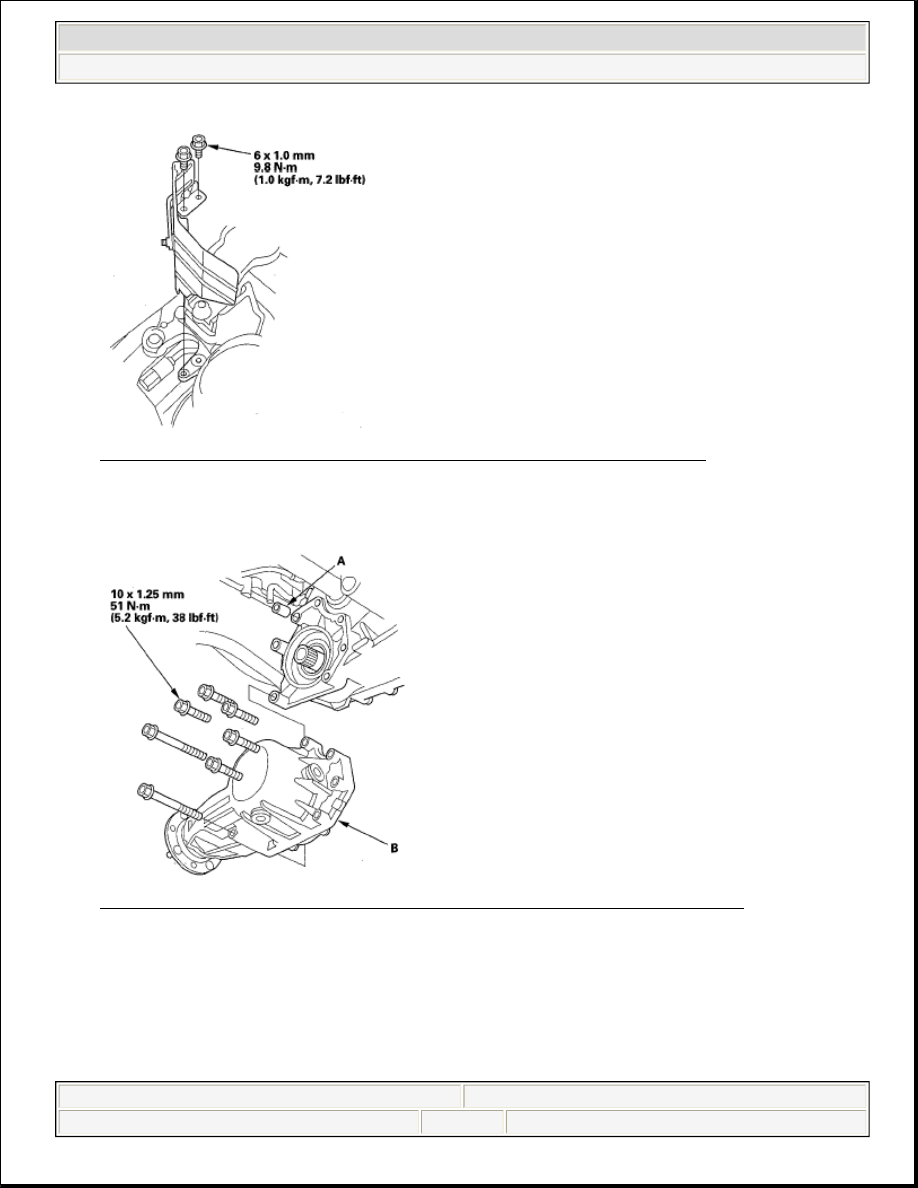

Fig. 315: Identifying Steering Gearbox Heat Shield With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

37. Install the dowel pin (A) in the transmission, and install the transfer assembly (B) on the transmission.

Fig. 316: Identifying Dowel Pin And Transfer Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

38. Secure the transfer breather tube bracket (A) on the transfer assembly with the bolt, and install the

breather tube (B) over the breather pipe (C). If the breather tube was removed from the clamp, install the
tube at the dot (D) on the clamp (E).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 341

© 2005 Mitchell Repair Information Company, LLC.

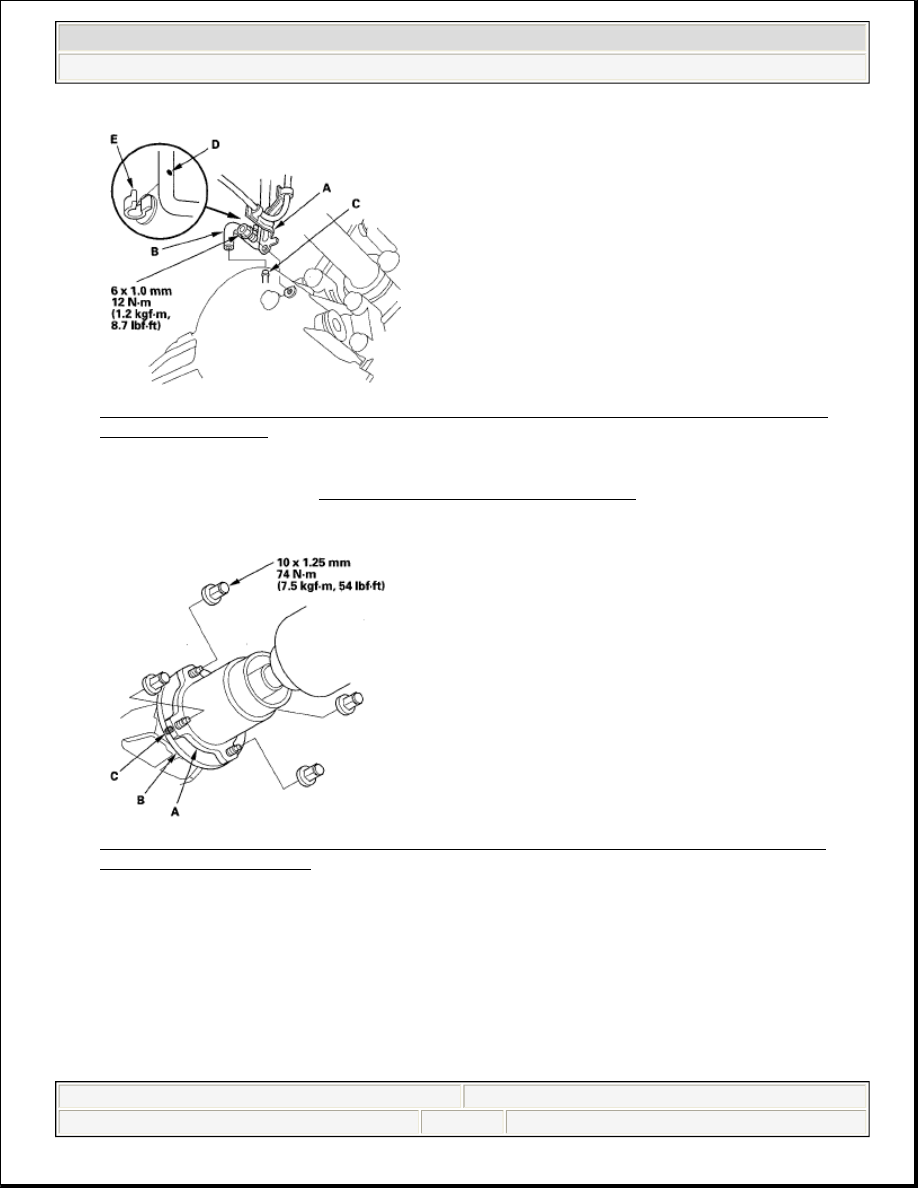

Fig. 317: Identifying Transfer Breather Tube Bracket, Breather Tube And Breather Pipe With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

39. Install the propeller shaft (see PROPELLER SHAFT INSTALLATION ).

40. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).

Fig. 318: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

41. Install exhaust pipe A with the new self-locking nuts and new gaskets (B) (C).
