from the breather pipe (C) on the transfer assembly. Cap the breather pipe to prevent fluid from leaking
out.

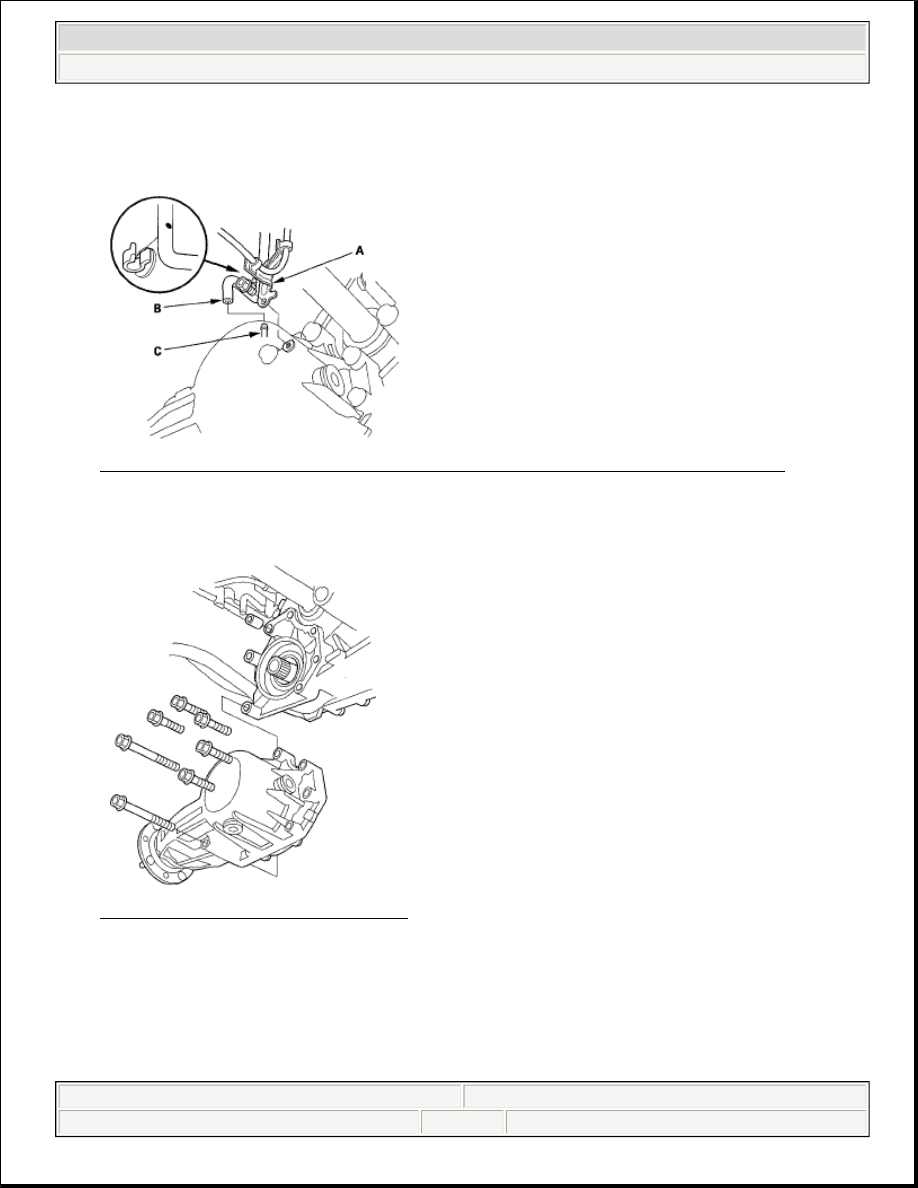

Fig. 280: Identifying Transfer Breather Tube Bracket, Breather Tube And Breather Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

49. Remove the transfer assembly from the transmission.

Fig. 281: Identifying Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

50. Remove the steering gearbox heat shield.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 323

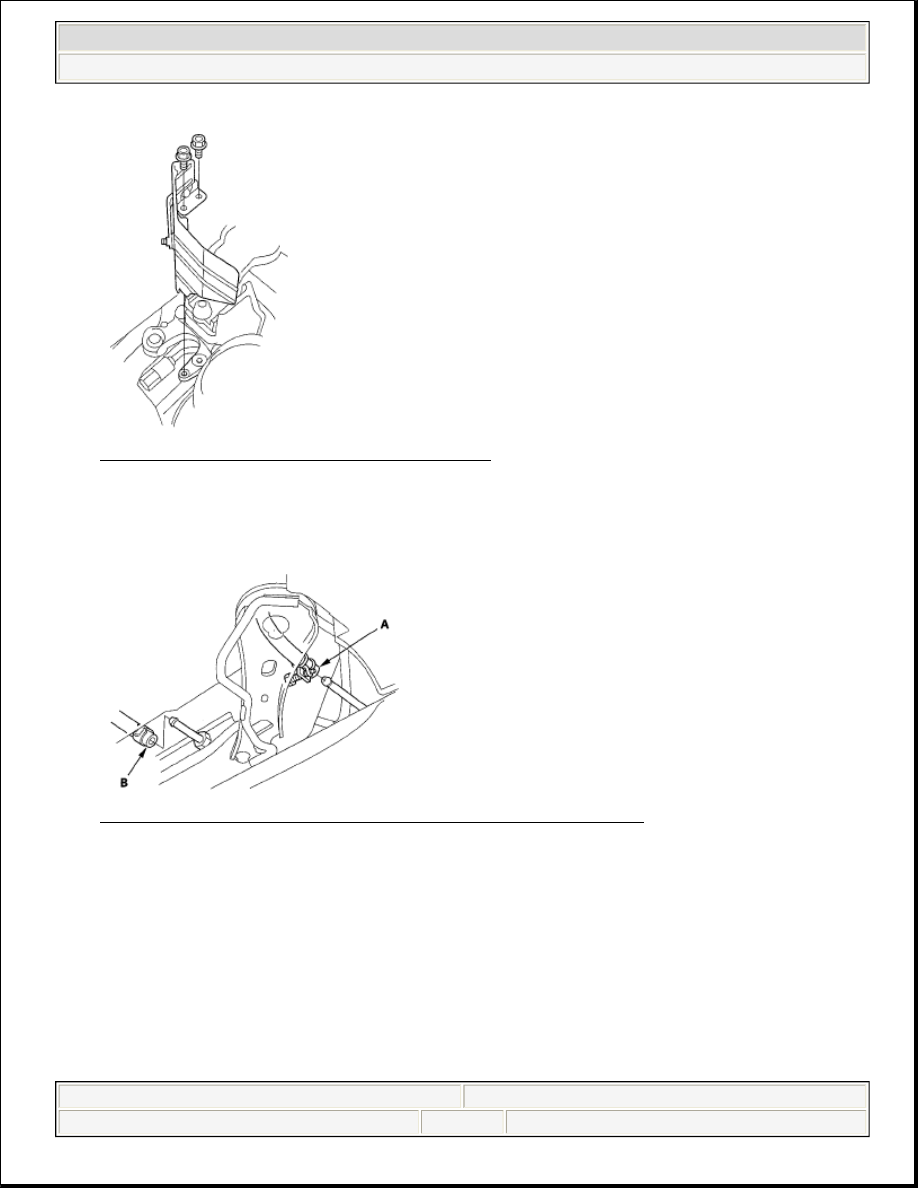

Fig. 282: Identifying Steering Gearbox Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

51. Loosen the hose clamp bolt, then disconnect the power steering fluid hose (A) from the line at the right

front of the subframe.

Fig. 283: Identifying Power Steering Fluid Hose And ATF Cooler Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

52. Remove the ATF cooler hose (B) from the ATF cooler. Turn the end of the cooler hose up to prevent

ATF from flowing out, then plug the hose.

53. Remove the torque converter cover (A), and remove the drive plate bolts (B) (8) while rotating the

crankshaft pulley.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 324

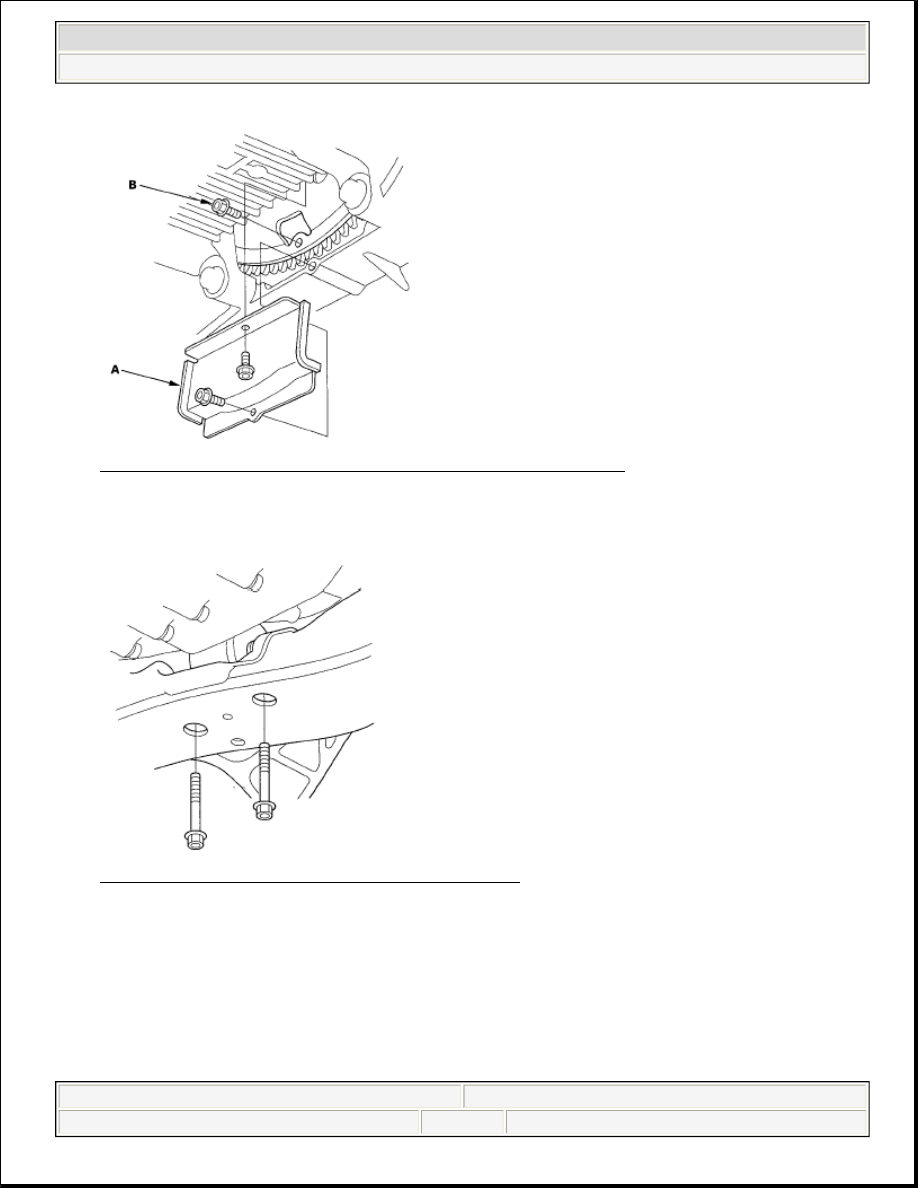

Fig. 284: Identifying Torque Converter Cover And Drive Plate Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

54. Remove the transmission lower mount bolts.

Fig. 285: Identifying Transmission Lower Mount Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

55. Disconnect the power steering angle sensor connector.

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 325

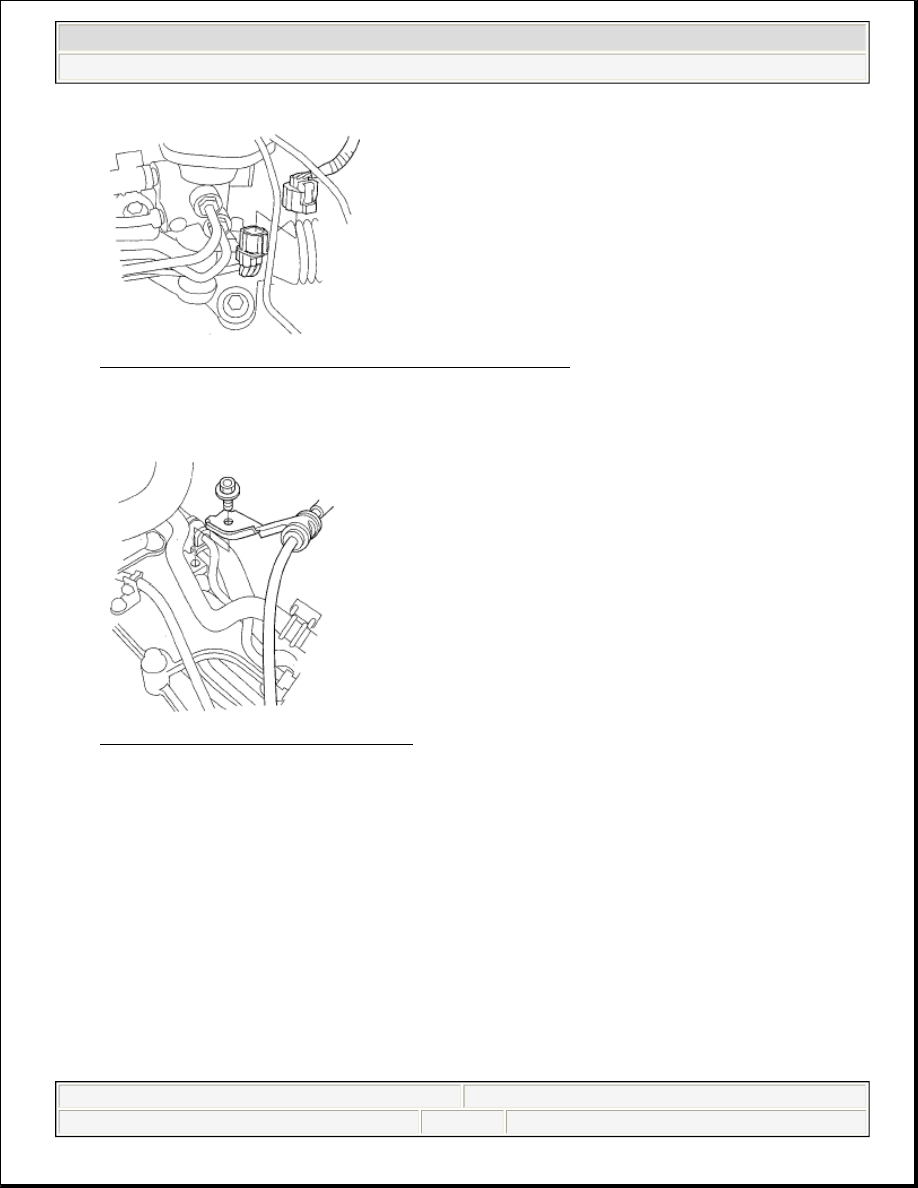

Fig. 286: Identifying Power Steering Angle Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

56. Remove the shift cable bracket on the steering gearbox stiffener.

Fig. 287: Identifying Shift Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

57. Remove the rear mount stop (A), and remove the rear mount bolt (B).

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:14 PM

Page 326
