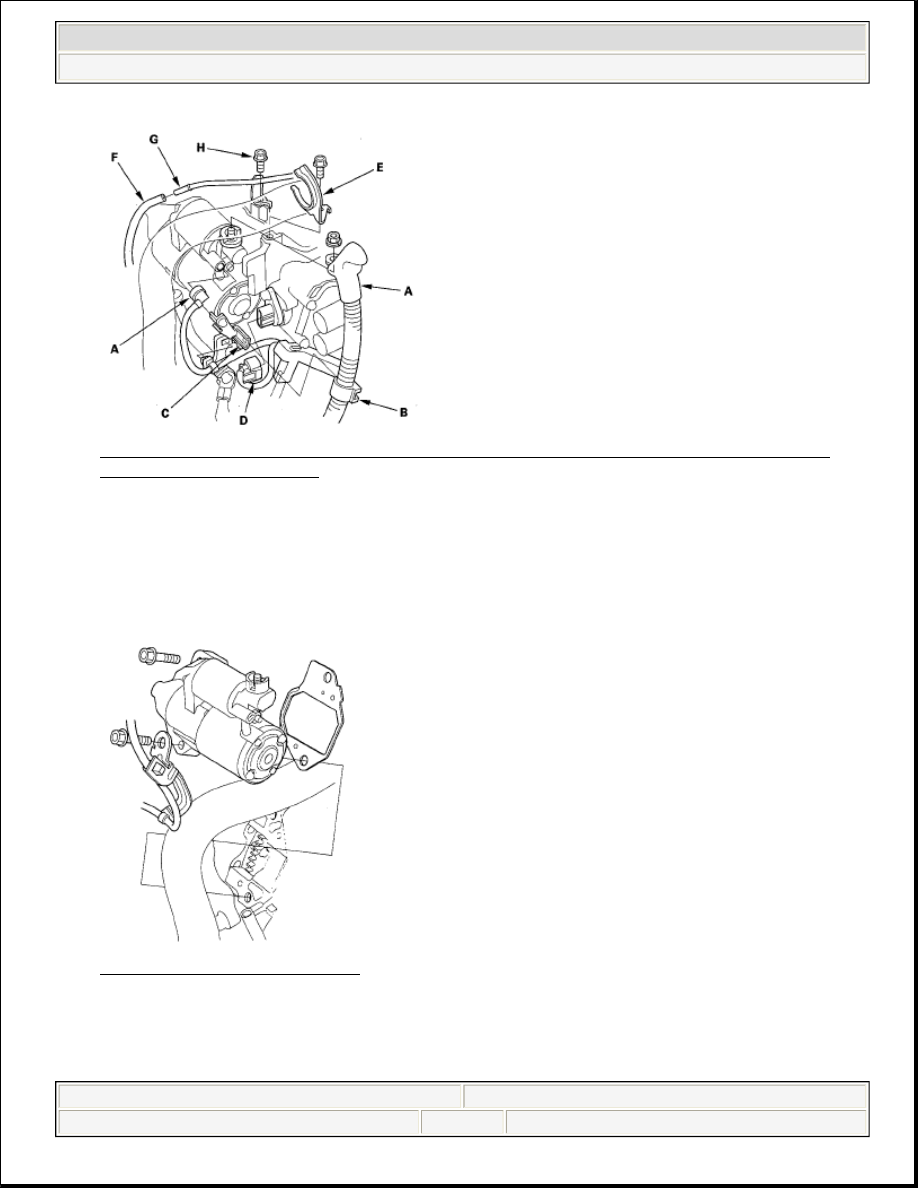

Fig. 264: Identifying Starter Cables, Vacuum Hose, Radiator Hose Clamp, Clamp Bracket And
Solenoid Harness Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Disconnect the solenoid harness connector (D).

21. Remove the bolt securing the radiator hose clamp (E).

22. Disconnect the vacuum hose (F) from the vacuum line (G), and remove the vacuum line bolt (H).

23. Remove the starter and gasket from the transmission.

Fig. 265: Identifying Starter Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

24. Remove the nuts securing the shift cable bracket (A).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 315

© 2005 Mitchell Repair Information Company, LLC.

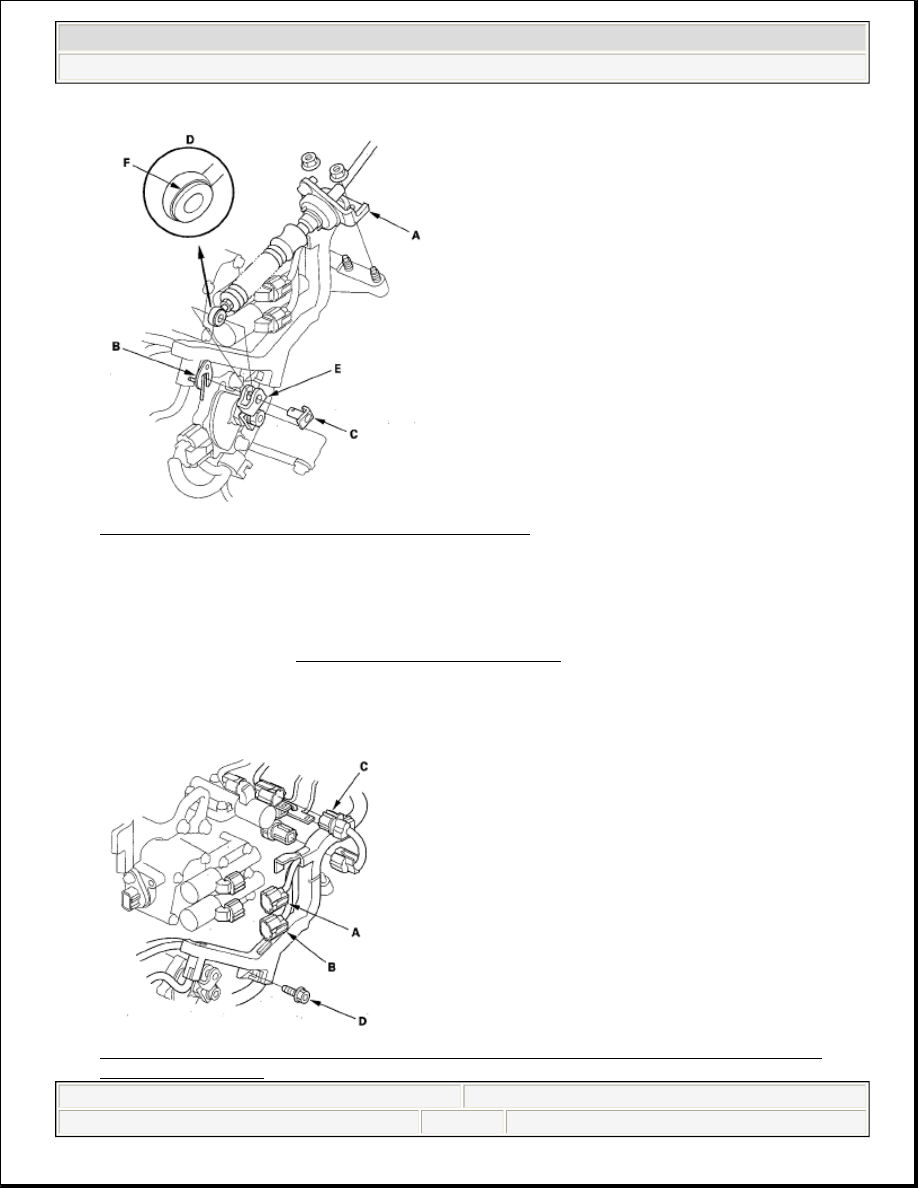

Fig. 266: Identifying Shift Cable End Transmission Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

25. Remove the spring clip/washer (B) and the control pin (C), then separate the shift cable end (D) from the

control lever (E).

26. Check the bushing (F) in the shift cable end for a proper fit and wear. If the bushing is loose or worn,

replace the shift cable (see SHIFT CABLE REPLACEMENT ).

27. Disconnect the A/T clutch pressure control solenoid valve A connector, A/T clutch pressure control

solenoid valve B connector, and 4th clutch transmission fluid pressure switch connectors (C), and remove
the harness cover mounting bolt (D).

Fig. 267: Identifying 4th Clutch Transmission Fluid Pressure Switch Connectors And Harness
Cover Mounting Bolt



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 316

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Remove the harness cover mounting bolt, and remove the harness clamps (A) from the clamp brackets

(B).

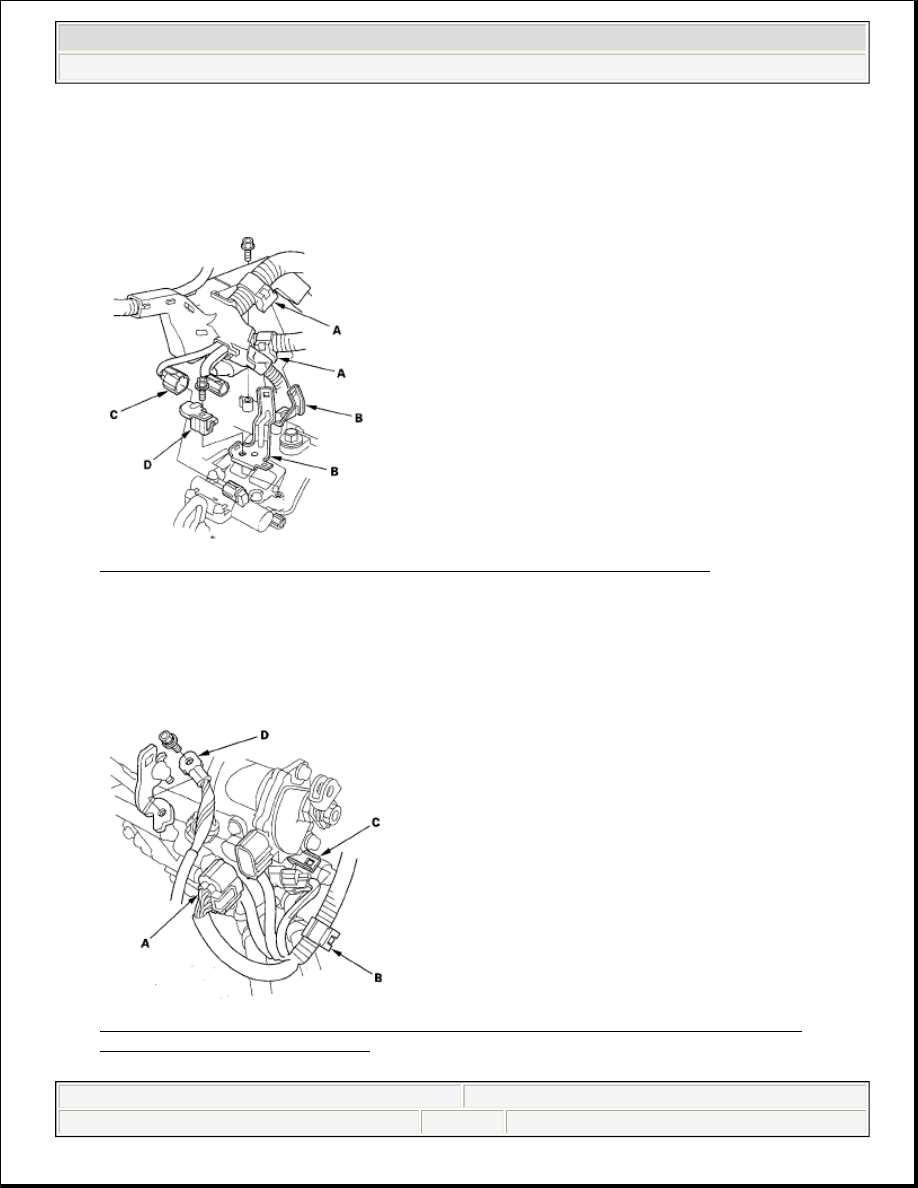

Fig. 268: Identifying Harness Clamps, Clamp Brackets And Connector Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

29. Disconnect the A/T clutch pressure control solenoid valve C connector, and remove the connector bracket

(D) and harness clamp bracket.

30. Disconnect the transmission range switch connector (A), and remove the harness clamp (B) from the

clamp bracket (C).

Fig. 269: Identifying Transmission Range Switch Connector, Harness Clamp, Transmission
Ground Cable And Clamp Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 317

© 2005 Mitchell Repair Information Company, LLC.

31. Remove the transmission ground cable (D).

32. Disconnect the output shaft (countershaft) speed sensor connector (A), input shaft (mainshaft) speed

sensor connector (B), 3rd clutch transmission fluid pressure switch connector (C), and ATF temperature
sensor connector (D).

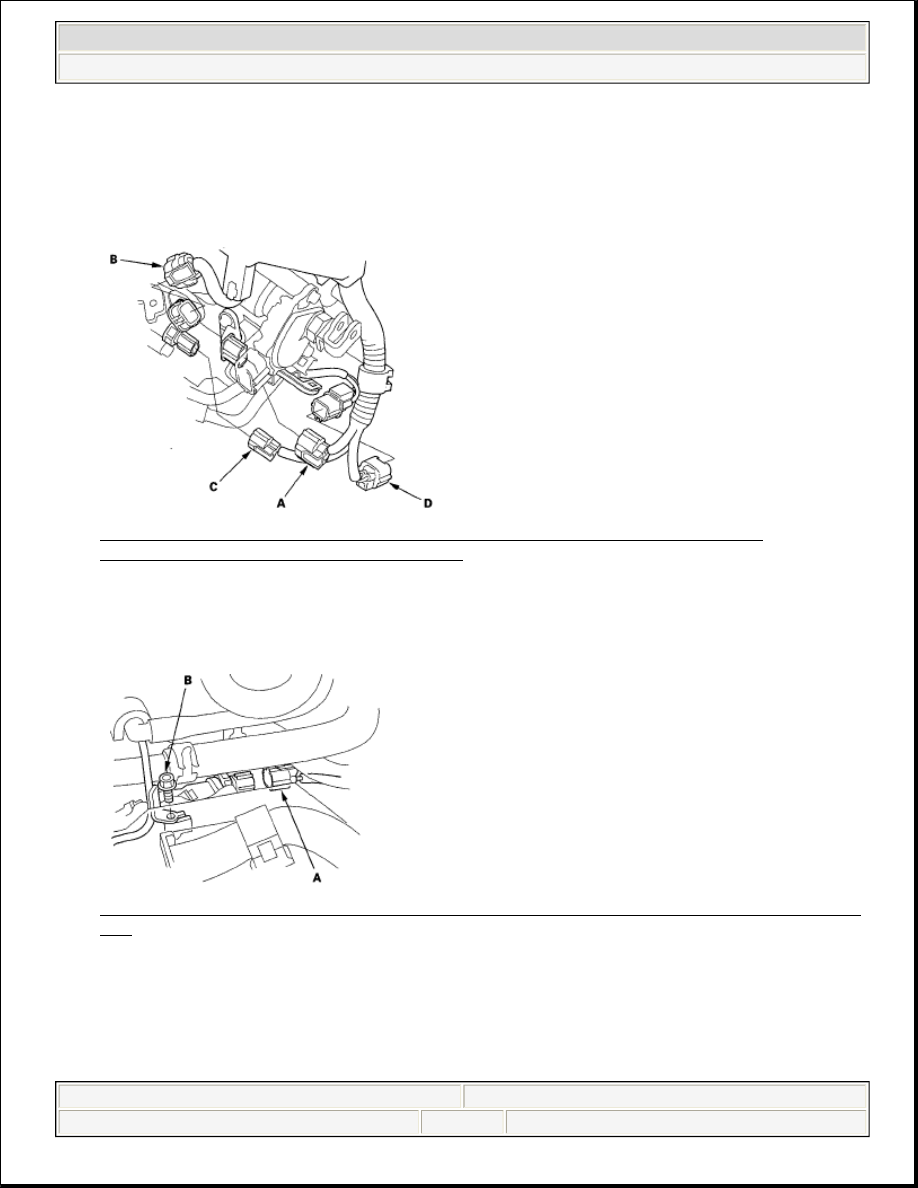

Fig. 270: Identifying Input Shaft (Mainshaft) Speed Sensor Connector And 3rd Clutch
Transmission Fluid Pressure Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

33. Disconnect the 2nd clutch transmission fluid pressure switch connector (A), and remove the vacuum line

bolt(B).

Fig. 271: Identifying 2nd Clutch Transmission Fluid Pressure Switch Connector And Vacuum Line
Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

34. Remove the ATF cooler hoses (A) from the ATF cooler lines (B). Turn the ends of the cooler hoses up to

prevent ATF from flowing out, then plug the cooler hoses and lines.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 318

© 2005 Mitchell Repair Information Company, LLC.
