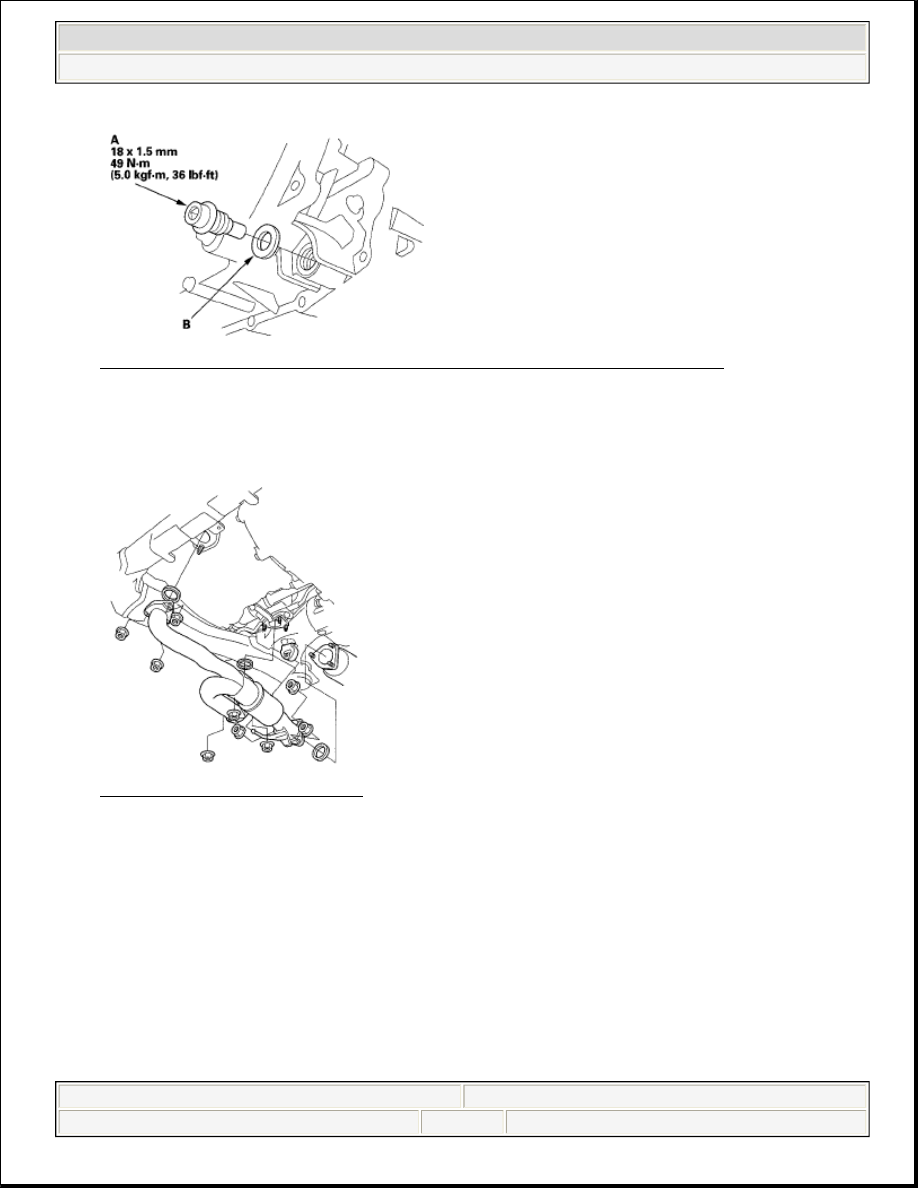

Fig. 249: Identifying Drain Plug And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Reinstall the drain plug and a new sealing washer (B).

5. Remove exhaust pipe A.

Fig. 250: Identifying Exhaust Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the bolt securing the transfer breather tube bracket (A), and disconnect the breather tube (B)

from the breather pipe (C) on the transfer assembly. Cap the breather pipe to prevent fluid from leaking
out.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 307

© 2005 Mitchell Repair Information Company, LLC.

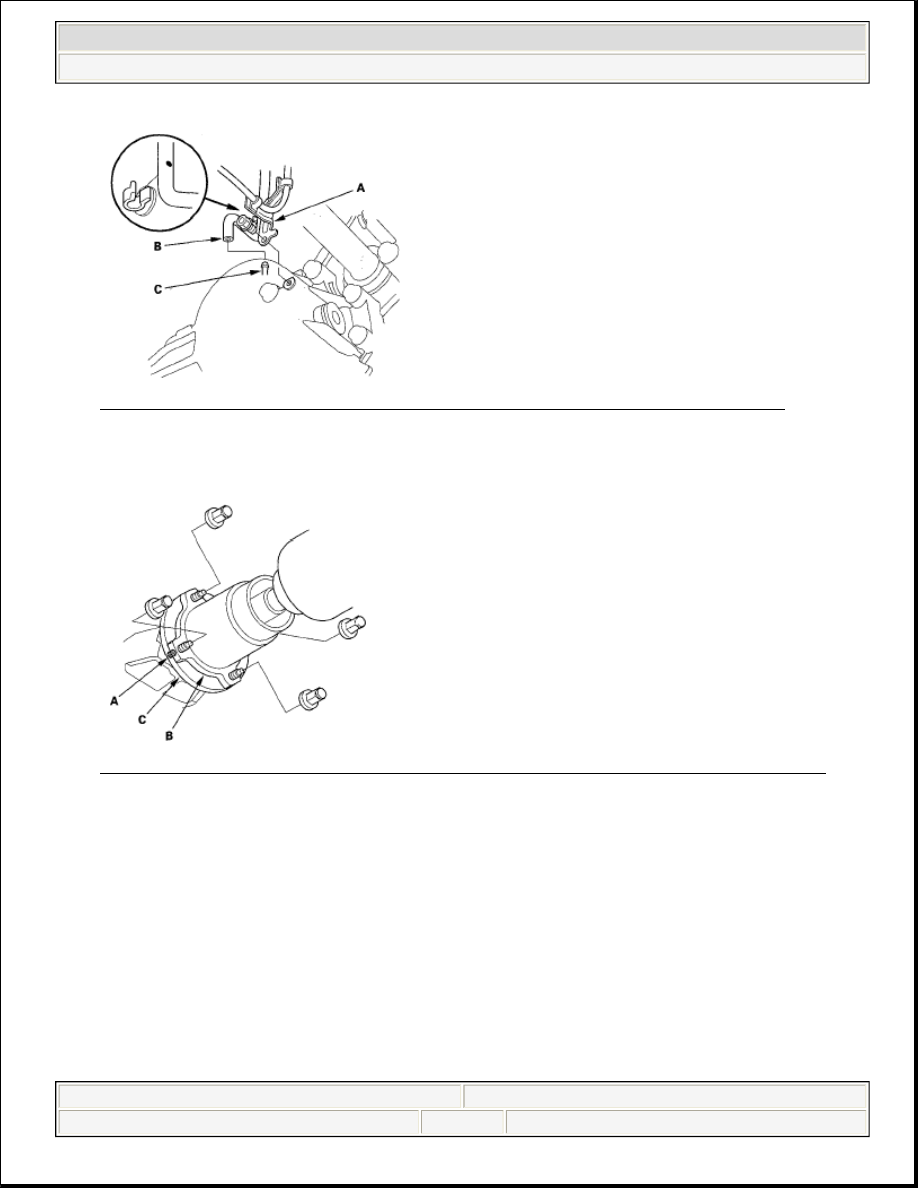

Fig. 251: Identifying Transfer Breather Tube Bracket, Breather Tube And Breather Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig. 252: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Separate the propeller shaft from the transfer companion flange.

9. Remove the transfer assembly from the transmission.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 308

© 2005 Mitchell Repair Information Company, LLC.

Fig. 253: Identifying Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER ASSEMBLY INSTALLATION

1. Clean the areas where the transfer assembly contacts the transmission with solvent, and dry with

compressed air. Then apply transmission fluid to the contact area.

2. Install the dowel pin (A) in the transmission, and install the transfer assembly (B) on the transmission.

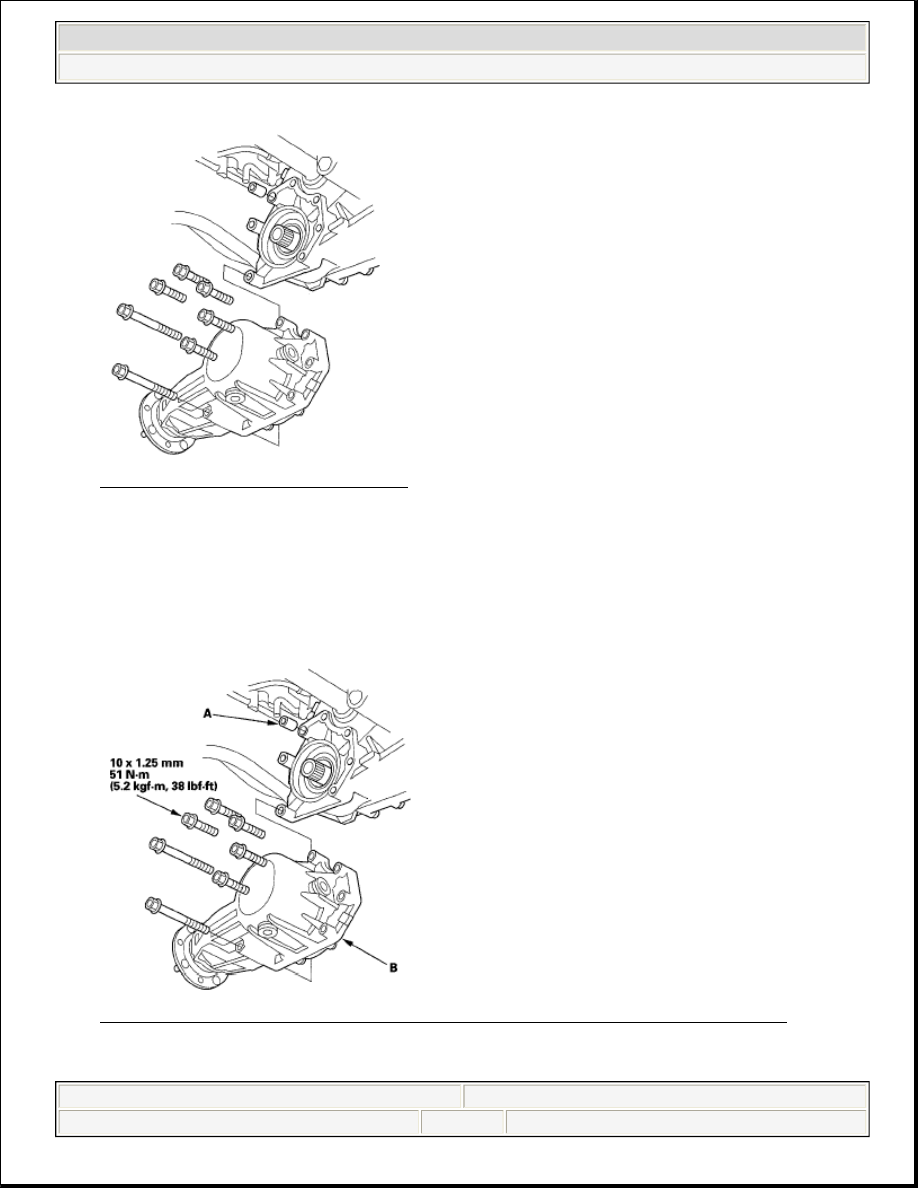

Fig. 254: Identifying Dowel Pin And Transfer Assembly Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the previously made



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:14 PM

Page 309

© 2005 Mitchell Repair Information Company, LLC.

reference mark (C).

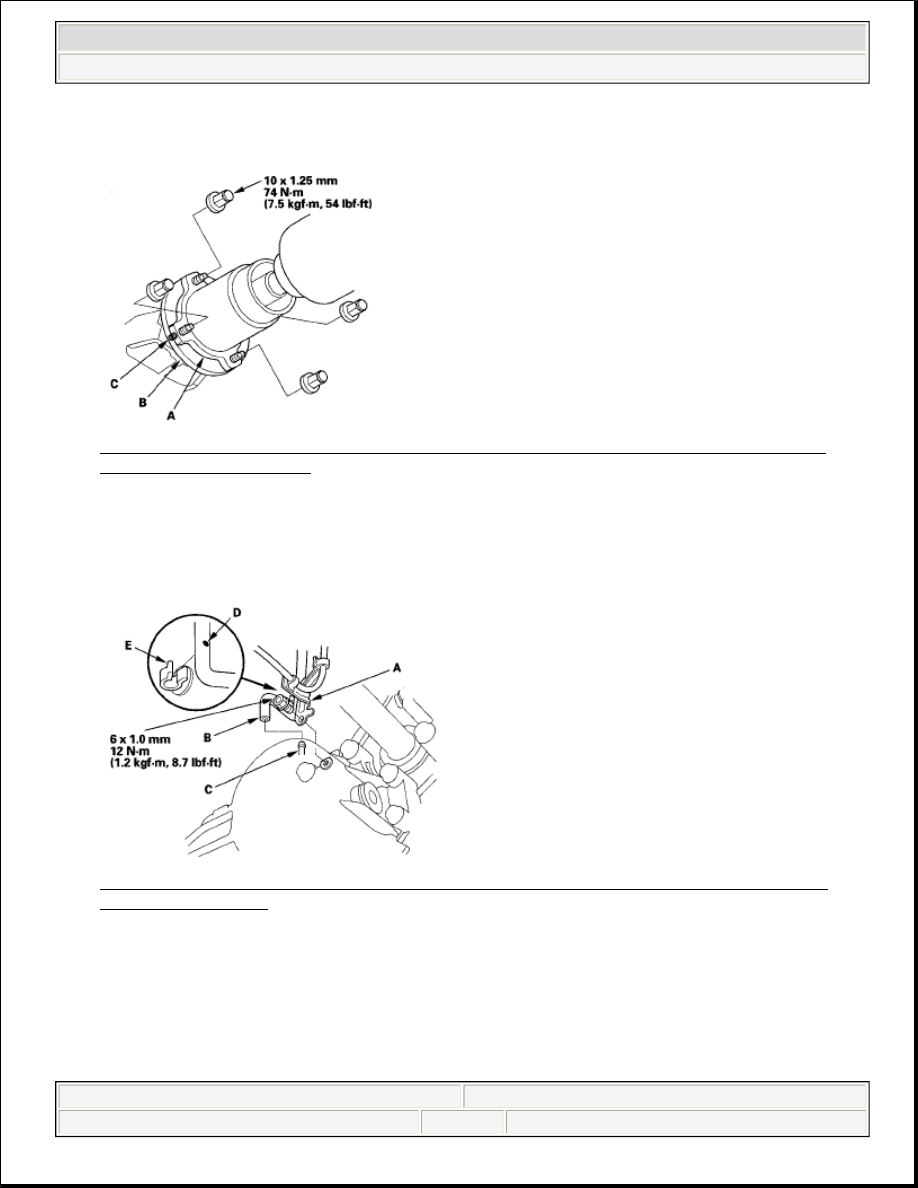

Fig. 255: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Secure the transfer breather tube bracket (A) on the transfer assembly with the bolt, and install the

breather tube (B) over the breather pipe (C). If the breather tube was removed from the clamp, install the
tube at the dot (D) on the clamp (E).

Fig. 256: Identifying Transfer Breather Tube Bracket, Breather Tube And Breather Pipe With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install exhaust pipe A with the new self-locking nuts and new gaskets (B) (C).
