Connector Terminal No. 4
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 13.

NO - Repair open in the wire between PCM connector terminal C8 and the shift solenoid harness
connector, then go to step 20.

13. Remove the shift solenoid harness connector (see SHIFT SOLENOID VALVE TEST AND

REPLACEMENT ).

14. Check for continuity between shift solenoid harness connector terminal No. 4 and the shift solenoid valve

B connector terminal.

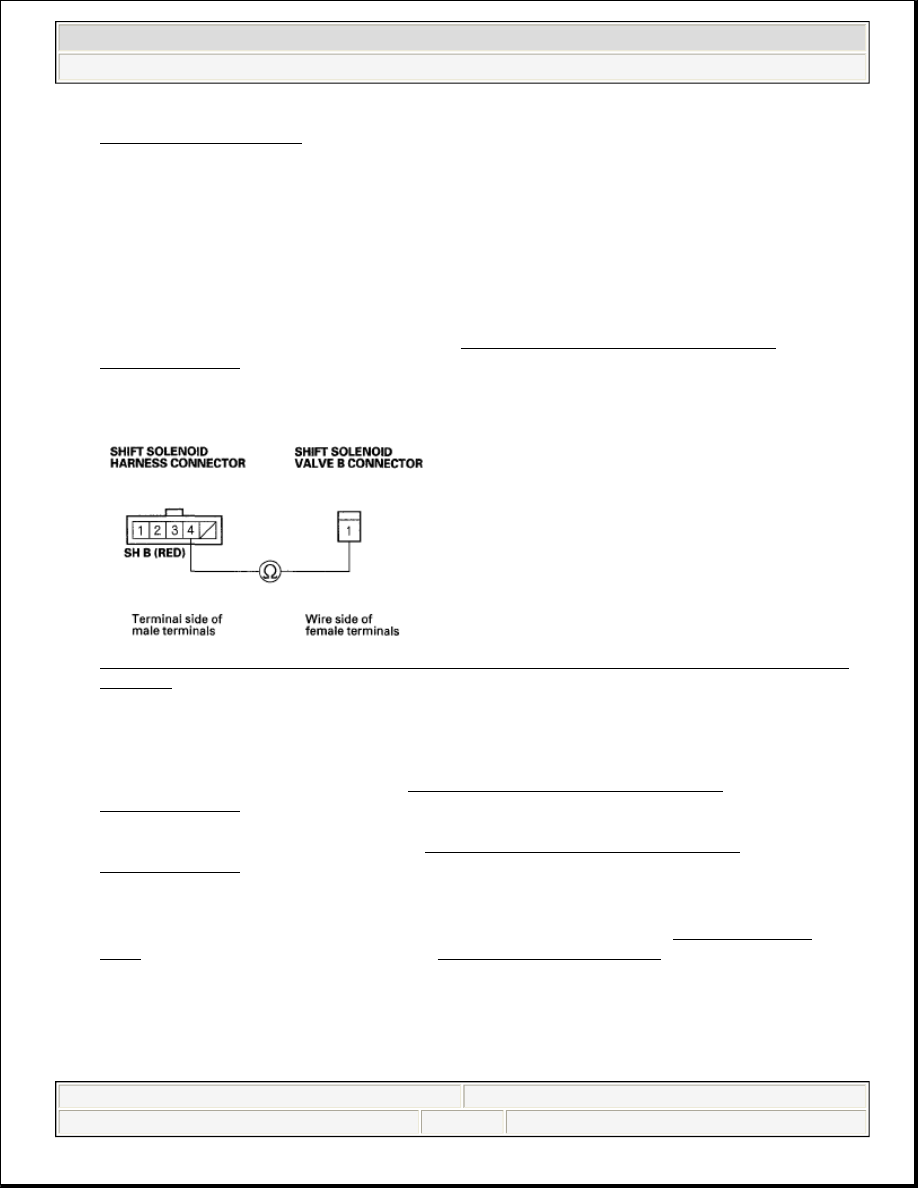

Fig. 172: Checking Continuity Between Shift Solenoid Terminal No. 4 And Shift Solenoid Valve B
Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace shift solenoid valve B (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.

NO - Replace the shift solenoid harness (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.

15. Connect PCM connectors A (31P), B(24P), and C (22P).

16. Update the A/T software in the PCM if it does not have the latest software (see UPDATING THE

PCM ), or substitute a known-good PCM (see SUBSTITUTING THE PCM ).

17. Start the engine in P, wait for at least 1 second, then test-drive the vehicle in D. Run the vehicle in 3rd or

4th gear at least 1 second, then slow down to a stop.

18. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0977 indicated?



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 235

© 2005 Mitchell Repair Information Company, LLC.

YES - If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ),
then recheck. If the PCM was substituted, go to step 1.

NO - Go to step 19.

19. Monitor the OBD STATUS for P0977 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the
original PCM (see PCM REPLACEMENT ). If any other DTCs were indicated on step 18, go to the
INDICATED DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve B and the PCM. If the PCM
was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, return to step 17 and
recheck.

20. Clear the DTC with the HDS.

21. Start the engine in P, wait for at least 1 second, then test-drive the vehicle in D. Run the vehicle in 3rd or

4th gear at least 1 second, then slow down to a stop.

22. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0977 indicated?

YES - Check for poor connections and loose terminals at shift solenoid valve B and the PCM, then go to
step 1.

NO - Go to step 23.

23. Monitor the OBD STATUS for P0977 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES - Troubleshooting is complete. If any other DTCs were indicated on step 22, go to the INDICATED
DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve B and the PCM, then go to
step 1. If the HDS indicates NOT COMPLETED, return to step

21

 and recheck.

DTC P0979: Short in Shift Solenoid Valve C Circuit

NOTE:



Before you troubleshoot, record all freeze data and any on-board
snapshot, and review General Troubleshooting Information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 236

© 2005 Mitchell Repair Information Company, LLC.

1. Clear the DTC with the HDS.

2. Start the engine, and run the vehicle in 1st gear in D for at least 1 second.

3. Check that DTC P0979 recurs.

Is DTC P0979 indicated?

YES - Go to step 7.

NO - Go to step 4.

4. Select Shift Solenoid C in Miscellaneous Test Menu, and test shift solenoid valve C with the HDS.

Is a clicking sound heard?

YES - Go to step 5.

NO - Go to step 7.

5. Start the engine, and run the vehicle in 1st gear in D for at least 1 second.

6. Monitor the OBD STATUS for P0979 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate FAILED?

YES - Go to step 7.

NO - Intermittent failure, the system is OK at this time. Check the SH C wire for an intermittent short
between shift solenoid valve C and the PCM. If the HDS indicates NOT COMPLETED, return to step 4
and recheck.

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

9. Disconnect PCM connectors A (31P), B (24P), and C (22P).

10. Measure the resistance between PCM connector terminals C16 and A3 or B15.



This code is caused by an electrical circuit problem and cannot be caused
by a mechanical problem in the transmission.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 237

© 2005 Mitchell Repair Information Company, LLC.

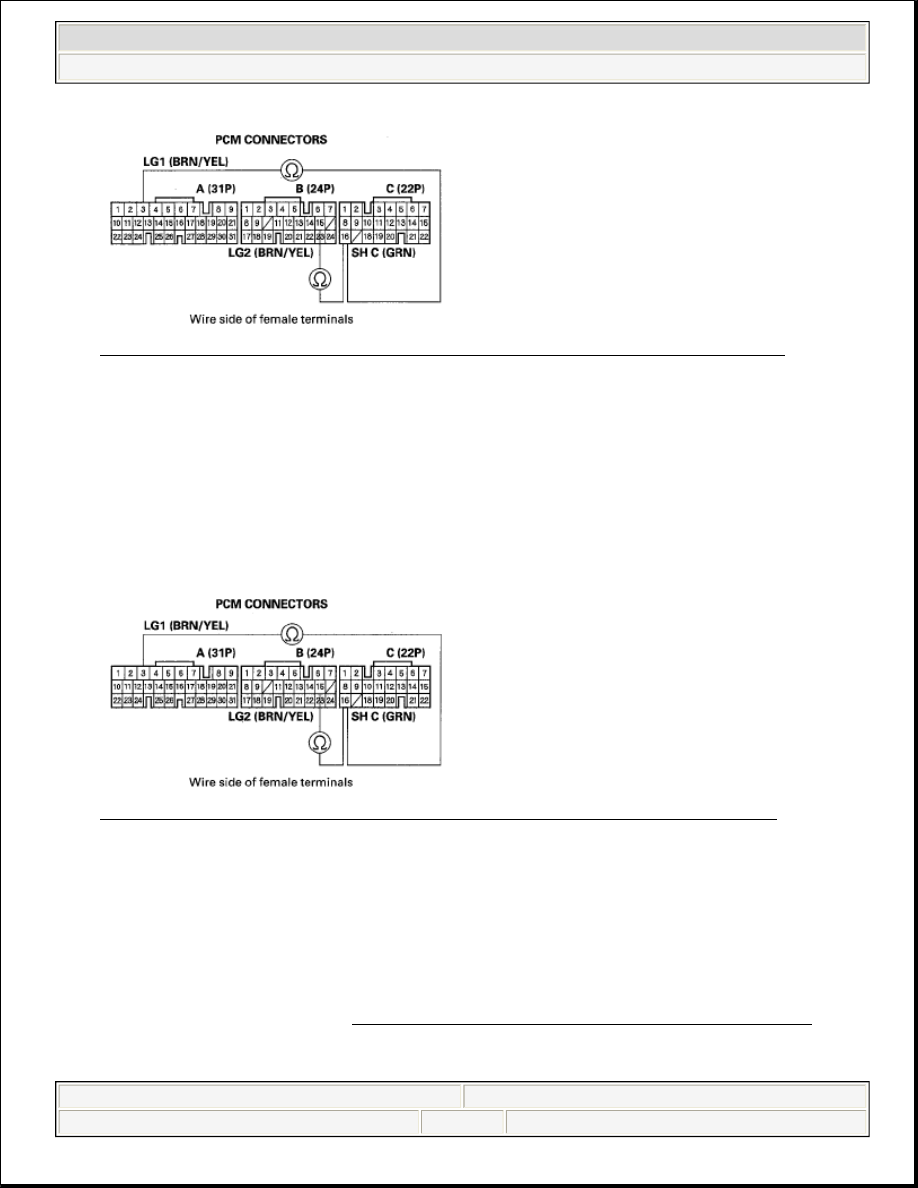

Fig. 173: Measuring Resistance Between PCM Connector Terminals C16 And A3 Or B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 12 ohms?

YES - Go to step 11.

NO - Go to step 18.

11. Disconnect shift solenoid harness connector at the transmission housing.

12. Check for continuity between PCM connector terminals C16 and A3 or B15.

Fig. 174: Checking Continuity Between PCM Connector Terminals C16 And A3 Or B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between PCM connector terminal C16 and the shift solenoid harness
connector, then go to step 23.

NO - Go to step 13.

13. Inspect shift solenoid valve C (see SHIFT SOLENOID VALVE TEST AND REPLACEMENT ).

Is shift solenoid valve C OK?
