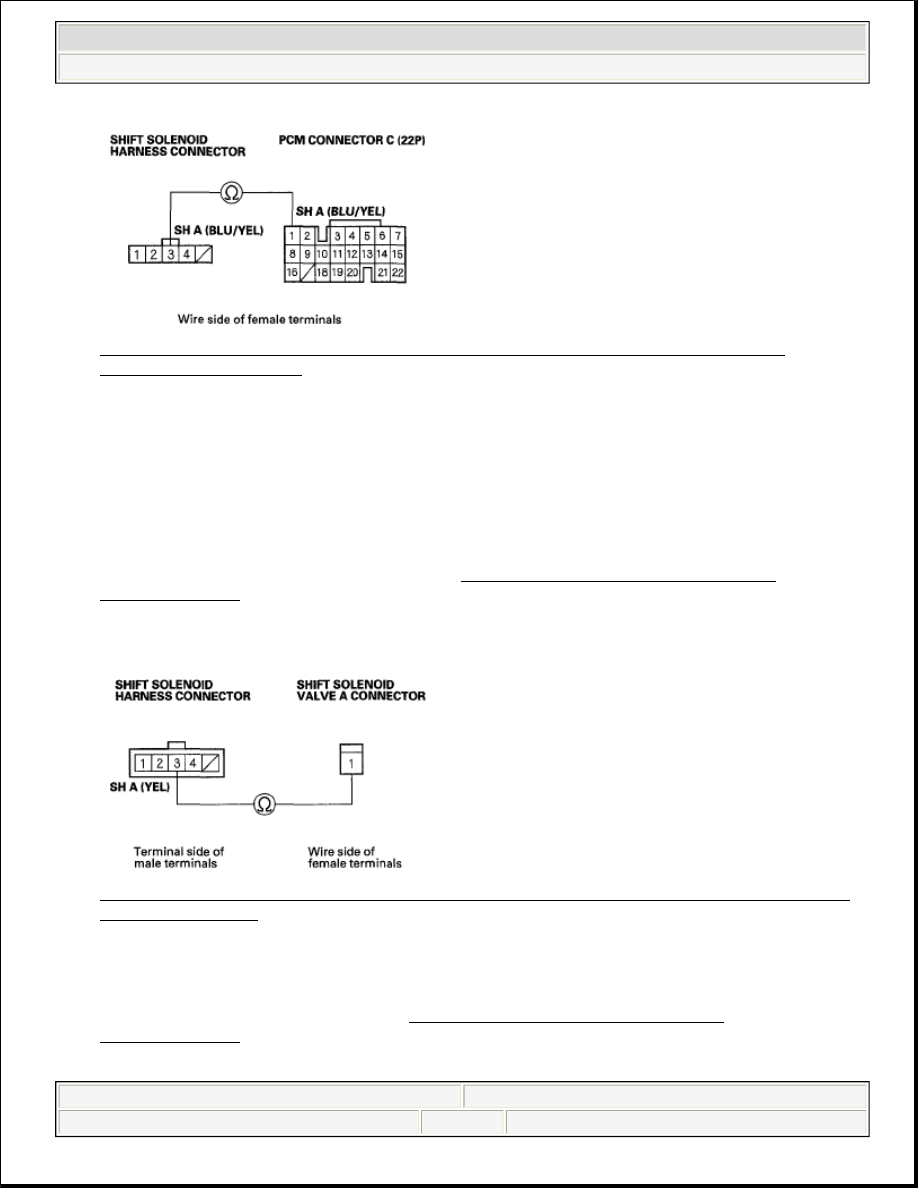

Fig. 164: Checking Continuity Between PCM Connector Terminal C1 And Shift Solenoid
Connector Terminal No. 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 13.

NO - Repair open in the wire between PCM connector terminal C1 and the shift solenoid harness
connector, then go to step 20.

13. Remove the shift solenoid harness connector (see SHIFT SOLENOID VALVE TEST AND

REPLACEMENT ).

14. Check for continuity between shift solenoid harness connector terminal No. 3 and the shift solenoid valve

A connector terminal.

Fig. 165: Checking Continuity Between Shift Solenoid Terminal No. 3 And Shift Solenoid Valve A
Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace shift solenoid valve A (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 227

© 2005 Mitchell Repair Information Company, LLC.

NO - Replace the shift solenoid harness (see SHIFT SOLENOID VALVE TEST AND
REPLACEMENT ), then go to step 20.

15. Connect PCM connectors A (31P), B (24P), and C(22P).

16. Update the A/T software in the PCM if it does not have the latest software (see UPDATING THE

PCM ), or substitute a known-good PCM (see SUBSTITUTING THE PCM ).

17. Start the engine in P. With the brake pedal pressed, shift to R, and wait for at least 1 second, then move

the shift lever back into P.

18. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0974 indicated?

YES - If the PCM was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ),
then recheck. If the PCM was substituted, go to step 1.

NO - Go to step 19.

19. Monitor the OBD STATUS for P0974 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?

YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the
original PCM (see PCM REPLACEMENT ). If any other DTCs were indicated on step 18, go to the
INDICATED DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve A and the PCM. If the PCM
was updated, substitute a known-good PCM (see SUBSTITUTING THE PCM ), then recheck. If the
PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, return to step 17 and
recheck.

20. Clear the DTC with the HDS.

21. Start the engine in P. With the brake pedal pressed, shift to R, and wait for at least 1 second, then move

the shift lever back into P.

22. Check for DTC(s) in the DTCs/Freeze Data in A/T Mode Menu with the HDS.

Is DTC P0974 indicated?

YES - Check for poor connections and loose terminals at shift solenoid valve A and the PCM, then go to
step 1.

NO - Go to step 23.

23. Monitor the OBD STATUS for P0974 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate PASSED?



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 228

© 2005 Mitchell Repair Information Company, LLC.

YES - Troubleshooting is complete. If any other DTCs were indicated on step 22, go to the INDICATED
DTCS TROUBLESHOOTING.

NO - Check for poor connections and loose terminals at shift solenoid valve A and the PCM, then go to
step 1. If the HDS indicates NOT COMPLETED, return to step

21

 and recheck.

DTC P0976: Short in Shift Solenoid Valve B Circuit

1. Clear the DTC with the HDS.

2. Start the engine in P, and wait for at least 1 second.

3. Check that DTC P0976 recurs.

Is DTC P0976 indicated?

YES - Go to step 7.

NO - Go to step 4.

4. Select Shift Solenoid B in Miscellaneous Test Menu, and test shift solenoid valve B with the HDS.

Is a clicking sound heard?

YES - Go to step 5.

NO - Go to step 7.

5. Start the engine in P, and wait for at least 1 second.

6. Monitor the OBD STATUS for P0976 in the DTCs/Freeze Data in A/T Mode Menu for a pass/fail.

Does the HDS indicate FAILED?

YES - Go to step 7.

NO - Intermittent failure, the system is OK at this time. Check the SH B wire for an intermittent short
between shift solenoid valve B and the PCM. If the HDS indicates NOT COMPLETED* return to step 4
and recheck.

7. Turn the ignition switch to LOCK (0).

8. Jump the SCS line with the HDS.

NOTE:



Before you troubleshoot, record all freeze data and any on-board
snapshot, and review General Troubleshooting Information (see GENERAL
TROUBLESHOOTING INFORMATION ).



This code is caused by an electrical circuit problem and cannot be caused
by a mechanical problem in the transmission.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:13 PM

Page 229

© 2005 Mitchell Repair Information Company, LLC.

9. Disconnect PCM connectors A (31P), B (24P), and C (22P).

10. Measure the resistance between PCM connector terminals C8 and A3 or B15.

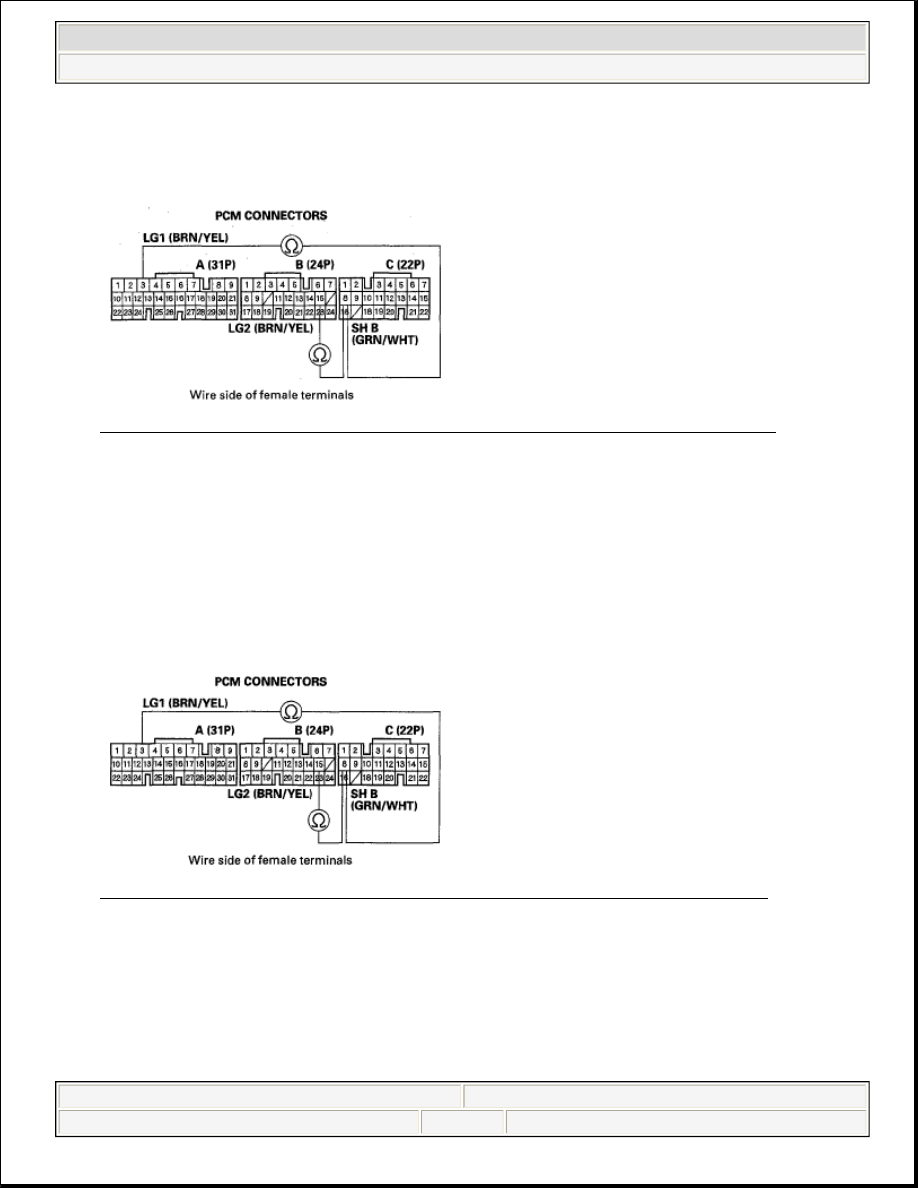

Fig. 166: Measuring Resistance Between PCM Connector Terminals C8 And A3 Or B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 12 ohms?

YES - Go to step 11.

NO - Go to step 18.

11. Disconnect the shift solenoid harness connector at the transmission housing.

12. Check for continuity between PCM connector terminals C8 and A3 or B15.

Fig. 167: Checking Continuity Between PCM Connector Terminals C8 And A3 Or B15
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between PCM connector terminal C8 and the shift solenoid harness
connector, then go to step 23.

NO - Go to step 13.
