1. Remove the high mount brake light (see HIGH MOUNT BRAKE LIGHT REPLACEMENT ).

2. Remove the cover (A) from the satellite signal XM antenna module (B), then disconnect the satellite

signal feeder connectors (C) and terrestrial signal feeder connectors (D).

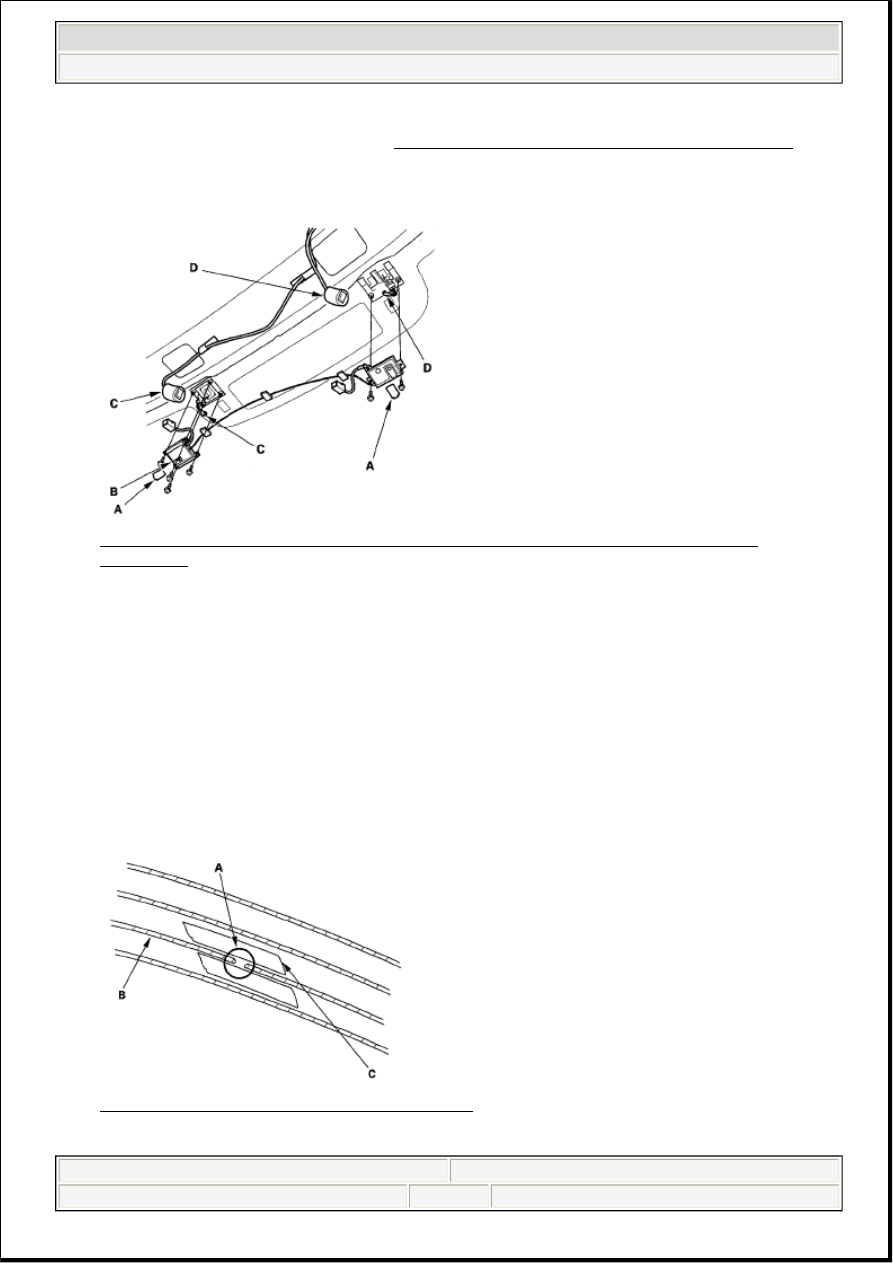

Fig. 119: Identifying Satellite Signal XM Antenna Module And Satellite Signal Feeder
Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the screws and the XM antenna module.

4. Install the unit in the reverse order of removal.

AM/FM ANTENNA REPAIR

1. Lightly rub the area around the broken section (A) with fine steel wool, then clean it with isopropyl

alcohol.

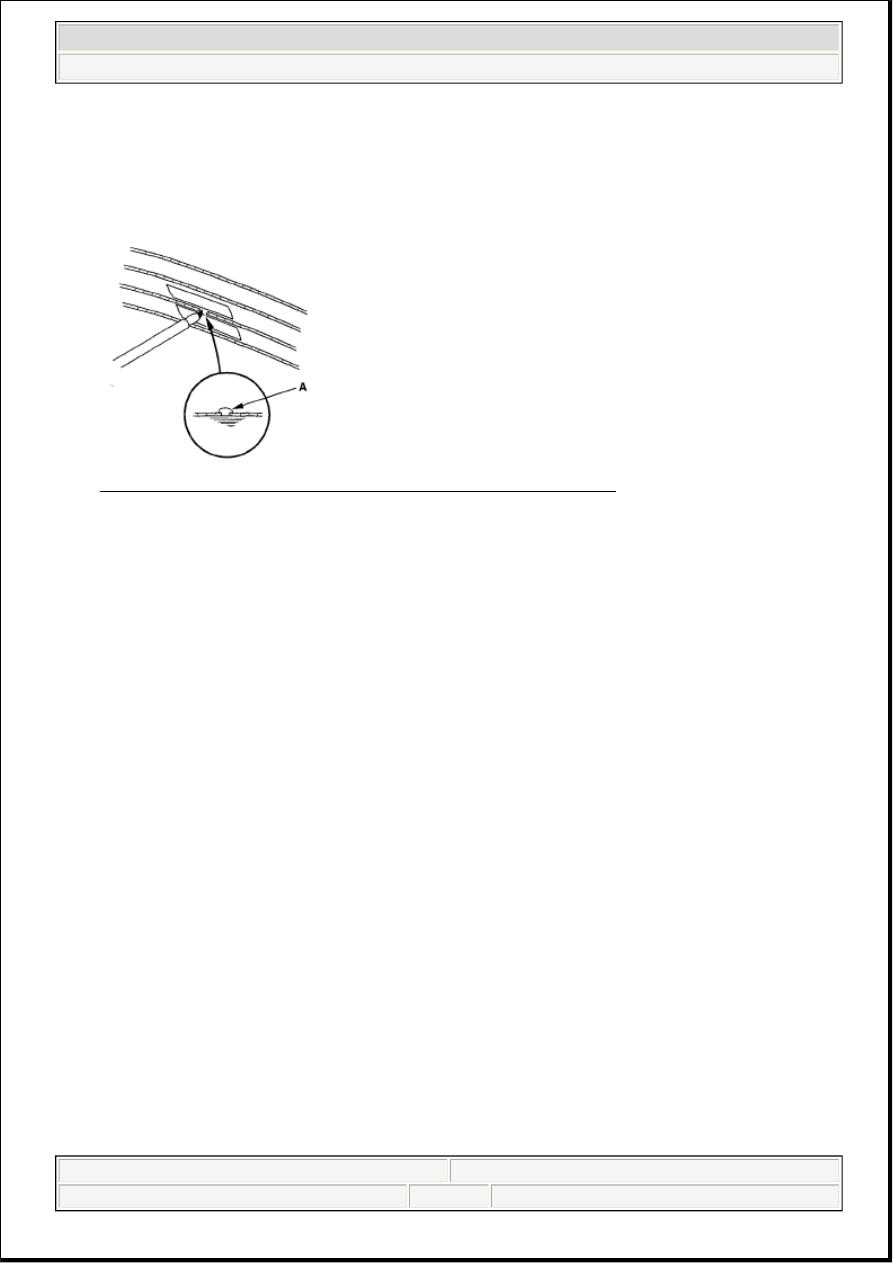

Fig. 120: Preparing AM/FM Antenna For repair
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

To make an effective repair, the broken section must not be longer than one
inch.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:08 PM

Page 106  © 2005 Mitchell Repair Information Company, LLC.

2. Carefully mask above and below the broken portion of the AM/FM antenna wire (B) with cellophane

tape (C).

3. Mix the silver conductive paint thoroughly. Using a small brush, apply a heavy coat of paint (A)

extending about 1/8" on both sides of the break. Allow 30 minutes to dry.

Fig. 121: Repairing Am/FM Antenna With Silver Conductive Paint
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check for continuity in the repaired wire.

5. Apply a second coat of paint in the same way. Let it dry 3 hours before removing the tape.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Audio System - RL



me



Friday, June 05, 2009 3:53:08 PM

Page 107  © 2005 Mitchell Repair Information Company, LLC.

2005-08 TRANSMISSION

Automatic Transmission - RL

AUTOMATIC TRANSMISSION

SPECIAL TOOLS

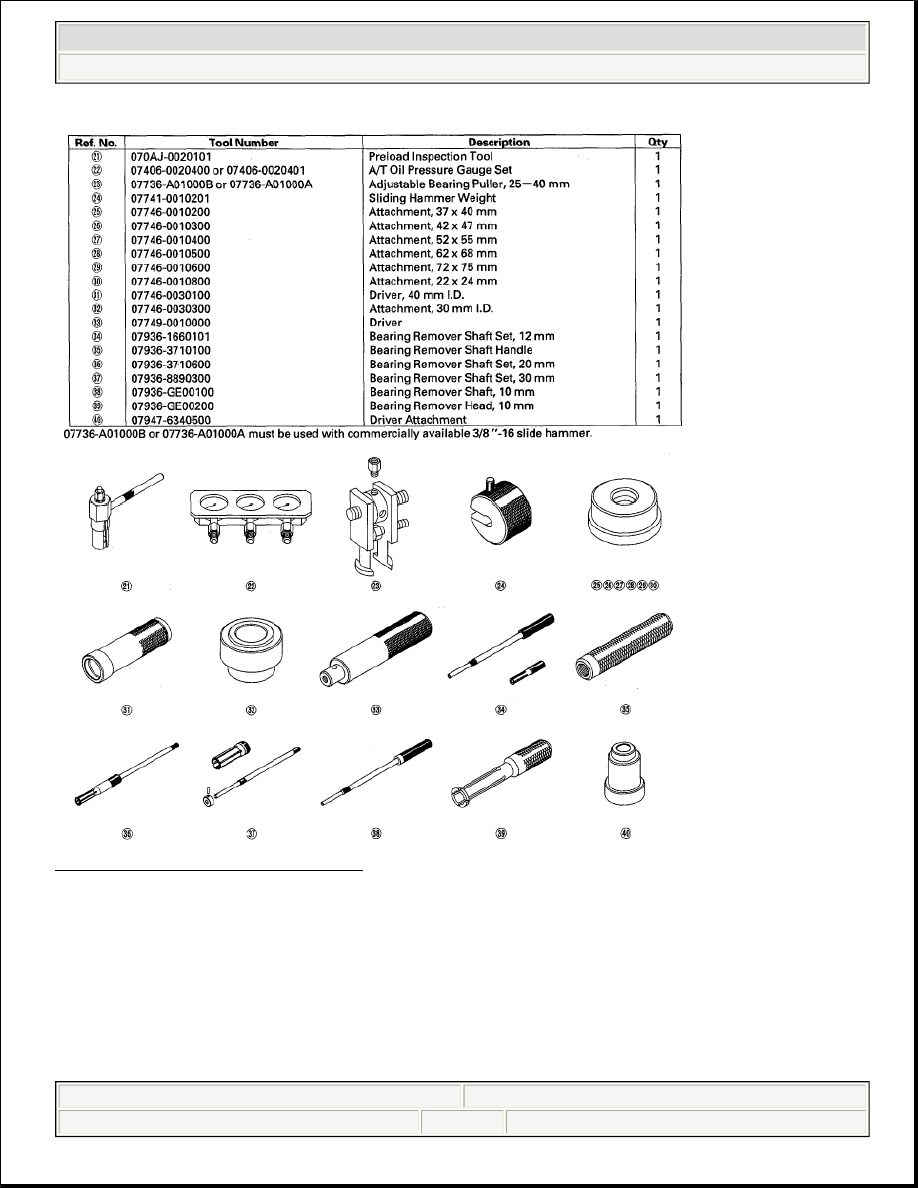

Fig. 1: Identifying Special Tools (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL





2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:10 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 1:18:25 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

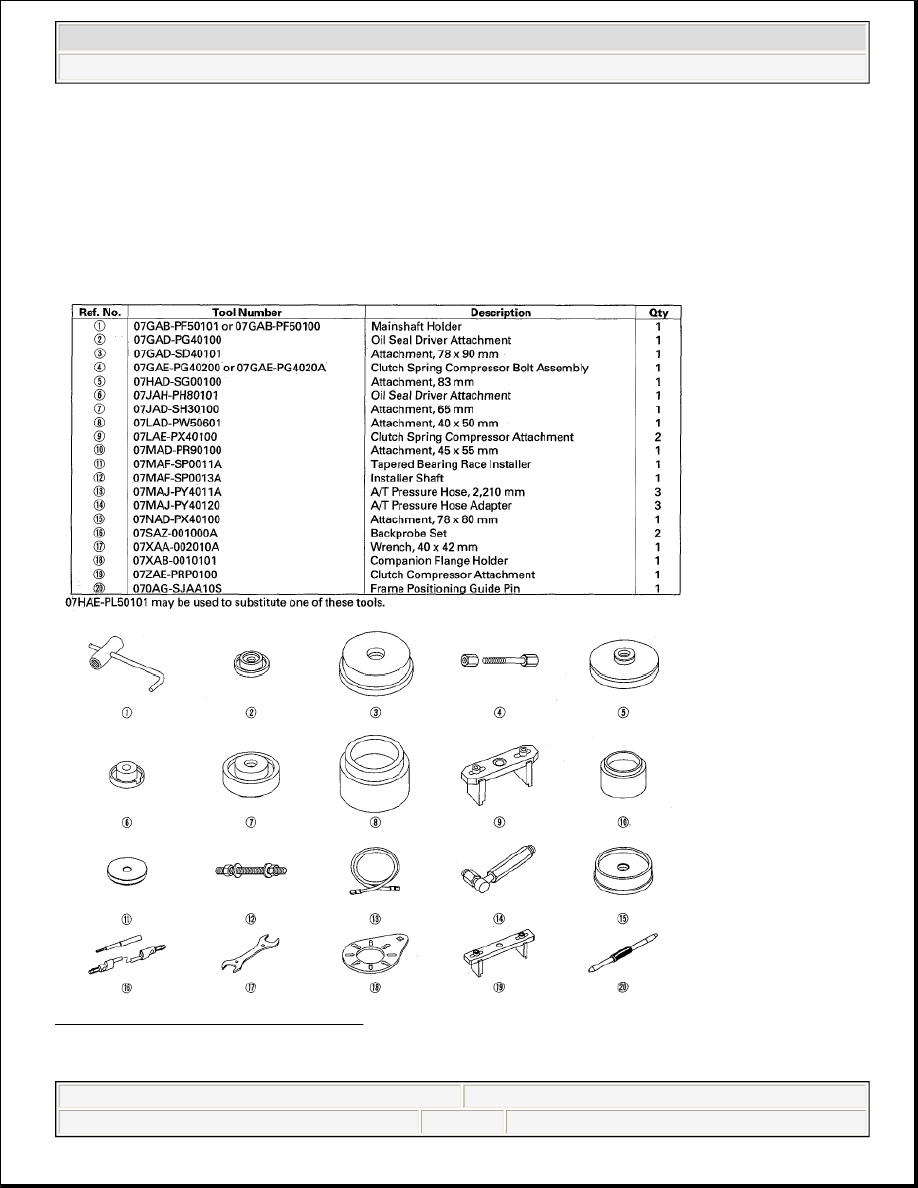

Fig. 2: Identifying Special Tools (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GENERAL TROUBLESHOOTING INFORMATION

How to Check for DTCs with the Honda Diagnostic System (HDS)

When the powertrain control module (PCM) senses an abnormality in the input or output system, the D
indicator (A) in the gauge control module (B) will usually blink.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:10 PM

Page 2
