3. Disconnect the side impact sensor (second) 2P connector (A) from the floor wire harness.

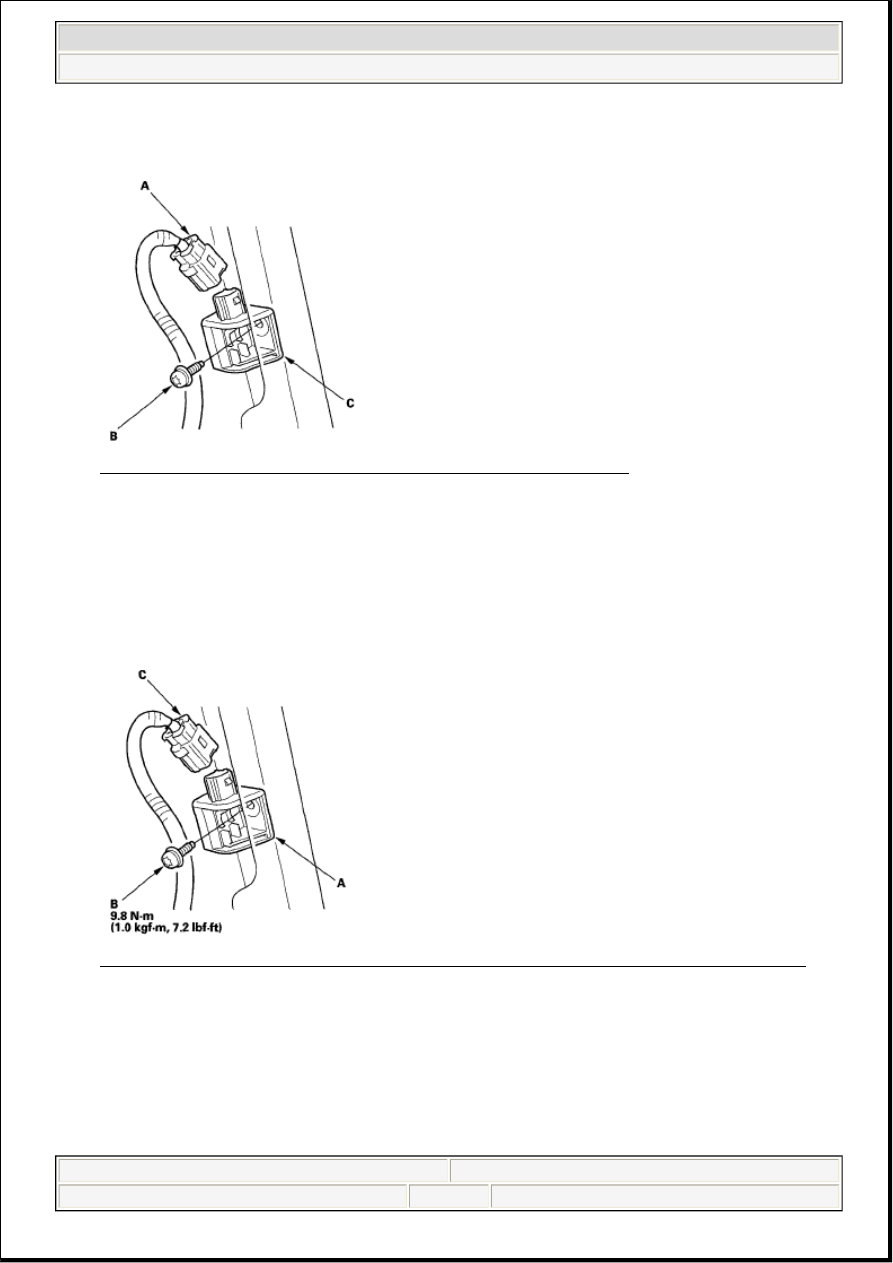

Fig. 417: Identifying Side Impact Sensor (Second) And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Using a TORX T30 bit, remove the TORX bolt (B), then remove the side impact sensor (second) (C).

INSTALLATION

1. Install the new side impact sensor (second) (A) with the TORX bolt (B), then connect the floor wire

harness 2P connector (C) to the side impact sensor (second).

Fig. 418: Identifying Side Impact Sensor (Second) And Fastener With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reconnect the negative cable to the battery.

3. Reinstall all removed parts.

4. After installing the side impact sensor (second), confirm proper system operation: Turn the ignition

switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.

REAR SAFING SENSOR REPLACEMENT



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 296  © 2005 Mitchell Repair Information Company, LLC.

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect the side curtain airbag 2P connectors (see step 5 ).

3. Remove the rear seat (see REAR SEAT REMOVAL/INSTALLATION ).

4. Disconnect the left side wire harness 2P connector from the rear safing sensor.

5. Using a TORX T30 bit, remove the TORX bolts (A), then remove the rear safing sensor (B).

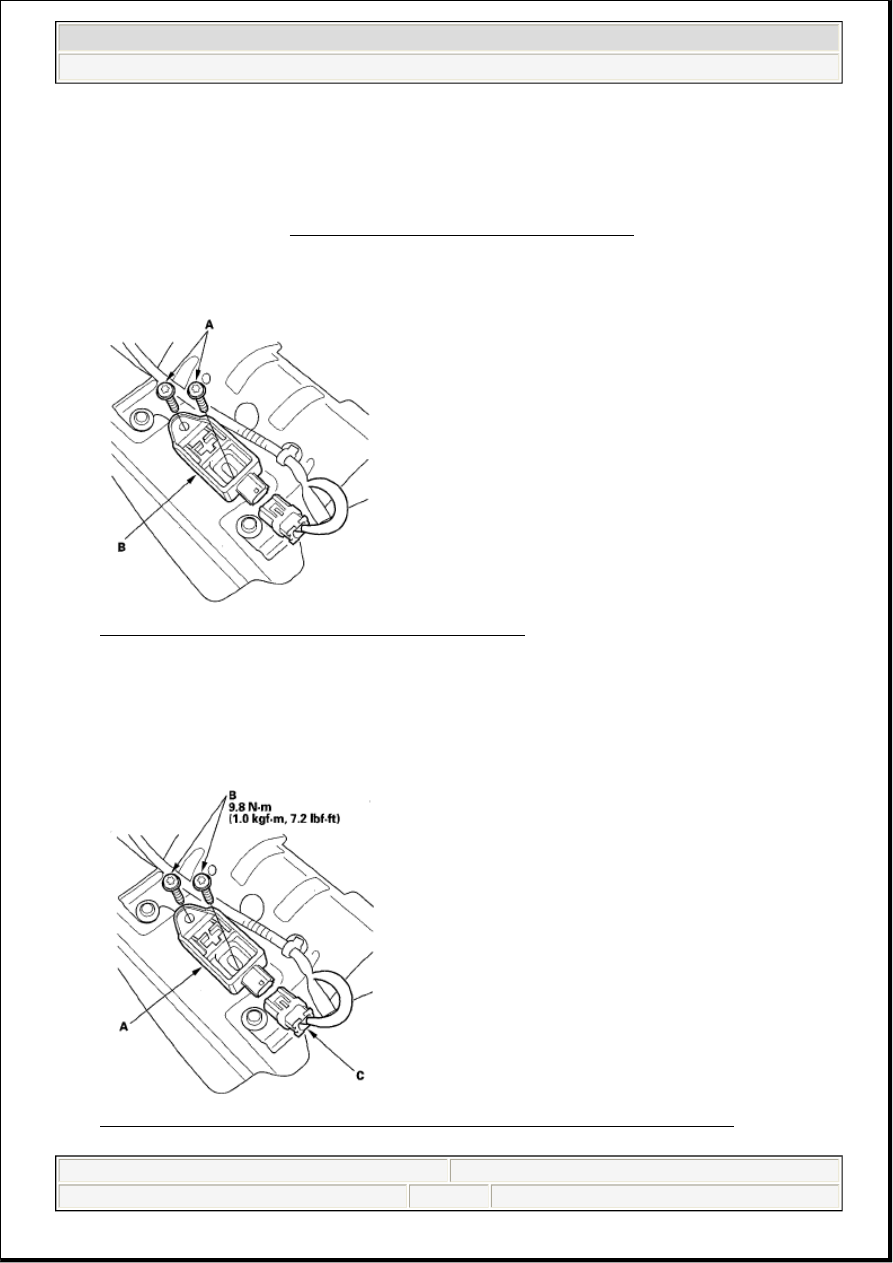

Fig. 419: Identifying Rear Safing Sensor And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSTALLATION

1. Install the new rear safing sensor (A) with the TORX bolts (B) then connect the left side wire harness

2P connector (C) to the rear safing sensor.

Fig. 420: Identifying Rear Safing Sensor And Fastener With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 297  © 2005 Mitchell Repair Information Company, LLC.

2. Reconnect the negative cable to the battery.

3. After installing the rear safing sensor, confirm proper system operation: Turn the ignition switch ON

(II); the SRS indicator should come on for about 6 seconds and then go off.

4. Reinstall all removed parts.

FRONT PASSENGER'S WEIGHT SENSOR REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Remove the front passenger's seat assembly (see FRONT SEAT REMOVAL/INSTALLATION ).

3. Remove the cushion cover/pad from the seat cushion frame (see FRONT SEAT CUSHION COVER

REPLACEMENT ).

4. Using a TORX T27 bit, remove the tamper-resistant TORX bolts (A) attaching the seat track (B) to

the front passenger's weight sensors (C).

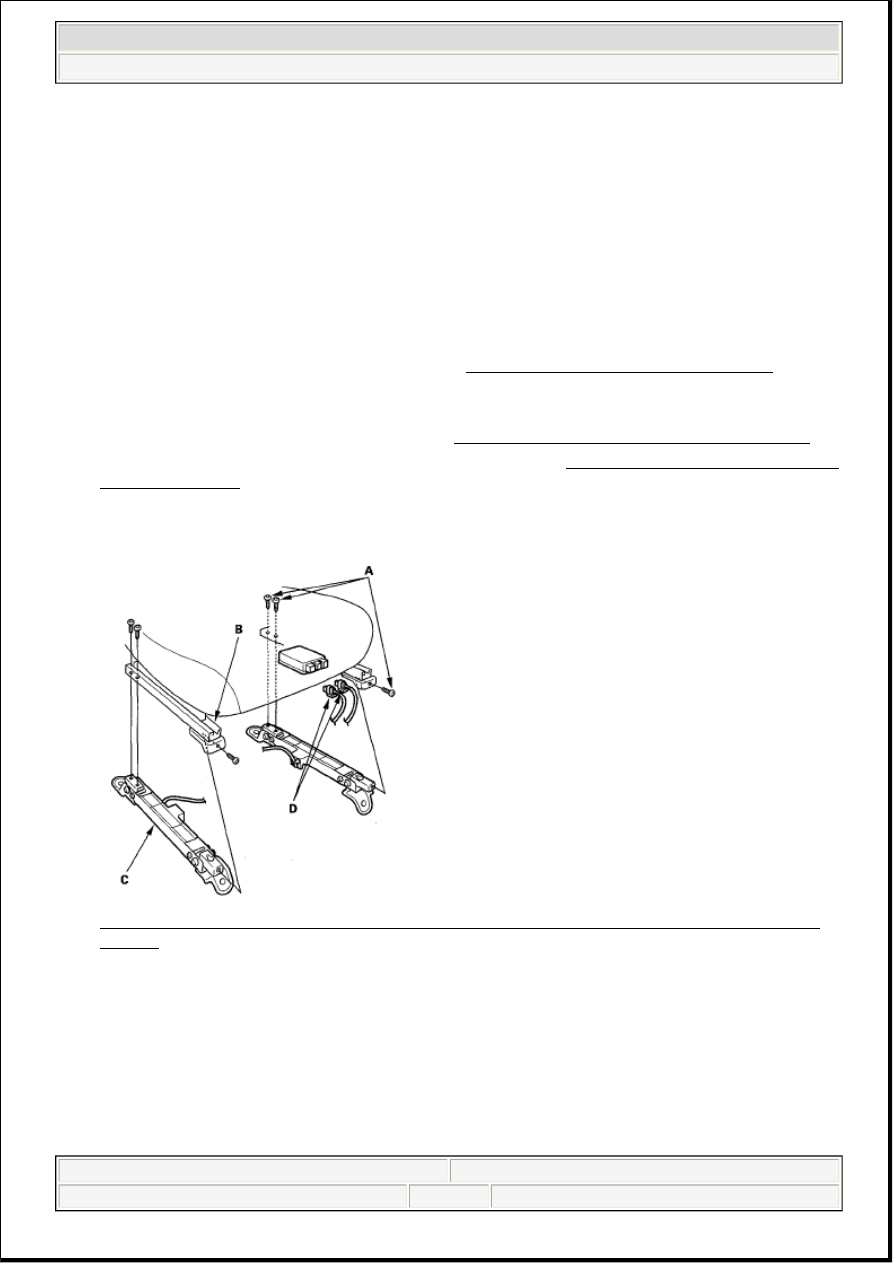

Fig. 421: Identifying Tamper-Resistant Torx Bolts, Seat Track And Front Passenger's Weight
Sensors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the sensor connectors (D) from the seat weight sensor unit, then remove the front

passenger's weight sensors.

INSTALLATION

NOTE:

Removal of the front passenger's weight sensors must be done according to
Precautions and Procedures (see PRECAUTIONS AND PROCEDURES ).

NOTE:

Be sure to install the harness wires so they are not pinched or interfering
with other parts.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 298  © 2005 Mitchell Repair Information Company, LLC.

1. Install and torque the new front passenger's weight sensors with TORX bolts (A) under the seat track.

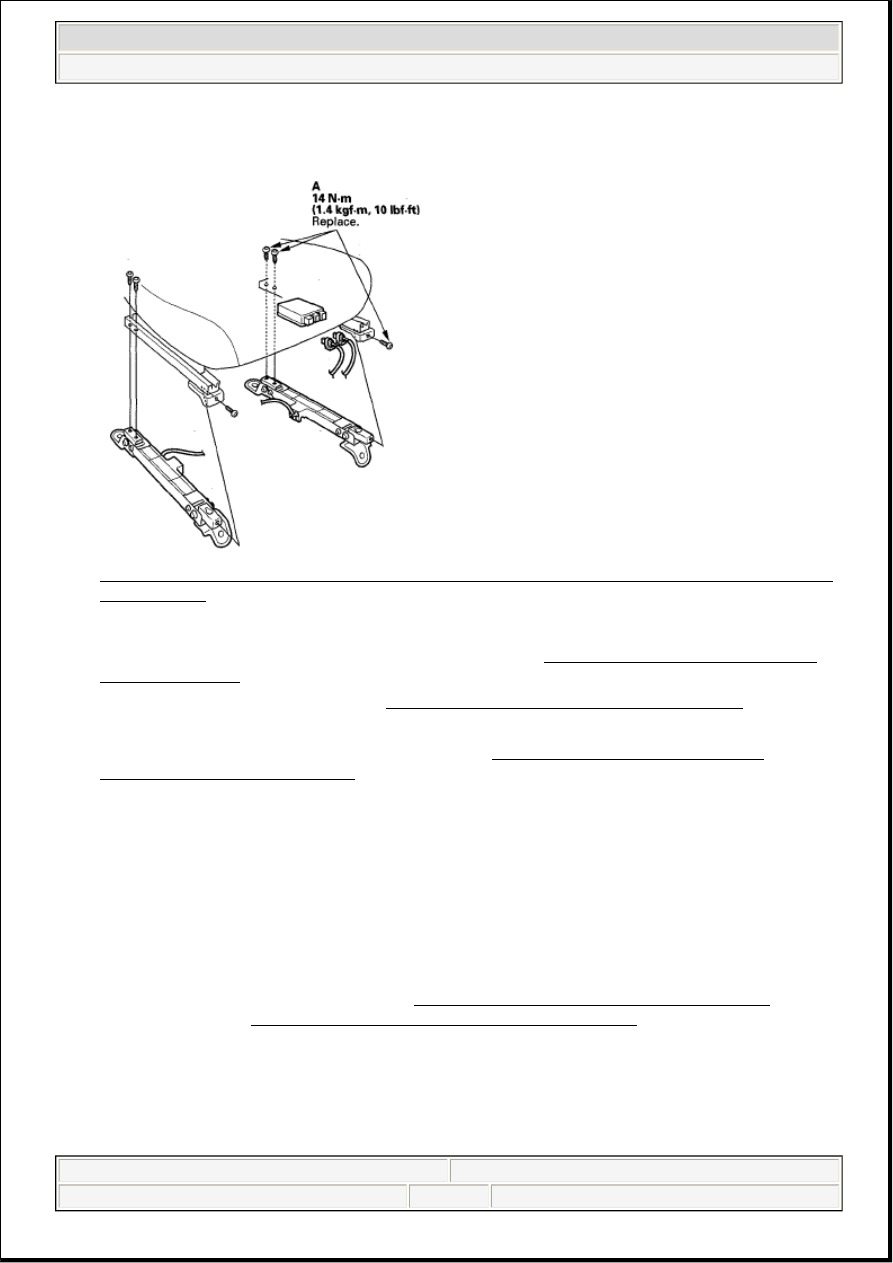

Fig. 422: Identifying Seat Track Fasteners And Front Passenger's Weight Sensors With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reassemble the front passenger's seat cushion cover/pad (see FRONT SEAT CUSHION COVER

REPLACEMENT ).

3. Reinstall the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).

4. Reconnect the negative cable to the battery.

5. Calibrate the front passenger's weight sensor unit (see FRONT PASSENGER'S WEIGHT

SENSOR UNIT CALIBRATION ).

6. After installing the front passenger's weight sensors, confirm proper system operation: Turn the

ignition switch ON (II); the SRS indicator should come for about 6 seconds and then go off.

OPDS UNIT REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect the passenger's side airbag harness 2P connector (see step 4 ).

3. Remove the passenger's seat assembly (see FRONT SEAT REMOVAL/INSTALLATION ) and

seat-back cover (see FRONT SEAT-BACK COVER REPLACEMENT ).

4. Remove the cover (A), then disconnect the OPDS unit 8P connector (D) and sensor connectors (C)

from the OPDS unit (B).
