7. Position the two tabs (A) of the turn signal cancelling sleeve (B) as shown, and install the steering

wheel on the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of
the cable reel and tabs of the turn signal cancelling sleeve. Do not tap on the steering wheel or steering
column shaft when installing the steering wheel.

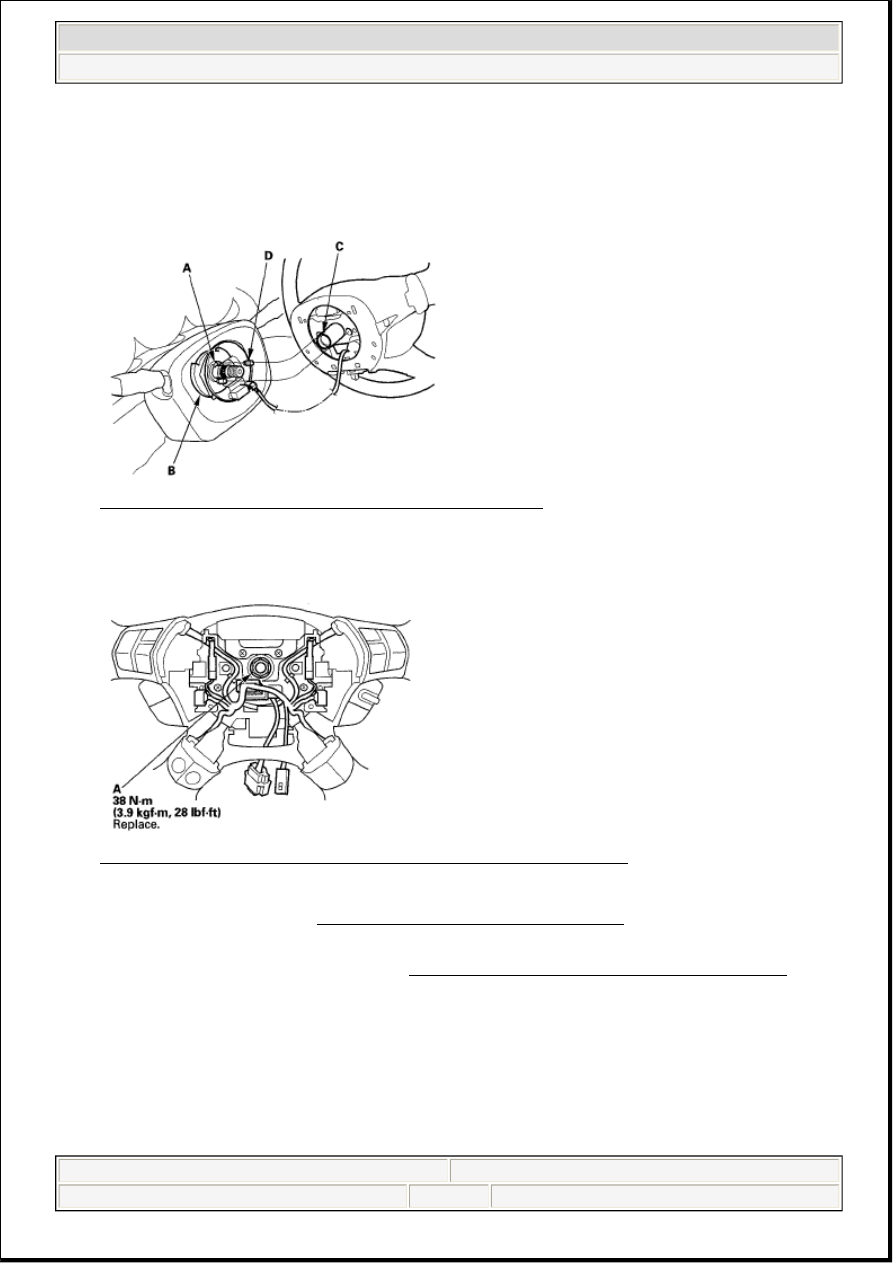

Fig. 411: Preparing To Install Steering Wheel To Column
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install and torque a new steering wheel nut (A), then reconnect the connector.

Fig. 412: Identifying Steering Wheel Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).

10. Reconnect the negative cable to the battery.

11. Connect the HDS and clear the DTCs (see CLEAR THE DTC MEMORY WITH THE HDS ).

12. After installing the cable reel, confirm proper system operation:



Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and
then go off.



After the SRS indicator has turned off, turn the steering wheel fully left and right to confirm the
indicator does not come on.



Make sure the horn and turn signal switches work properly.



Make sure the cruise control buttons work.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 292  © 2005 Mitchell Repair Information Company, LLC.



Make sure the steering wheel audio controls work.



Make sure the INFO/SEL buttons work.

SRS UNIT REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect both seat belt tensioner connectors (see step 6 ).

3. Remove the center console trim (see CENTER TRIM REMOVAL/INSTALLATION ).

4. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

5. Remove the rear vent duct (see step 6 under DASHBOARD/STEERING HANGER BEAM

REMOVAL/INSTALLATION ).

6. Disconnect SRS unit connector A (28P), SRS unit connector B (28P), SRS unit connector C (28P),

and remove the TORX bolts (D), then pull out the SRS unit.

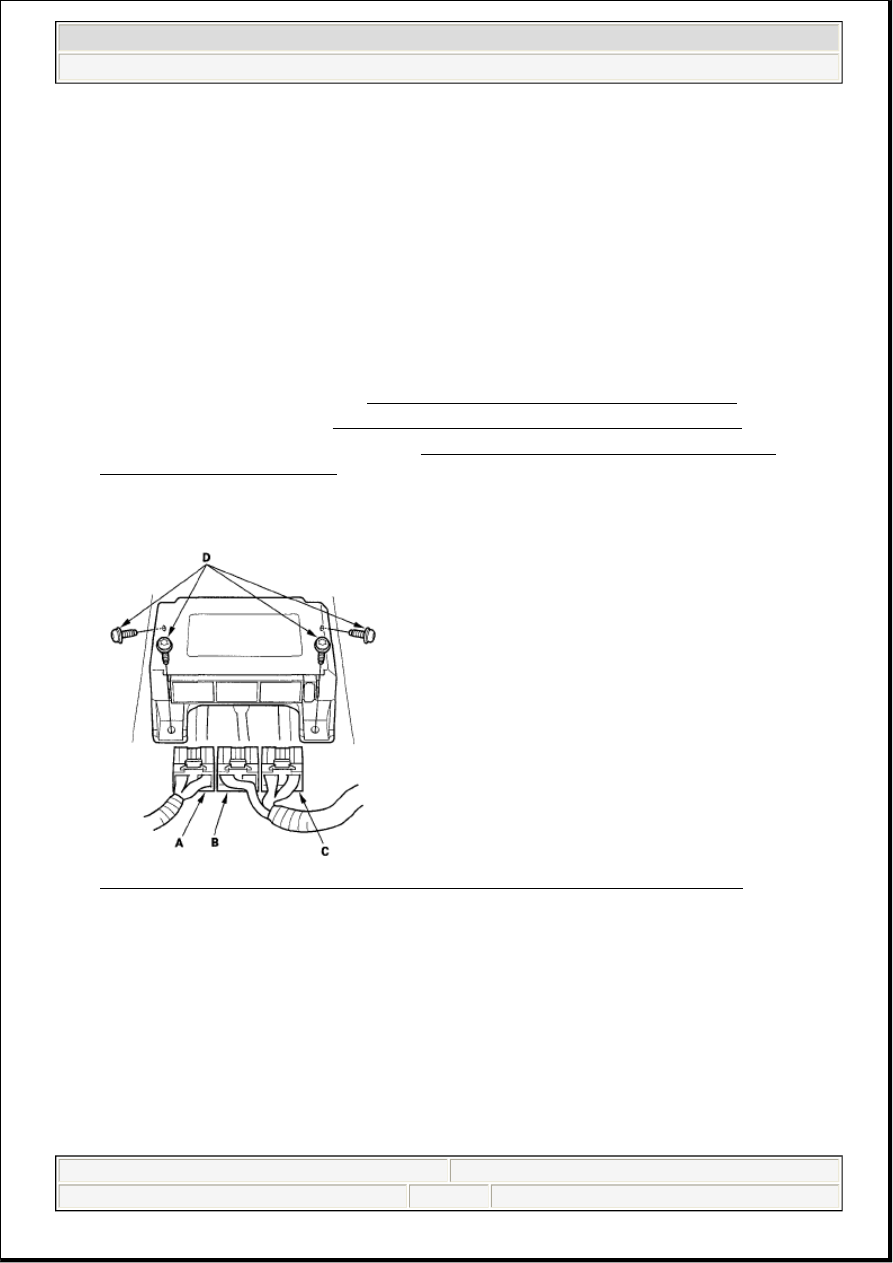

Fig. 413: Identifying SRS Unit, Connectors A (28P), B (28P), C (28P) And Fasteners
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSTALLATION

1. Install the new SRS unit (A) with the TORX bolts (B), then connect the connectors (C) to the SRS

unit; push them into position until they click.

NOTE:

If you are only disconnecting SRS unit connector A, skip step 2.

NOTE:

Be sure the SRS unit is sitting squarely against its bracket before
torquing the TORX bolts.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 293  © 2005 Mitchell Repair Information Company, LLC.

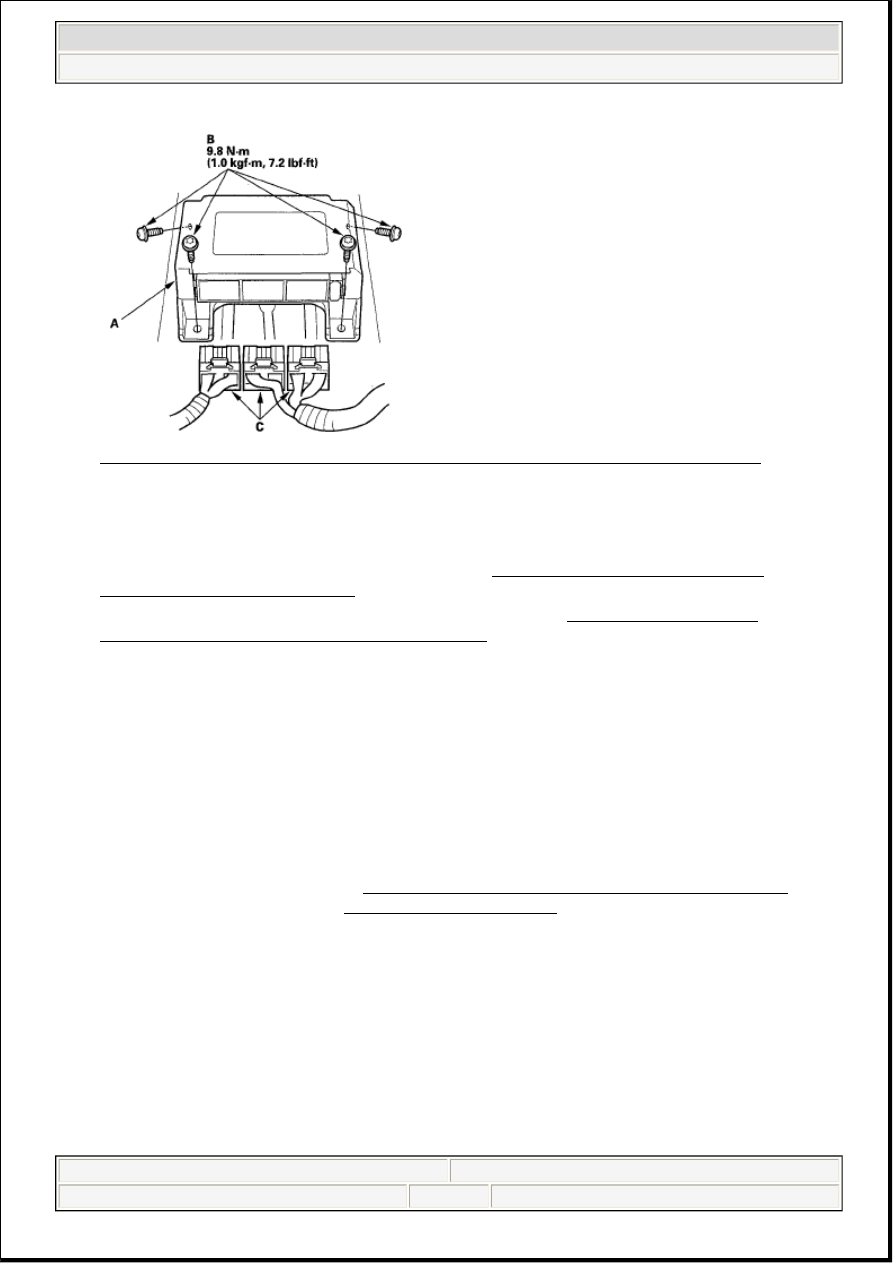

Fig. 414: Identifying SRS Unit, Connectors And Fasteners With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reconnect both seat belt tensioner connectors (see step 6 ).

3. Reconnect the negative cable to the battery.

4. Calibrate the front passenger's weight sensor unit (see FRONT PASSENGER'S WEIGHT

SENSOR UNIT CALIBRATION ).

5. Do the front passenger's weight sensor unit operation check (see FRONT PASSENGER'S

WEIGHT SENSOR UNIT OPERATION CHECK ).

6. After installing the SRS unit, confirm proper system operation: Turn the ignition switch ON (II); the

SRS indicator should come on for about 6 seconds and then go off.

7. Reinstall all removed parts.

SIDE IMPACT SENSOR (FIRST) REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect the appropriate side airbag 2P connector (see step 4 ).

3. Remove the front door sill trim (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ) and

the B-pillar lower trim panel (see B-PILLAR LOWER TRIM ).

4. Disconnect the floor wire harness 2P connector from the side impact sensor (first).

5. Using a TORX T30 bit, remove the TORX bolt (A), then remove the side impact sensor (first) (B).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:58 PM

Page 294  © 2005 Mitchell Repair Information Company, LLC.

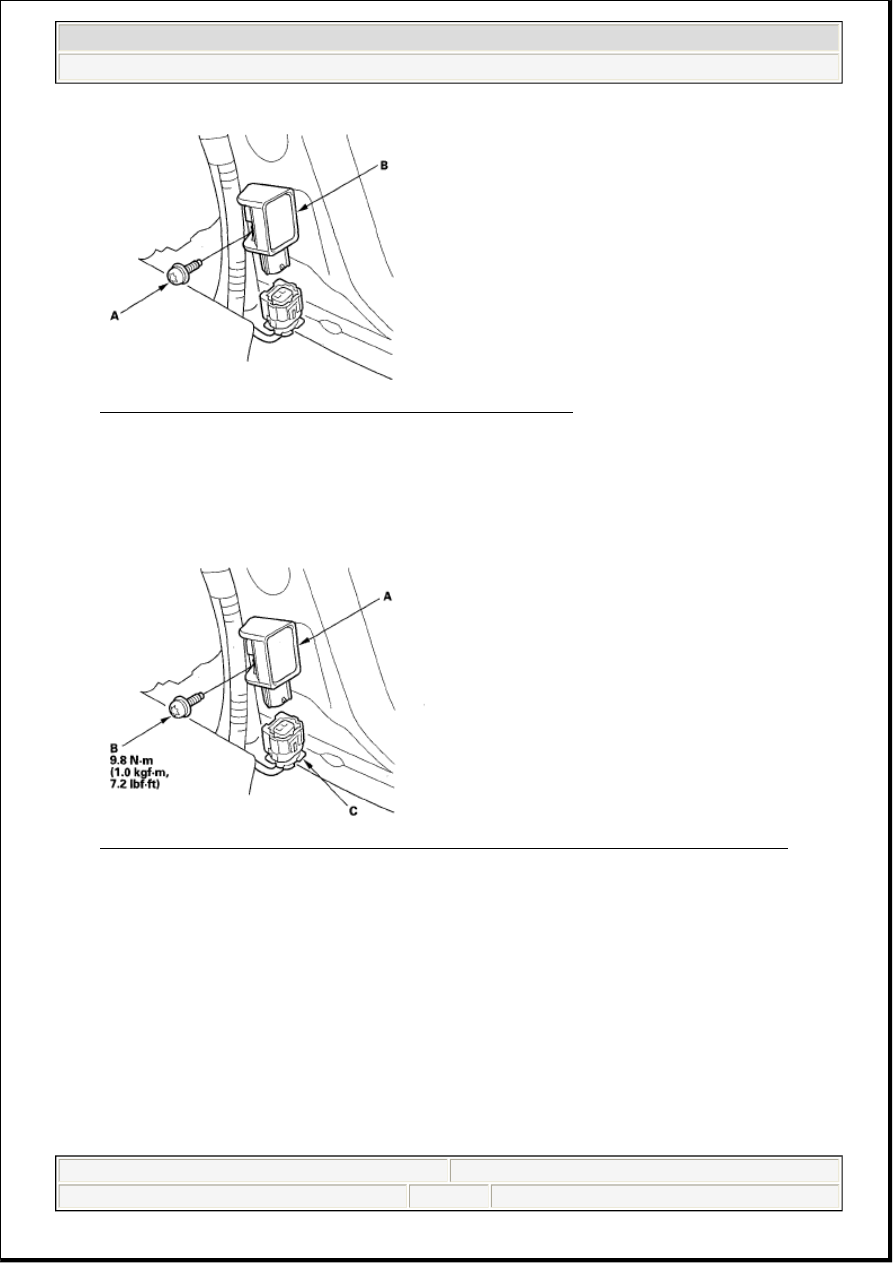

Fig. 415: Identifying Fastener And Side Impact Sensor (First)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSTALLATION

1. Install the new side impact sensor (first) (A) with the TORX bolt (B), then connect the floor wire

harness 2P connector (C) to the side impact sensor (first).

Fig. 416: Identifying Side Impact Sensor (First) And Fastener With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reconnect the negative cable to the battery.

3. Reinstall all removed parts.

4. After installing the side impact sensor (first), confirm proper system operation: Turn the ignition

switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.

SIDE IMPACT SENSOR (SECOND) REPLACEMENT

REMOVAL

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

2. Disconnect the appropriate side curtain airbag 2P connector (see step 5 ).
