０１

ＳＮＲ９Ａ００Ｊ３２３０００３０１１１ＦＨＡＴ００

０１

ＳＮＲ９ＡＢＤＪ３２３０００６３１０１ＦＨＡＴ００

Glove Box Light: 3.4 W

Vanity Mirror Light: 2 W

’08-09 models

22-199

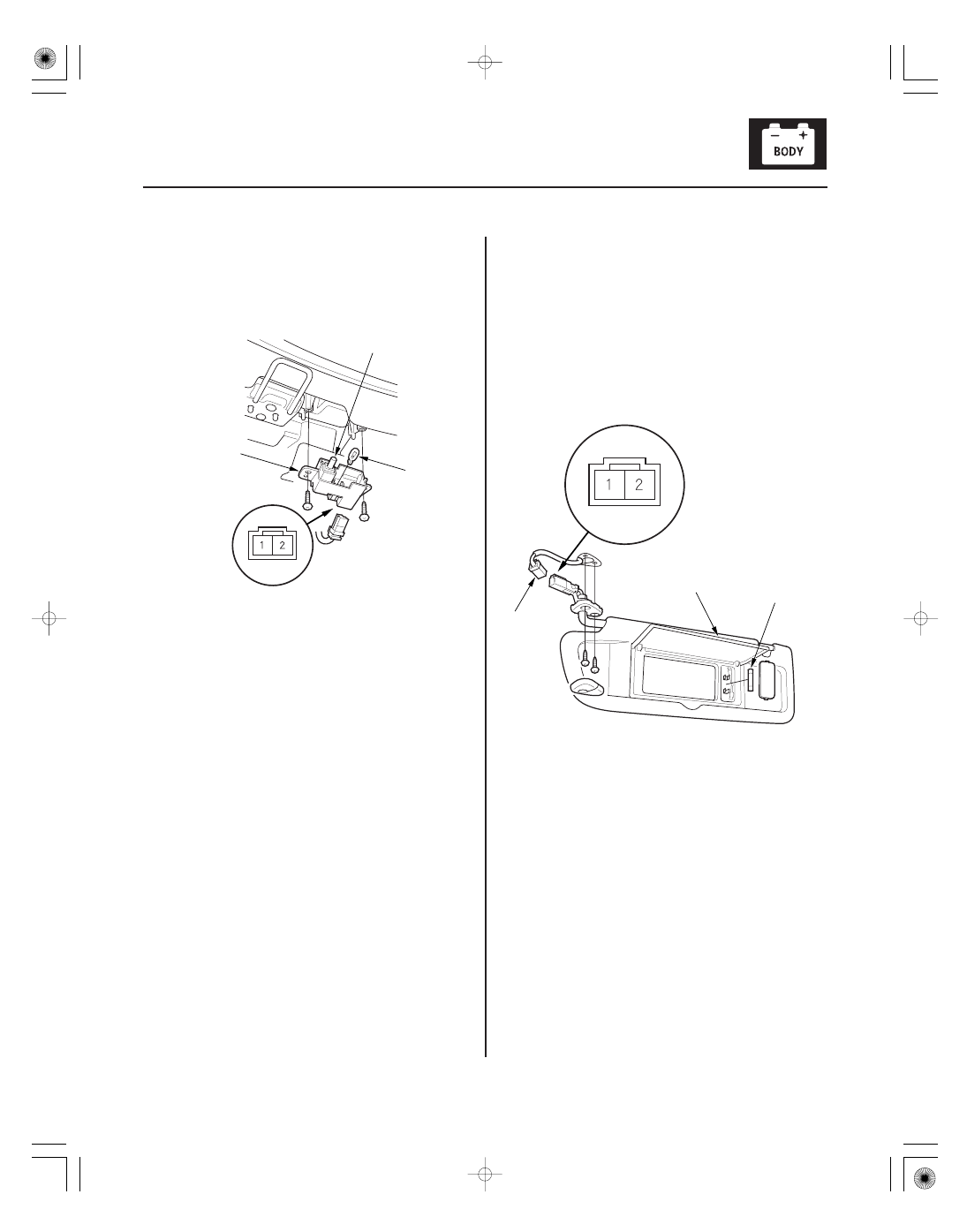

Glove Box Light Test/Replacement

Vanity Mirror Light Test/
Replacement

1. Open the glove box.

2. Remove the screws, then disconnect the 2P

connector from the glove box light (A).

3. Check for continuity between terminals No. 1 and

No. 2.

• There should be continuity with the switch (B)

released.

• There should be no continuity with the switch (B)

pushed.

4. If the continuity is not as specified, check the bulb

(C). If the bulb is OK, replace the light.

5. Install the glove box light in the reverse order of

removal.

1. Open the sunvisor.

2. Remove the sunvisor (see page 20-84).

3. Disconnect the 2P connector (A) from the vanity

mirror light.

4. Check for continuity between terminals No. 1 and

No. 2.

• With the vanity mirror cover (B) opened, there

should be continuity.

• With the vanity mirror cover closed, there should

be no continuity.

5. If the continuity is not as specified, replace the bulb

6. Install the vanity mirror light in the reverse order of

removal.

08/08/21 14:27:51 61SNR030_220_0201

＊０１

ＳＮＲ９ＡＢ９Ｊ３２３０００３５０６１ＦＨＡＴ００

０１

ＳＮＲ９Ａ００Ｊ３２３７３７６０２０１ＦＥＡＴ０２

With moonroof

22-200

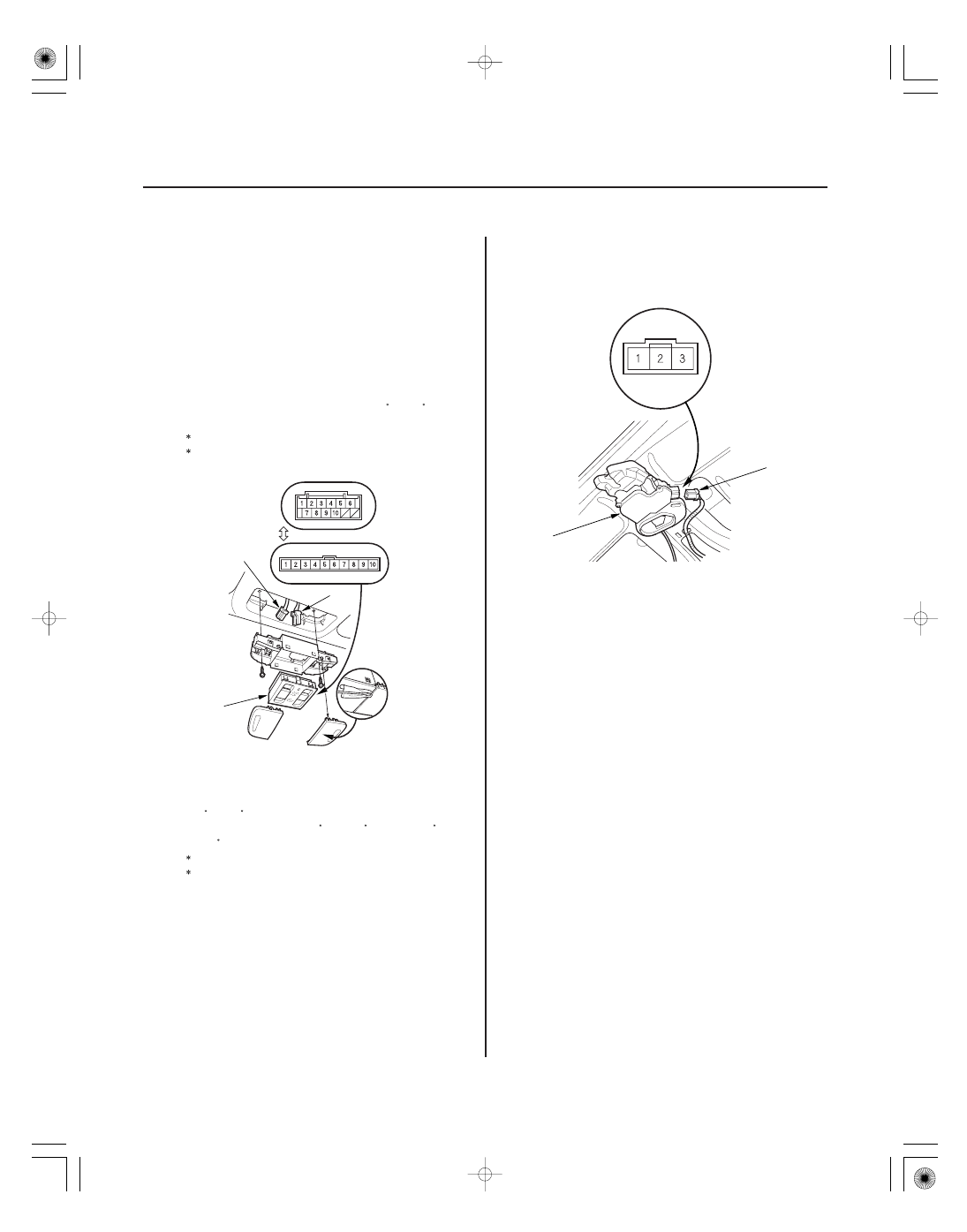

Interior Lights

Interior Light Switch Test/
Replacement

Trunk Lid Latch Switch Test

’06-07 models

’08-09 models

NOTE: The interior light switch is built into the
moonroof switch, and it switches the front individual
map light OFF and DOOR positions.

1. Remove the front individual map lights (see page

22-196).

2. Disconnect the moonroof switch 10P

(12P )

connector (A) and map light 3P connector (B).

1: ’06-07 models
2: ’08-09 models

3. Remove the moonroof switch (C).

4. Check for continuity between moonroof switch

10P

(12P ) connector check for continuity

between terminals No. 1

(No. 7 ) and No. 8

(No. 9 ).

1: ’06-07 models
2: ’08-09 models

• There should be continuity when the interior light

switch is in the DOOR position.

• There should be no continuity when the interior

light switch is in the OFF position.

5. If the continuity check is not as specified, replace

the switch.

6. Install the interior light switch in the reverse order

of removal.

1. Open the trunk lid.

2. Disconnect the 3P connector (A) from the trunk lid

latch assembly (B).

3. Check for continuity between terminals No. 2 and

No. 3.

• There should be continuity with the trunk lid

open.

• There should be no continuity with the trunk lid

closed.

4. If the continuity is not as specified, replace the

trunk lid latch assembly.

08/08/21 14:27:51 61SNR030_220_0202

＊０１

＊０２

ＳＮＲ９ＡＧＣＪ３２３０００２７１５７ＦＨＡＴ００

＋

−

＋

−

TYPE S model

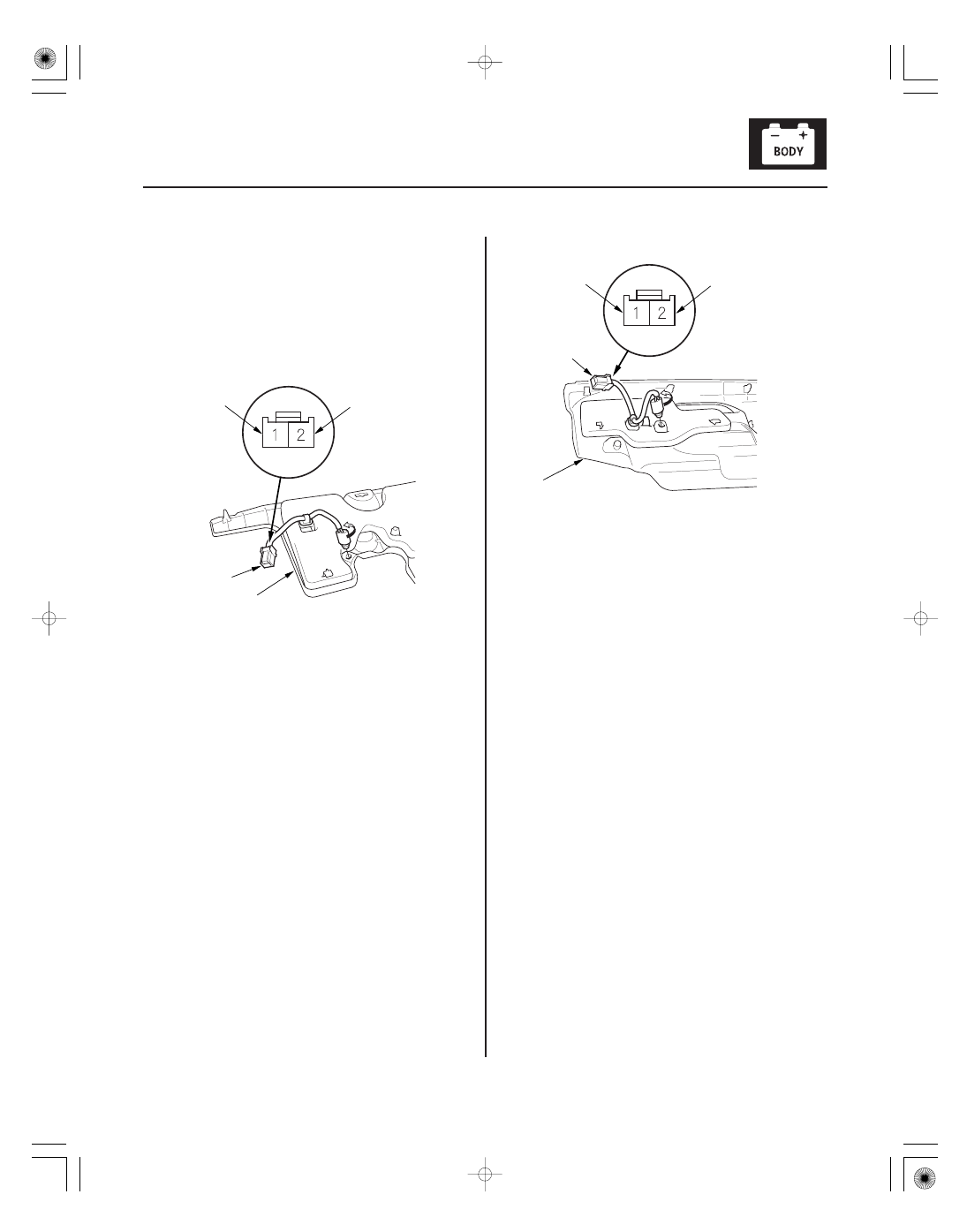

Driver’s Footwell Light

Front Passenger’s Footwell Light

22-201

Footwell Light Test/Replacement

(

)

(

)

(

)

(

)

1. Remove the dashboard undercover (A).

• Driver’s dashboard undercover (see page 20-103)
• Passenger’s dashboard undercover (see page

20-104)

2. The LED should come on when power is connected

to footwell light illumination 2P connector (B)
terminal No. 1 and ground is connected to terminal
No. 2.

3. If the LED does not come on, replace the footwell

light.

4. Install the footwell light in the reverse order of

removal.

Wire side of
female terminals

08/08/21 14:27:52 61SNR030_220_0203

＊０１

ＳＮＲ９Ａ００Ｊ３２３２３３０００００ＤＡＡＴ００

22-202

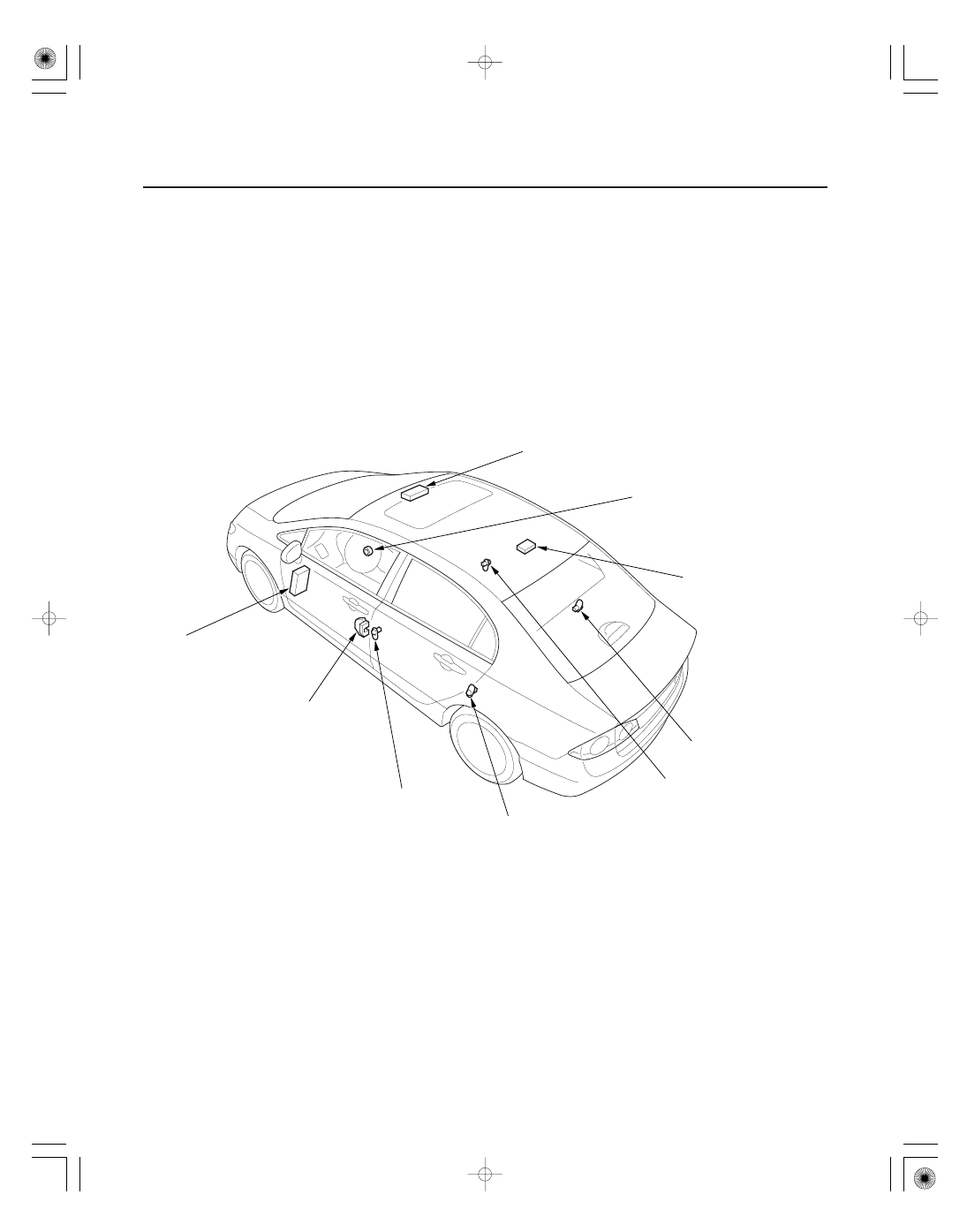

Entry Lights Control System

Component Location Index

CEILING LIGHT

FRONT INDIVIDUAL MAP LIGHTS

MICU
(Built into the under-
dash fuse/relay box)

IGNITION KEY SWITCH

DRIVER’S DOOR SWITCH

LEFT REAR DOOR SWITCH

RIGHT REAR DOOR SWITCH

FRONT PASSENGER’S
DOOR SWITCH

DRIVER’S DOOR LOCK
KNOB SWITCH

IGNITION KEY LIGHT

DRIVER’S DOOR
KEY CYLINDER SWITCH

Test/Replacement,

page 22-197

Test/Replacement (With moonroof),

page 22-196

Input Test, page 22-204

Test, page 22-207

Test, page 22-138

Test, page 22-207

Test, page 22-140

08/08/21 14:27:53 61SNR030_220_0204
